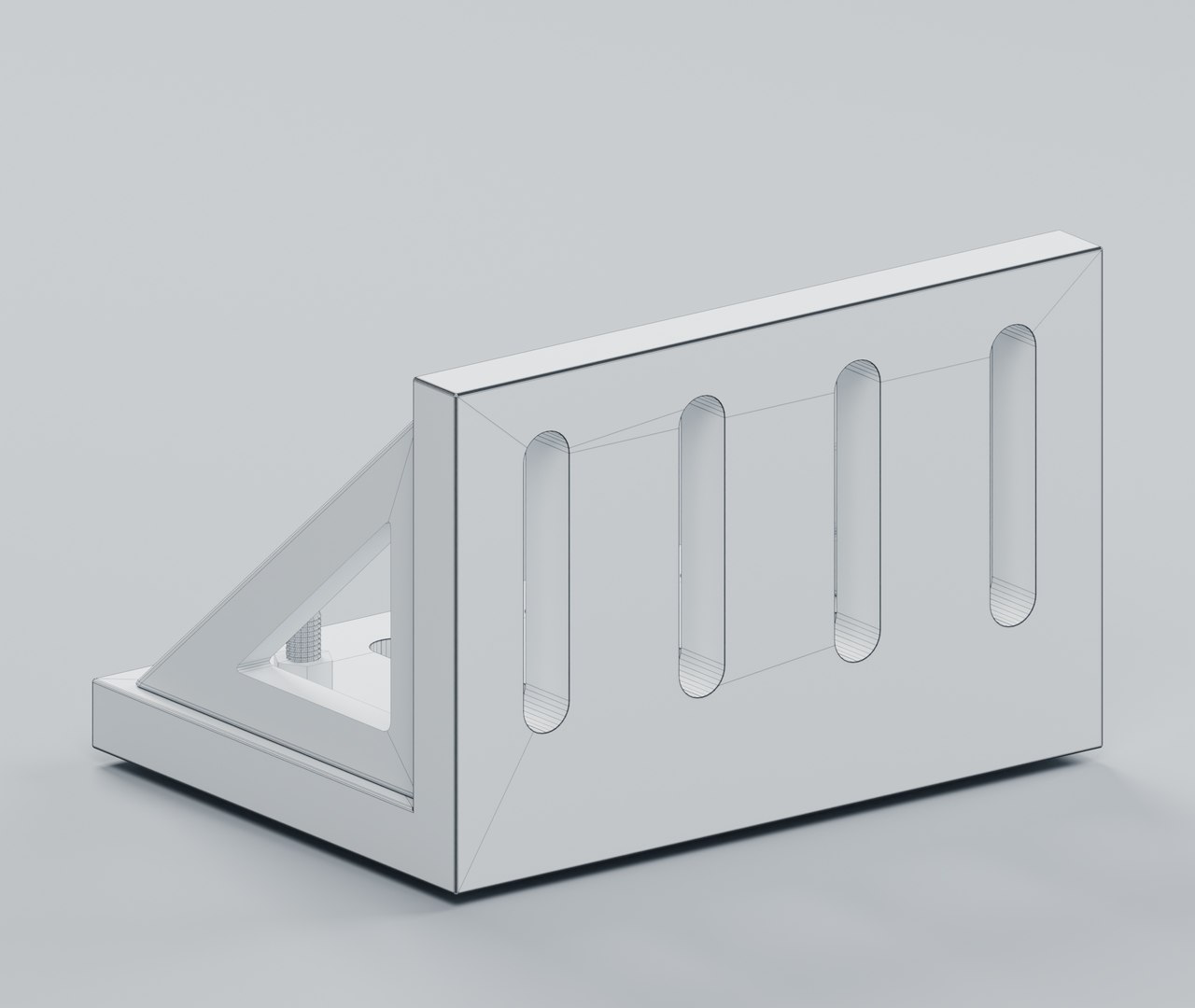

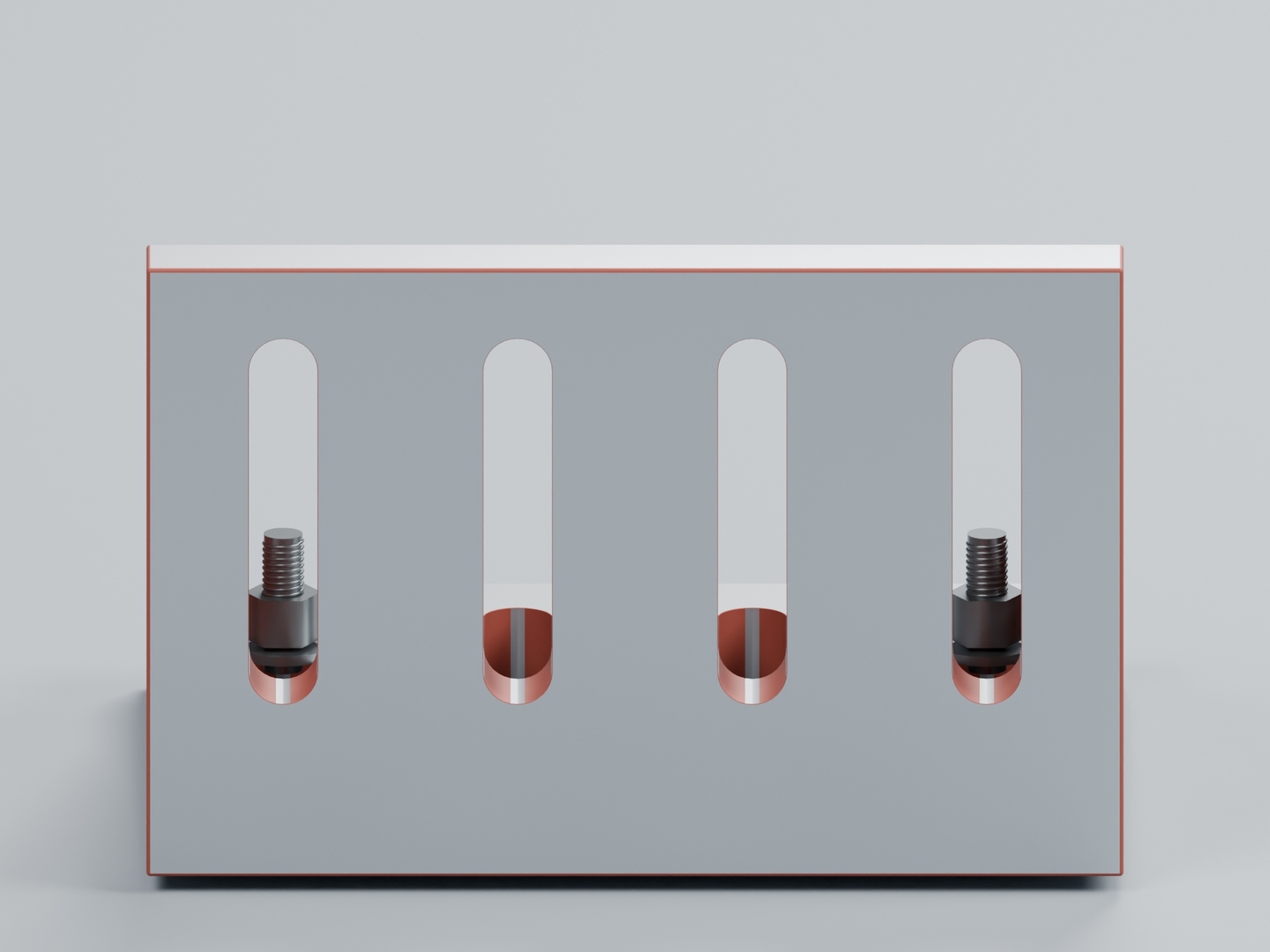

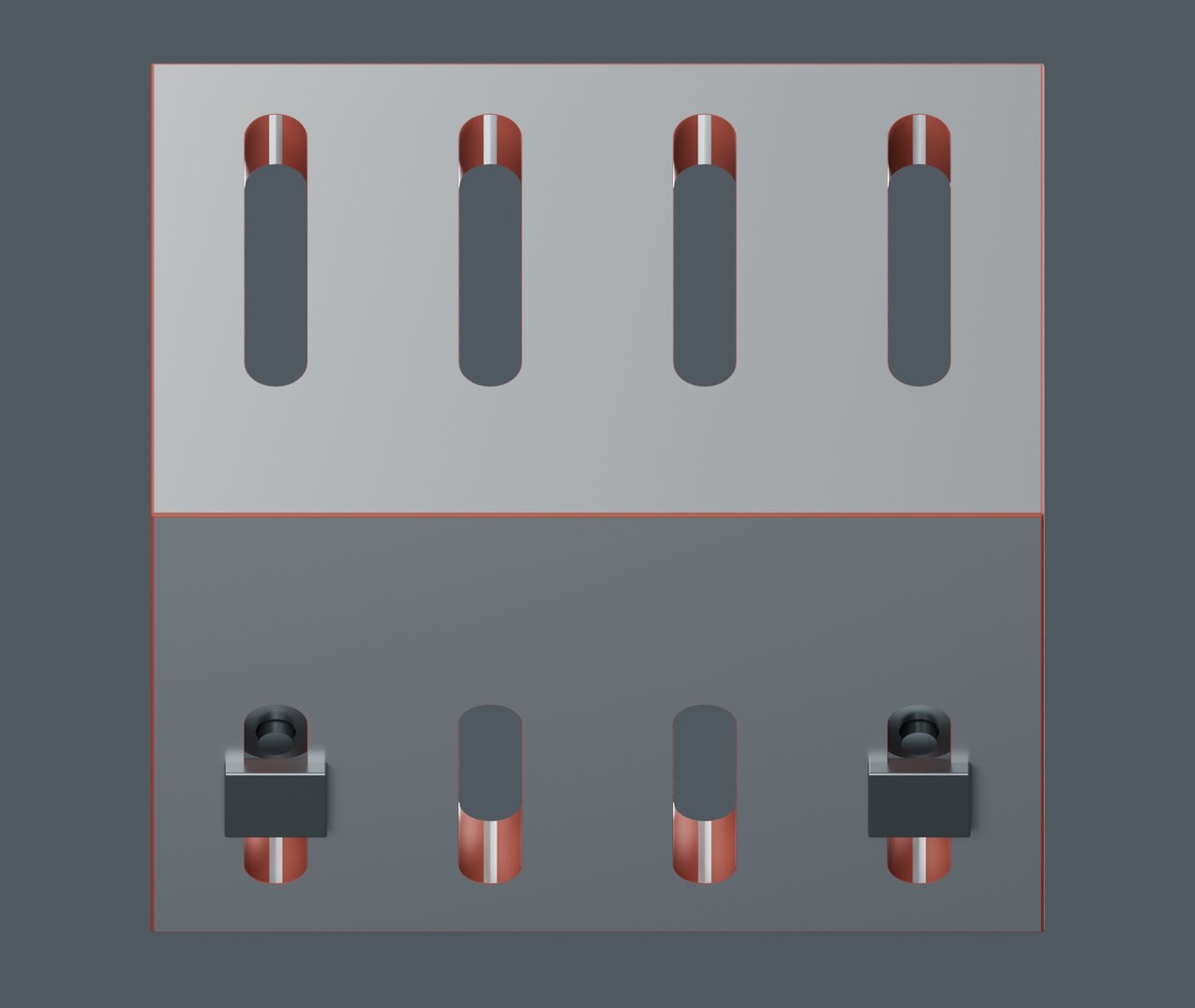

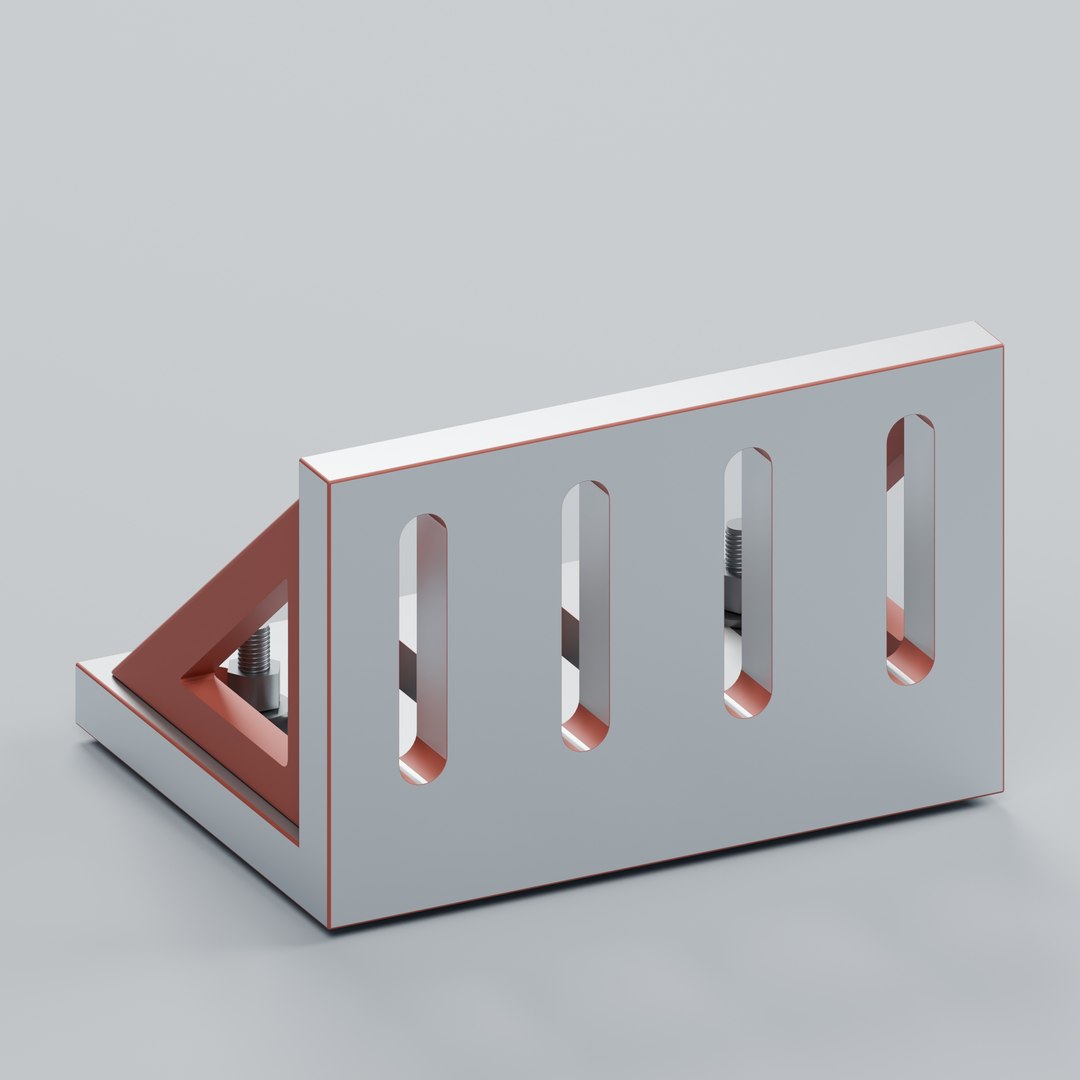

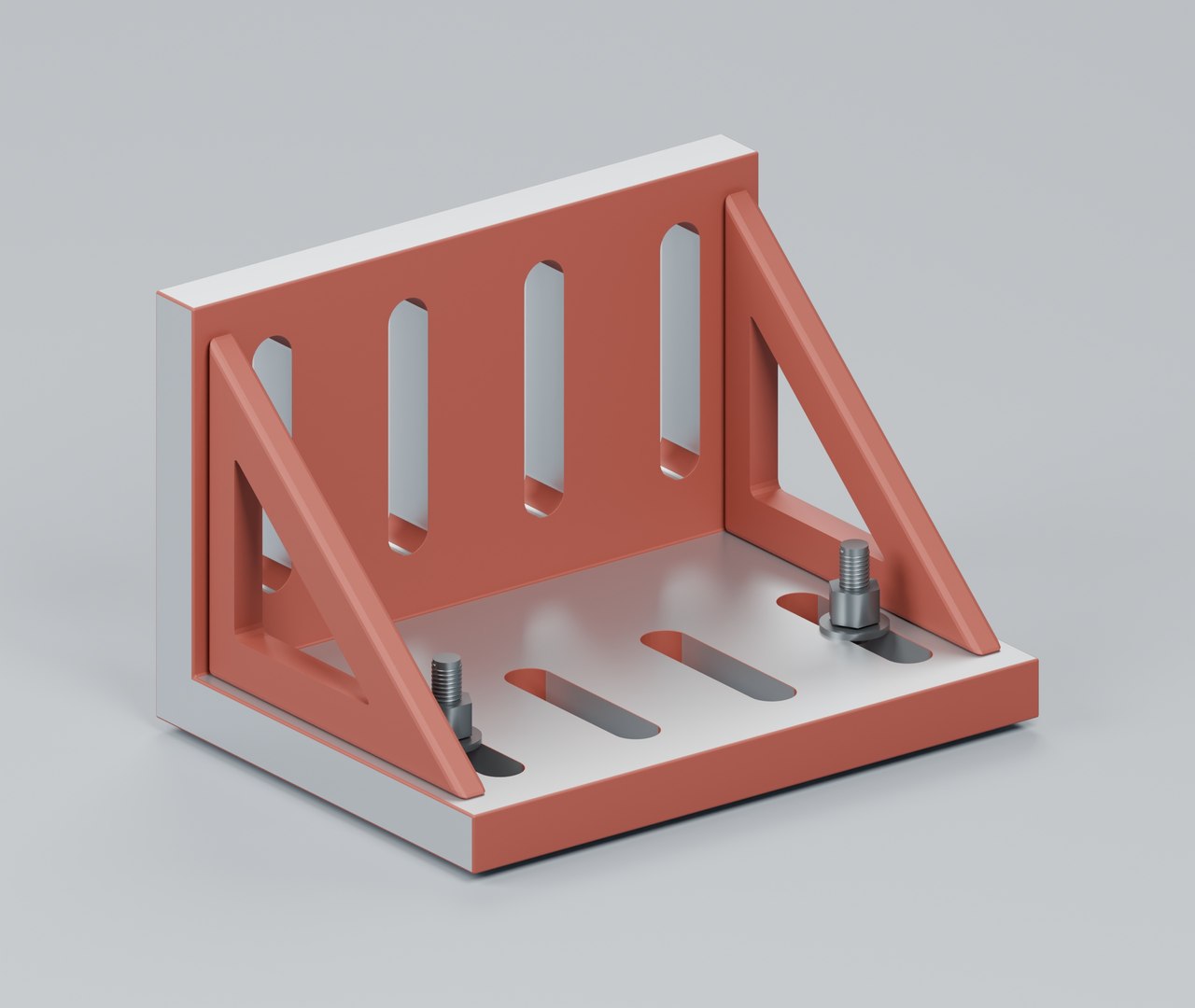

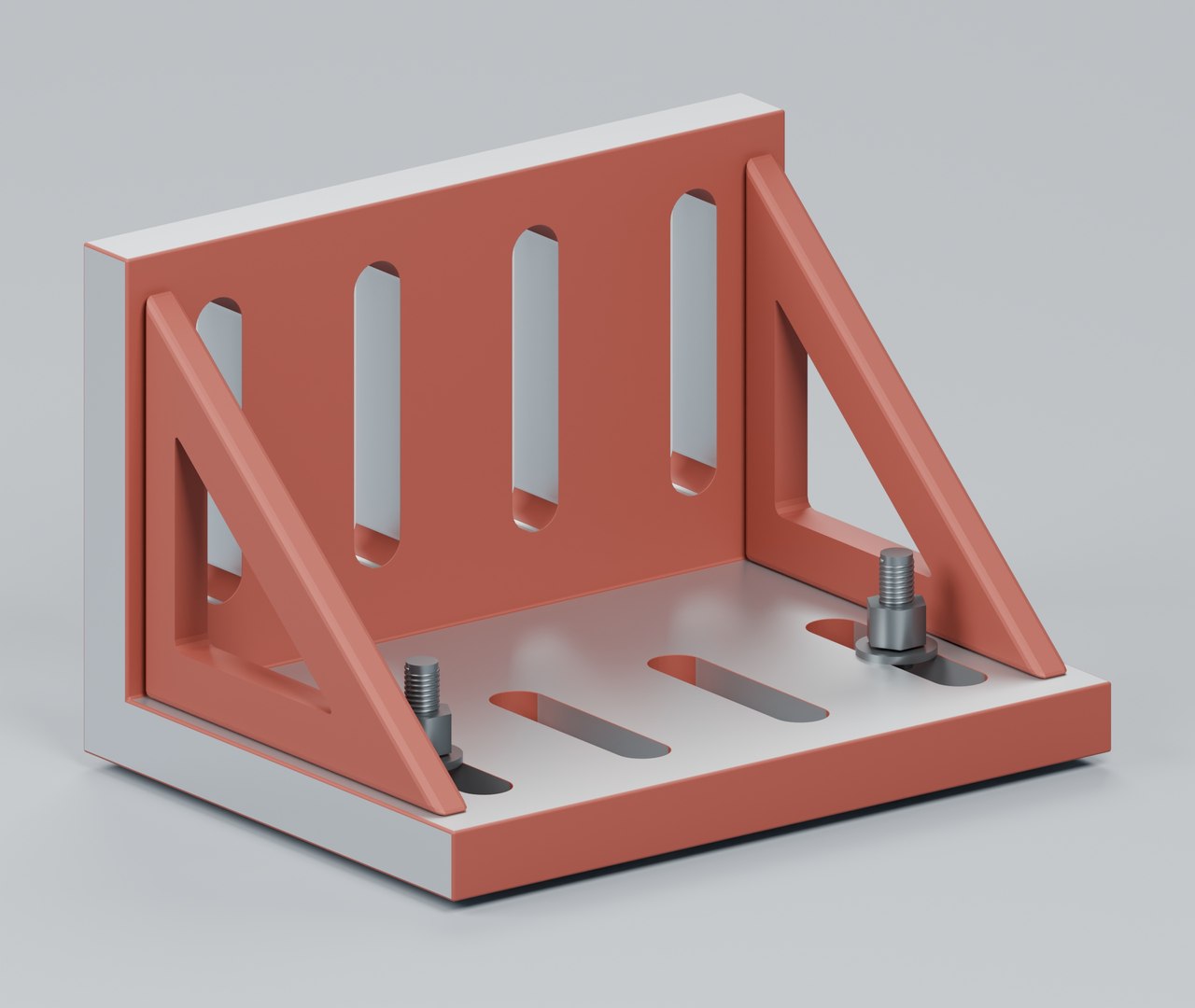

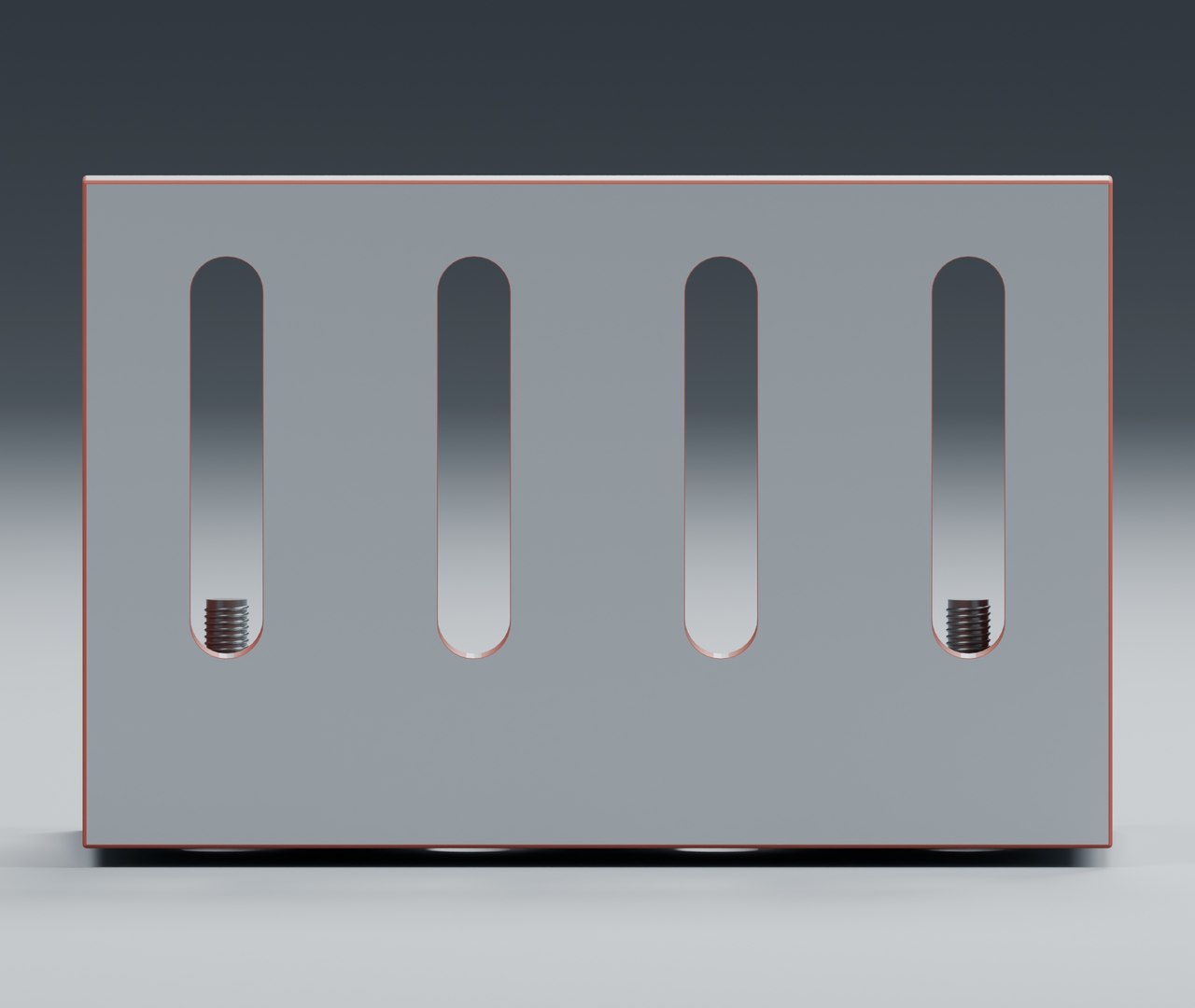

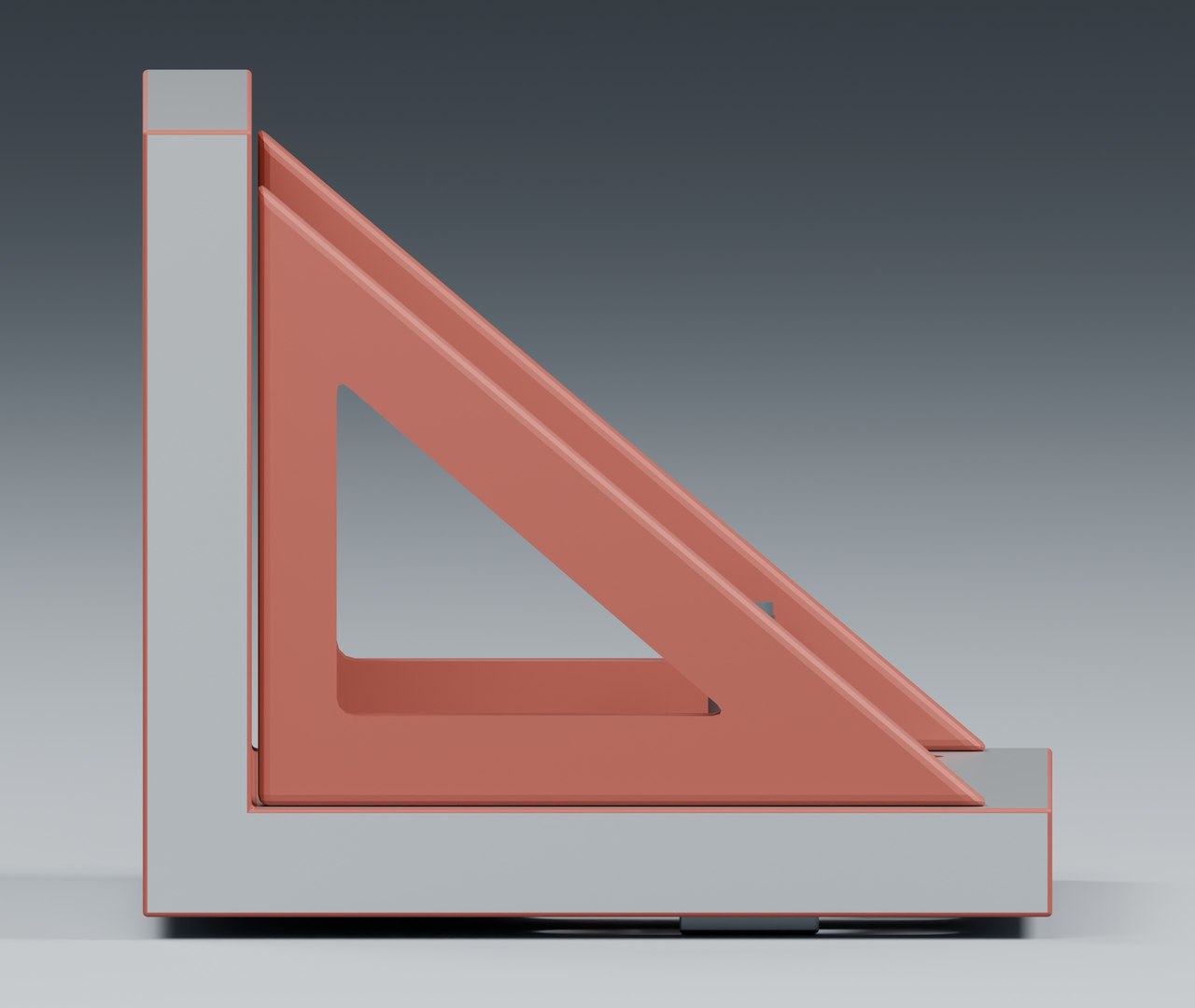

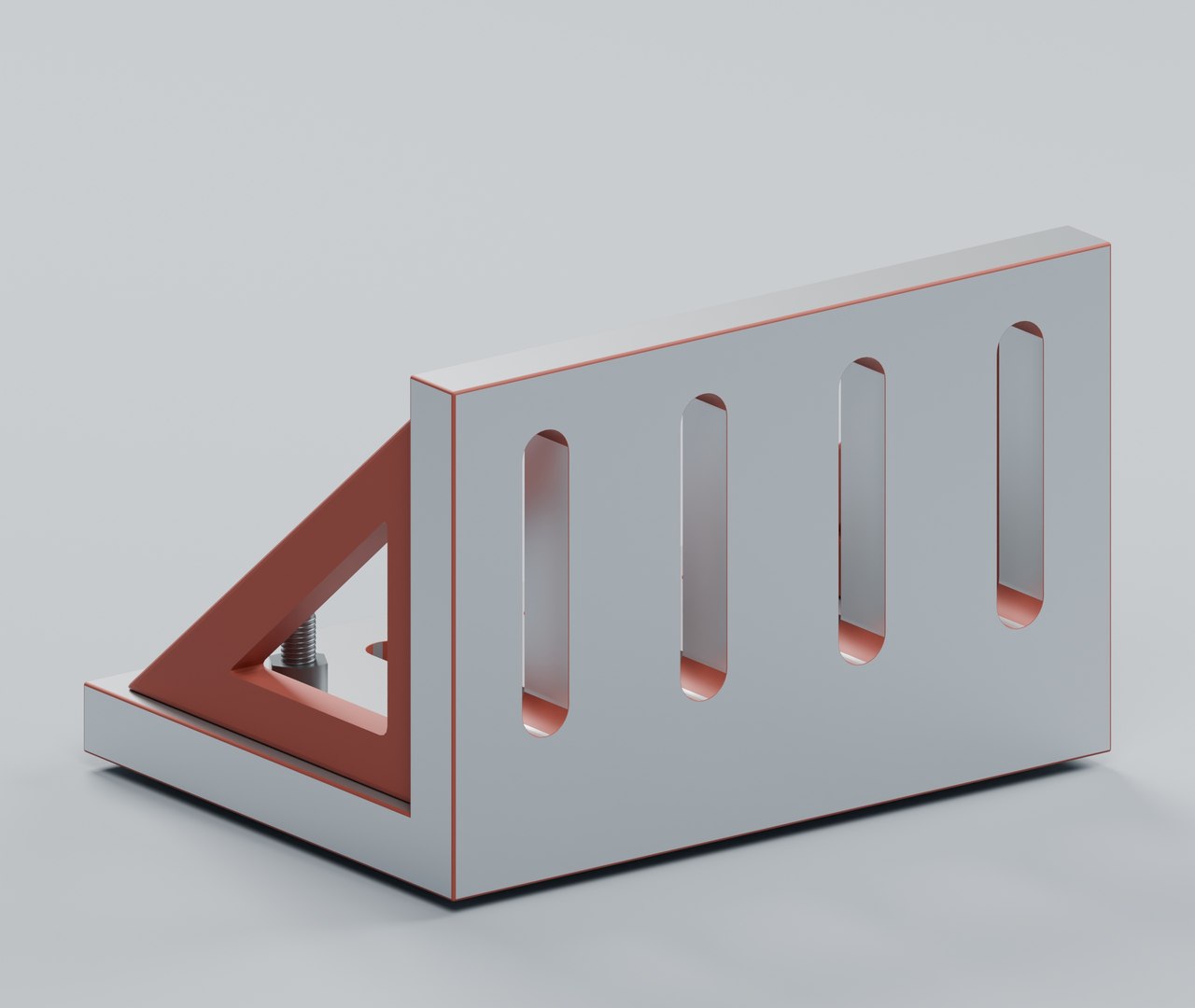

Unbranded machined angle plate with continuous L-section casting, eight rounded through slots, triangular relieved cast webs, ground working faces and two threaded mounting stud assemblies.

FILES AND SCALE

Native Blender 5.2.2 asset and a separate Cycles studio scene, plus a polygon-preserving FBX 7.4 file. Metric scale; overall dimensions approximately 20.0 x 15.0 x 13.3 cm. 13 mesh components, 6,128 polygons, 6,563 vertices and 13,130 evaluated triangles; 94.5% quads.

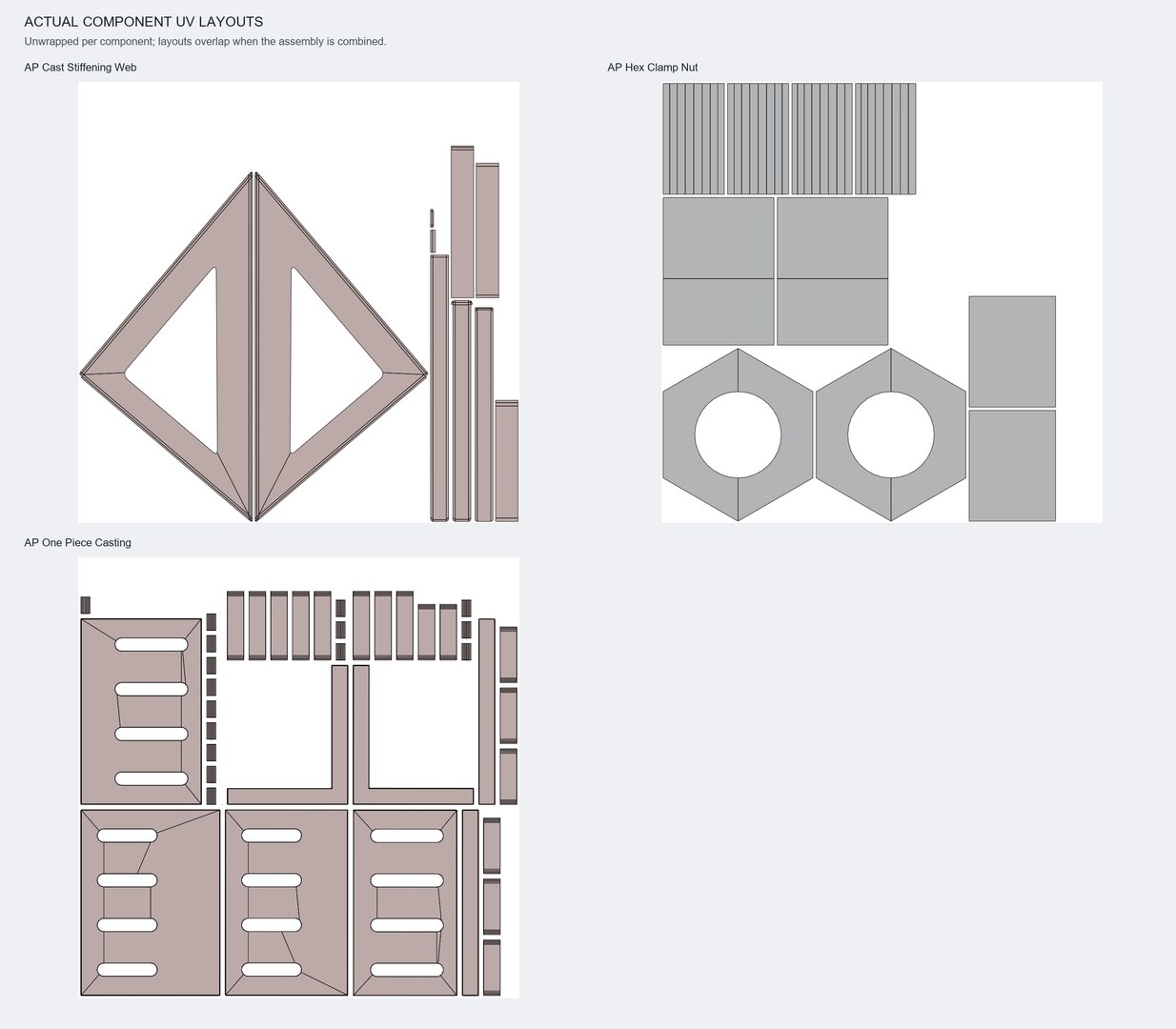

MATERIALS AND UVS

Editable numeric PBR materials. No image textures. Component UVs overlap; FBX shader values may require renderer adjustment.

NOTES

Static visualization asset. No operational simulation or manufacturing geometry. Named components and a separate Cycles studio.
