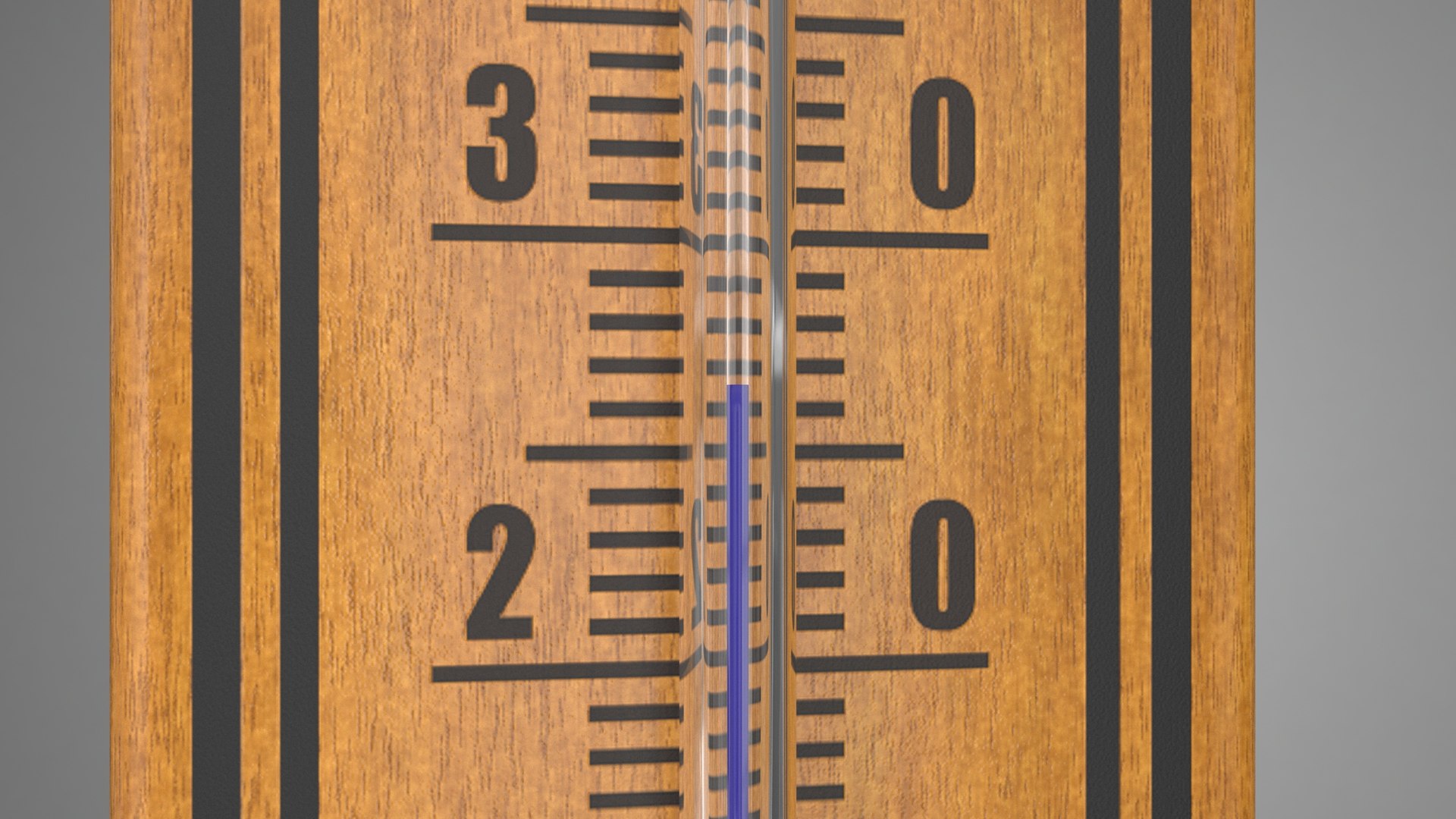

Realistic 3D model of a wooden wall thermometer, Celsius scale. Model is suitable for close-up renders, design visualization and real time applications.
Features:
- Ready to render.
- Originally created with 3DS Max 2018.
- Optional PBR textures set included.
- You can set the temperature by changing the z-scale of the object "Liquid" (no translation needed).
- You can set the color of the liquid by changing the Diffuse parameter of the material "MatLiquid".
- All objects and materials are descriptively and uniquely named.
- All objects are logically grouped, for easy selection and management.
Geometry:
- Model geometry consists of quads only.

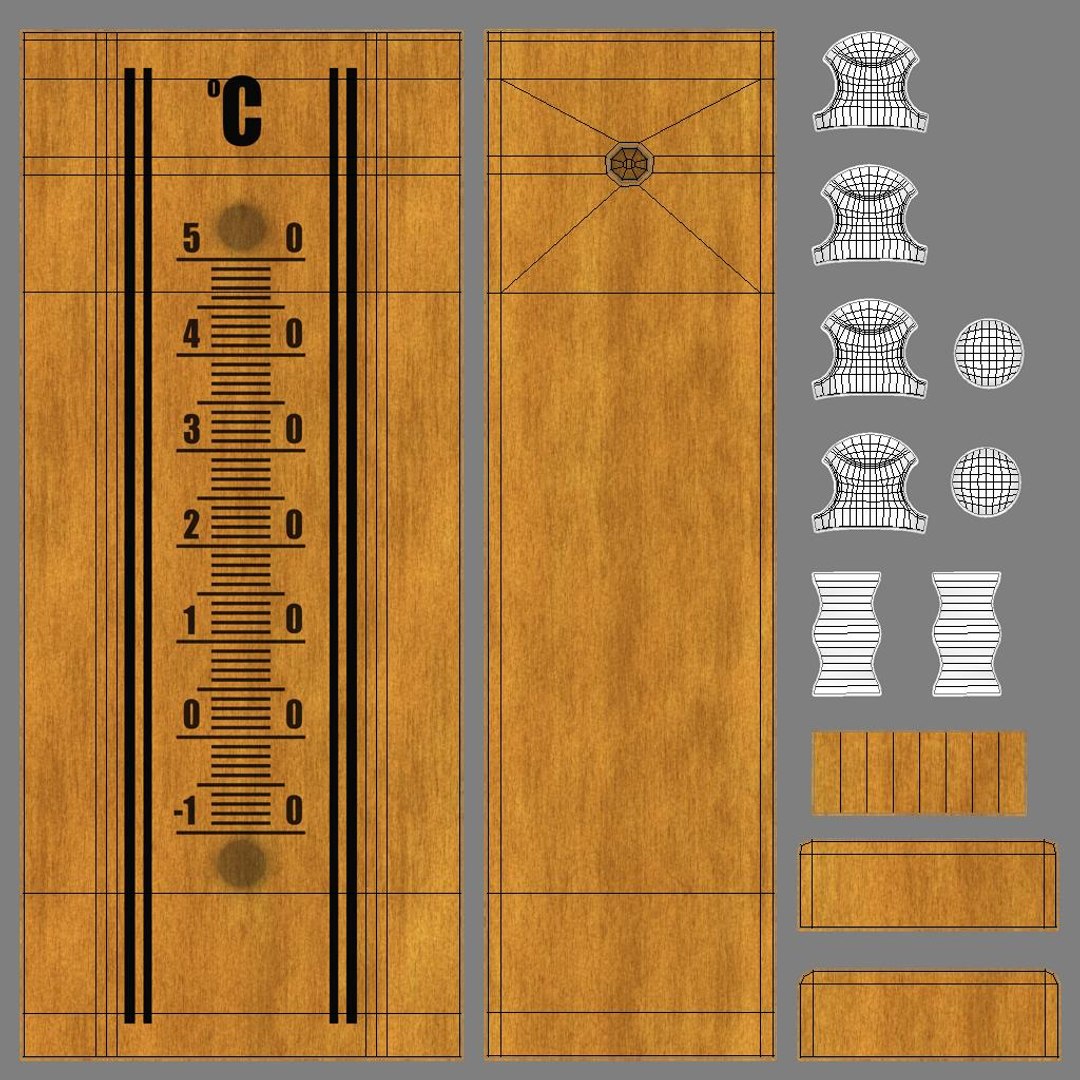

- All objects are UV mapped with unwrapped, non-overlapping UVs.
- Model is compatible with subdivision without changing its original format.

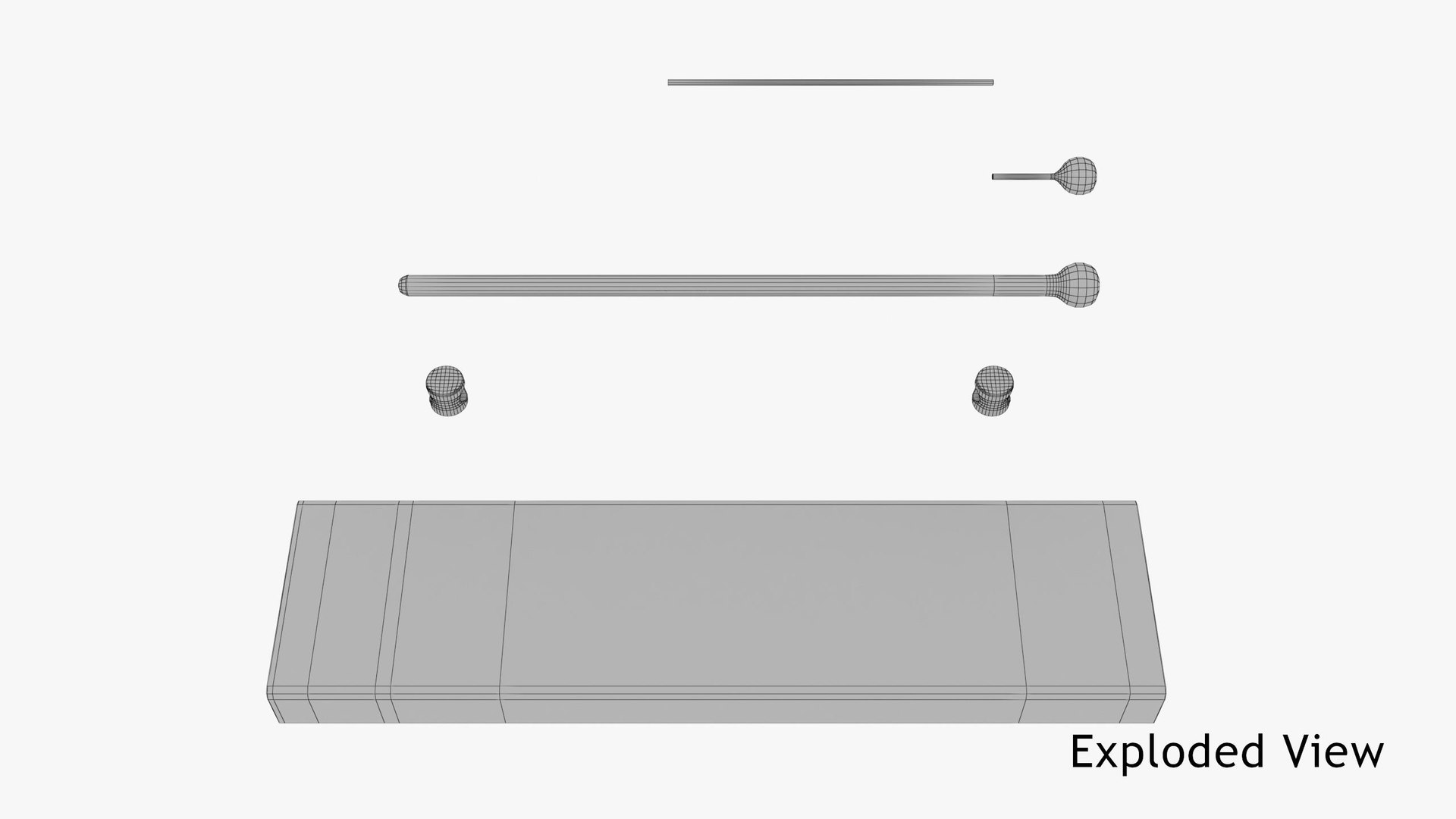

- Model contains 6 separate objects: Wood, Glass, Liquid, LiqBottom, FixTop and FixBottom.
- All objects have sealed geometry (no openings where backfaces would be visible).
- No isolated or coincident vertices and no overlapping faces.
- No vertex is connected to more than 5 edges (no poles).
- No instances or references.
Poly count:
- Model contains 2,308 quads without subdivision.
- Model contains 2,318 vertices without subdivision.
Materials and textures:
- All texture paths are stripped.
- Model uses 4 materials: MatWood, MatGlass, MatLiquid and MatFix.
- MatFix and MatWood share the same texture set.
- MatLiquid is parametric only (no textures).
- 3DS Max + VRay format uses 4 PNG textures at 2048 x 2048 and 1 HDR map at 1024 x 512. Textures are Diffuse, Glossiness, Bump and Refraction.
- 3DS Max + Default Scanline format uses 3 PNG textures at 2048 x 2048 and 1 HDR map at 1024 x 512. Textures are Diffuse, Glossiness and Bump.
- The optional extra ZIP file "Bonus_PBR_Textures" includes 5 PBR textures (Base Color, Ambient Occlusion, Metalness, Roughness and DirectX Normals).
- On 3DS Max, materials can be found on Slate Material Editor.

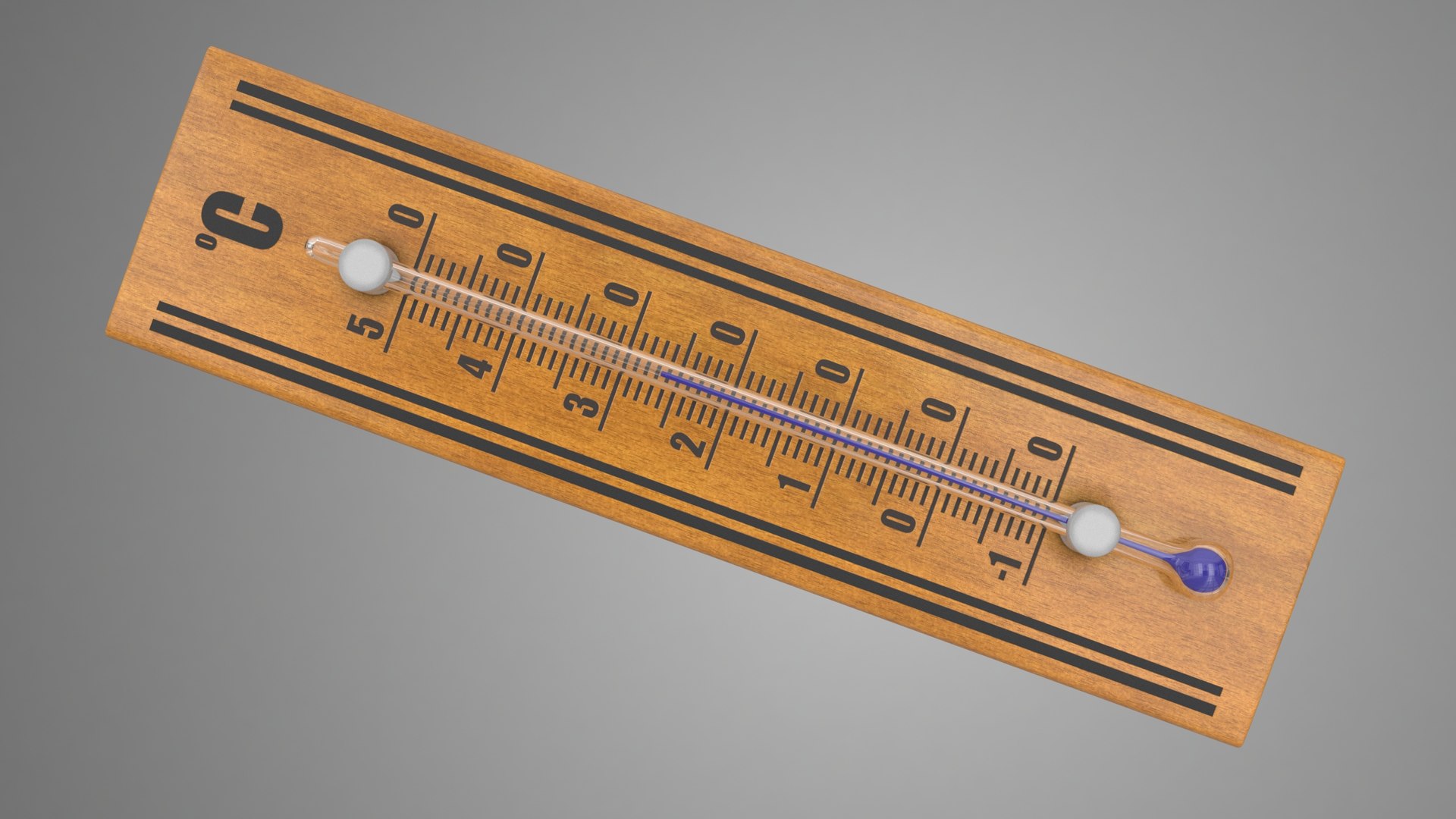

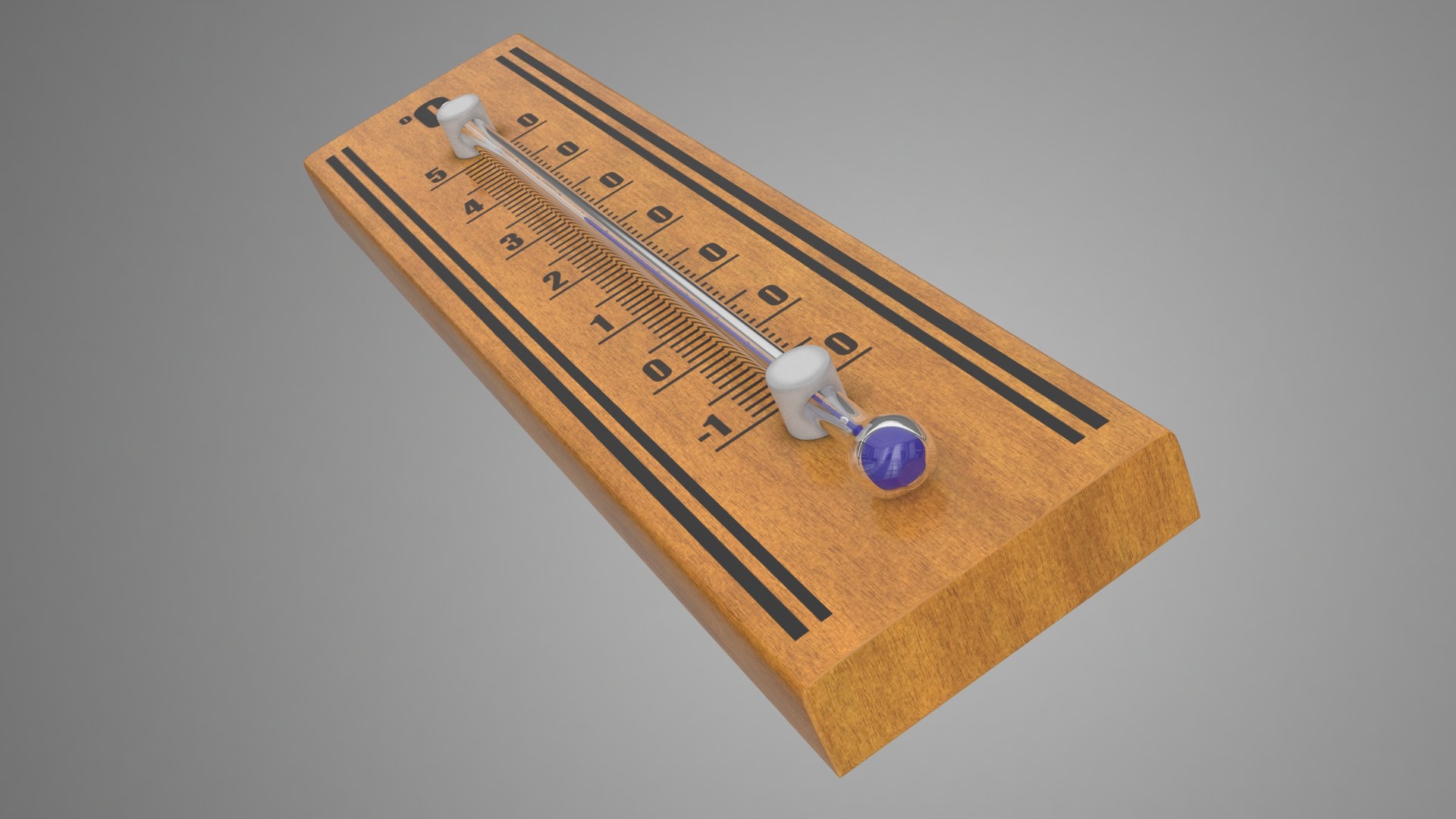

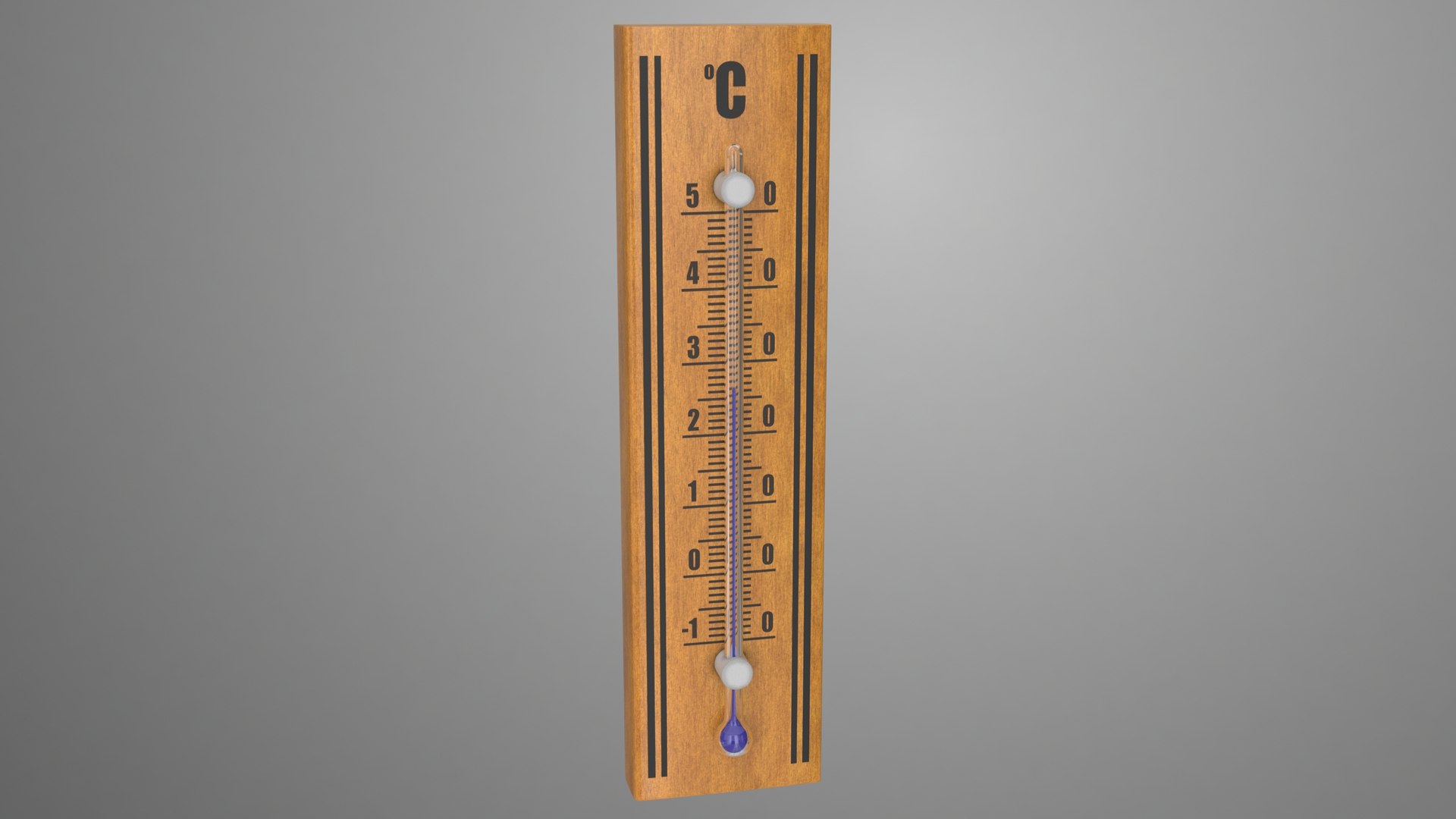

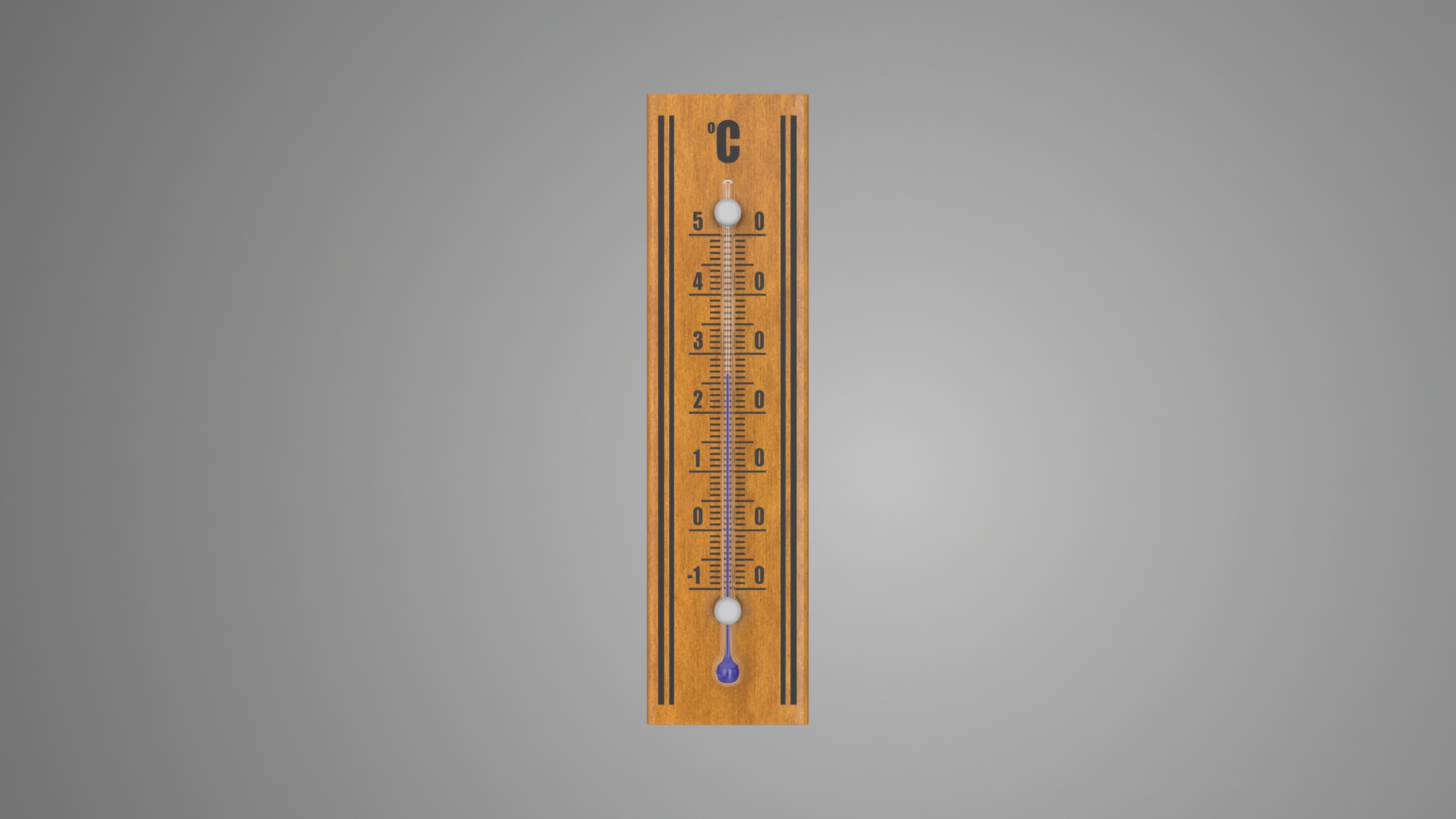

Preview images:
- Preview images depict the actual model, with no post processing.

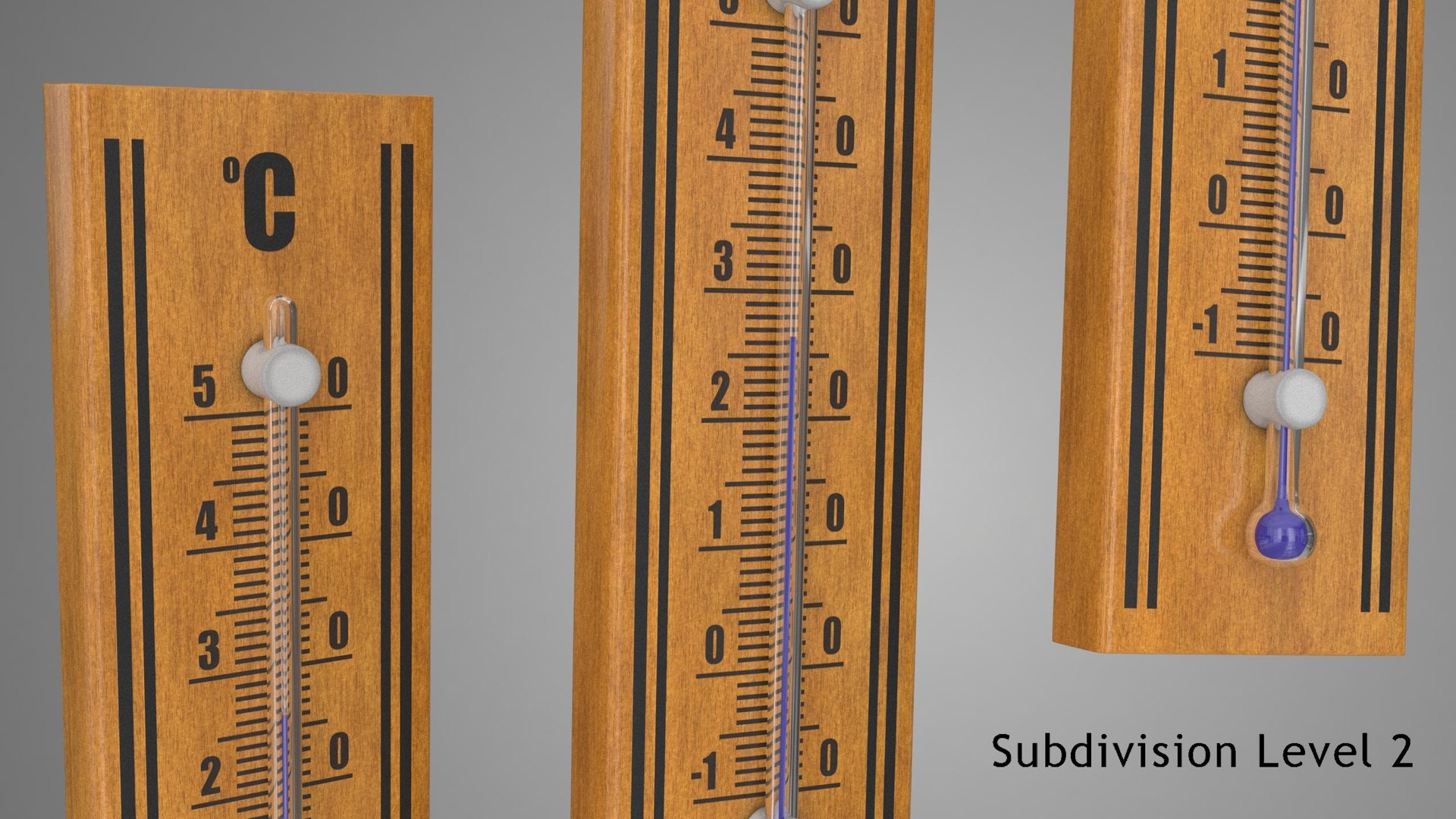

- All rendered preview images use subdivision level 2, unless otherwise stated.

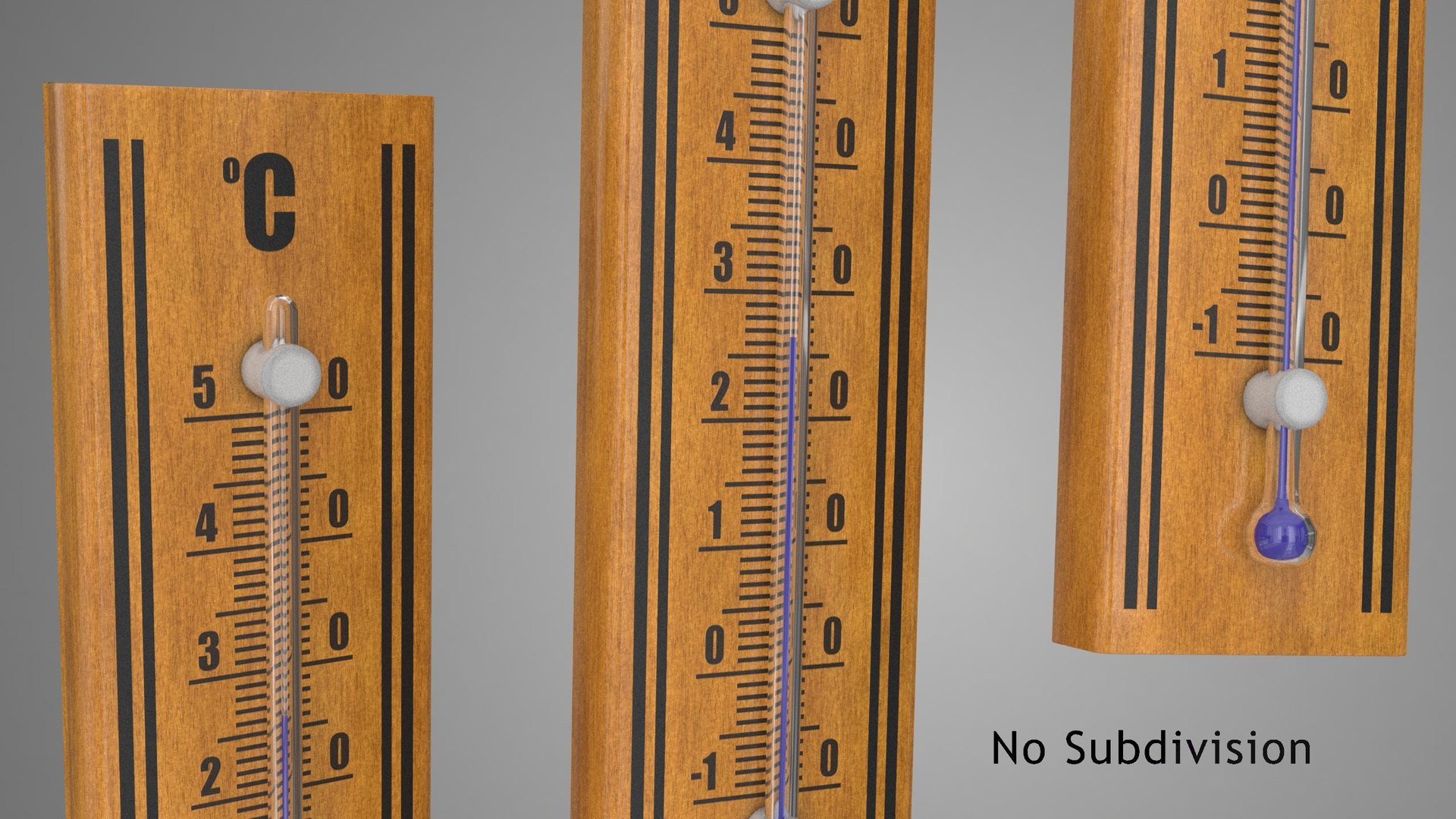

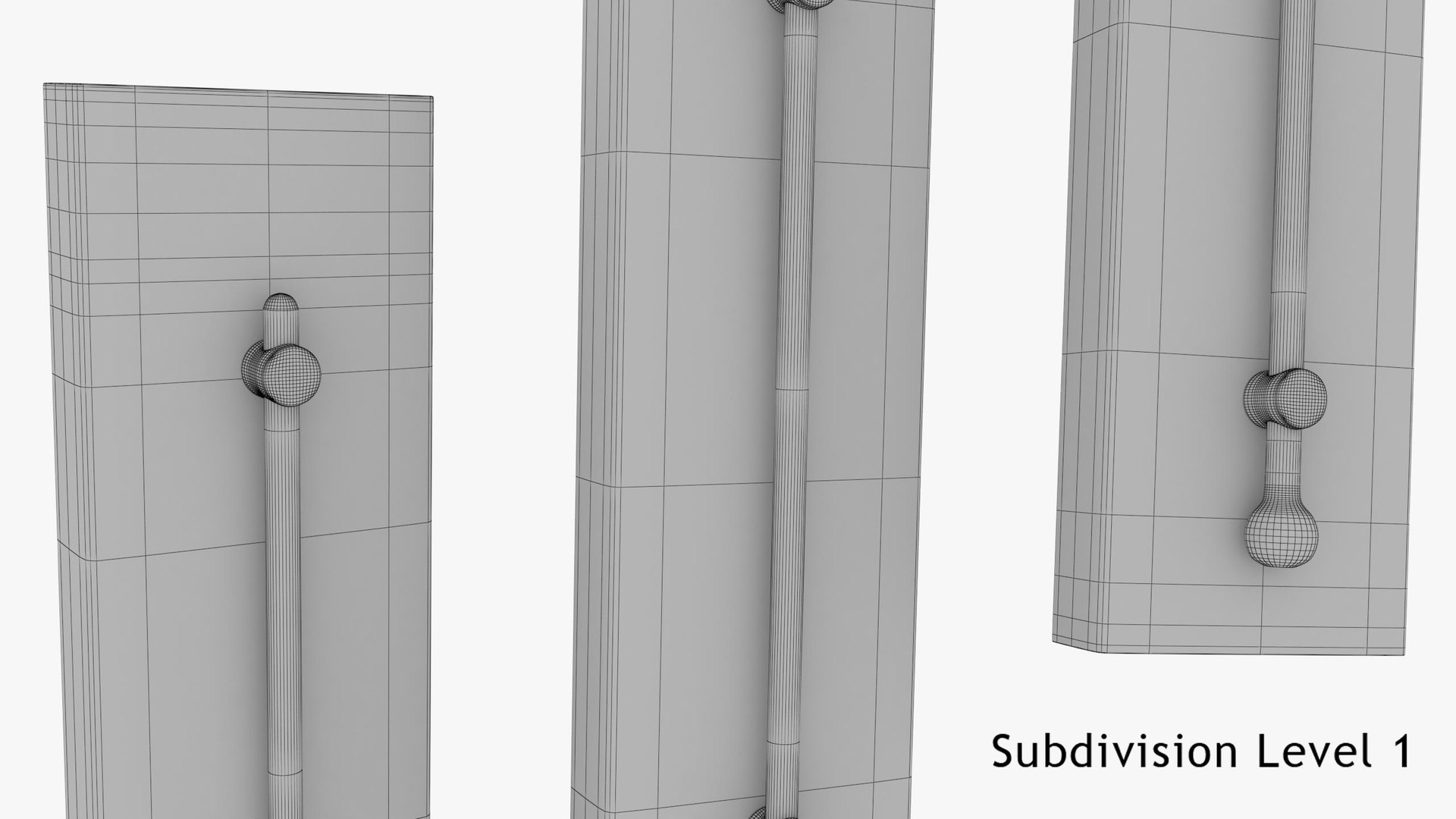

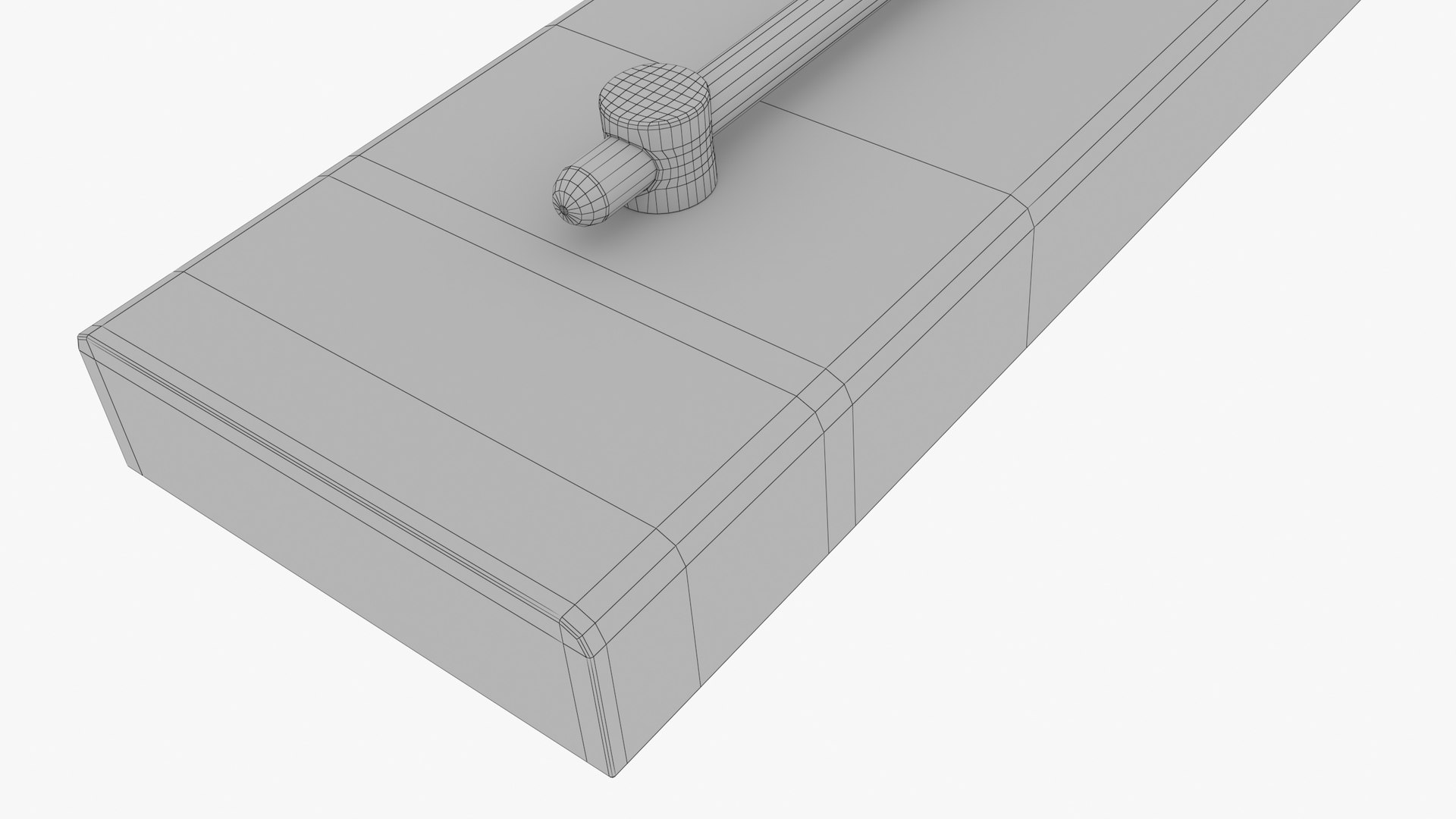

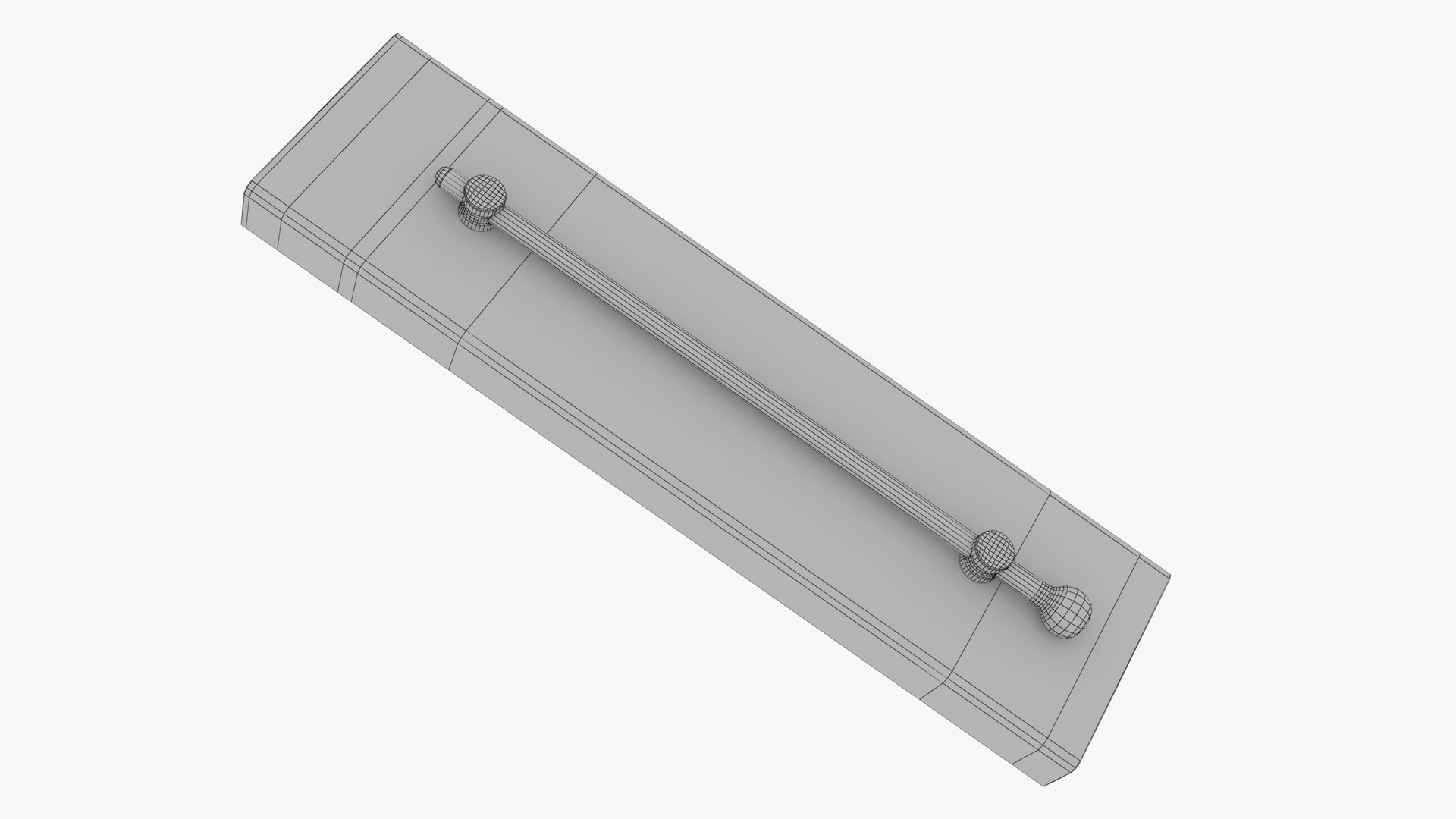

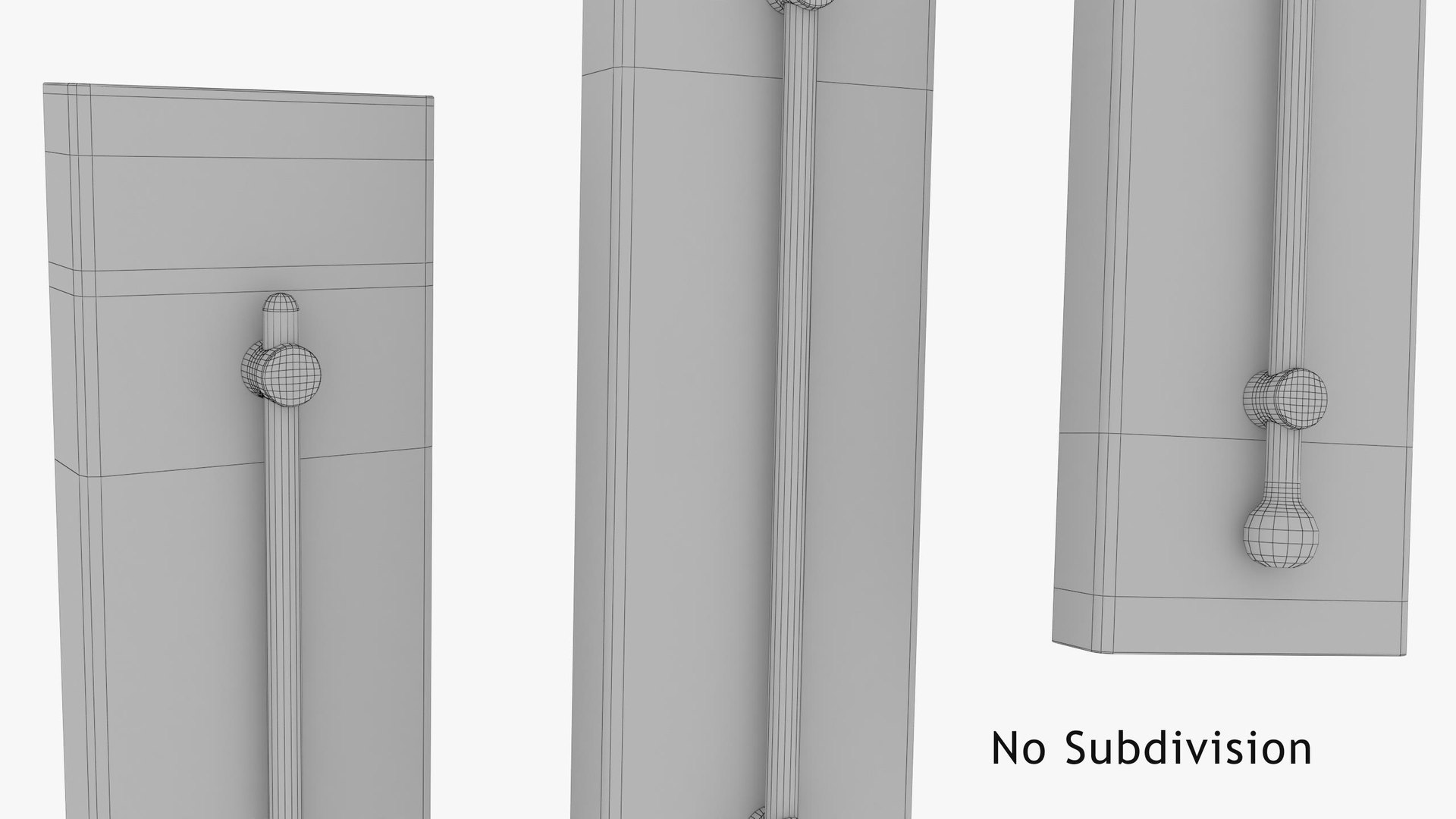

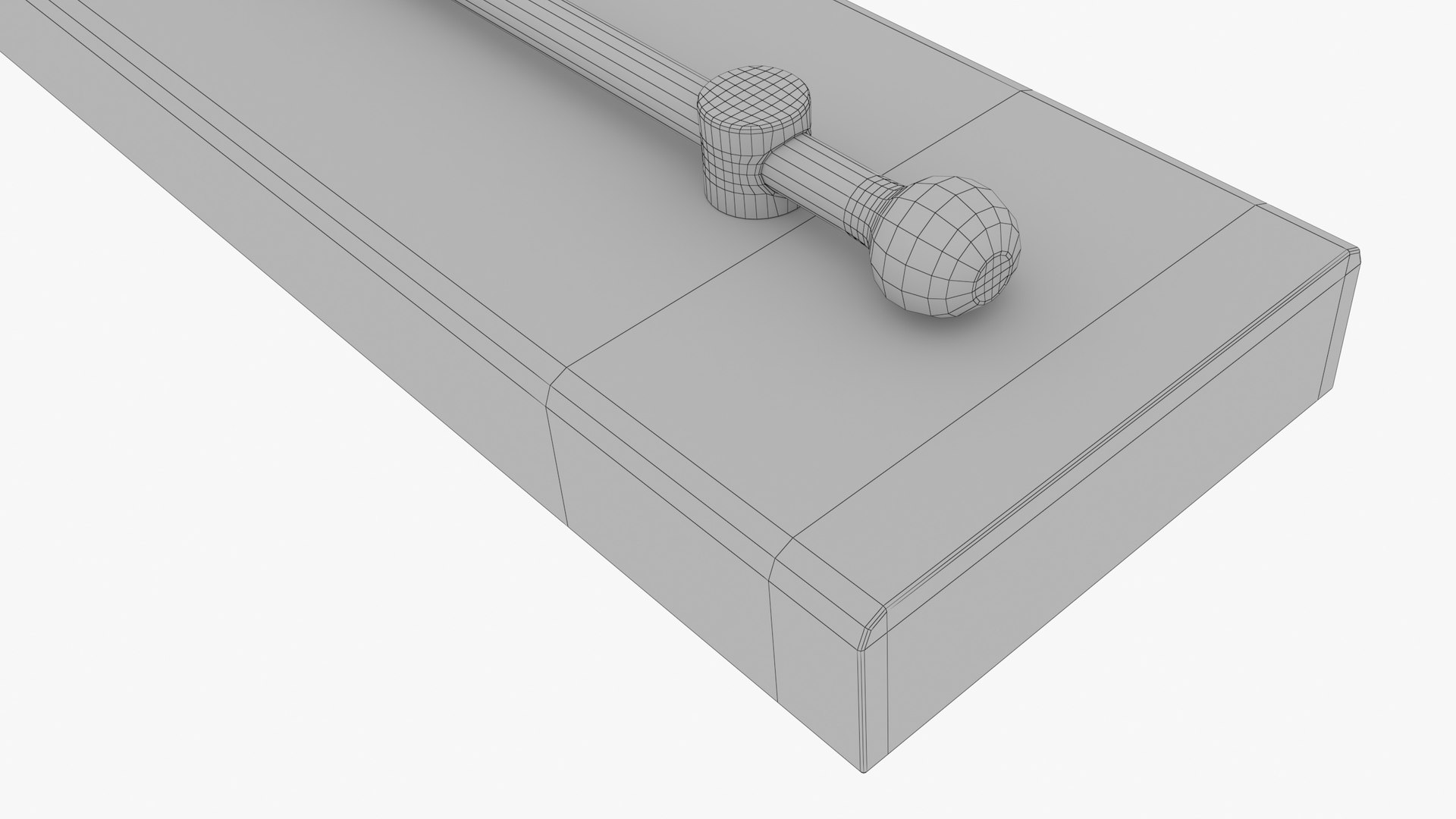

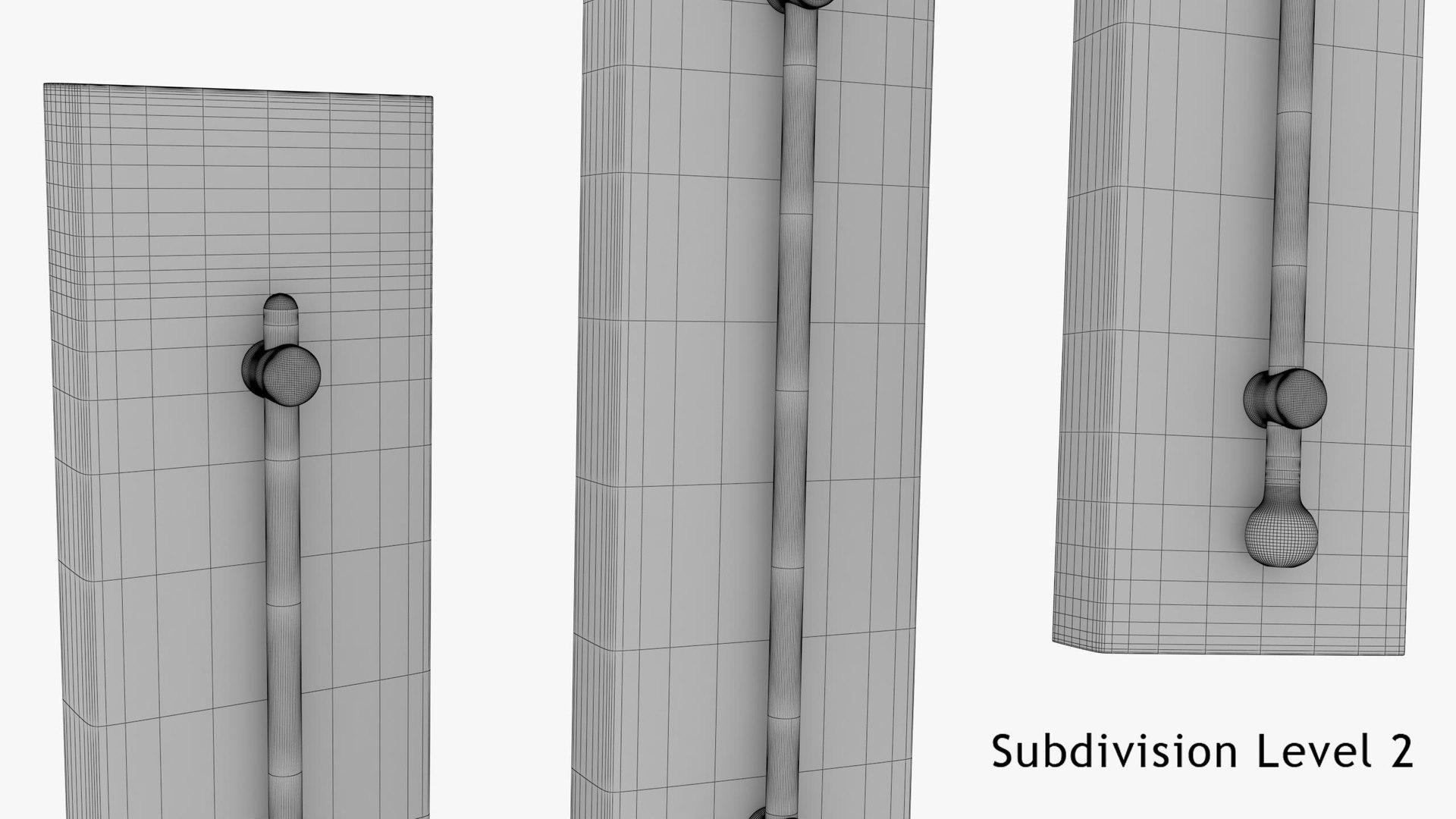

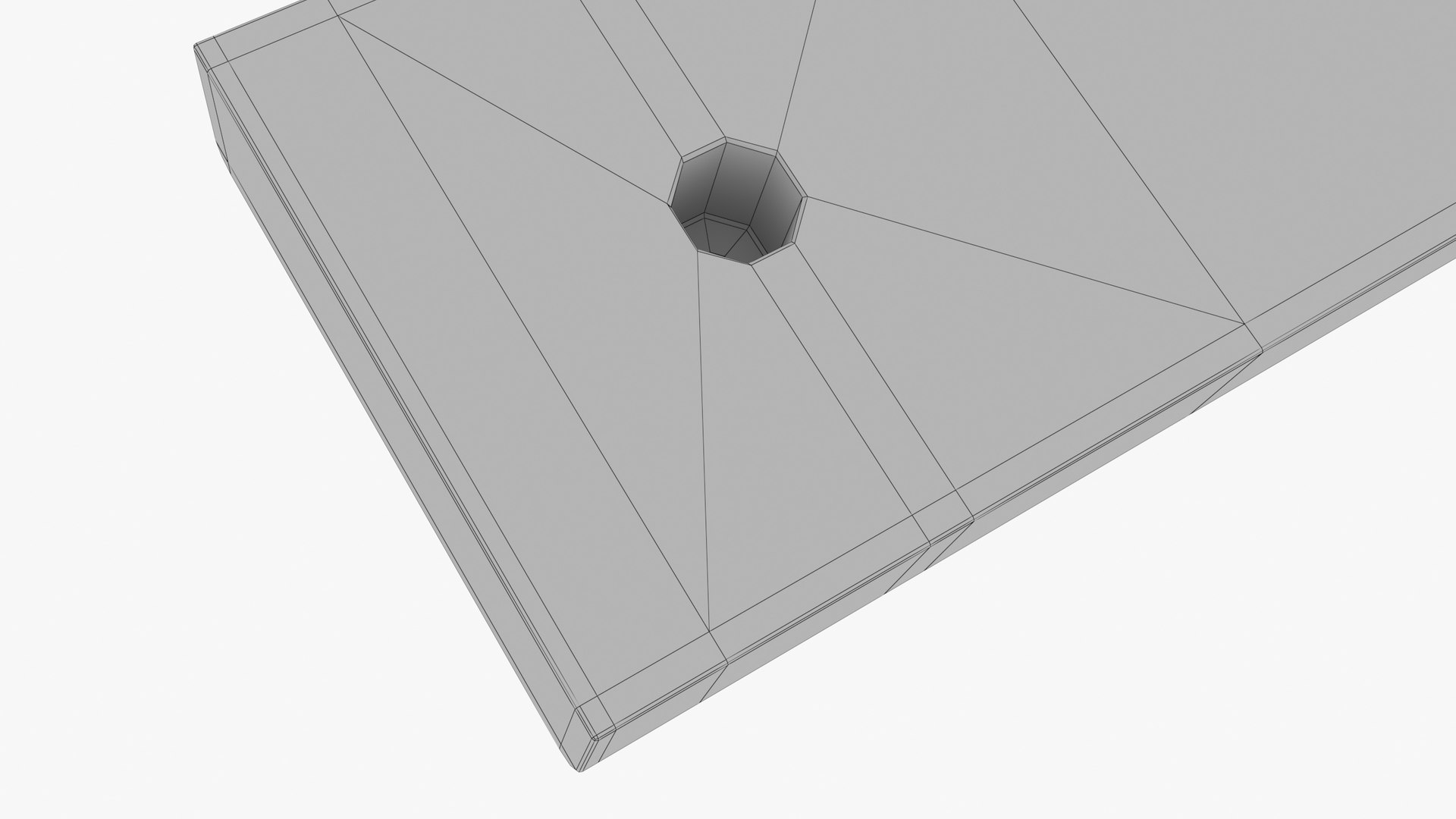

- All wireframe preview images use no subdivision, unless otherwise stated.
- All preview and wireframe images are rendered with V-Ray 3.60 for 3DS Max 2018, unless otherwise stated. The use of other versions may produce variations in the results.

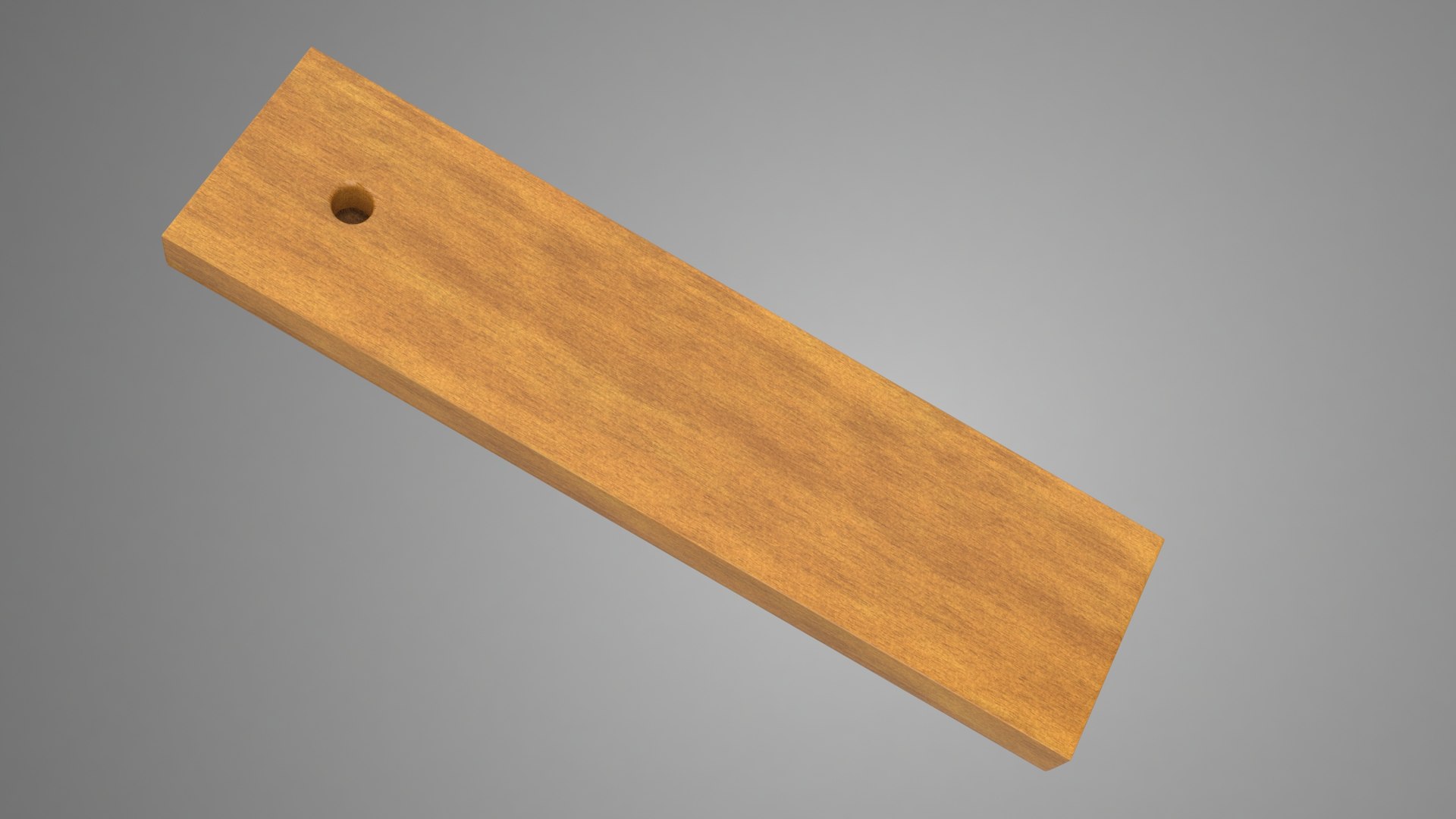

- Only default pose included. Other poses shown on preview images are possible by moving, rotating and scaling elements, as pivots are placed properly.
- Scene elements and wall depicted on some preview images are not included in the files.
Units and measurement:
- Model uses real world scale.
- Unit system is metric (centimeters).
- Complete model dimensions: 3.5 cm width x 13.5 cm height x 1.6 cm deep (1 12/32" x 5 10/32" x 20/32").
Available formats:
- 3DS Max 2018 / V-Ray 3.60.

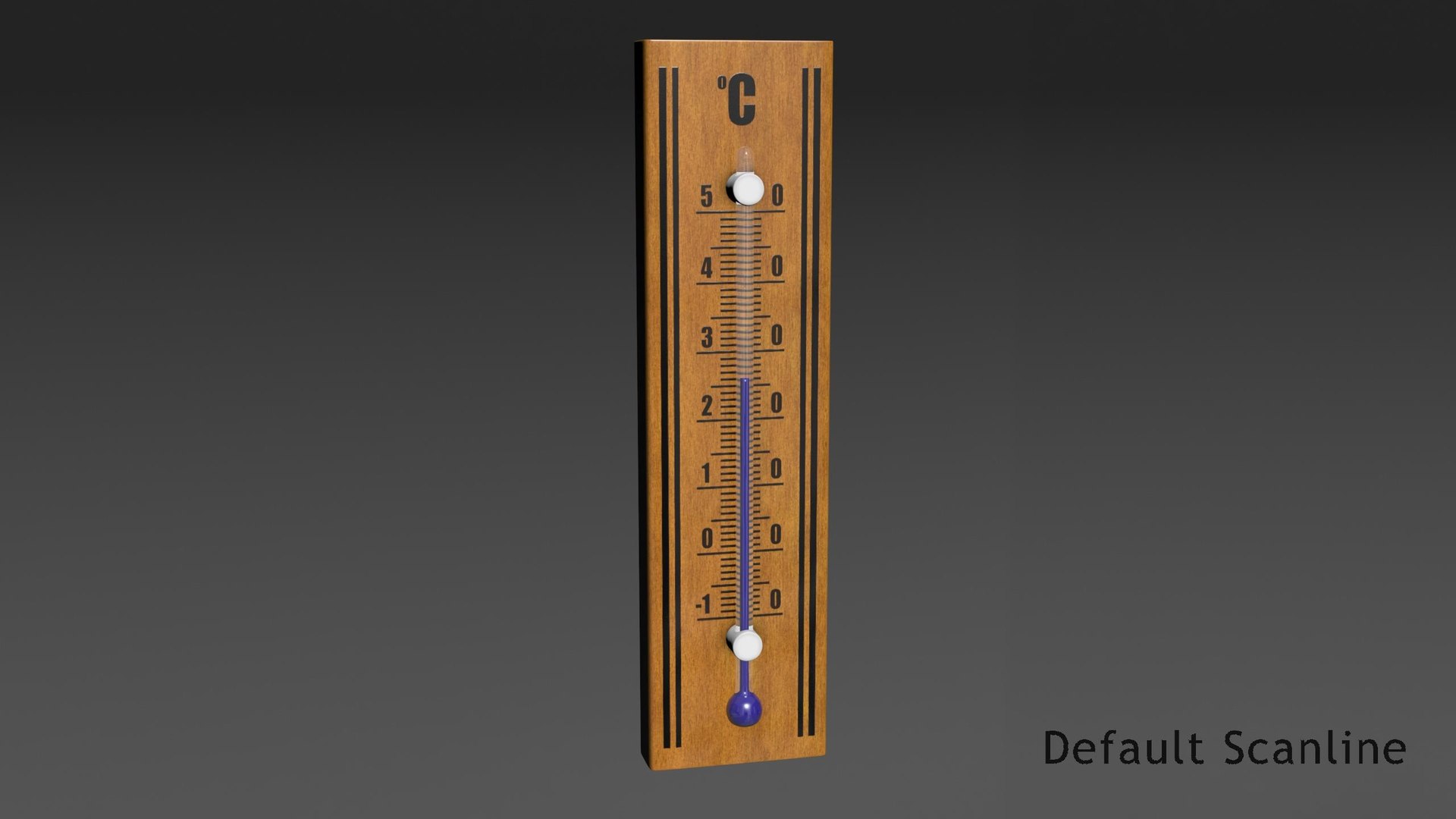

- 3DS Max 2018 / Default Scanline.
- FBX 2011
- OBJ
Additional notes:
- This is a downloadable 3D model, not a real world object.
- 3DS Max / V-Ray format requires V-Ray for 3DS Max properly installed on the computer.
- FBX and OBJ formats use simplified versions of the complex materials and will not render exactly equal to the preview images.
- For your convenience, all 3DS Max files have Subdivision Level 2 applied to the top group of the model by default. You can disable this by unchecking TurboSmooth on the modifiers stack.
