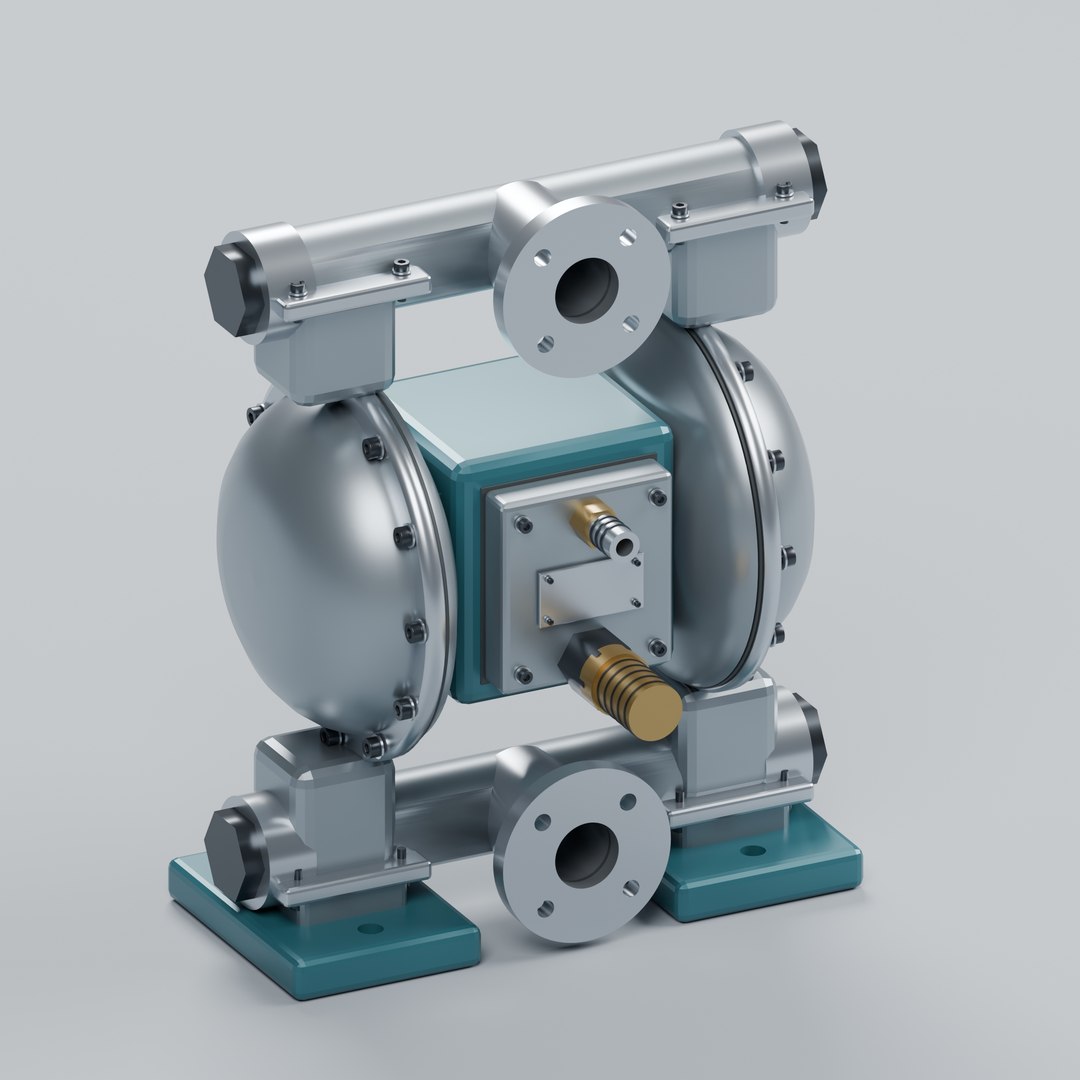

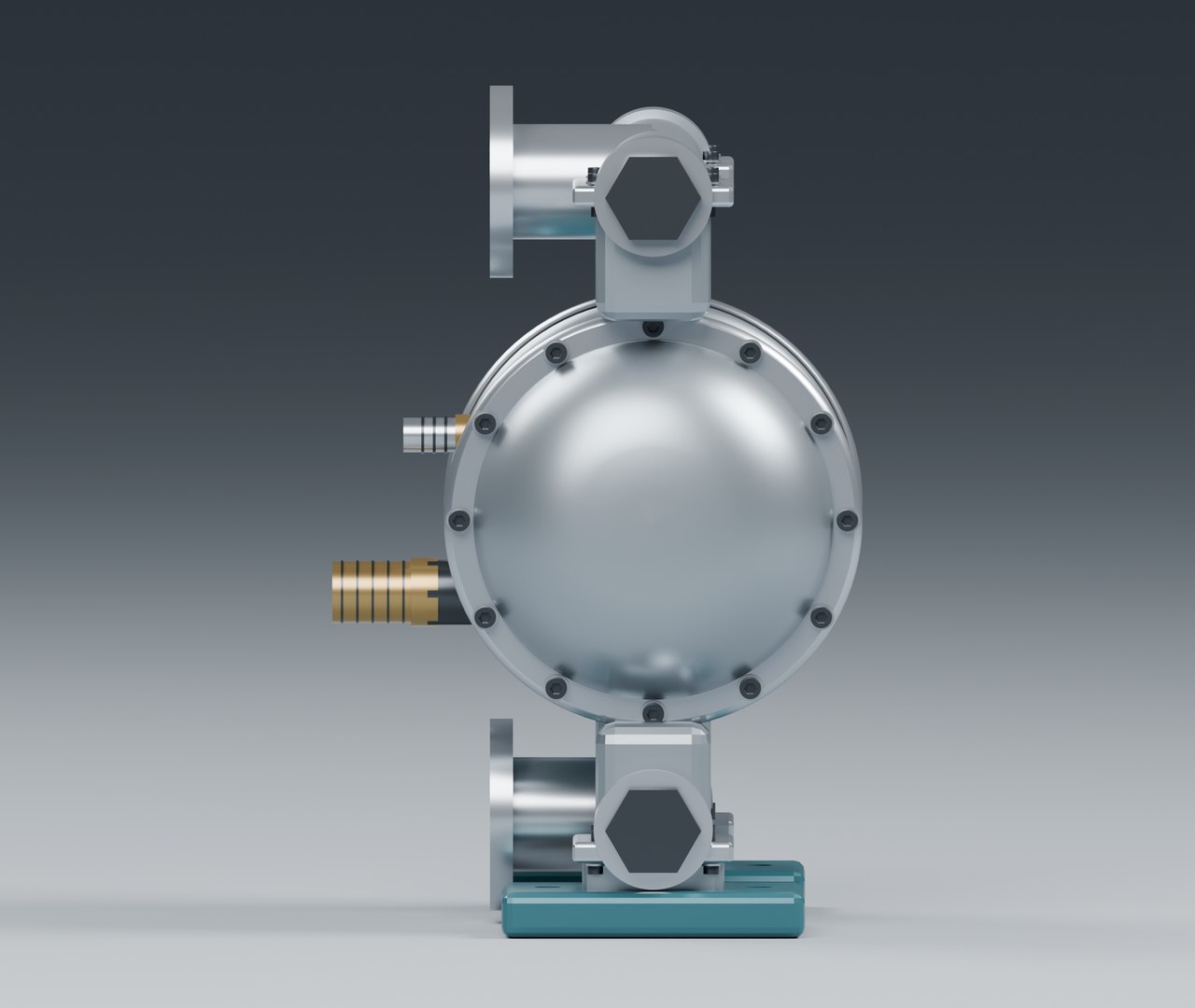

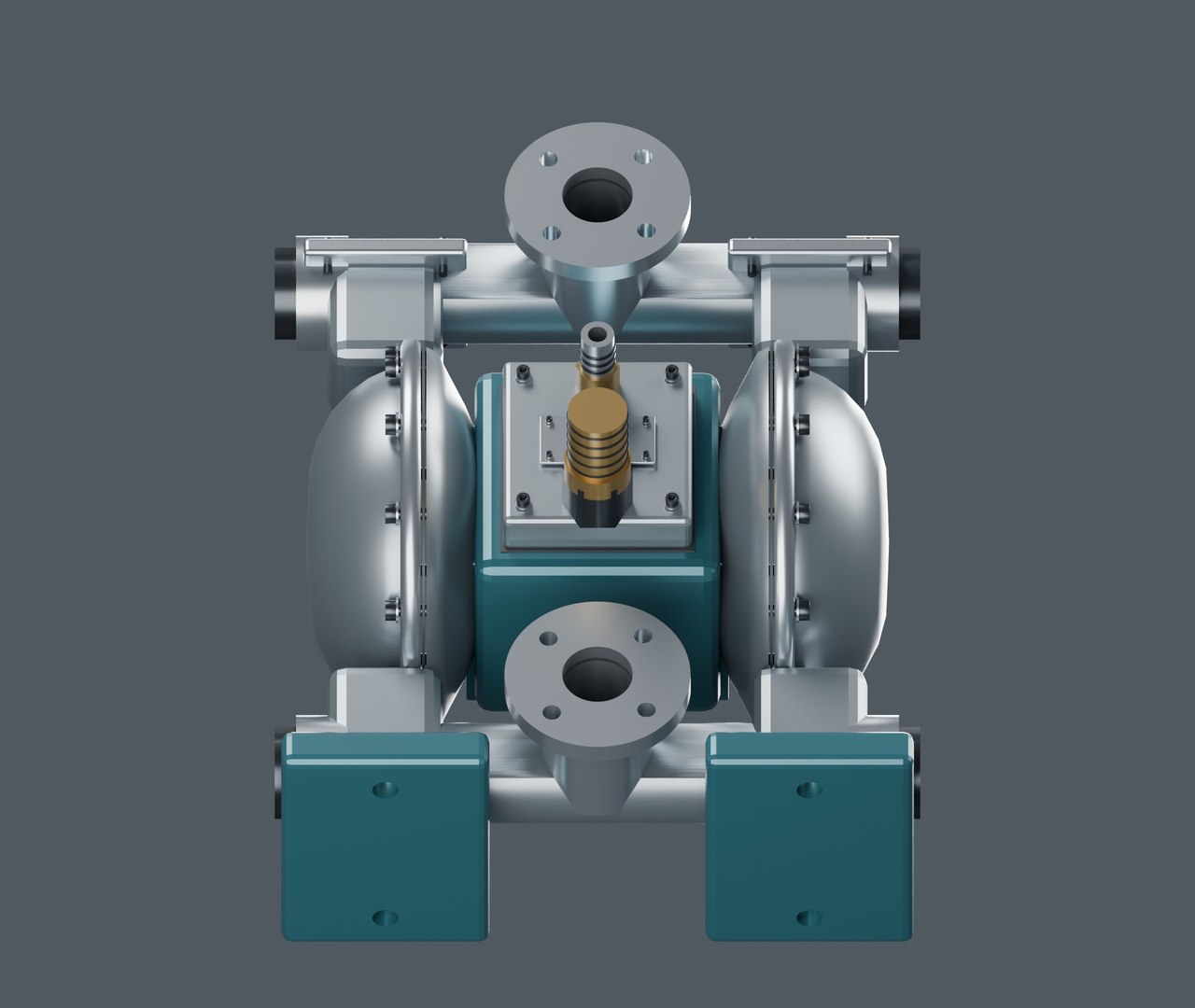

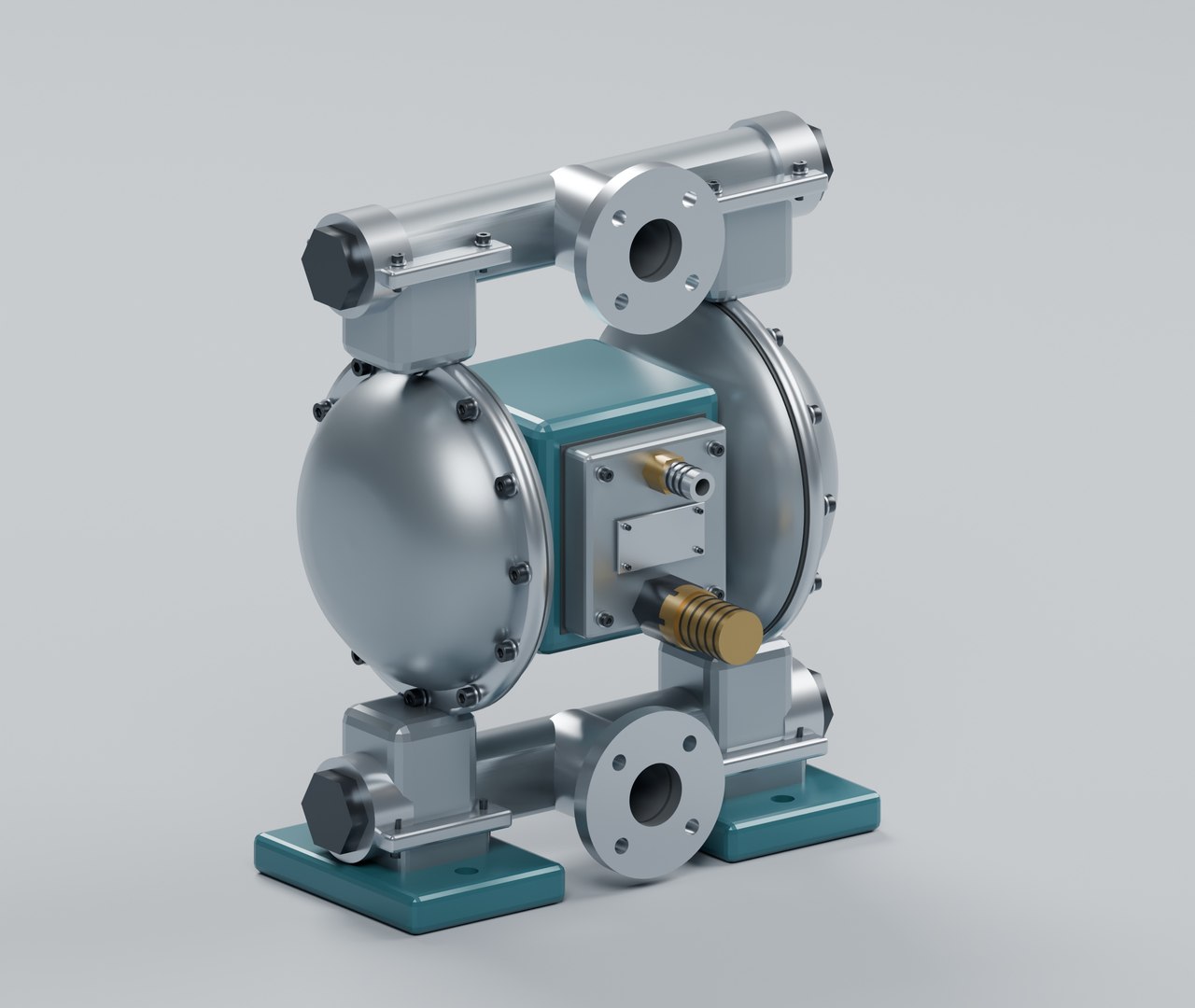

Detailed unbranded industrial transfer pump with opposed domed chambers, bolted diaphragm flanges, separate seals, connected hollow inlet and outlet manifolds, socket-head fasteners, an air-valve assembly, exhaust muffler and drilled mounting feet.

FILES AND SCALE

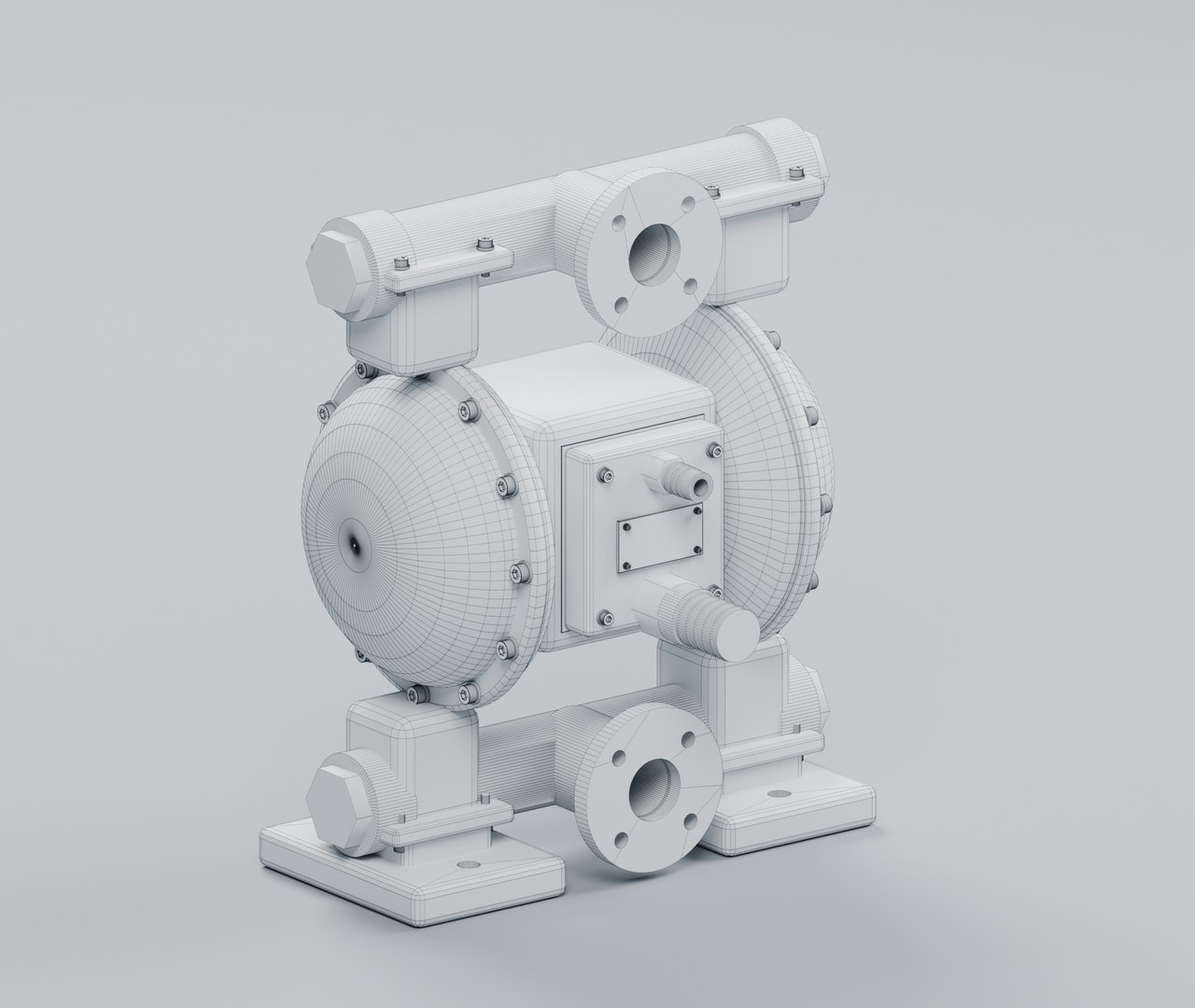

Native Blender 5.2.2 asset and a separate Cycles studio scene, plus a polygon-preserving FBX 7.4 file. Metric scale; overall dimensions approximately 34.7 x 27.6 x 43.6 cm. 203 mesh components, 56,264 polygons, 62,737 vertices and 124,998 evaluated triangles; 97.4% quads.

MATERIALS AND UVS

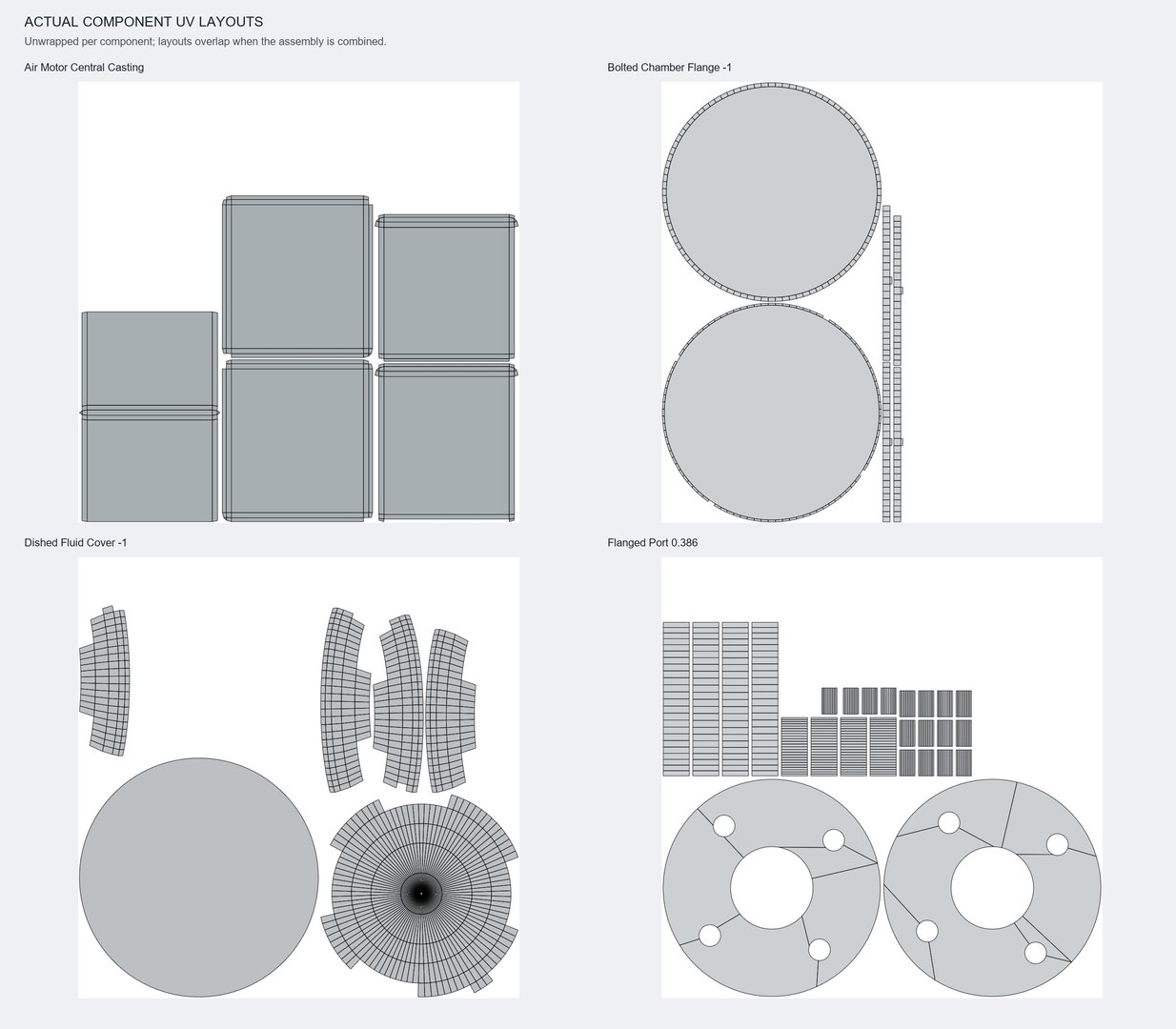

Six editable PBR materials distinguish cast aluminium, satin painted housings, stainless fittings, dark fasteners, seals and brass. Native Blender materials include subtle procedural micro-bump. FBX preserves the base material values but this procedural detail needs recreating in the target renderer. No image textures are included. Each component is unwrapped; UV layouts overlap across the complete assembly.

NOTES

Static exterior assembly with separate named mesh parts; no rig or operating simulation. Internal pumping mechanisms are not modeled. Designed for visualization, not fabrication. Lighting and cameras are supplied in the separate Cycles studio file.
