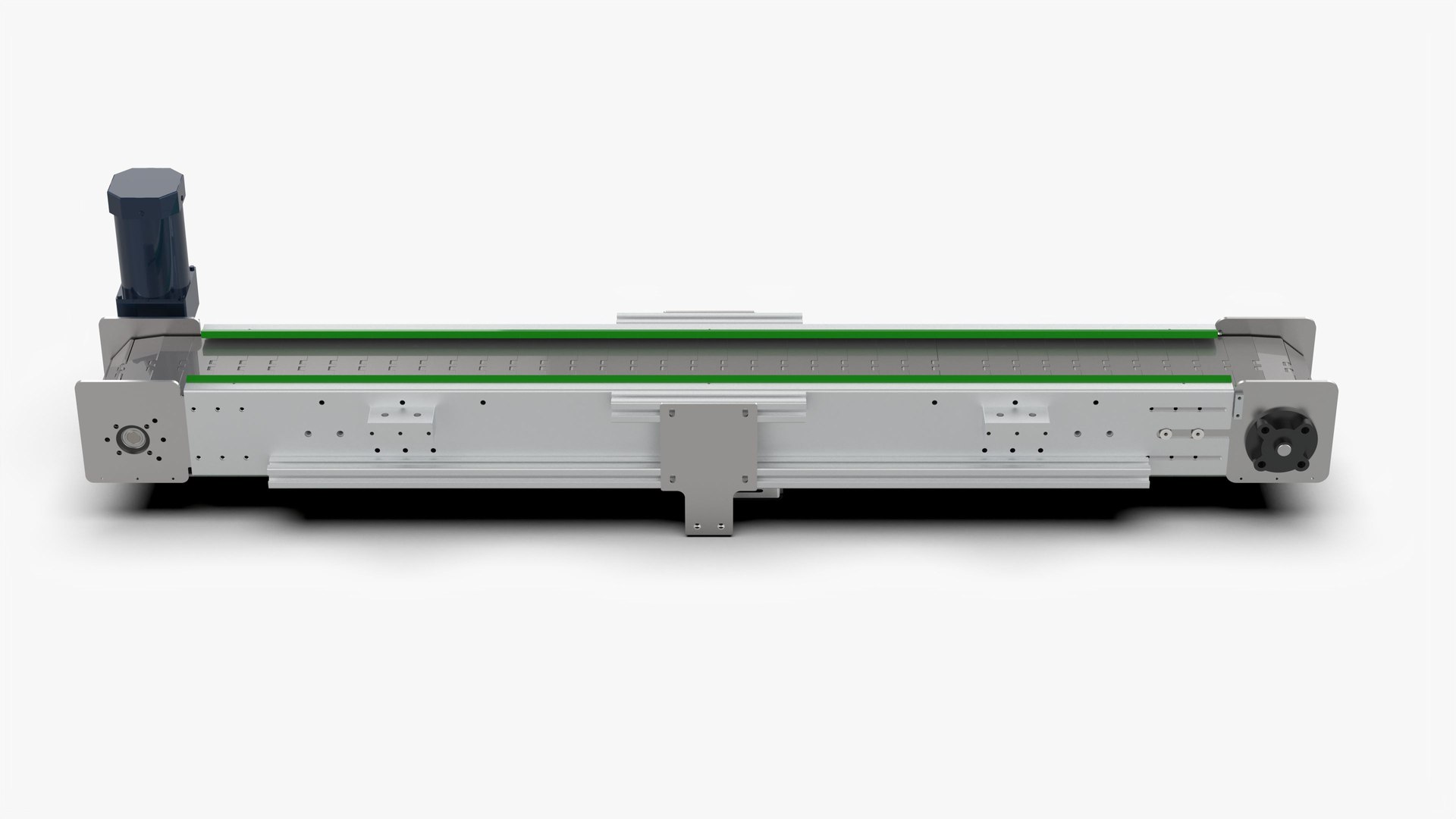

Three Dimensional Chain Conveyor

Introduction

This set of models is a small plate chain conveyor chain, which is designed with 820k series plate chain and 17-tooth sprocket. The motor is a right-angle hollow shaft geared motor, and the length of the line body is 1.4 meters. It is used for the turnover of materials on the production line. The chain plate conveyor is stable in loading and easy to clean during use.

File Formats

– SolidWorks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 926,678
– Vertice: 2,780,034
