Plate Chain Conveyor Belt

Introduction

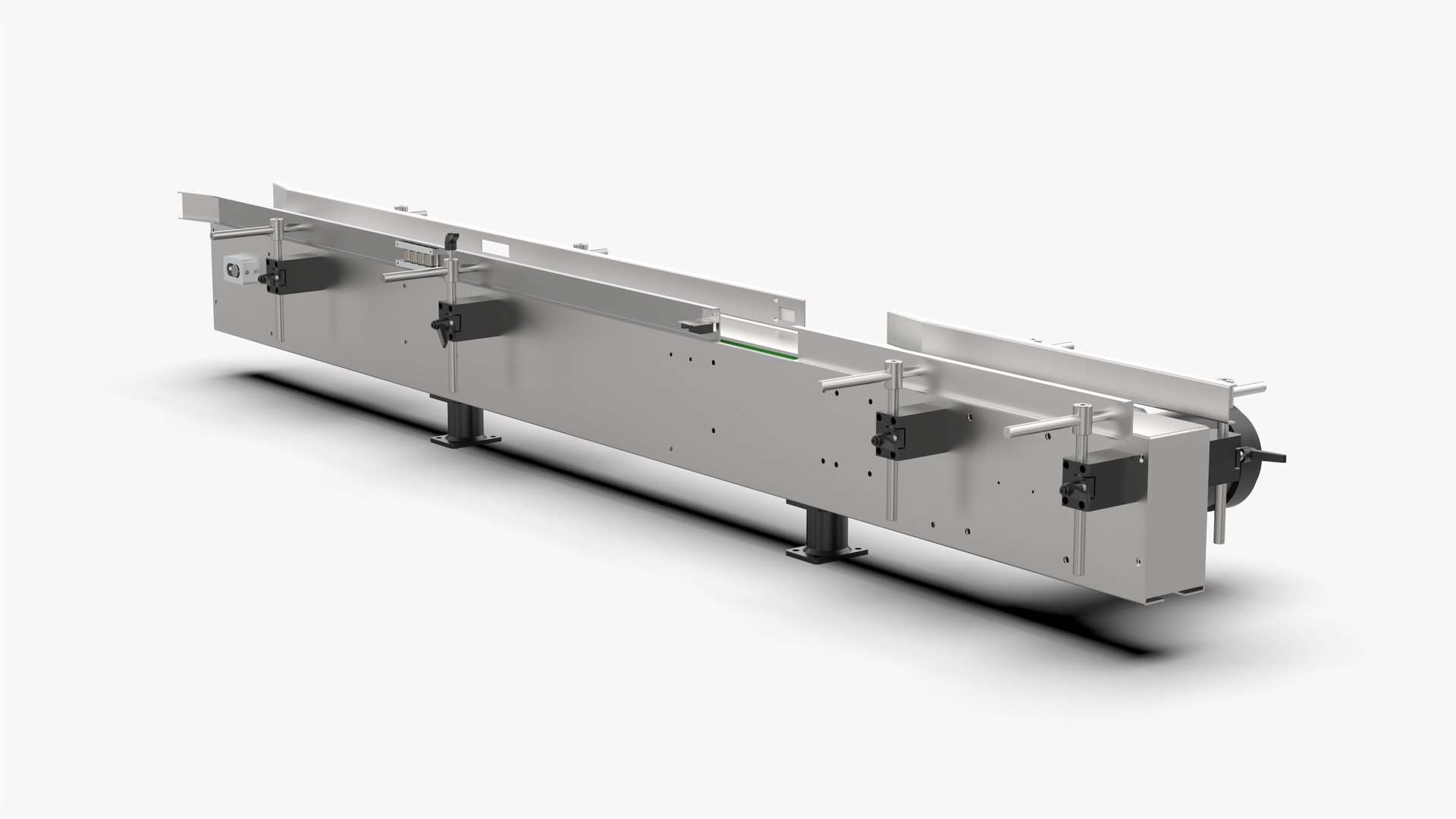

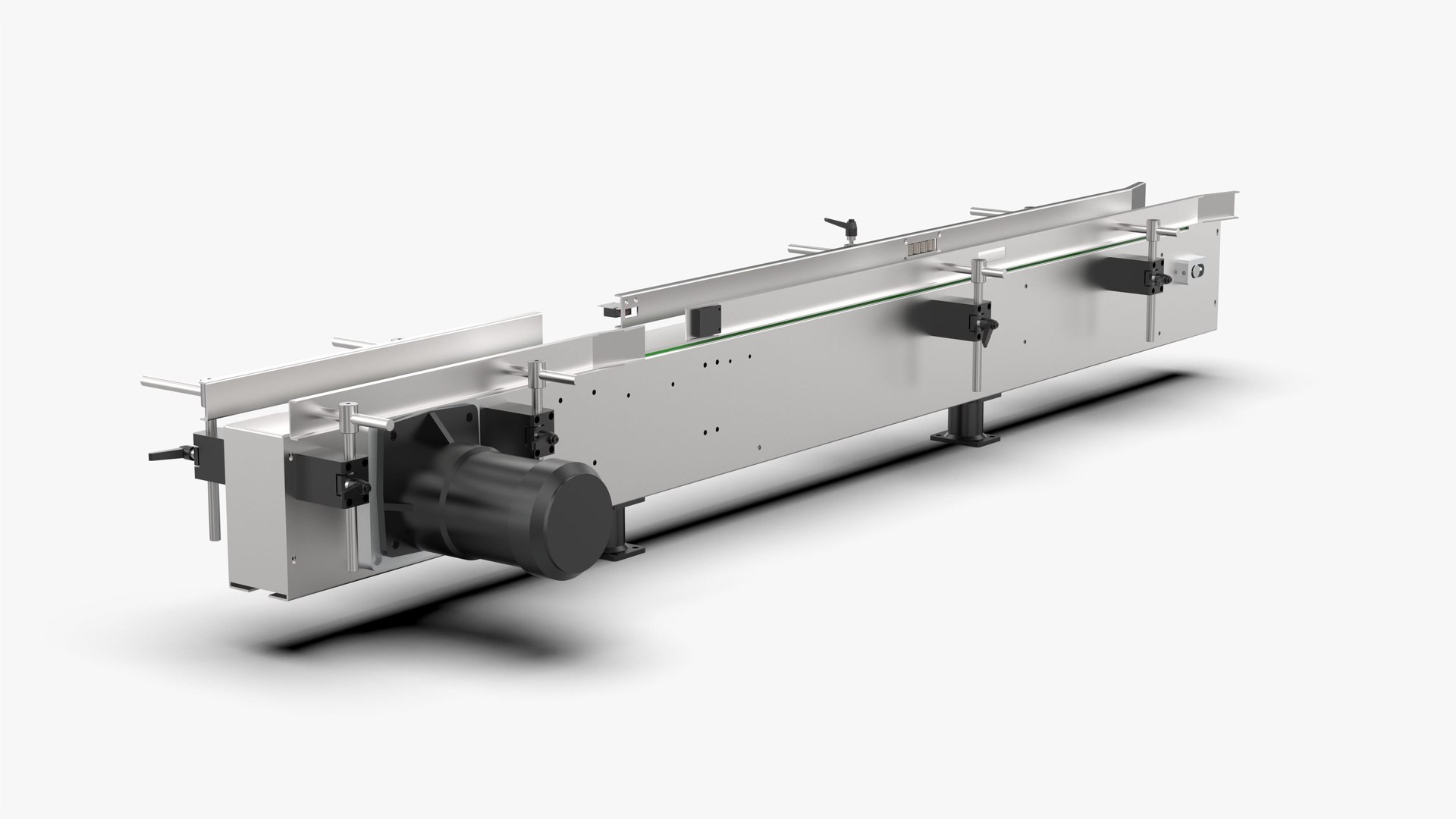

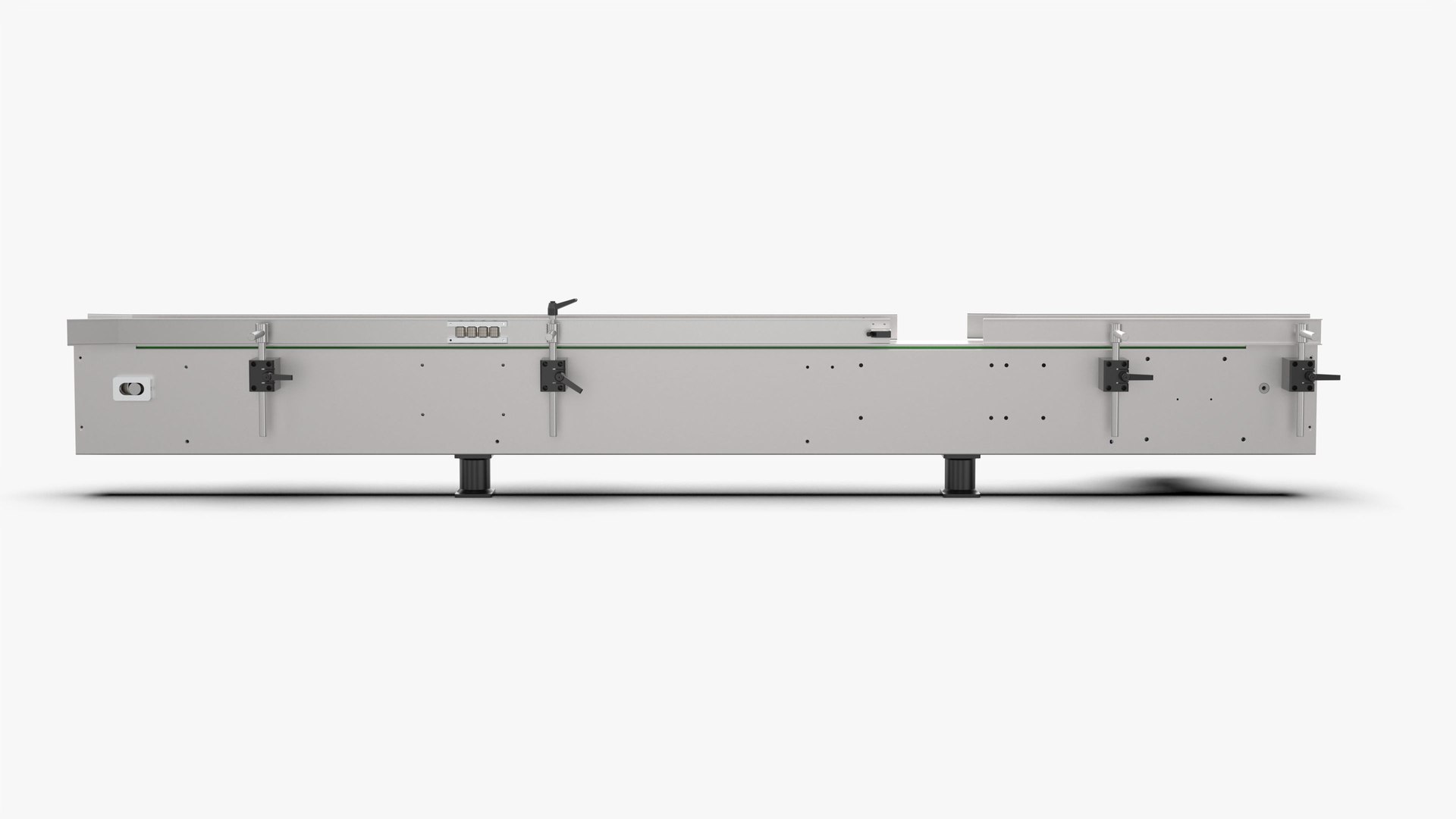

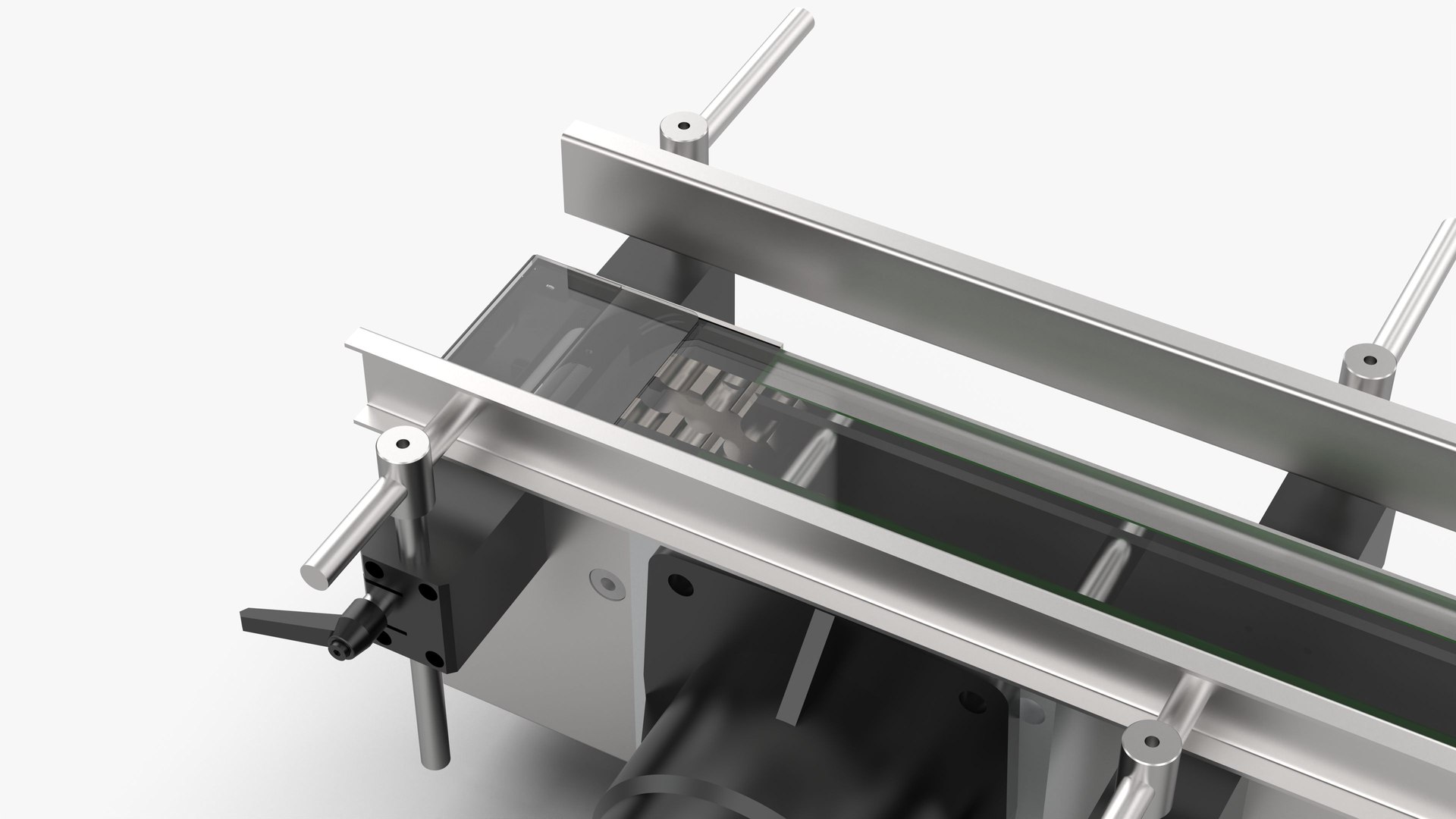

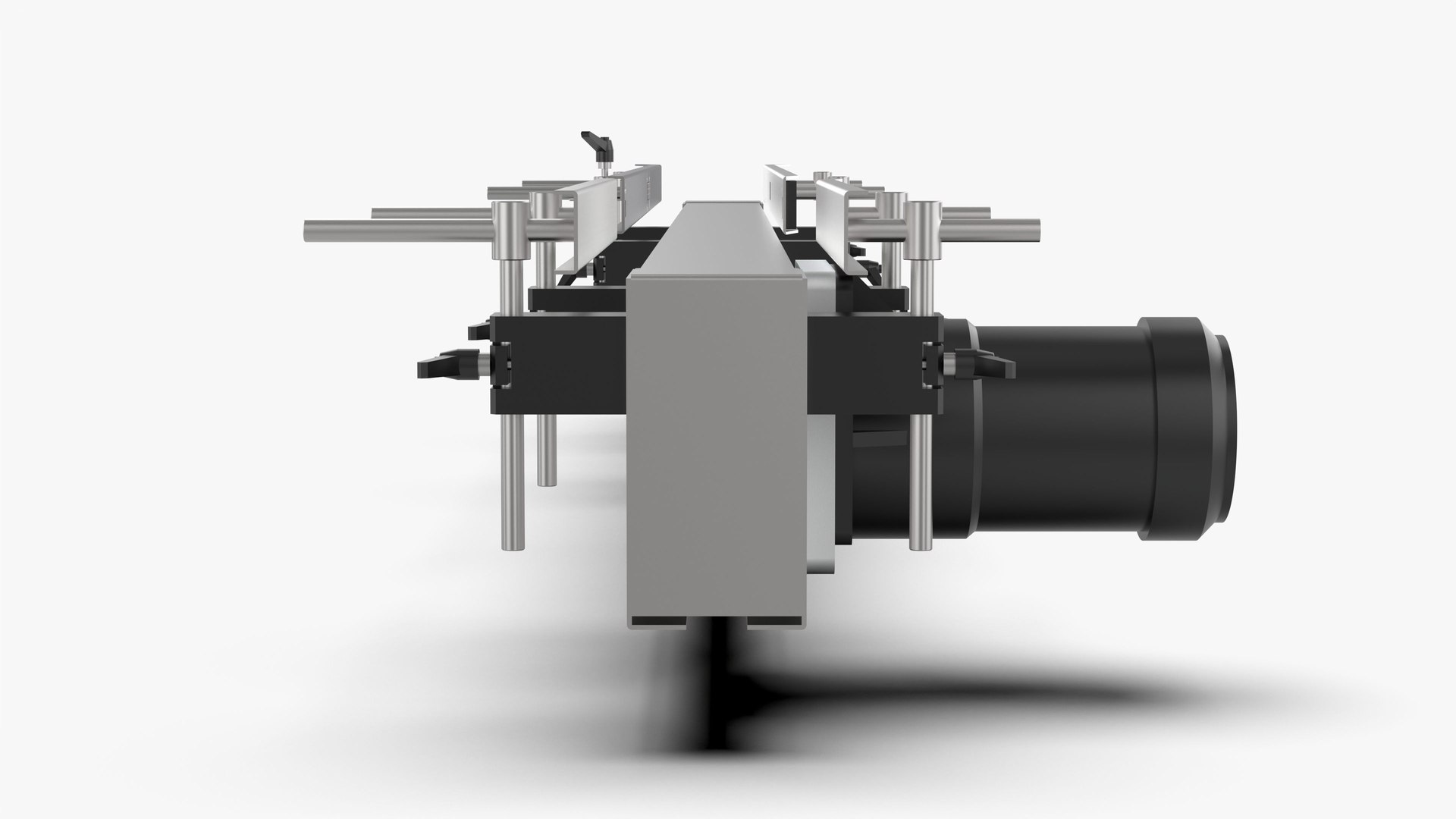

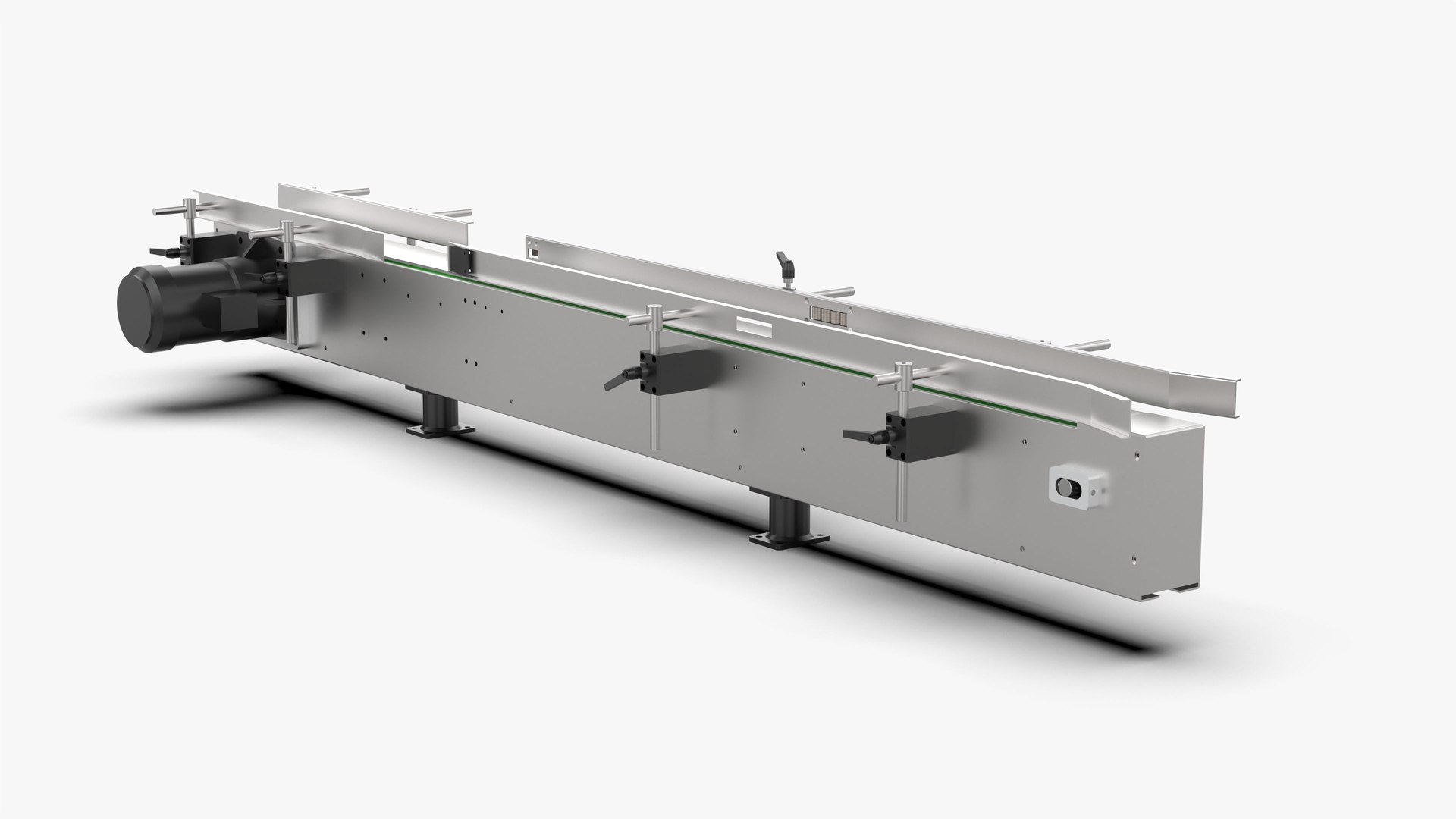

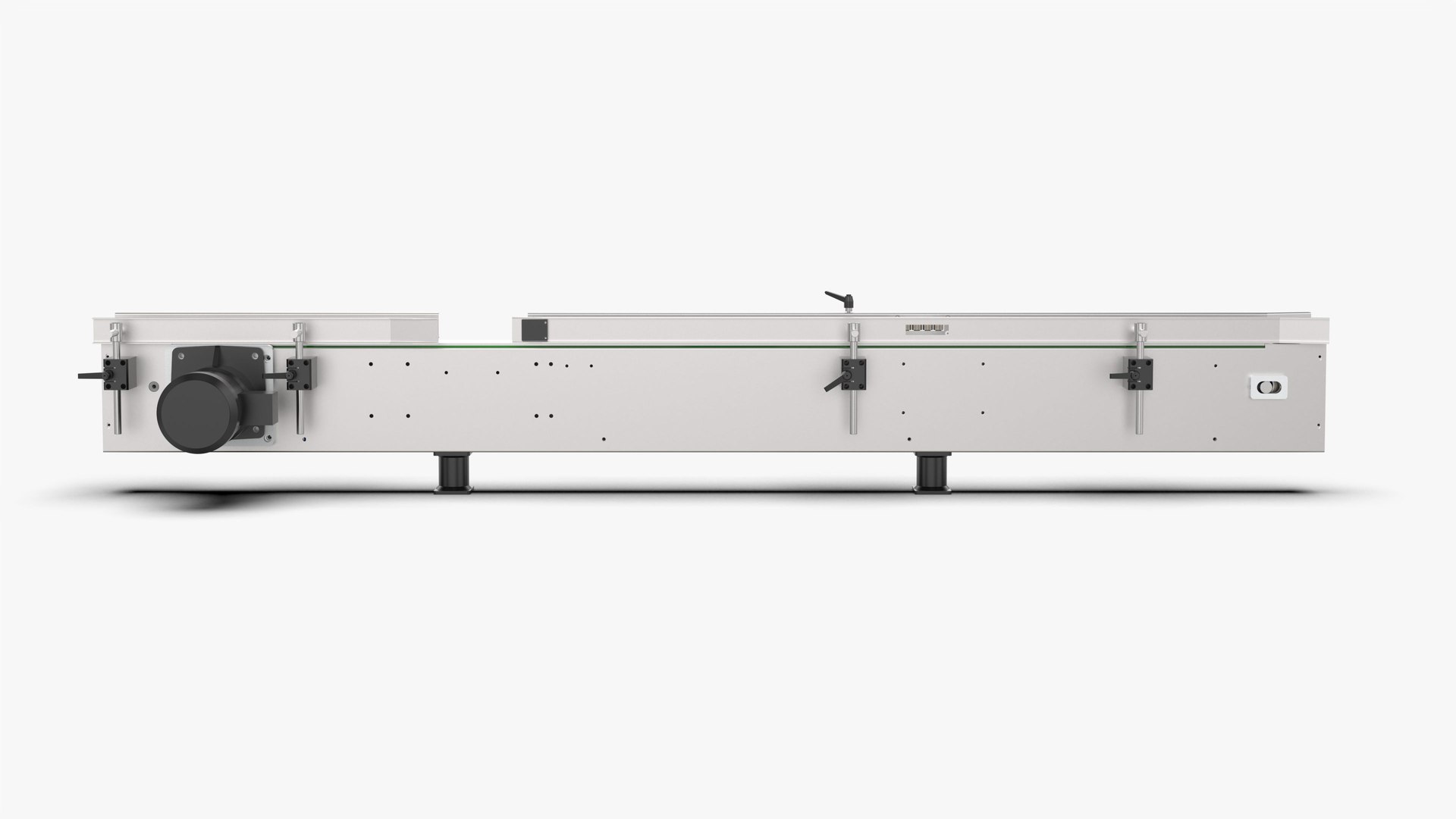

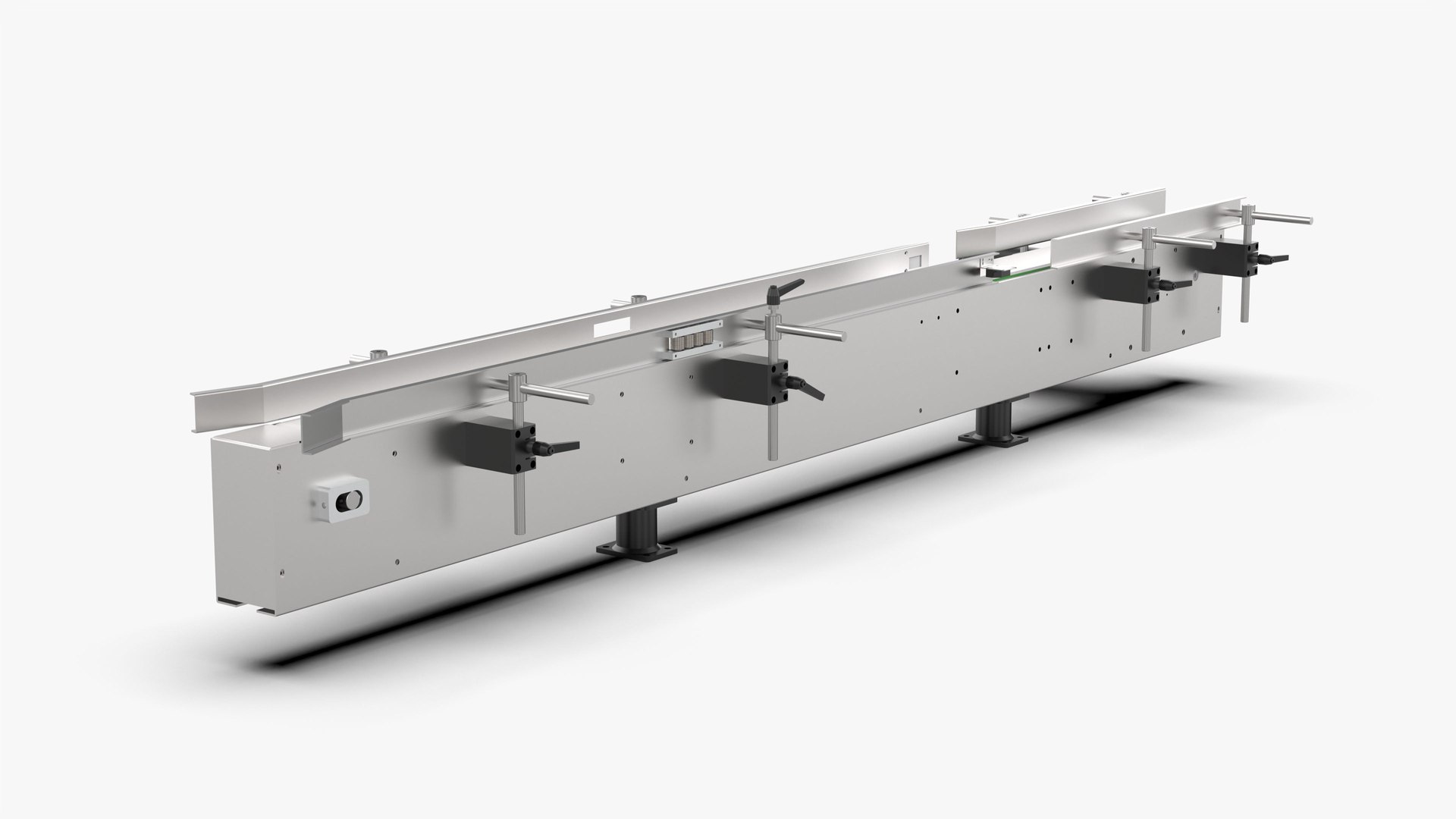

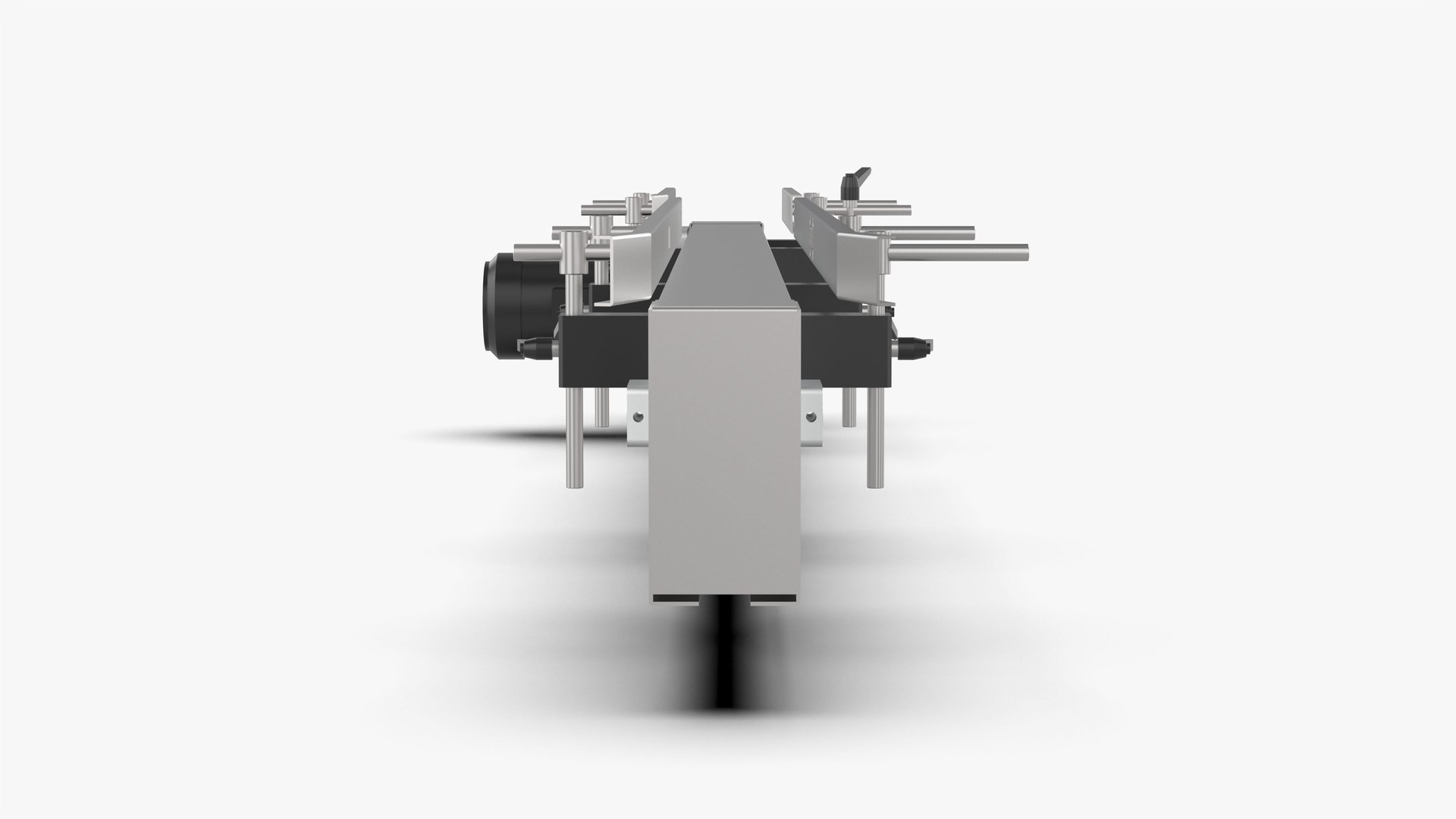

The chain plate conveyor belt is a transmission device with a standard chain plate as the bearing surface and a motor reducer as the power transmission. It is mainly used for the transportation of beverage labeling, filling, cleaning and other equipment. The drawing structure design is reasonable, including step format, which can be opened by various 3D software.

File Formats

– SolidWorks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 329,660
– Vertice: 988,980
