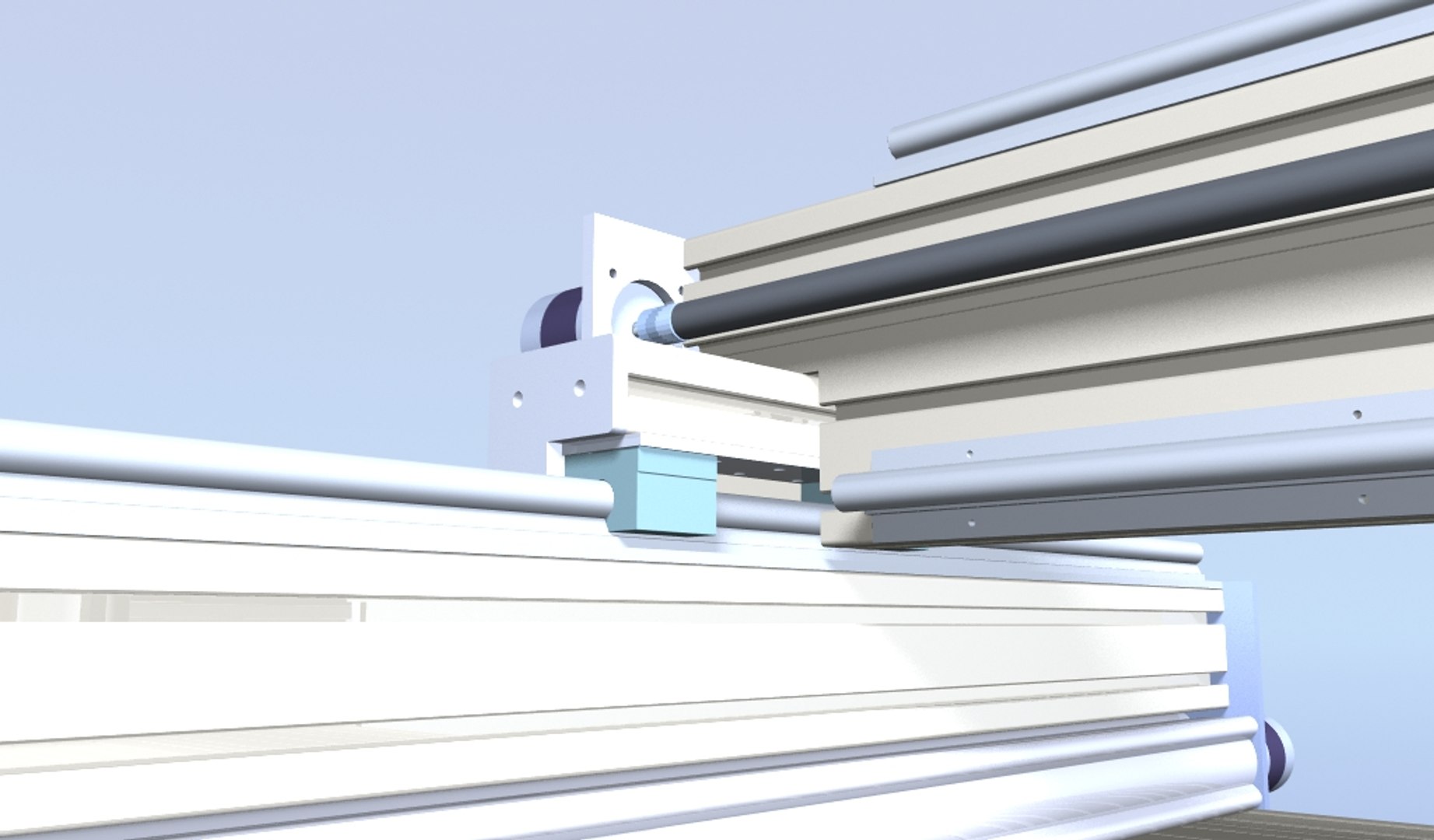

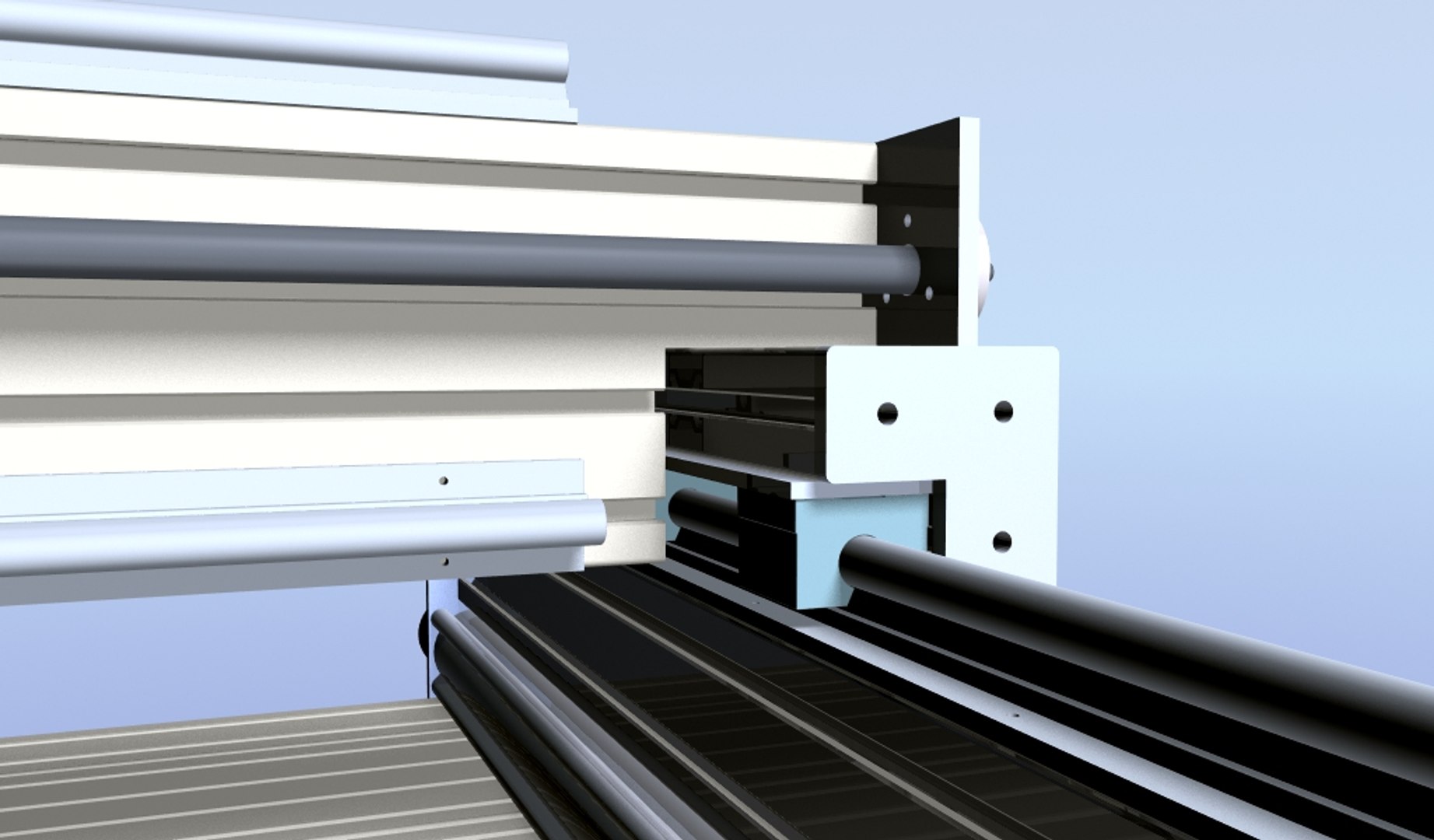

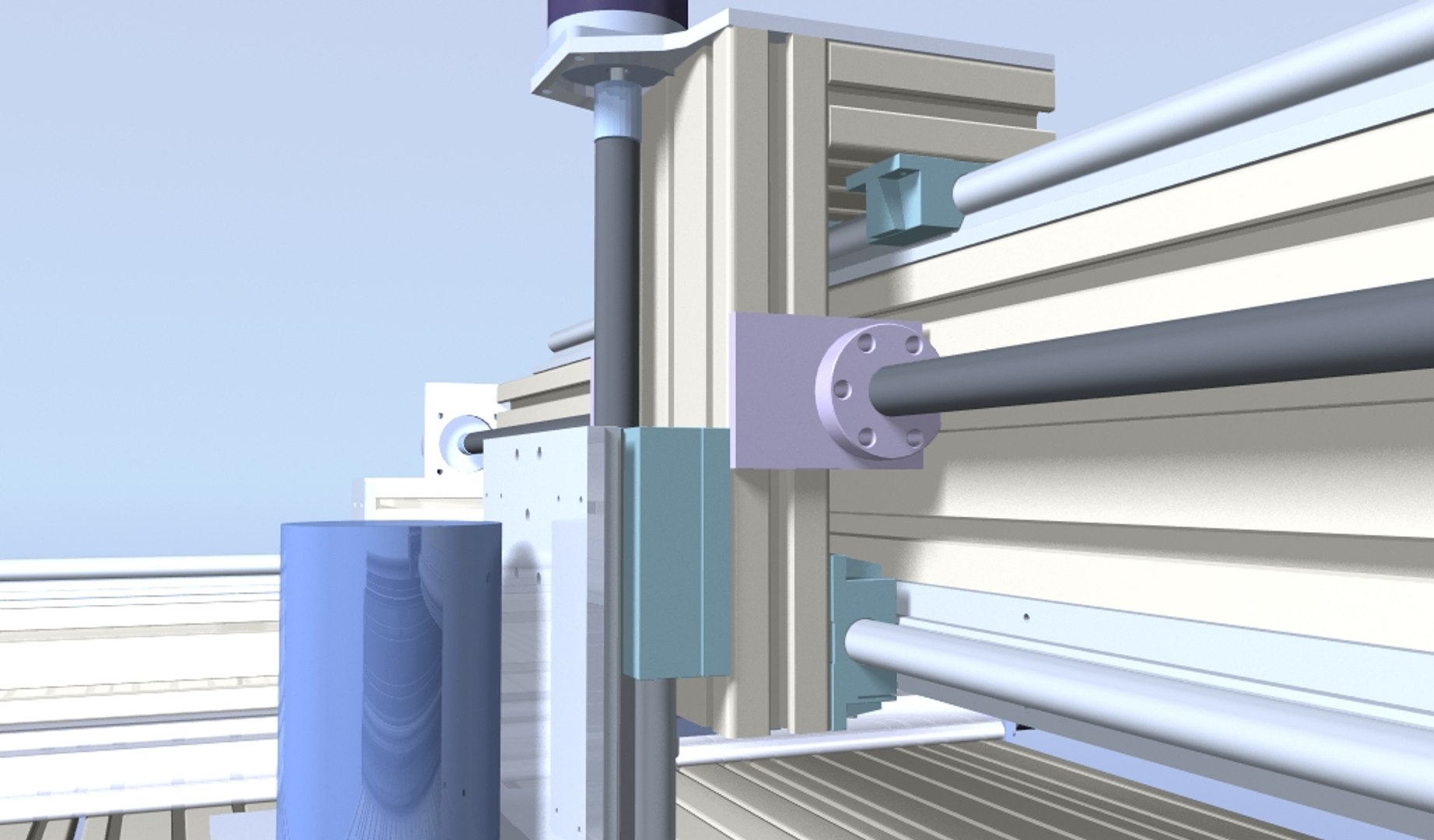

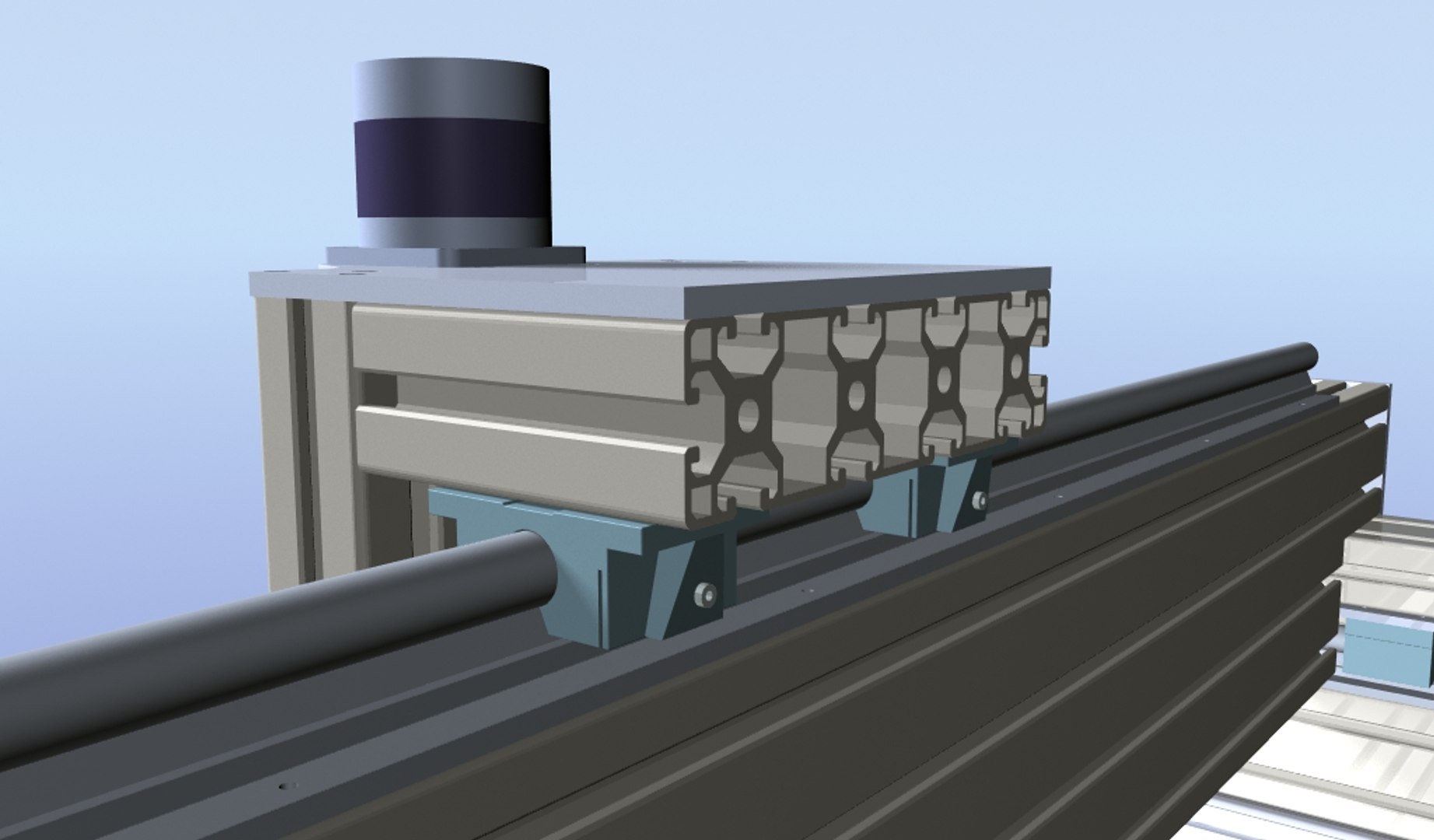

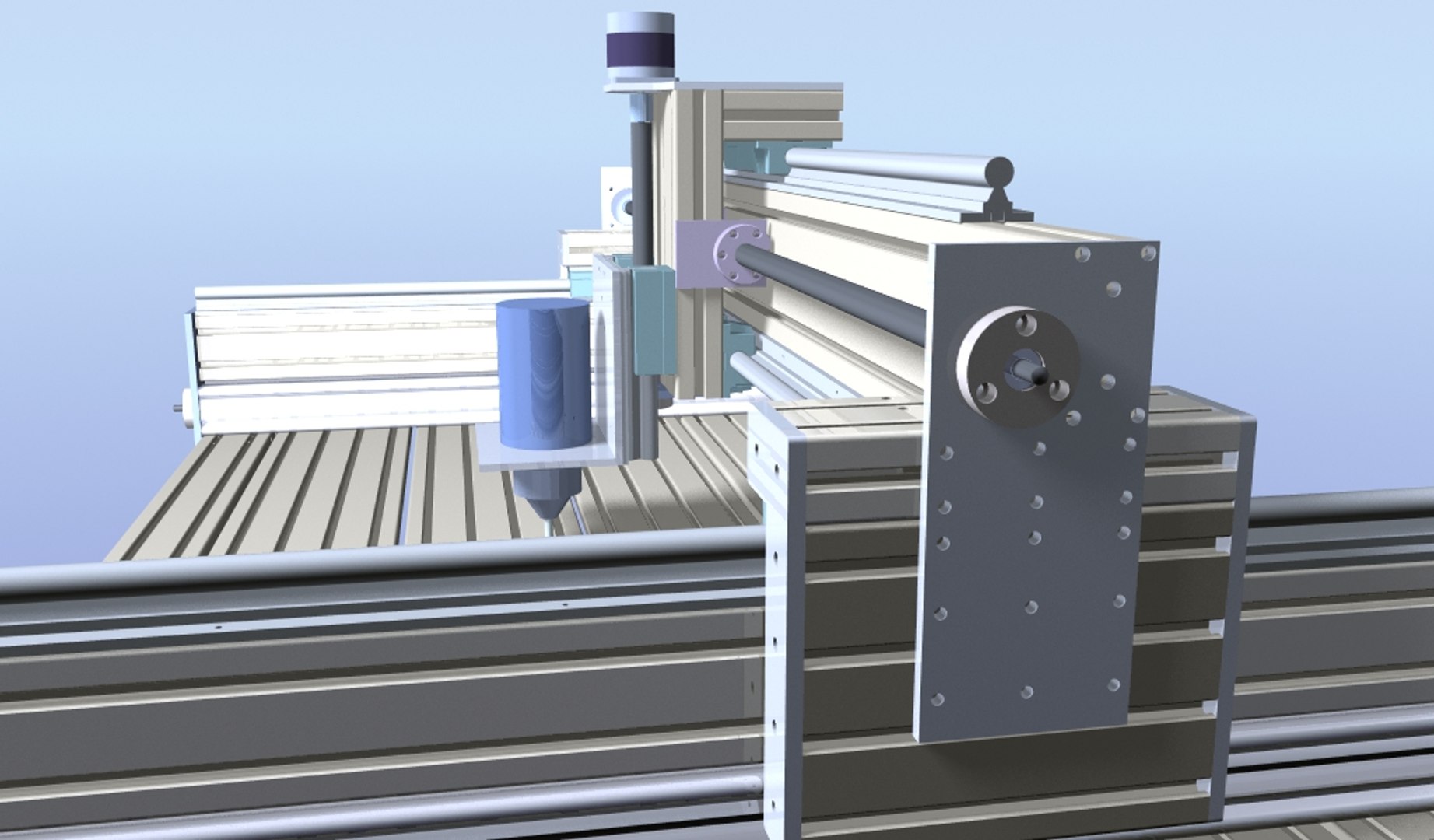

CNC Machine Design XYZ-axis with low milling bed for structural stability.
Parts are industrial-standard 'Item' carrier-beams, standard minebao stepper moters, support-rails and alu plates, steel spindles and carrier nuts.
All parts are modeled according to accurate measurements, official industrial standards and readily available parts.
It is an experimental design that riped over months, taking into account structural integrity and availability of parts at reasonable cost.
The machine measures about 1.2m x 1m x 0.5m, a 'table-top CNC Machine'.
