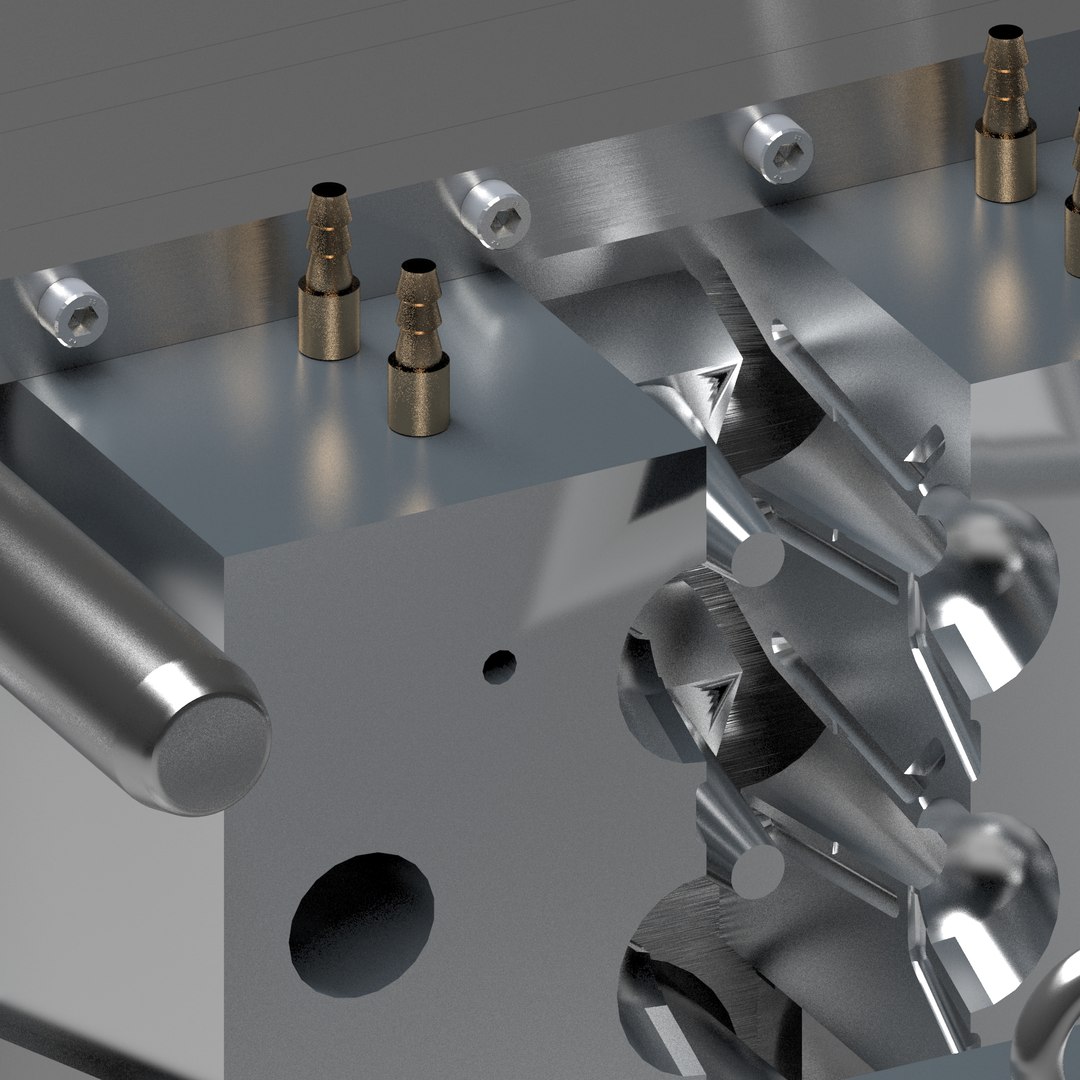

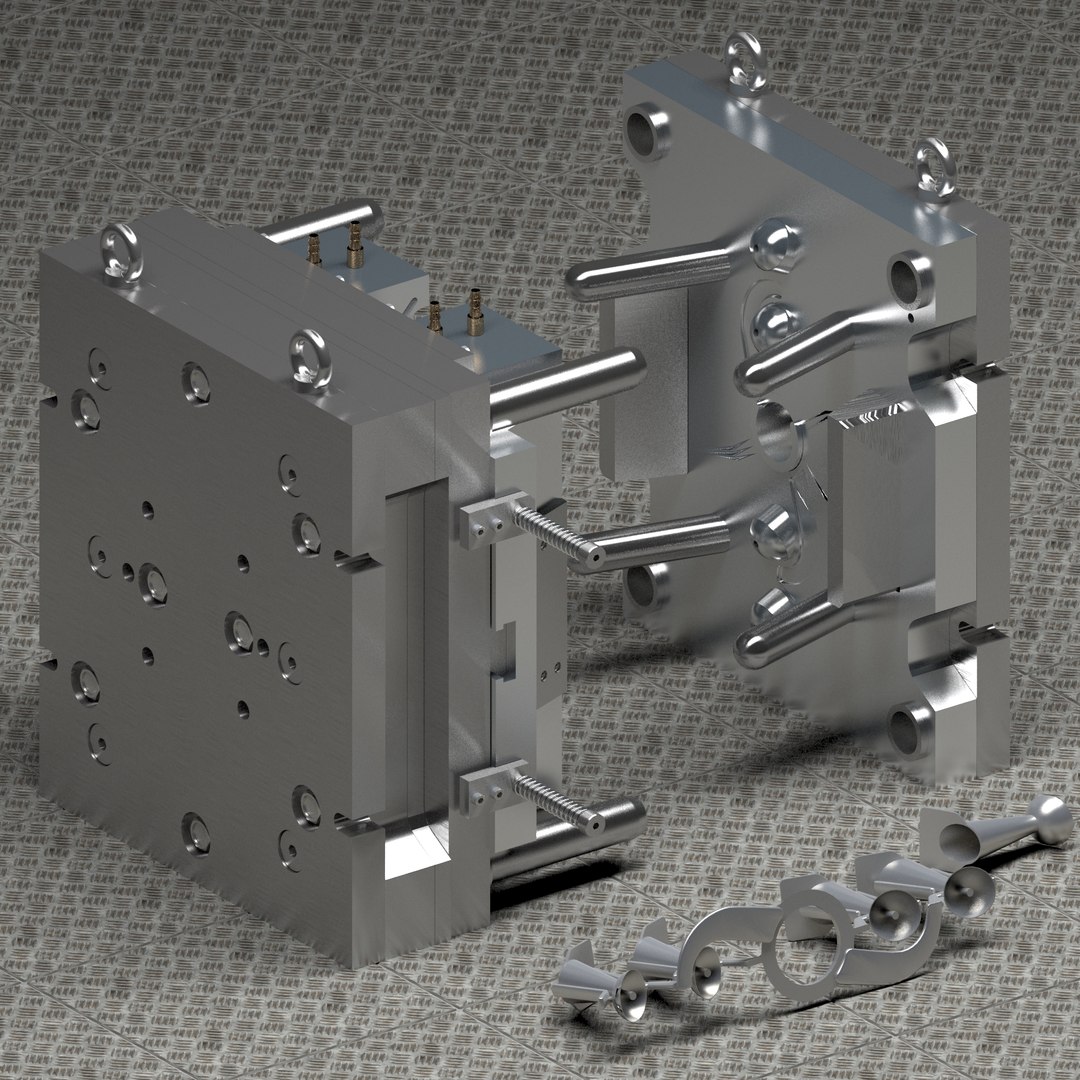

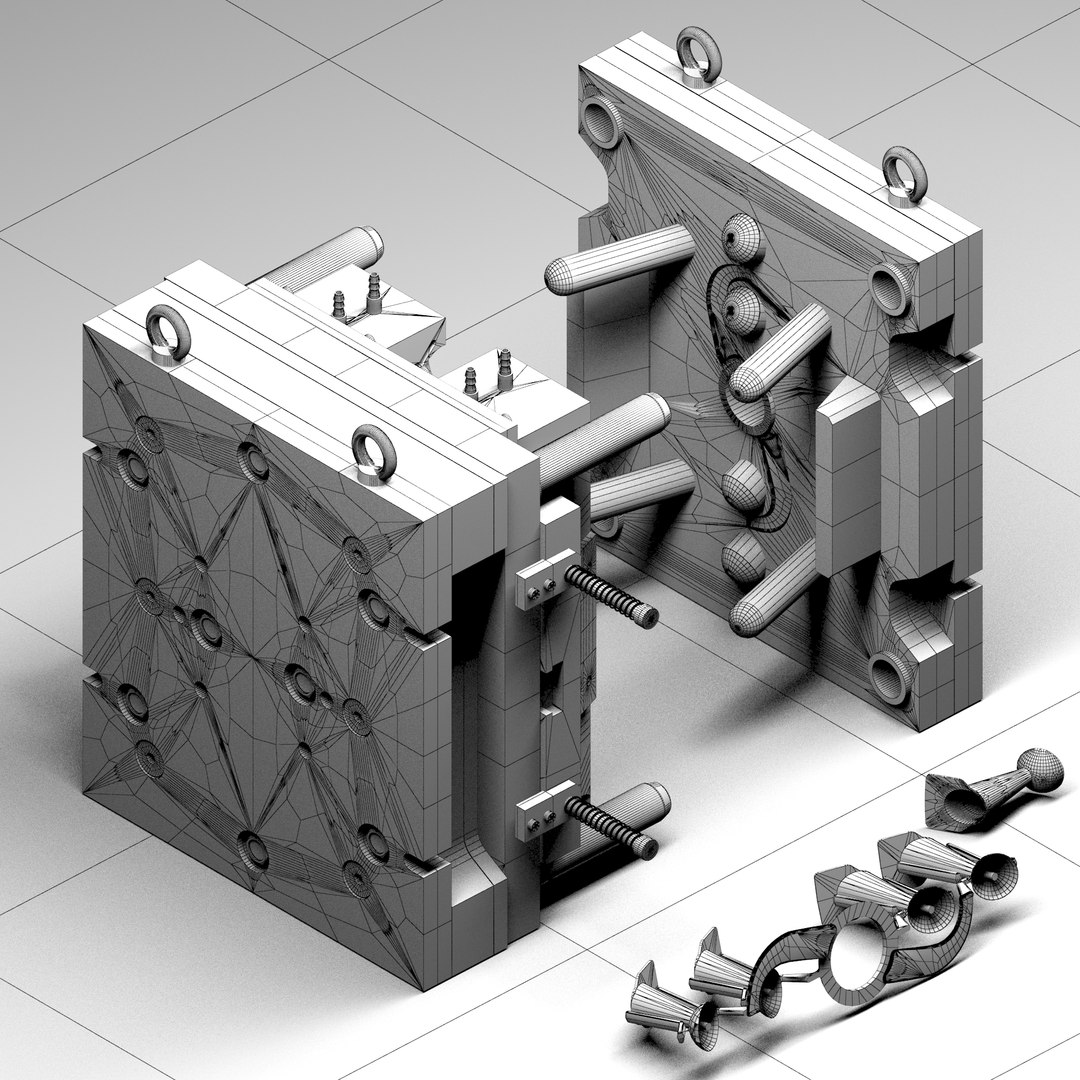

The mold for the manufacture of the case of furniture fittings.

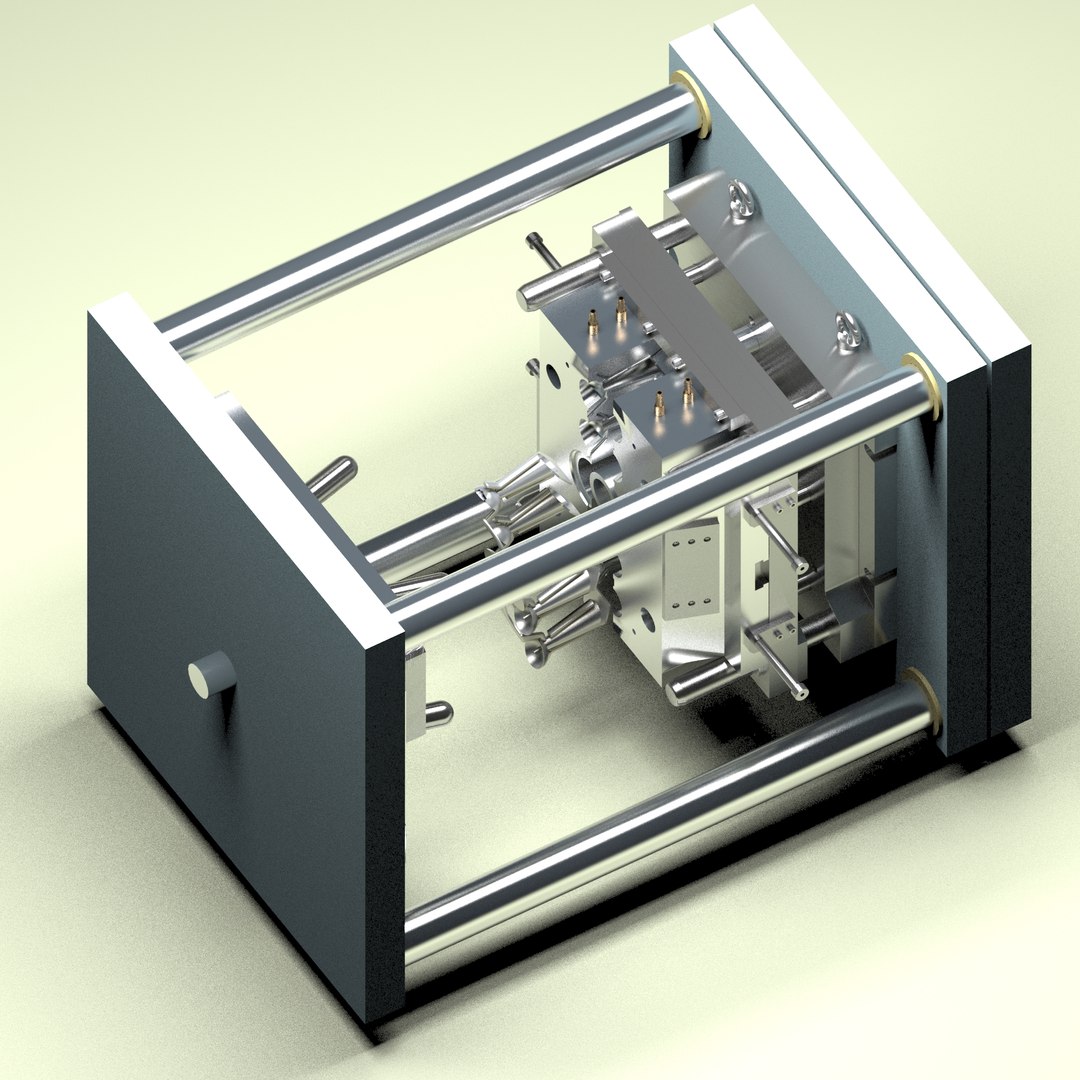

In the package pressform16_max - animation of the work of the mold on the press. Casting with allowance for shrinkage.

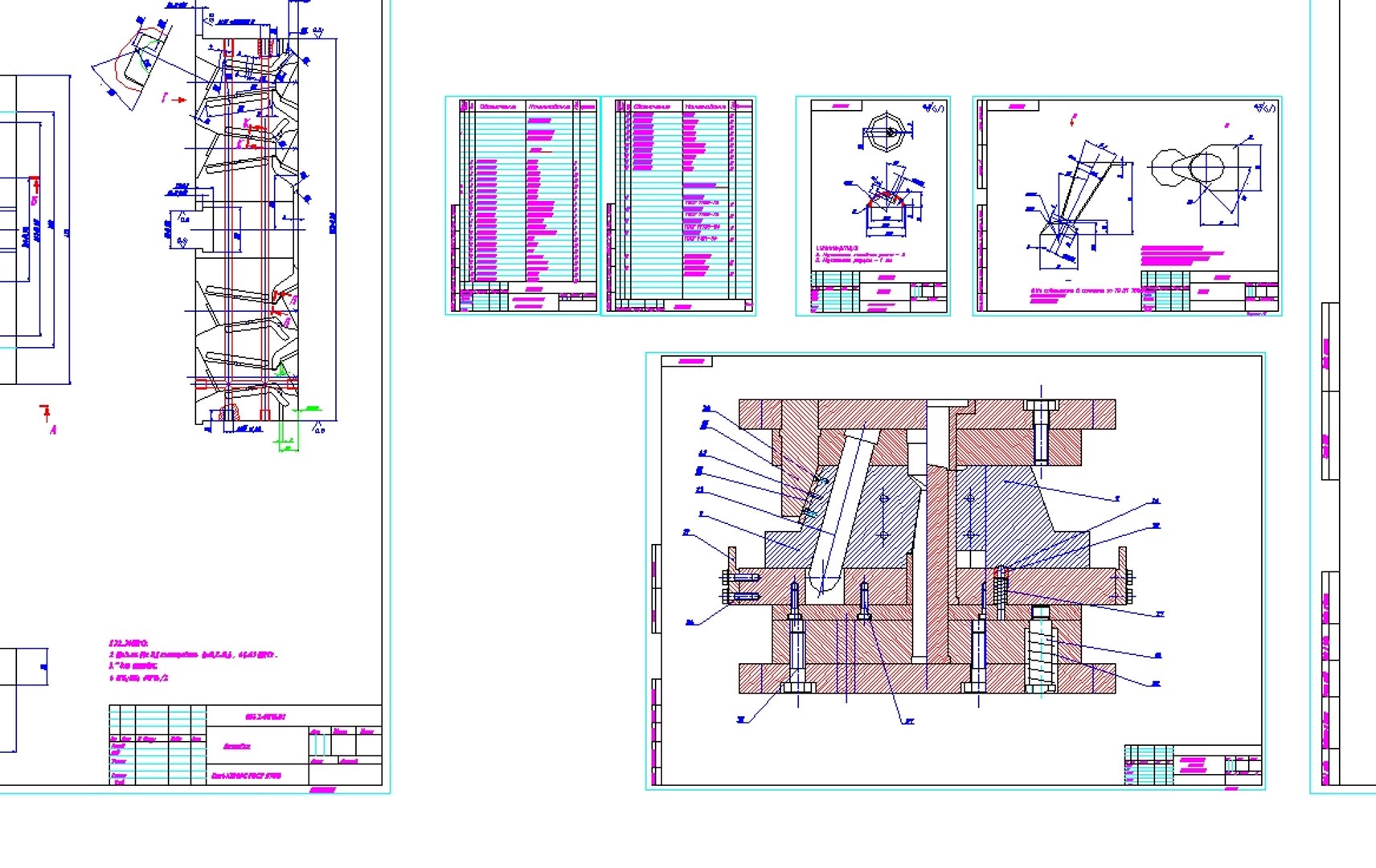

In the package pressform16_dwg - drawings of the mold 2d, 3d autocad 2014
The mold has been realized in metal.. Can be used for advertising, for educational purposes, for the manufacture of similar products.
Drawings ESKD. The scale is 1: 1 mm.
