HMS M1 M-Class Submarine Dynamic Simulation

$59

Standard License | Upgrade License
Editorial Uses Only
Formats (16)
Free file format Conversions available
Native | 3ds Max 2018 | V-Ray 4.3
3ds Max 2018 | V-Ray 4.3
Maya 2015 | V-Ray 3.2
Maya 2015 | mental ray
Maya 2017 | Arnold 5.3.1.1
3ds Max 2018 | Arnold 5.3.1.1
Cinema 4D R18 | Arnold 5.3.1.1
Cinema 4D R18 | Advanced Render
glTF
OBJ
Unreal
Unity
FBX
Specifications
Publish Date December 27, 2022
Product ID 2005834
Polygons 97,673
Vertices 105,311
Polygonal Quads/Tris Geometry
Textures
Materials

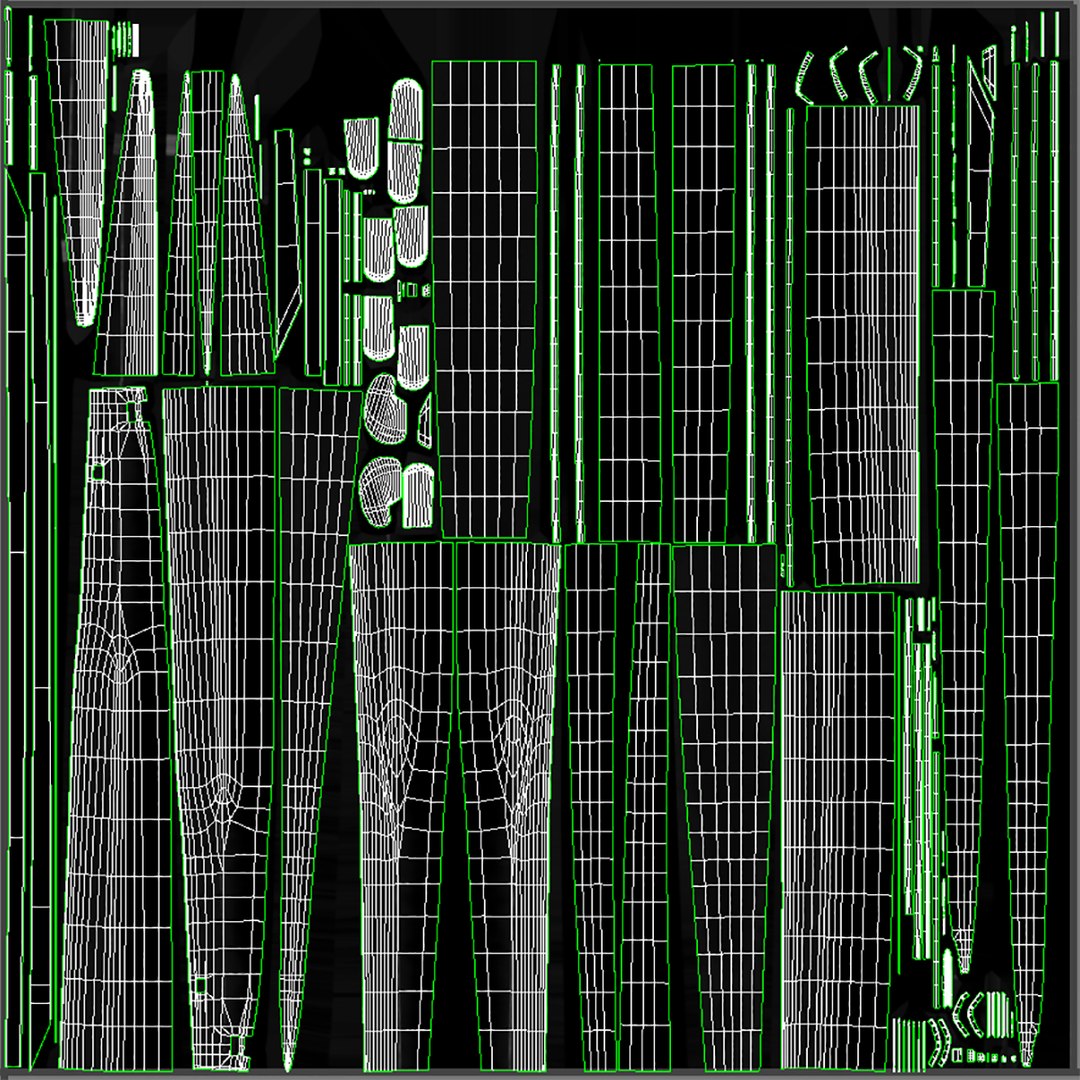

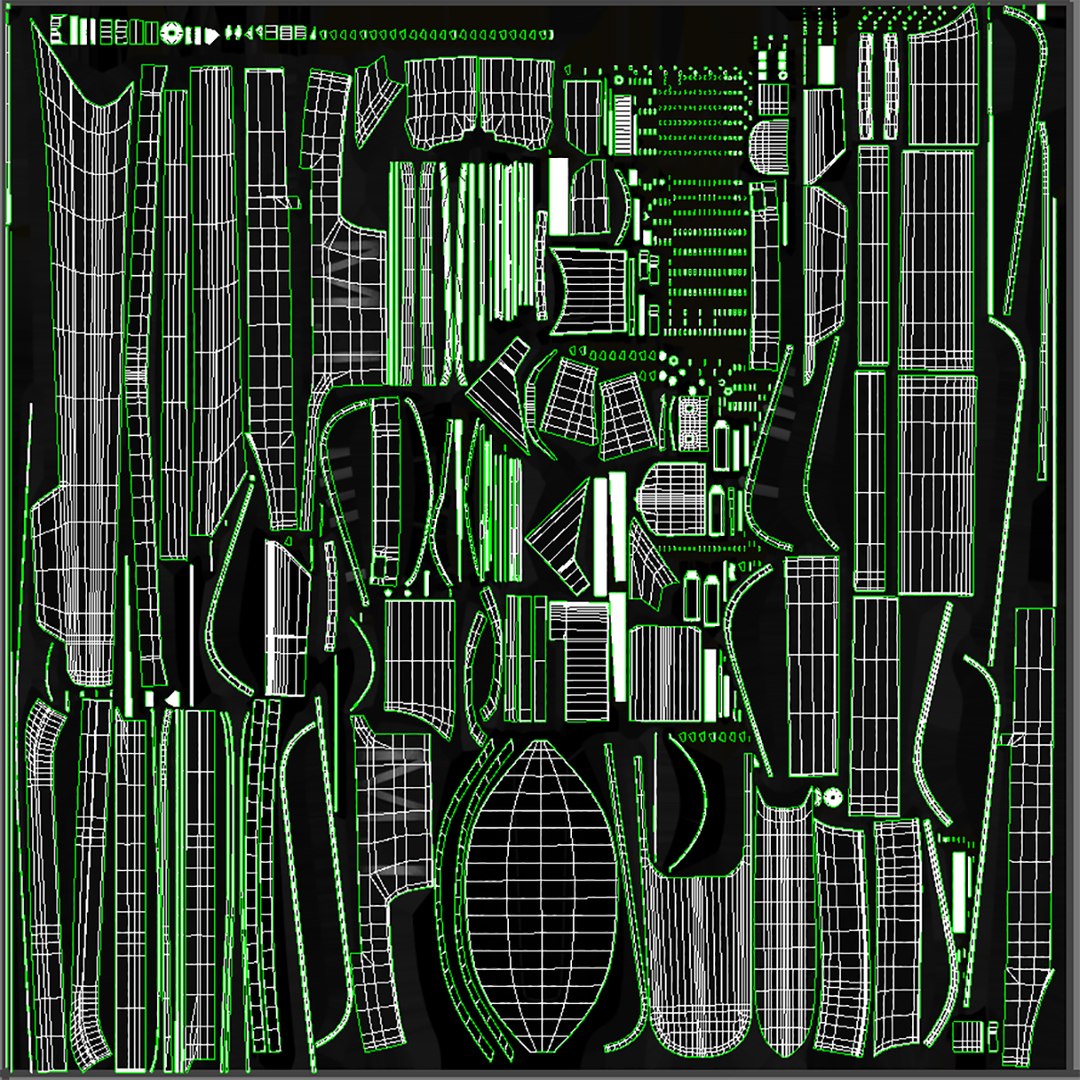

UV Mapped
Non-overlapping Unwrapped UVs
PBR
Real-Time
StemCell Certified
TurboSquid Exclusive
member avatar
ragusa
720 Products | Contributor Since 2007
Have questions? Chat with us now.

Description

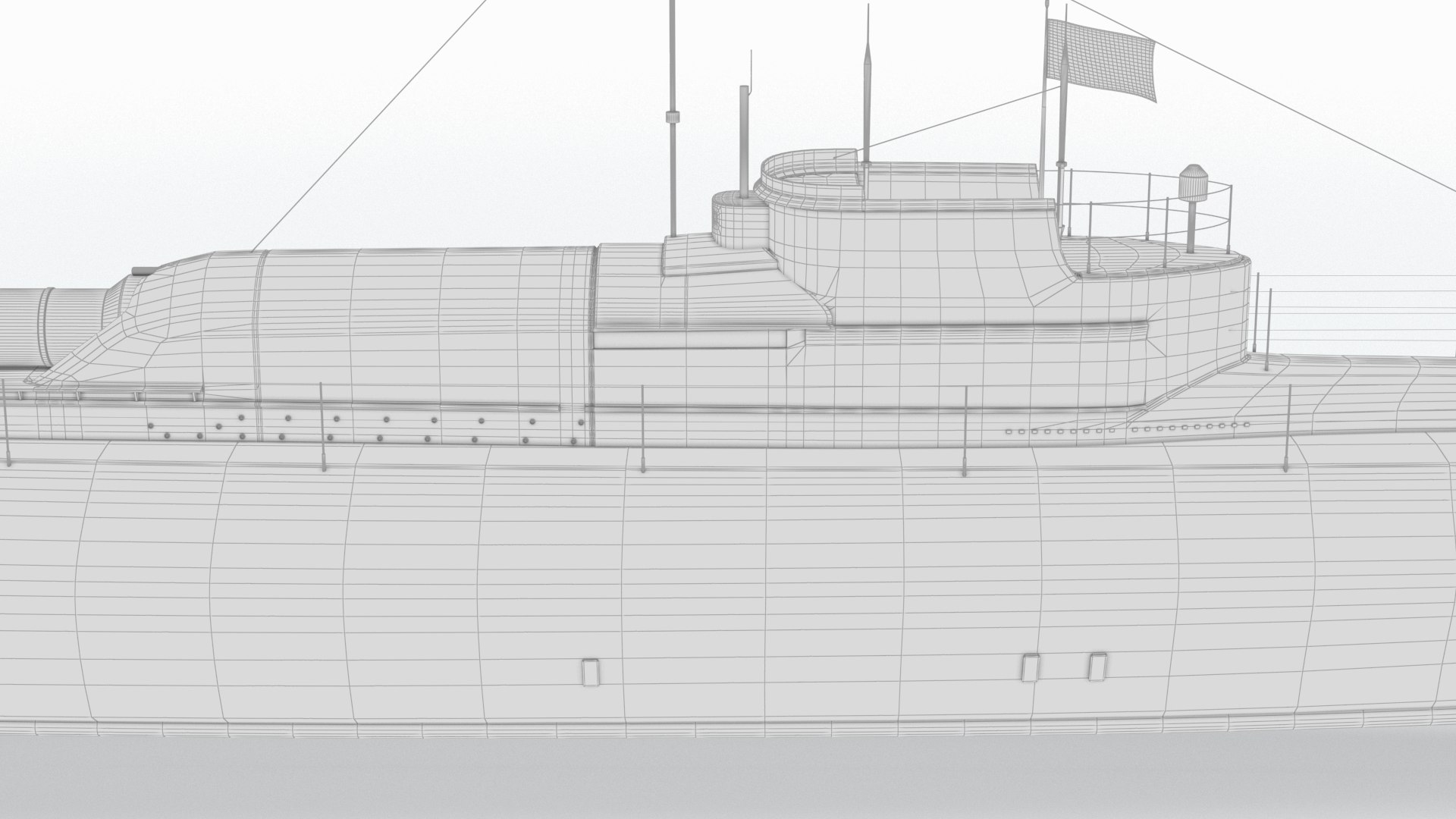

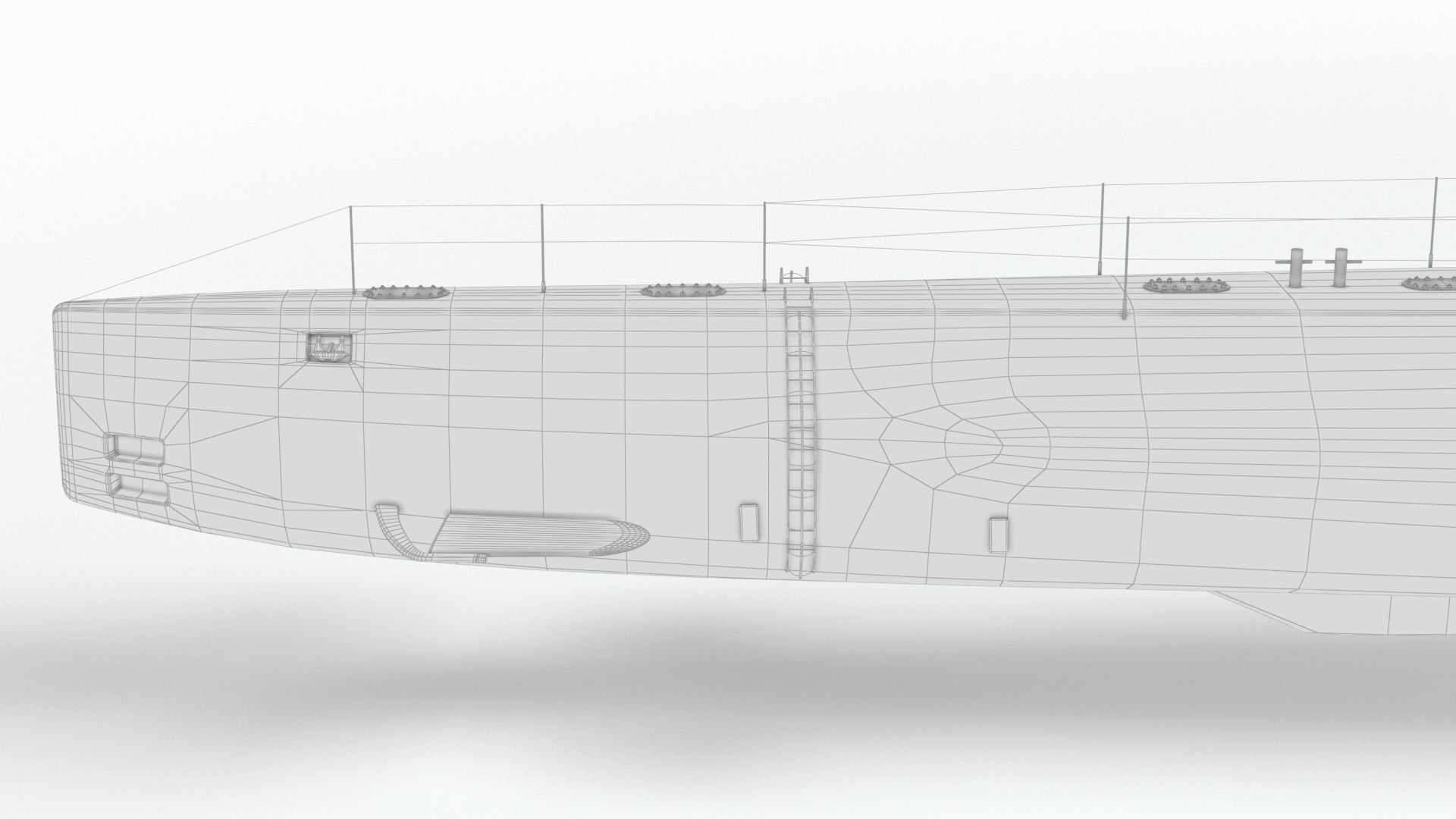

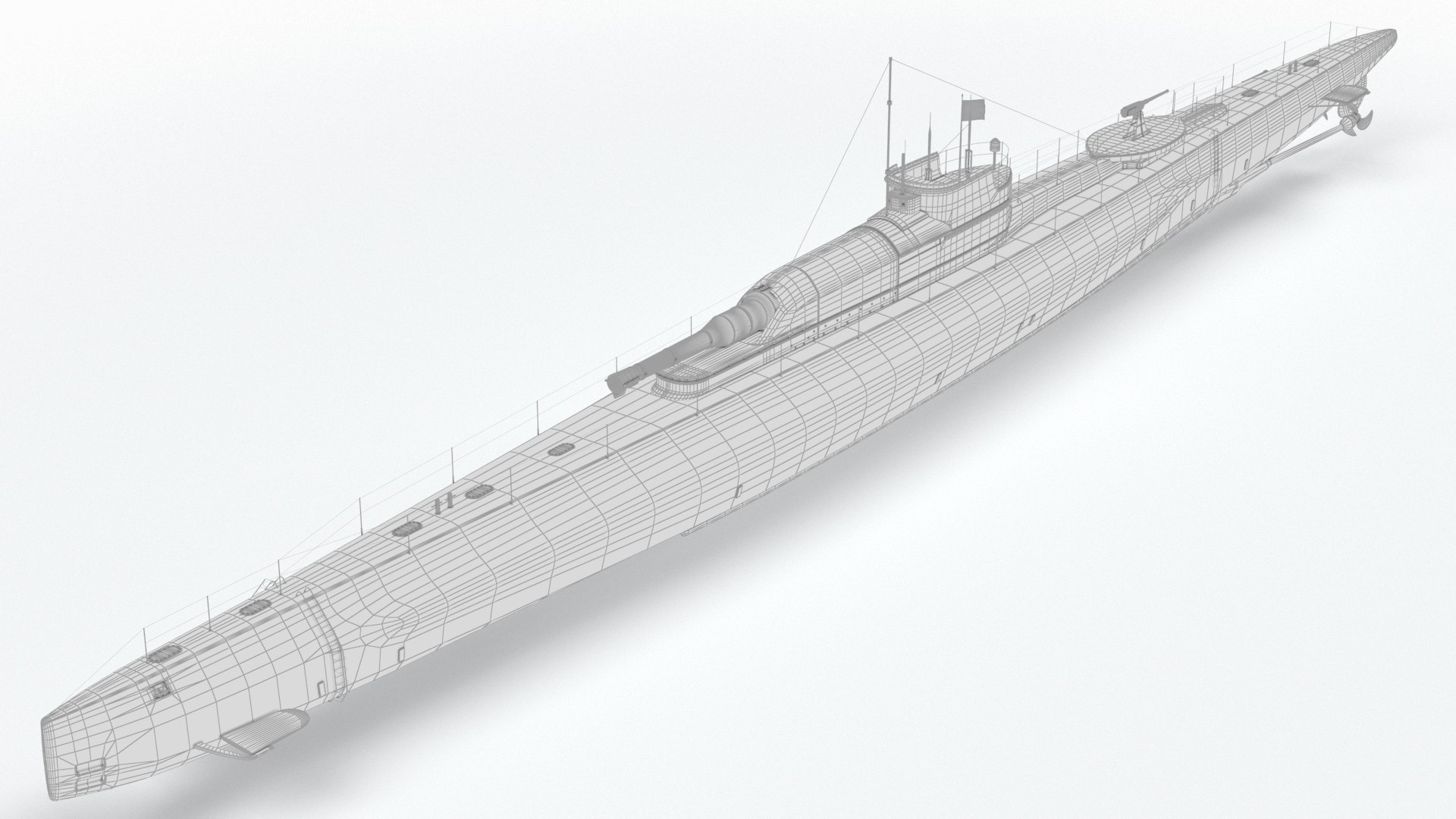

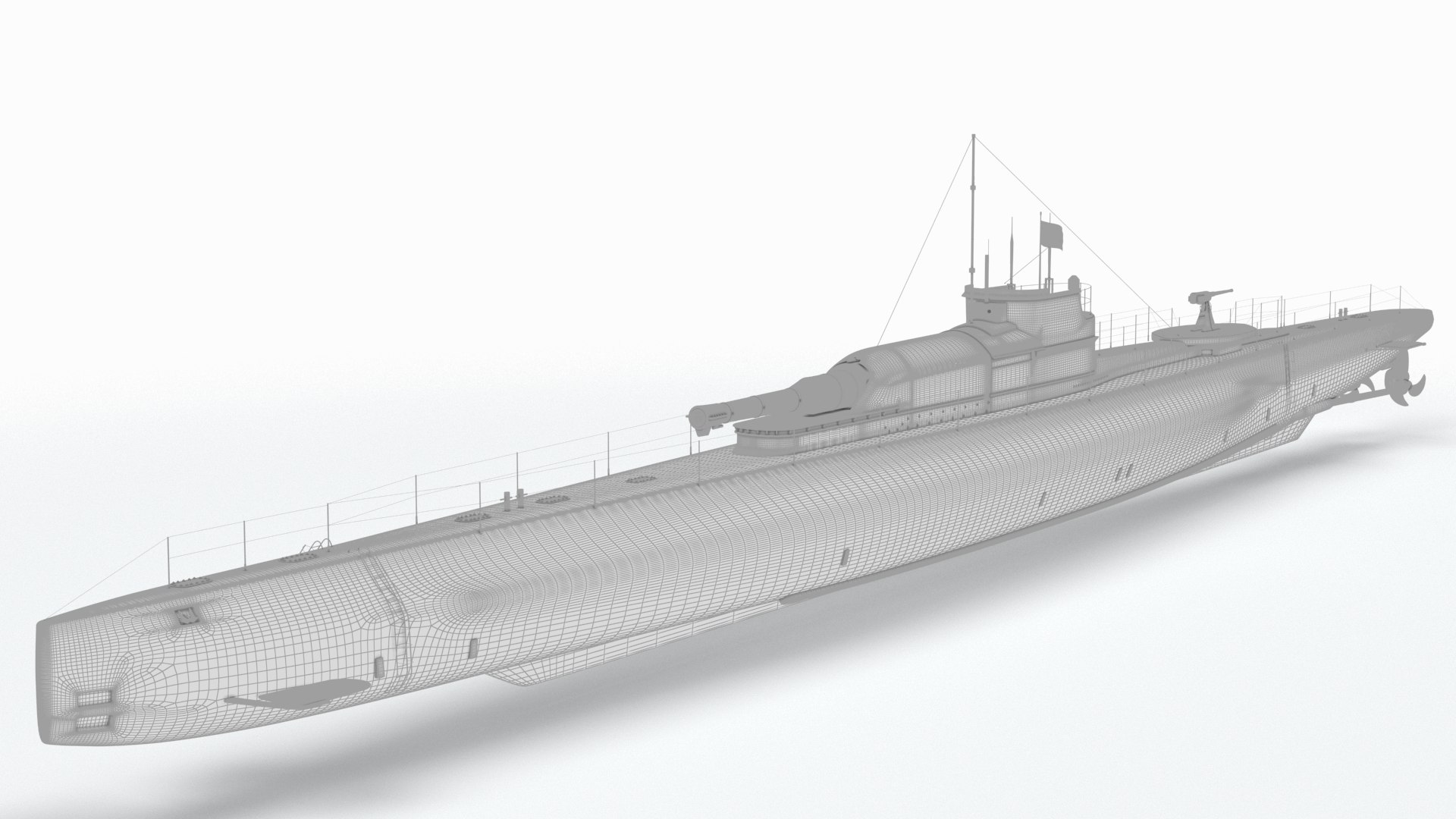

HMS M1 M-Class Submarine WW1, 101,5m (333ft)

Included non-native format with PhoenixFD ocean dynamic
simulation, with settings for PhoenixFD 4.0. Cache files are not included and need to be calculated prior rendering
simulation. This PhoenixFD version is additional bonus and not item for Check Mate certification. Presentation images at ocean environment are generated with PhoenixFD 4.0 and Vray 4.3.

HMS M1 M-Class Submarine length 101.5 meters (333ft)
Renderer in use V-Ray 4.3

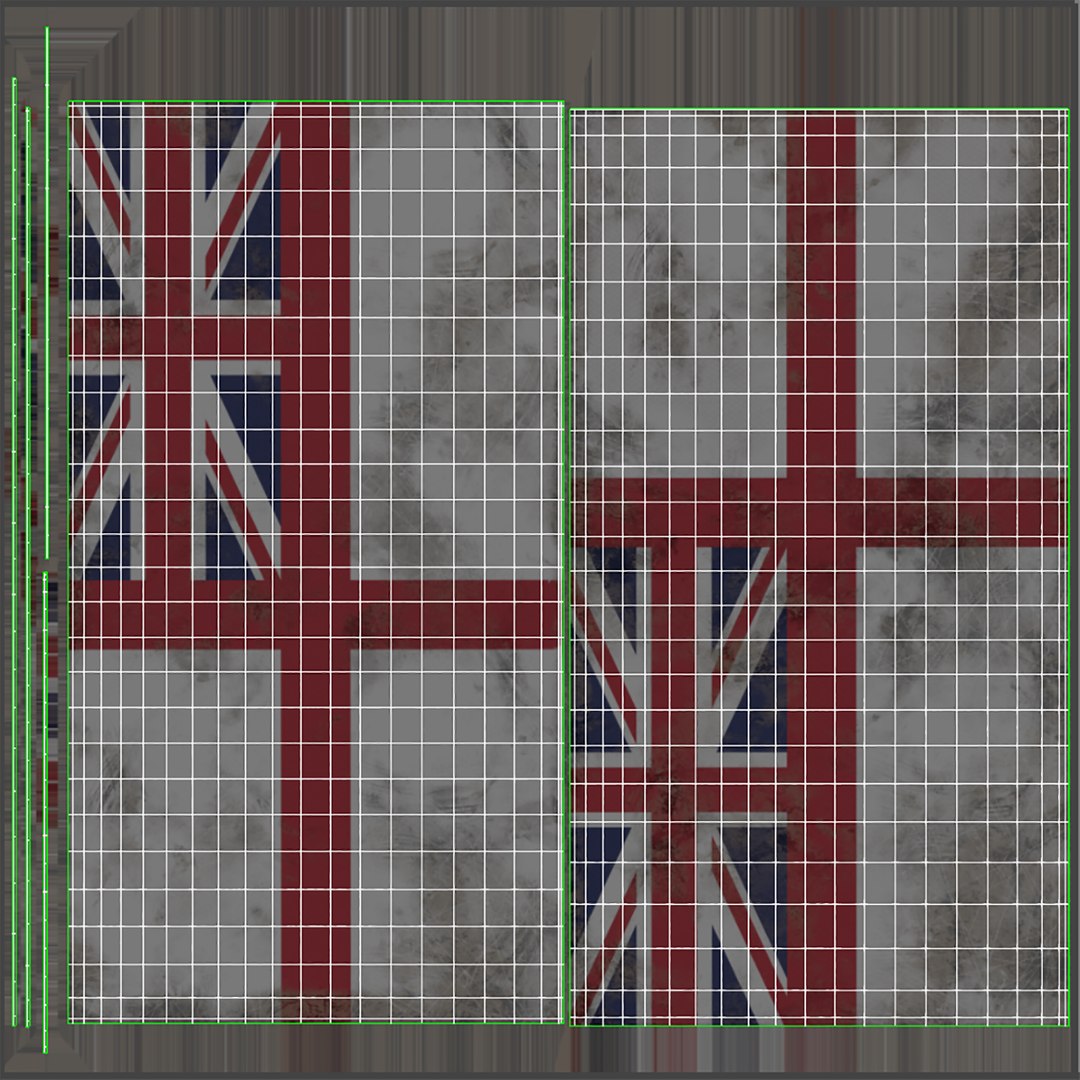

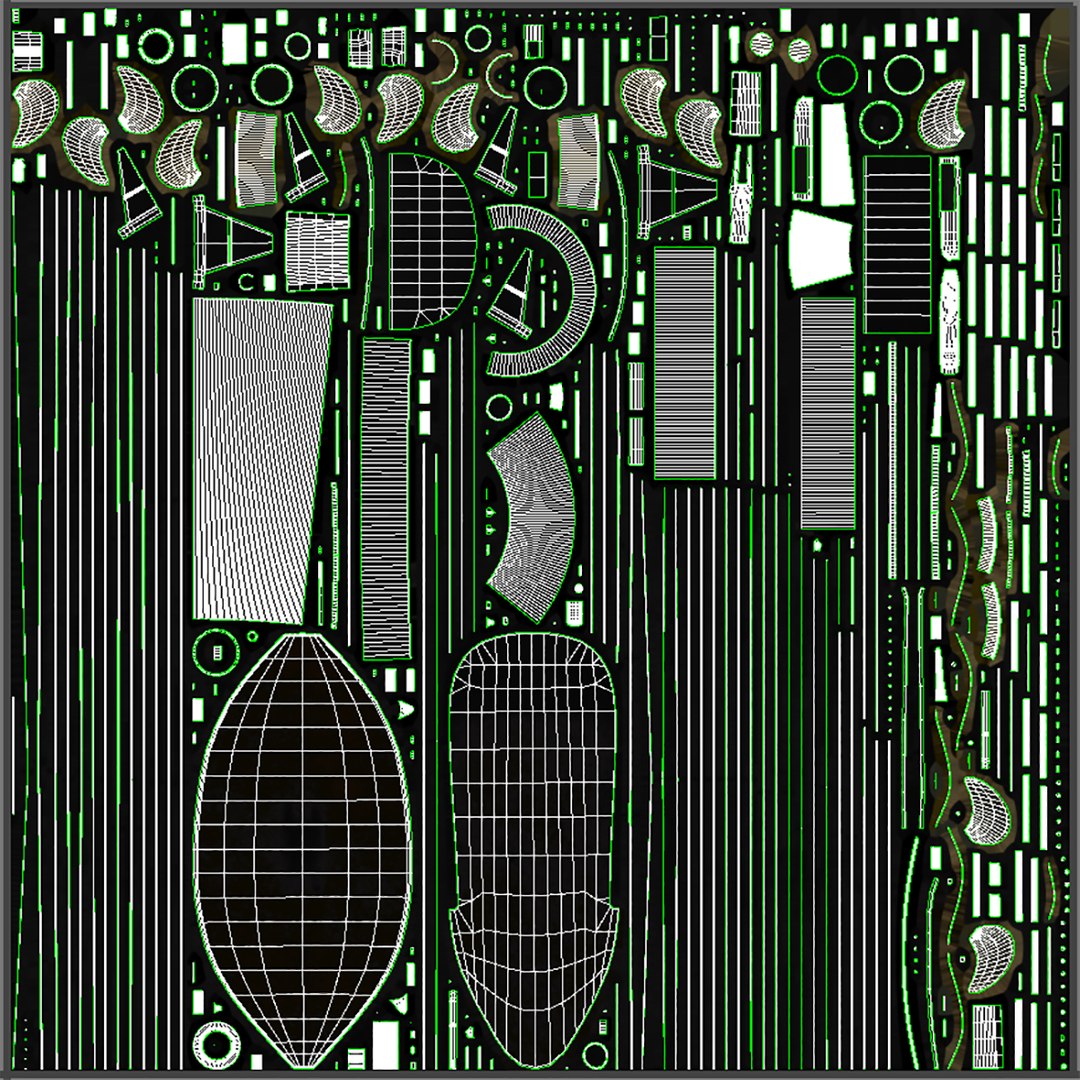

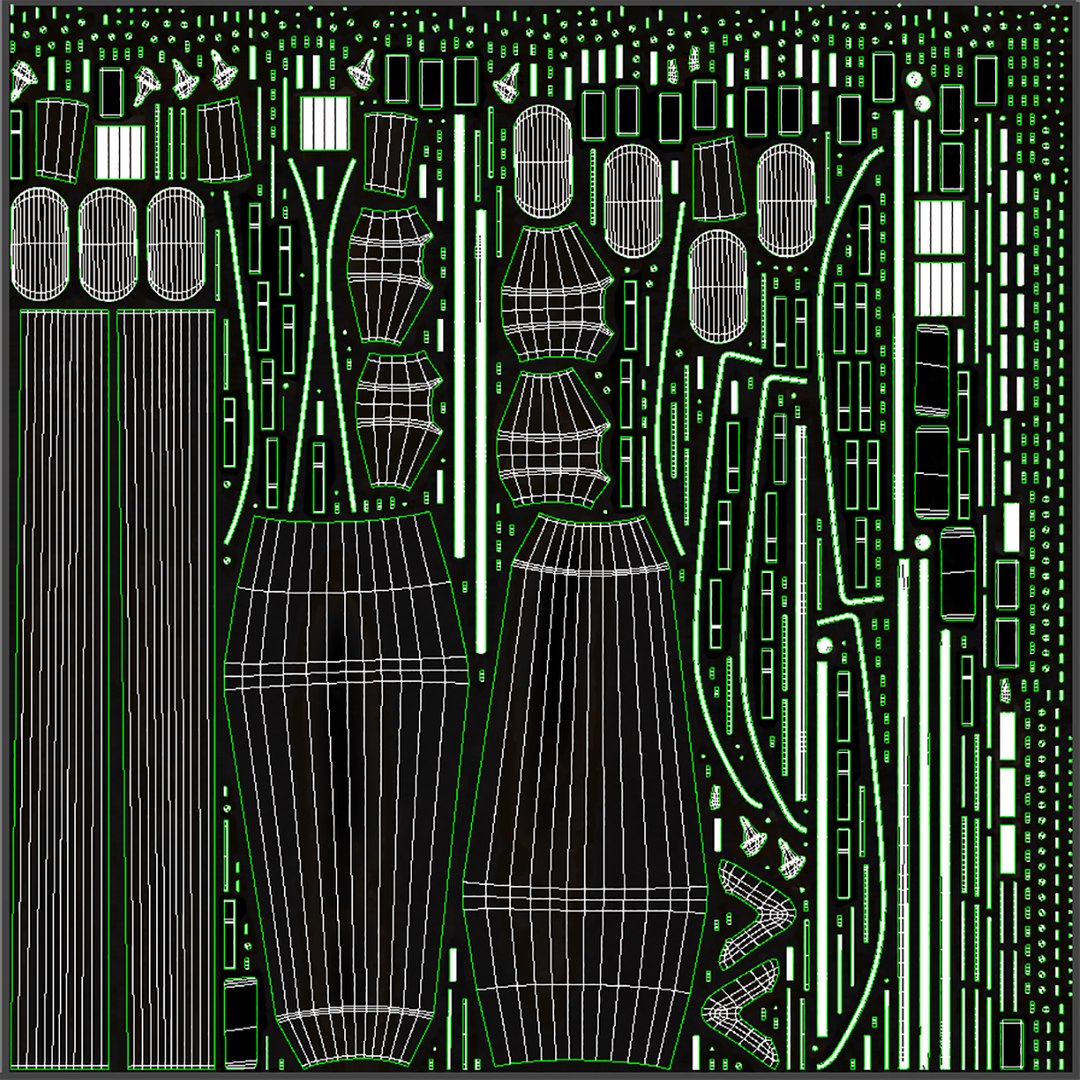

PBR Textures 26 x 4096 x 4096 PNG images,
1 groundPlane texture 2048 x 2048 PNG image,
1 HDRI image for lighting 4000 x 2000 EXR image
Objects 7, Lights 1, Camera 1, Helpers 1, Total 10
1 groundPlane
Measuring units are 'Metric' -'Meters', System units 'Centimeters'

Verts: 105311
Faces: 97673

groundexplorer ( VRayMtl )

caustic ( VRayMtl )

groundexplorer ( VRayMtl )

Mone_fabric_Dielectric_Material ( VRayMtl )

Mone_metal_Metallic_Material ( VRayMtl )

Mone_metal2_Metallic_Material ( VRayMtl )

Mone_hull_Metallic_Material ( VRayMtl )

Mone_white_plastic_Metallic_Material ( VRayMtl )

Other Maps:
TS Studio 3 Point.hdr

Name: HMS M1
Launched July 1917
Homeport: Portsmouth
Fate Sunk in collision, 12 November 1925

TECHNICAL CHARACTERISTICS:
Class and type M-class submarine
Displacement:
1,594 long tons (1,620 t) surfaced
1,946 long tons (1,977 t) submerged
Length 295 ft 9 in (90.14 m)
Beam 24 ft 8 in (7.52 m)
Installed power
2,400 hp (1,800 kW) (diesel engines)
3,200 hp (2,400 kW) (electric motors)
Propulsion
2 × 12-cylinder Vickers diesel engines
4 × electric motors
2 × 3-blade, 5 ft 10 in (1.78 m) diameter screws
Speed
15 kn (17 mph; 28 km/h) (surfaced)
8–9 kn (9.2–10.4 mph; 15–17 km/h) (submerged)
Range
2,000 nmi (2,300 mi; 3,700 km) at 15 kn (17 mph; 28 km/h)
4,500 nmi (5,200 mi; 8,300 km) at 10 kn (12 mph; 19 km/h)
Endurance 80 nmi (92 mi; 150 km) at 2 kn (2.3 mph; 3.7 km/h)
Test depth 200 ft (61 m)
Complement 62
Armament
1 × 12-inch (305mm)/40 cal Mark IX gun with 50 rounds
1 × 3 in (76 mm) Mk II HA anti-aircraft gun
4 × 18 inch (450 mm) bow torpedo tubes with 4 reload torpedoes
