Heavy Duty Robotic Gripper

Free

Formats (4)
DirectX
OBJ
Other Textures
STL
Specifications
Publish Date January 09, 2023
Product ID 2011258
Polygons 355,859
Vertices 1,067,577
Polygonal Quads Only
Materials
TurboSquid Exclusive
member avatar
Lovano
706 Products | Contributor Since 2020
Have questions? Chat with us now.

Description

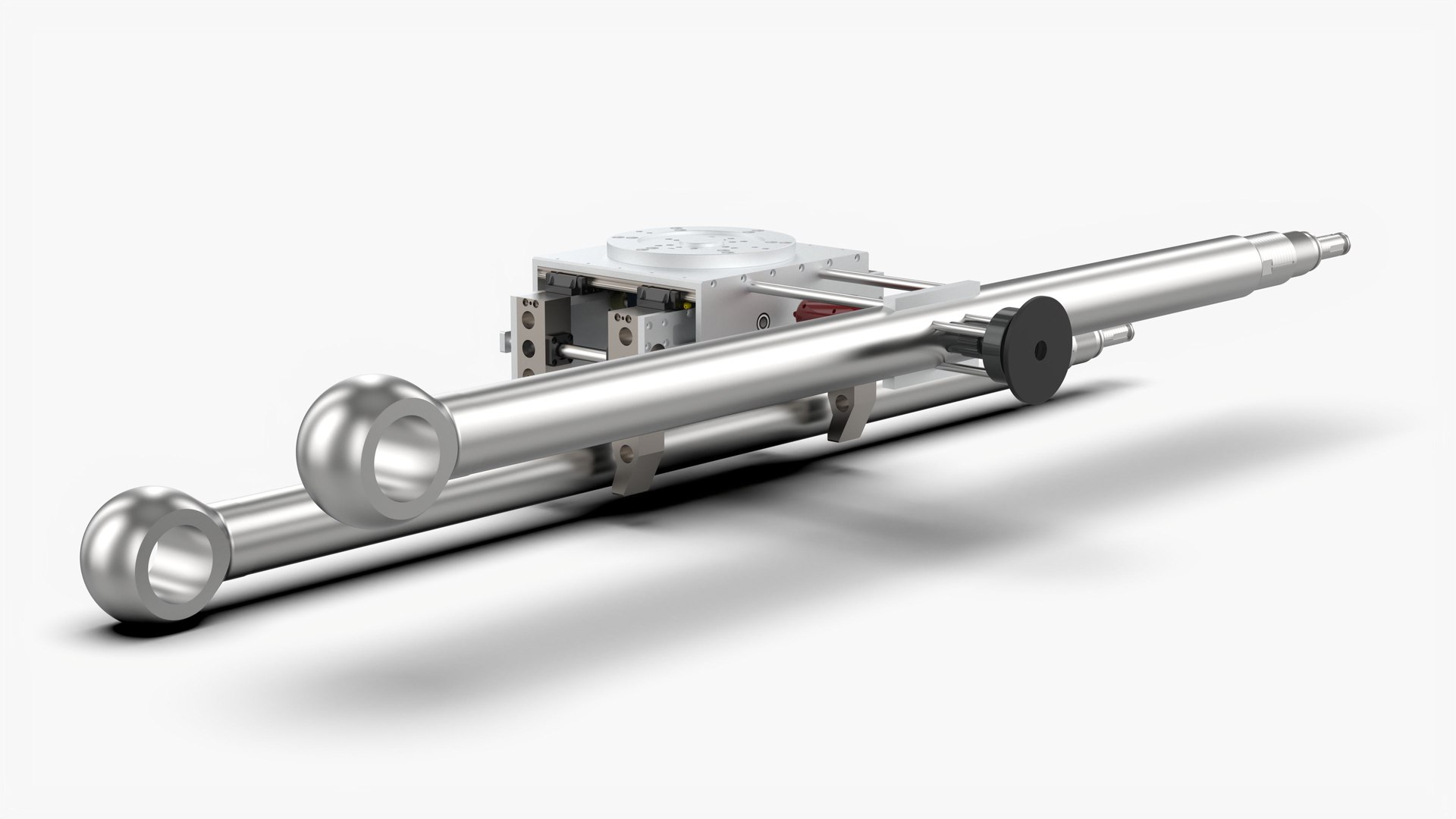

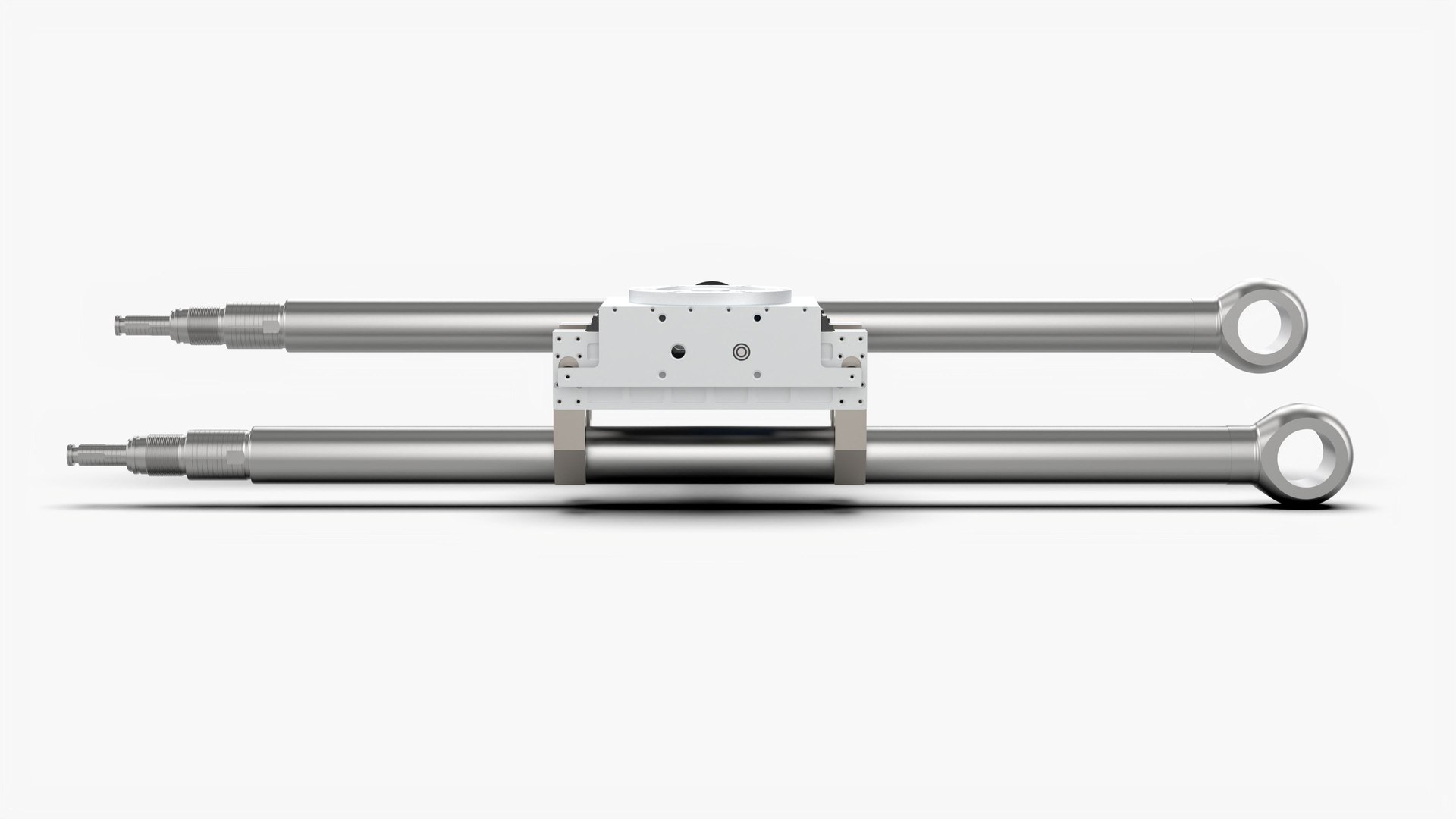

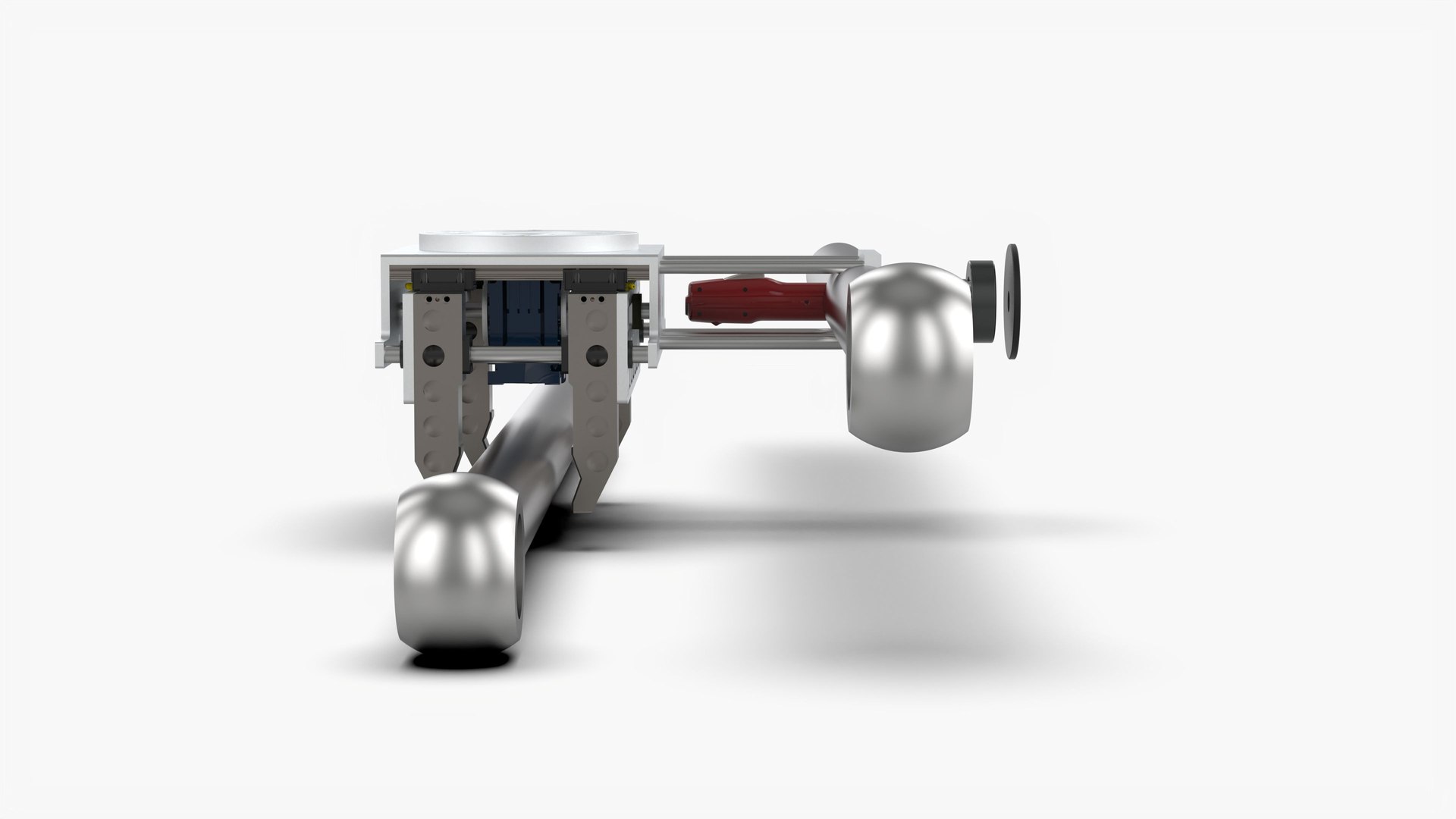

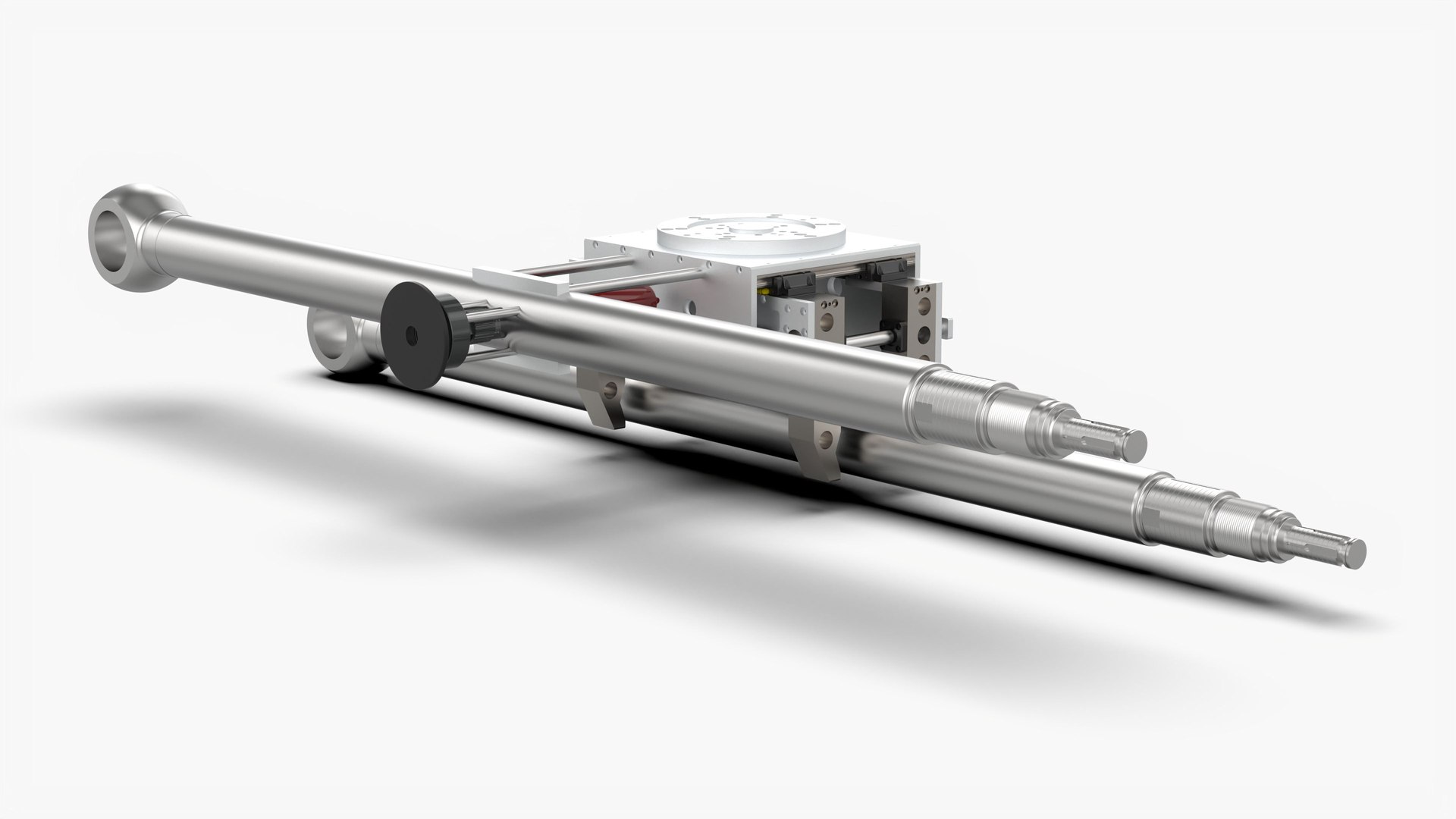

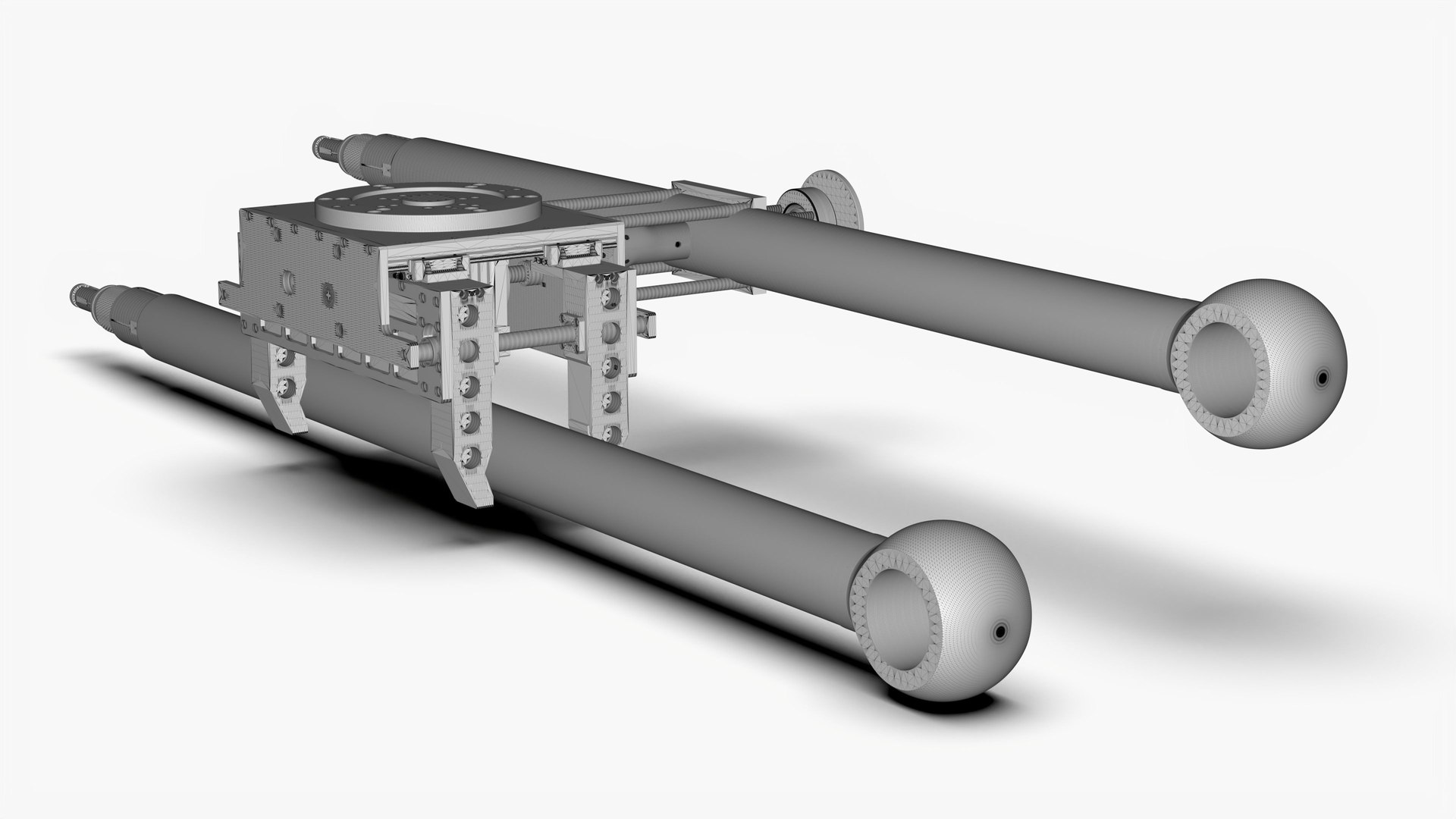

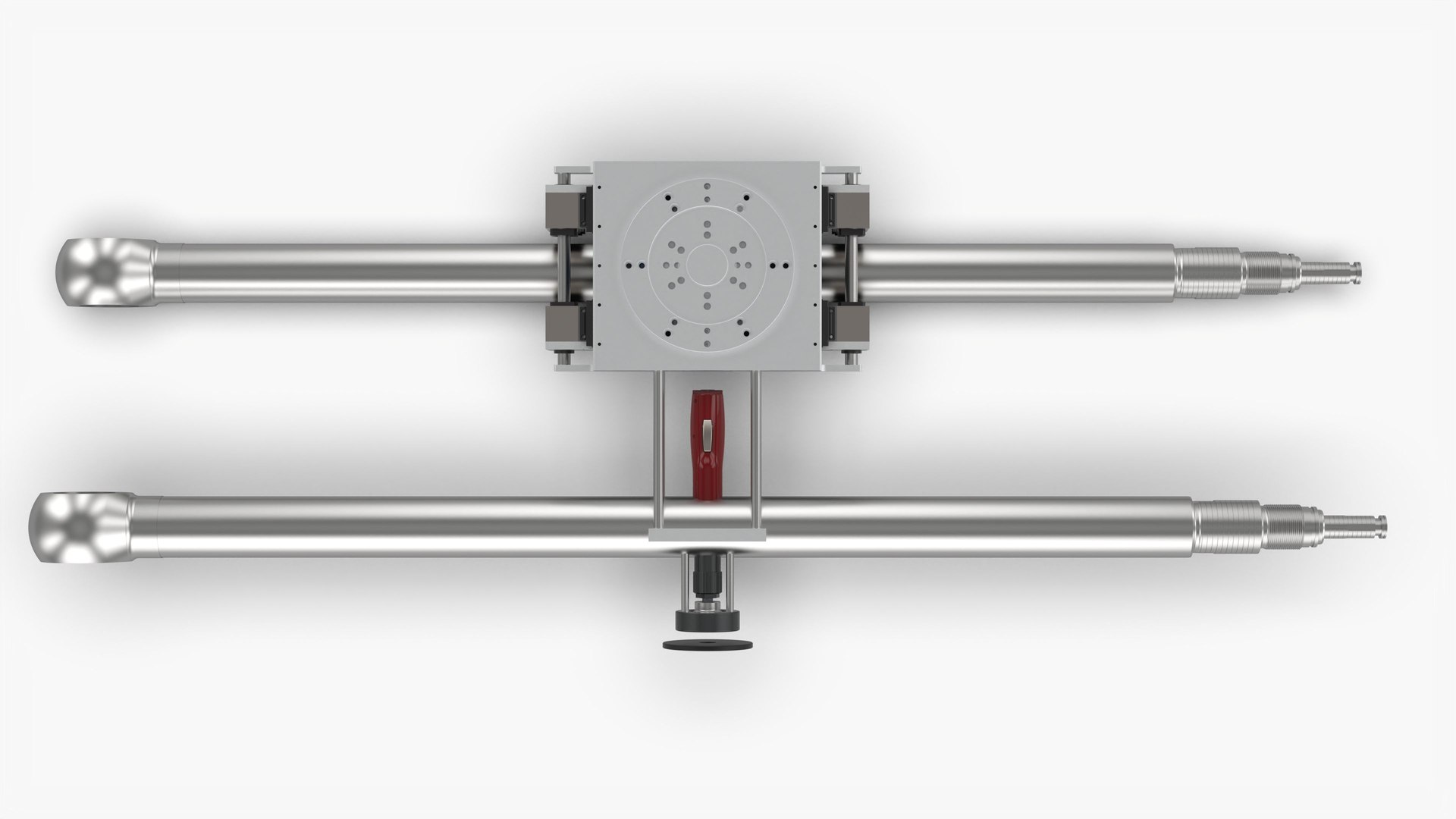

Heavy Duty Gripper Robotic Gripper


Introduction

Robot gripper assembly, this gripper mechanism is designed for grabbing the piston rod of the excavator oil cylinder, using a servo motor and a worm gear reducer to drive the clamping mechanism, the adjustment range is 50~120mm, and the piston rod can be gripped, with wide adaptability.

File Formats

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 355,859
– Vertice: 1,067,577
