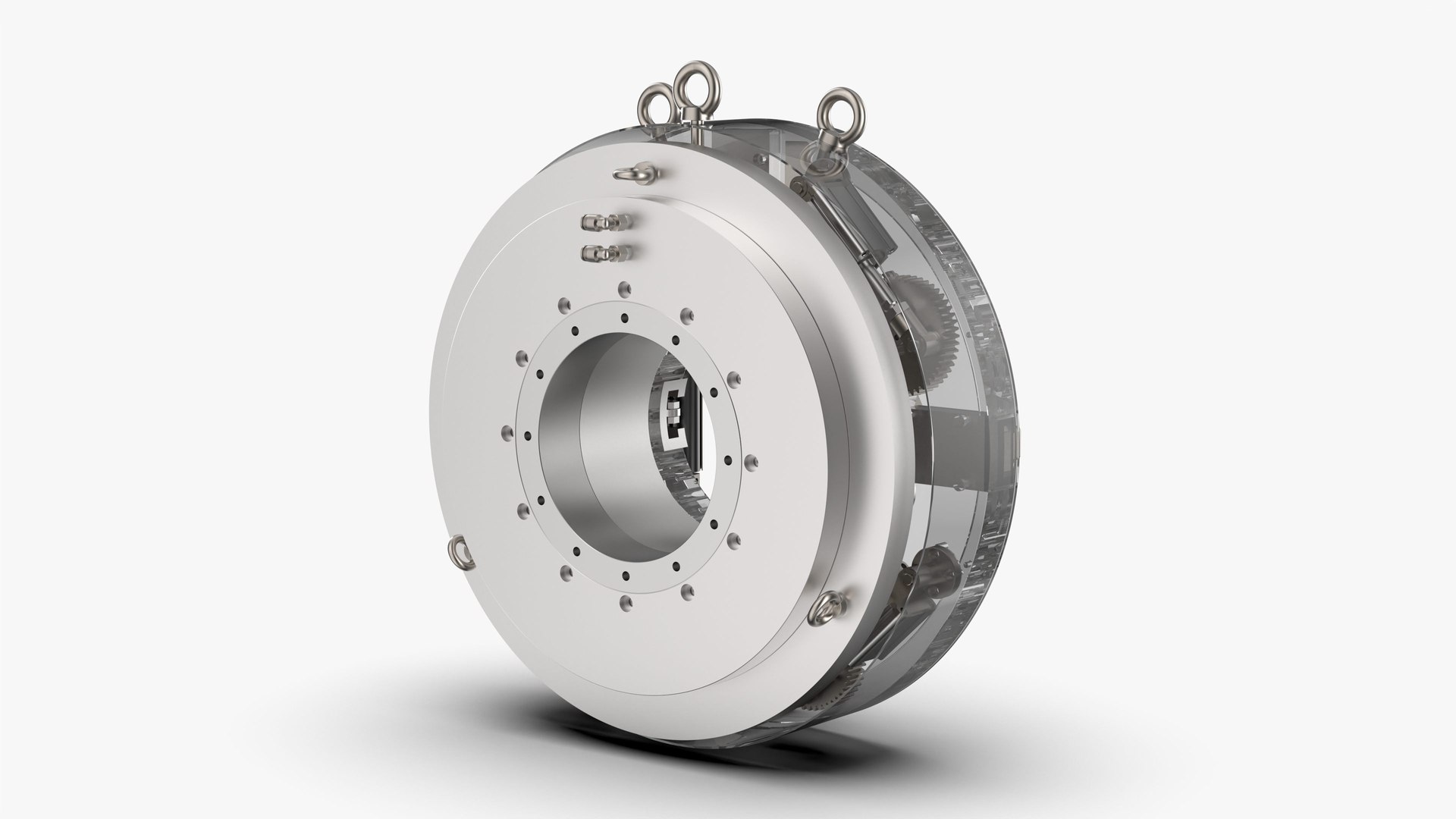

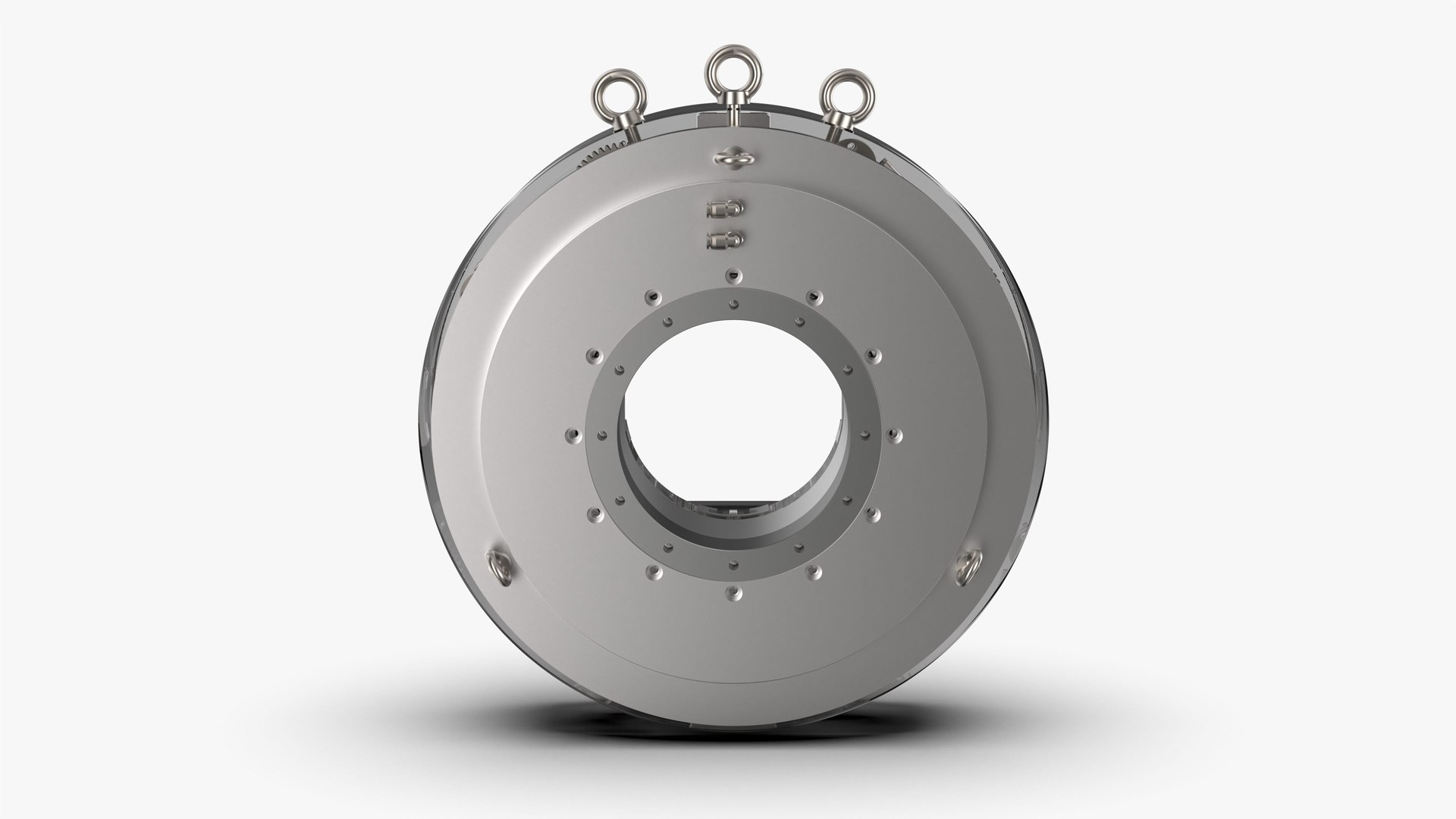

Four Jaw Self Centering Lathe Chuck

Introduction

The four-jaw hollow self-centering chuck is mostly used in laser pipe cutting machine equipment.

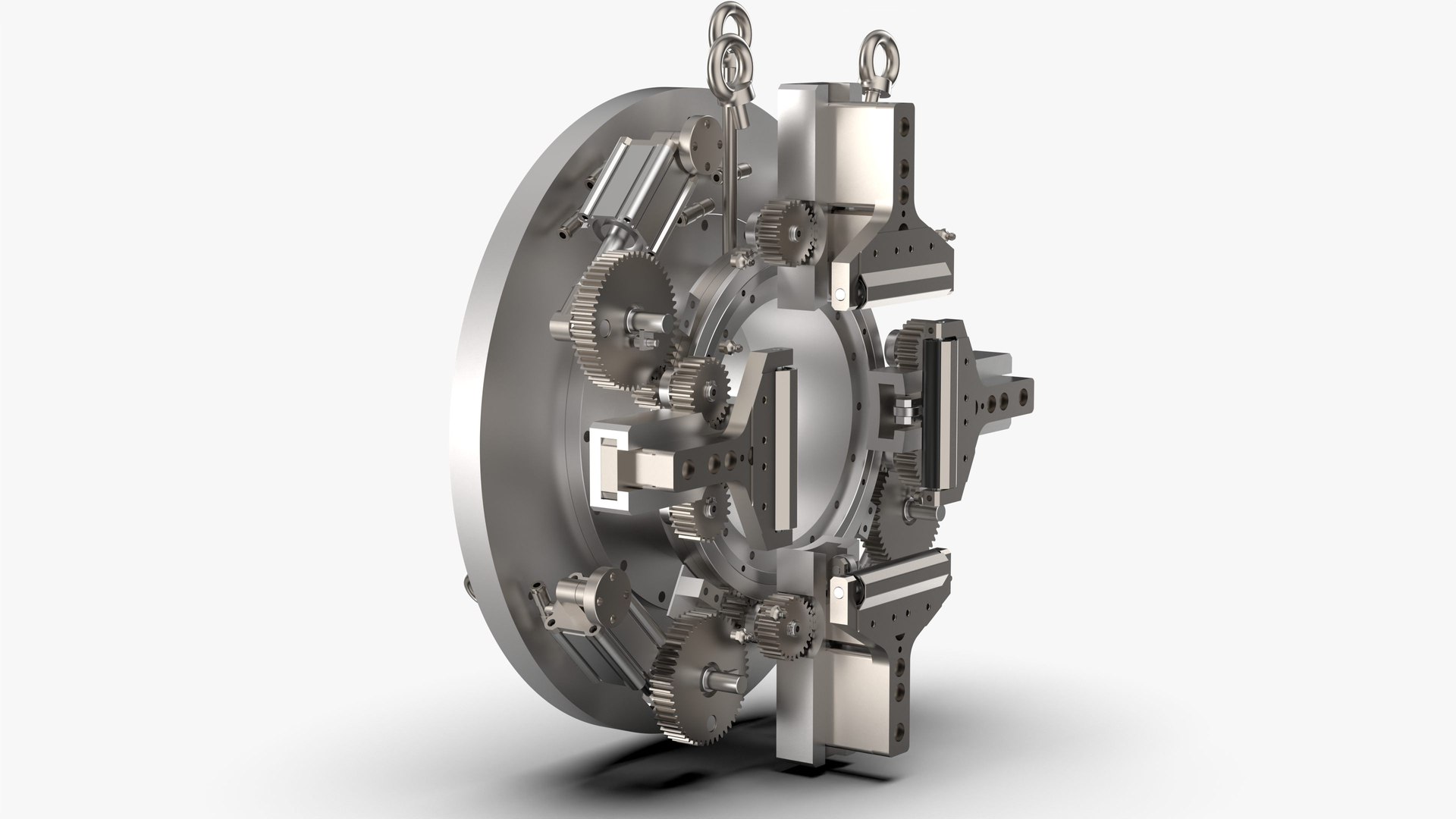

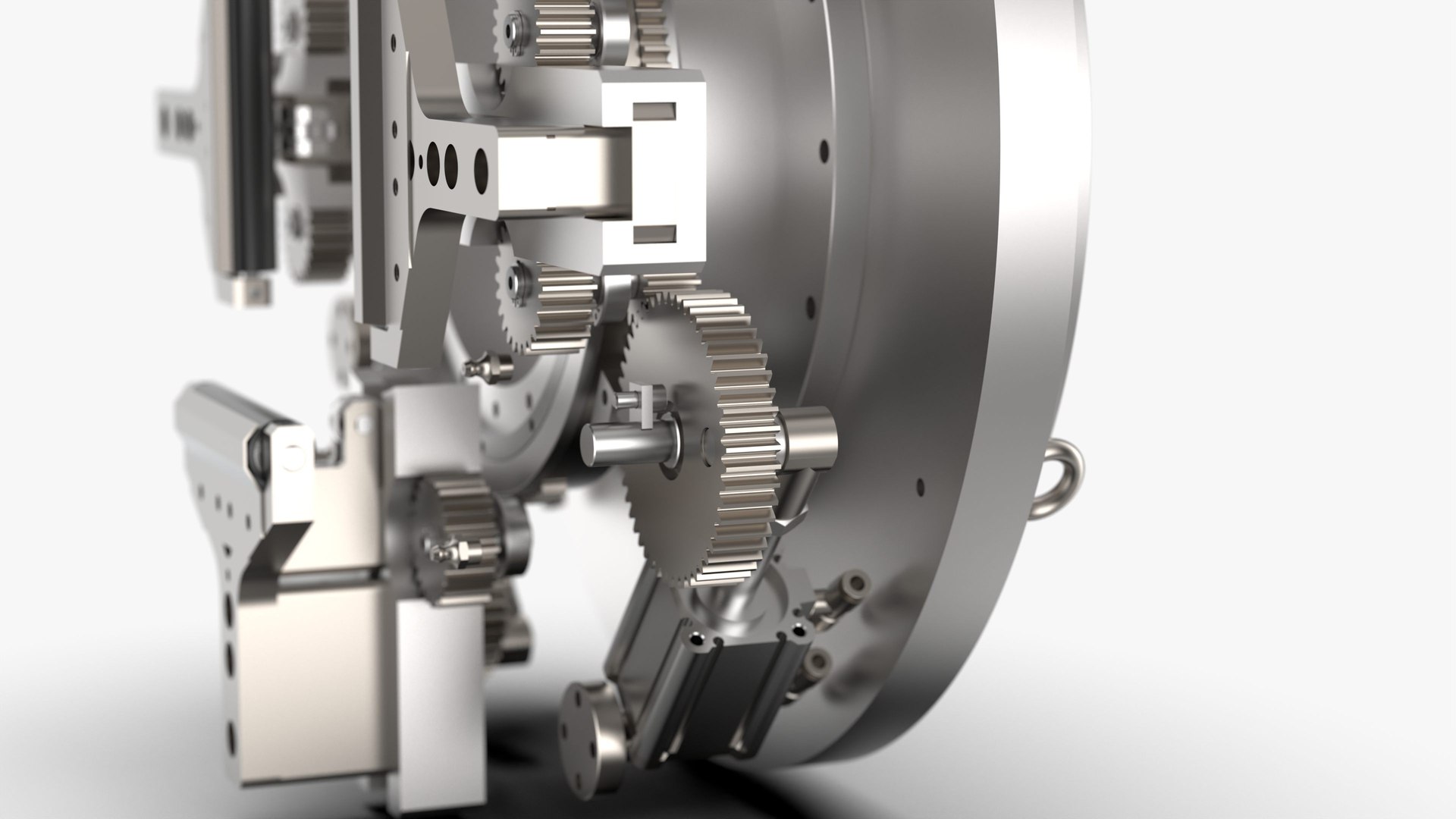

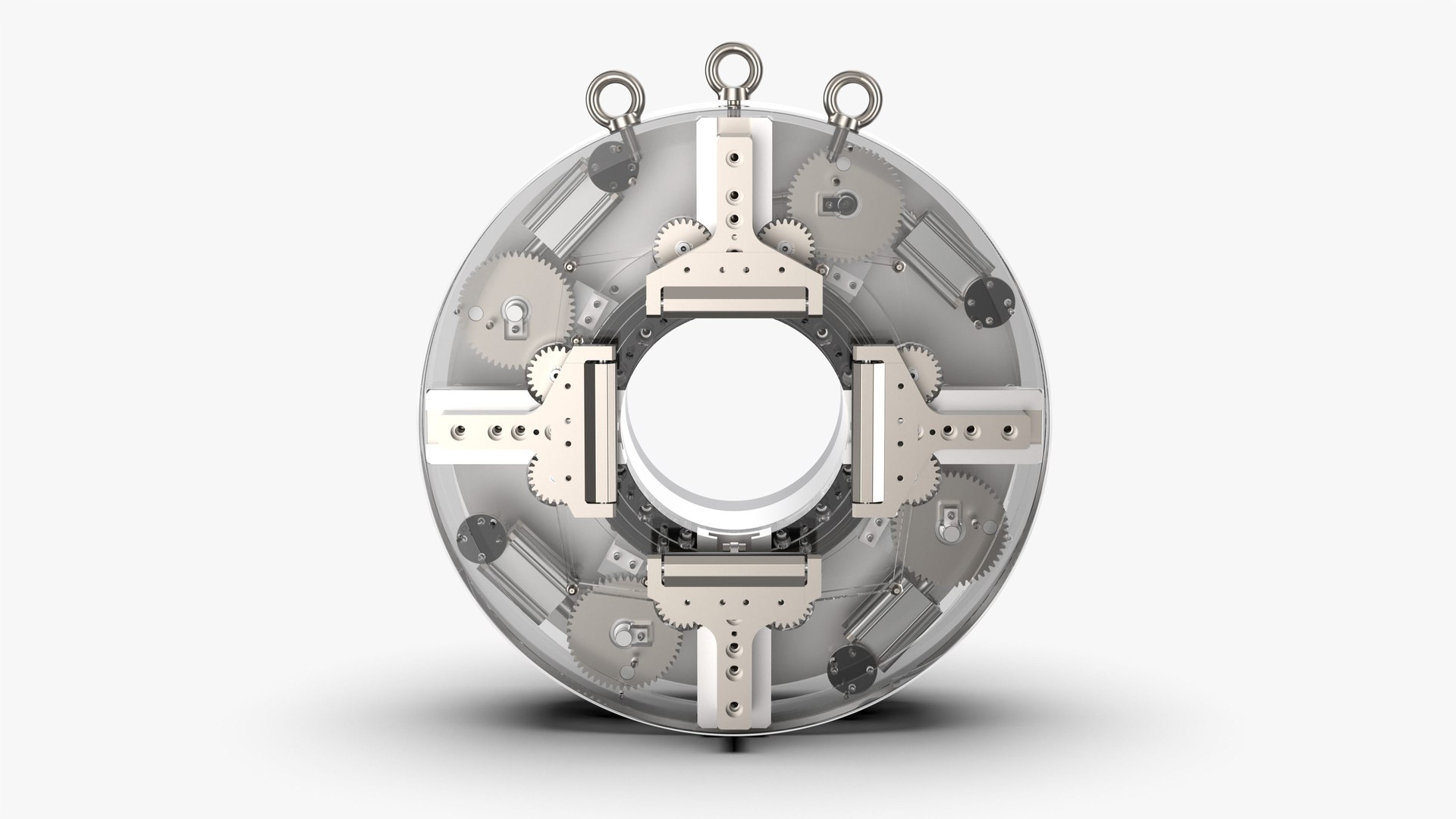

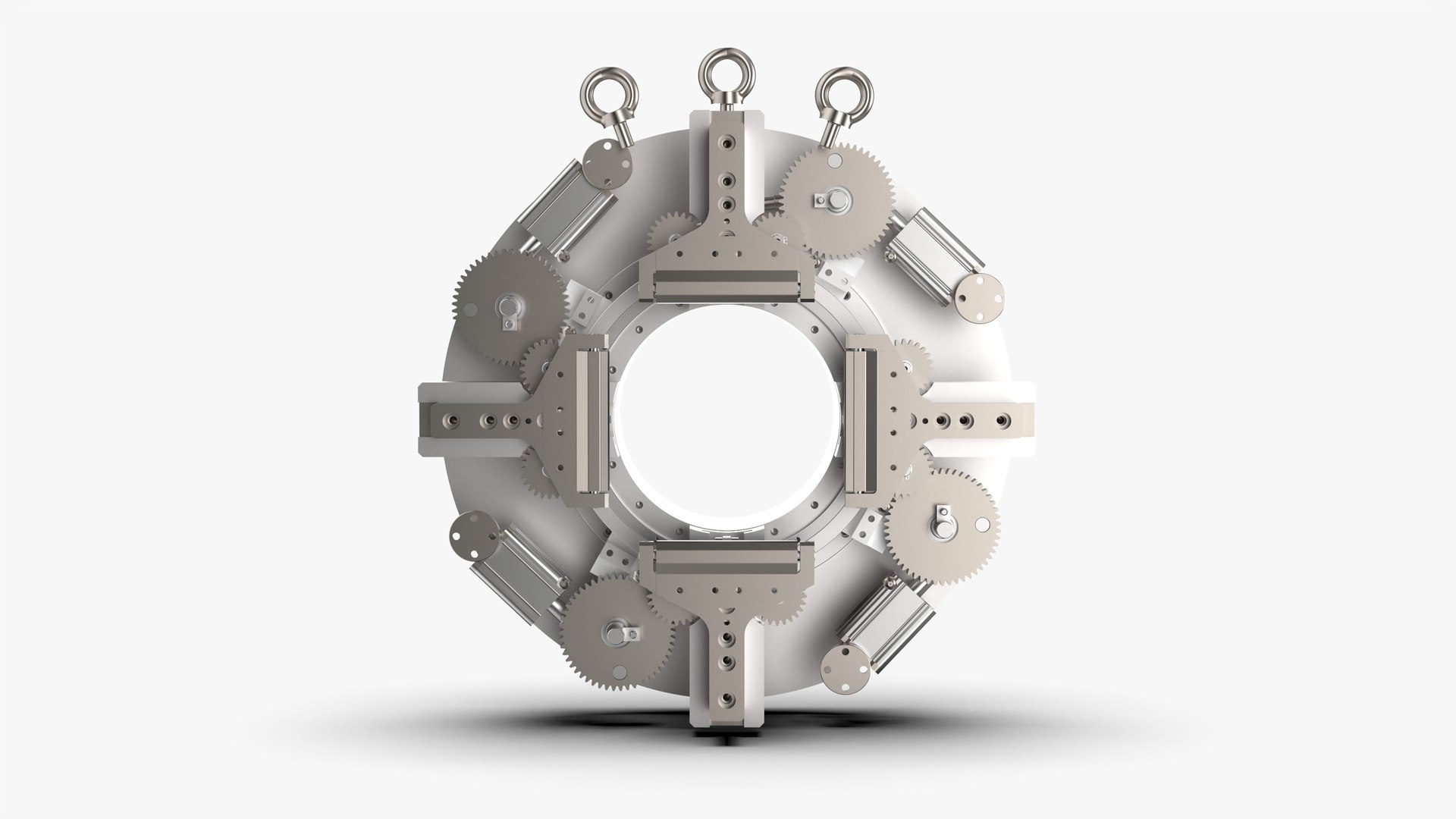

It can clamp round pipes, square pipes, I-beams and various special-shaped pipes, and can be driven by servo motors. The internal drive is driven by a cylinder gear structure, and it is clamped by pneumatics. It can clamp pipes with a diameter of 25-200mm, covering most specifications.

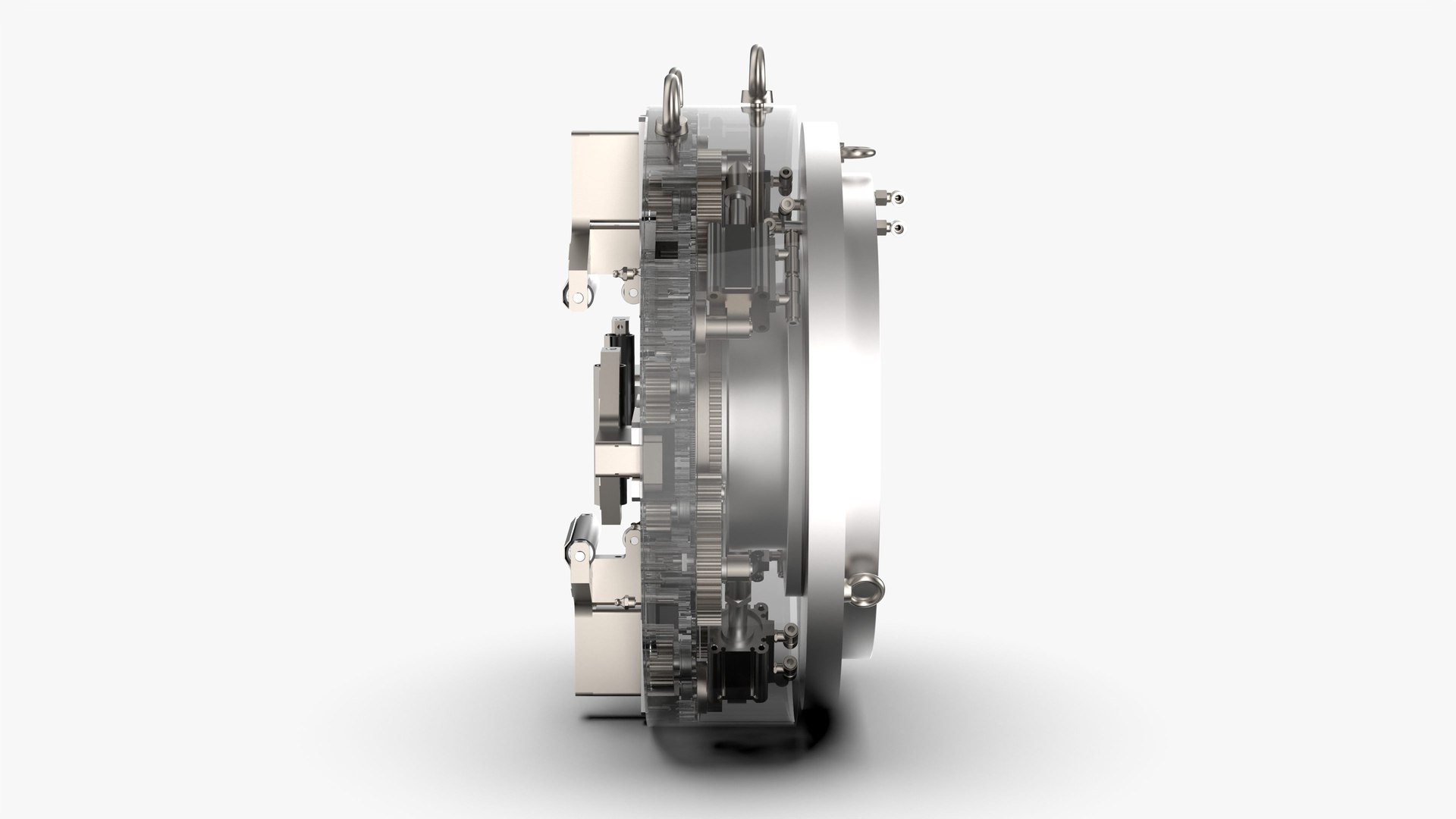

The internal structure is very complete, each part has complete modeling details and material property settings, and can even be directly used to produce 2D drawings; the general assembly drawing has comprehensive assembly constraints, and can even perform motion simulation.
The three-dimensional structure is completely self-developed. After several months of communication and brainstorming with several small partners, the whole structure can withstand scrutiny and has strong practicability.

File Formats

– Solidworks 2022 | Keyshot 10

– FBX (Filmbox)

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

– x_t (Parasolic Model Part File)

Geometry

– Polygons: 1,063,448
– Vertice: 3,190,344
