Double Speed Pipeline with Up and Down Circulation

Introduction

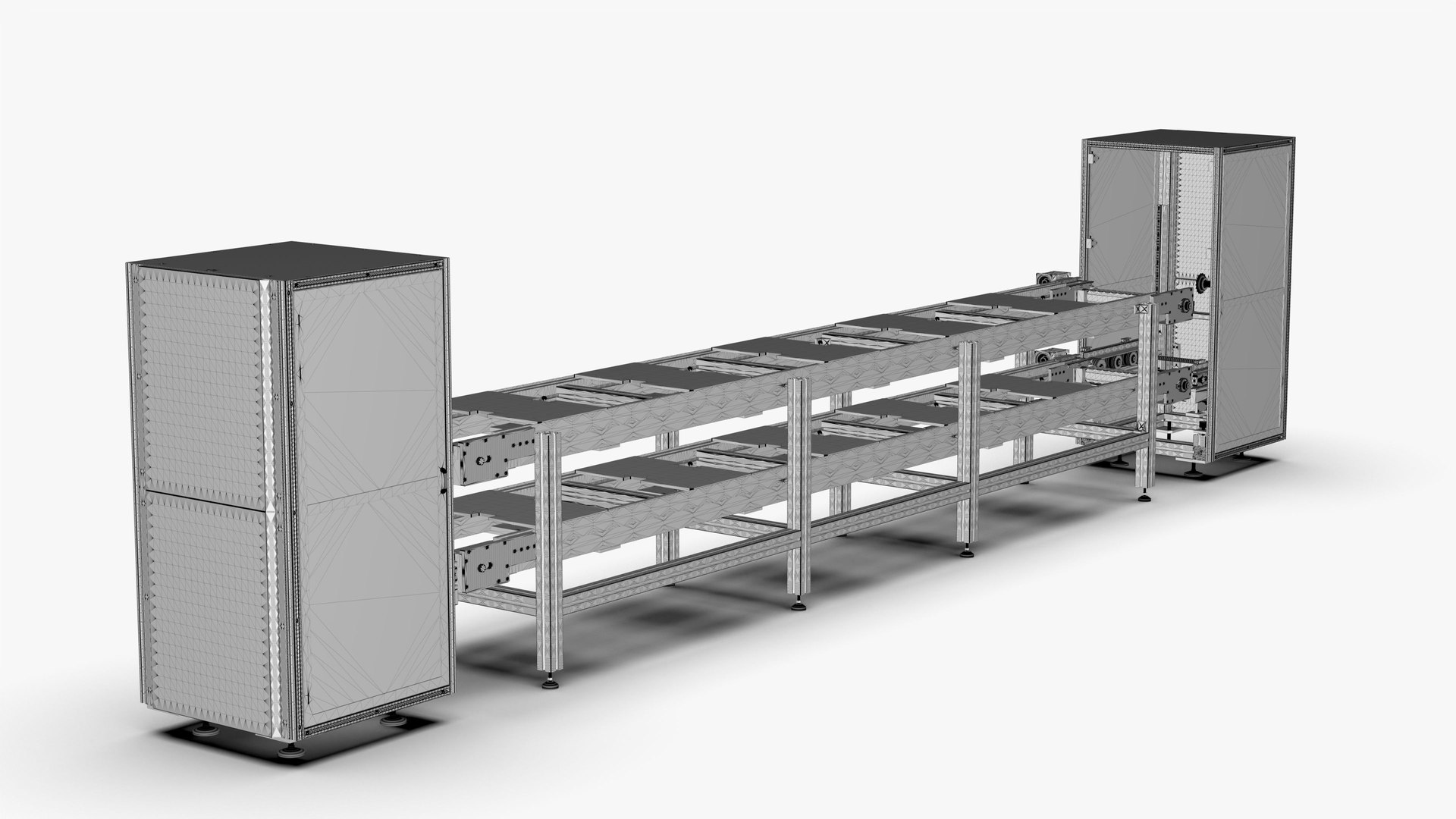

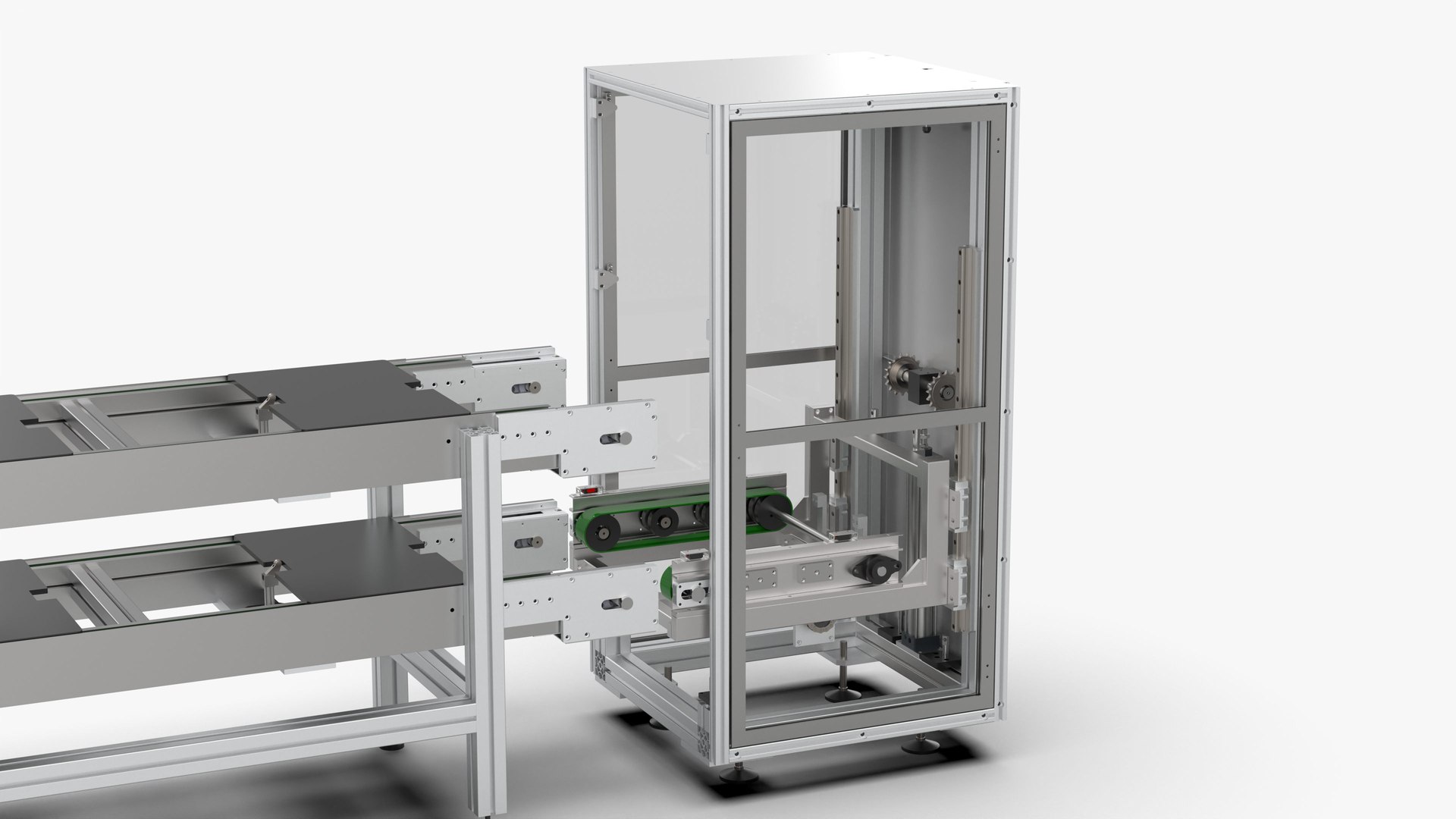

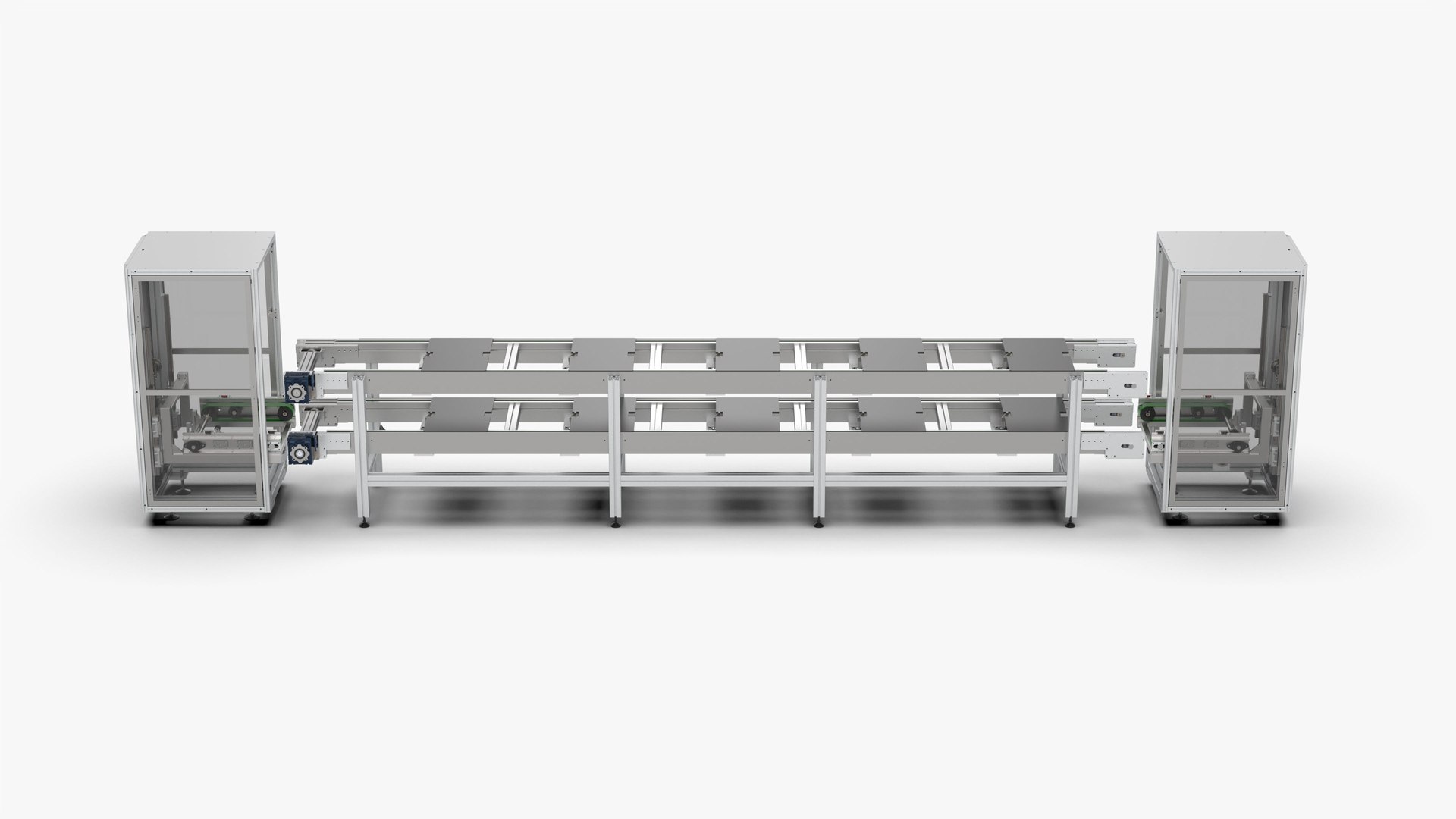

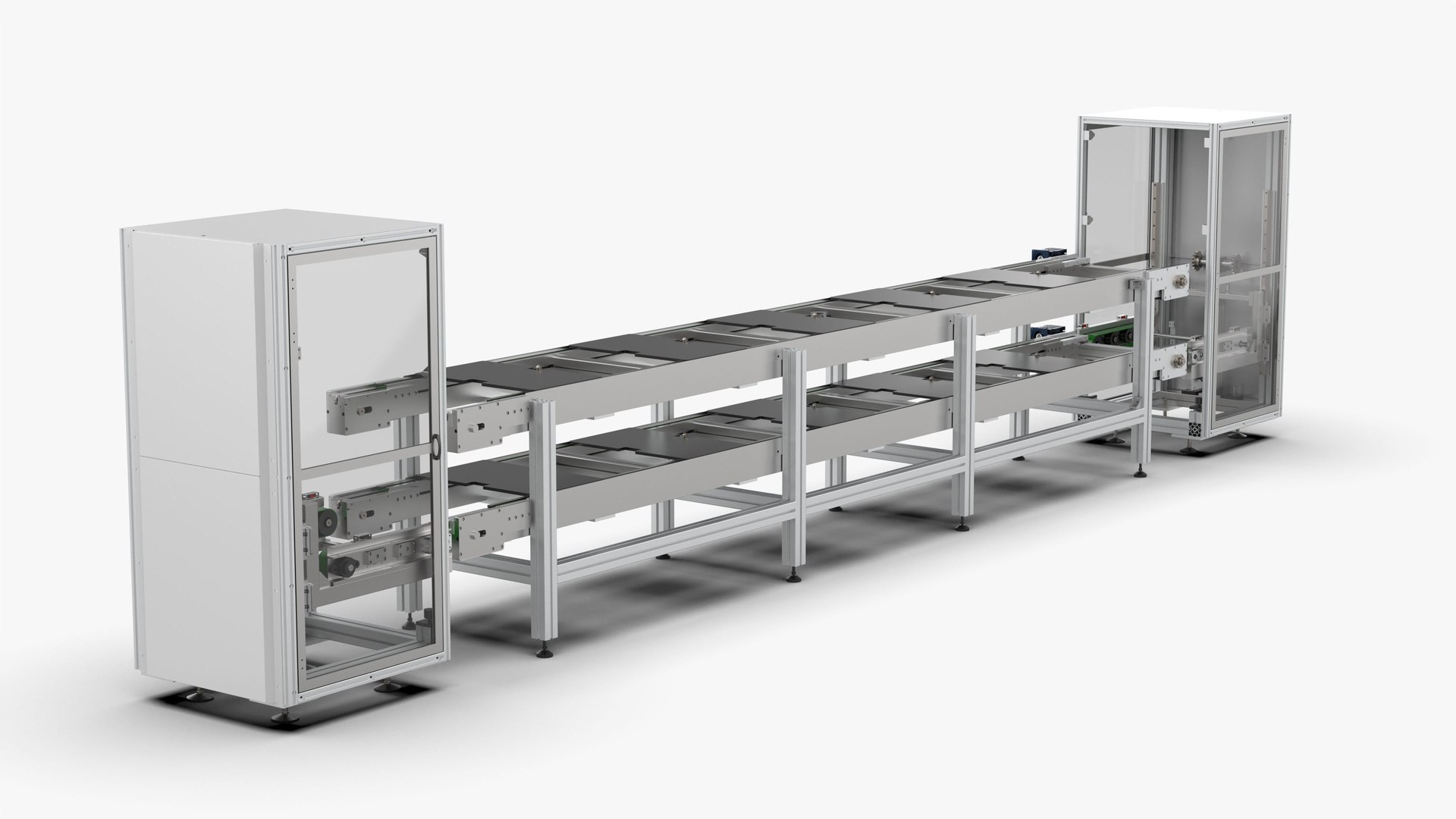

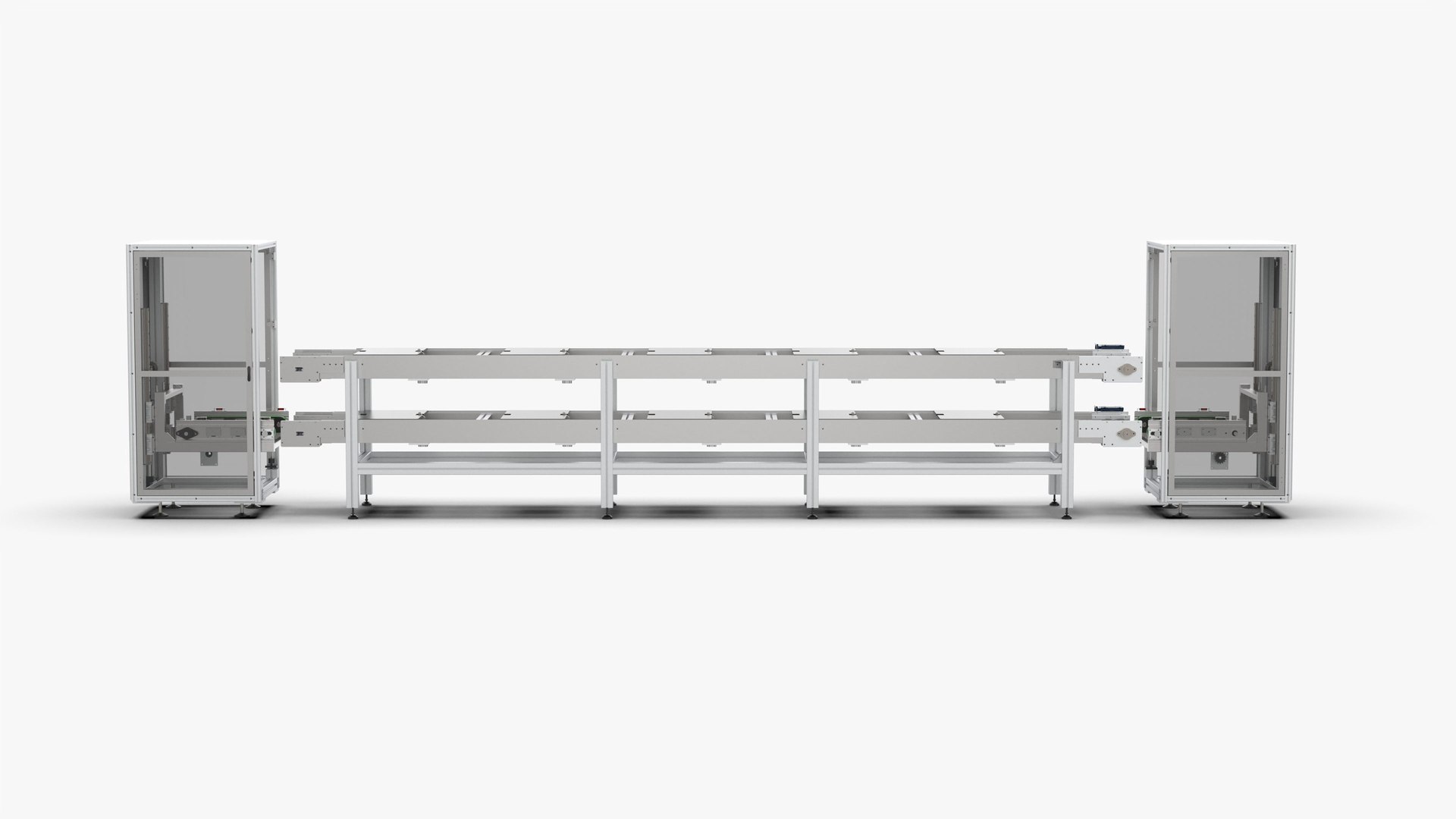

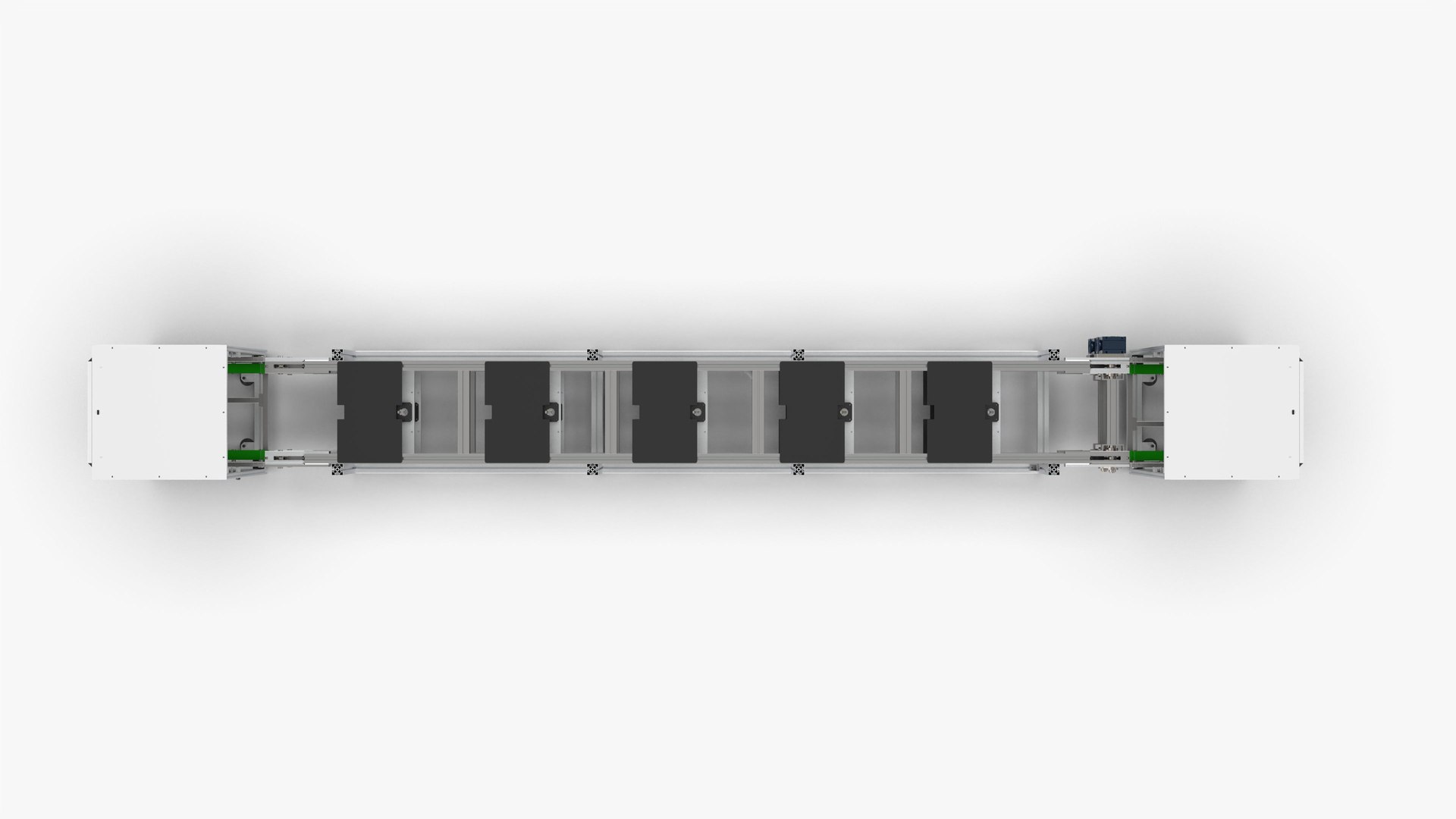

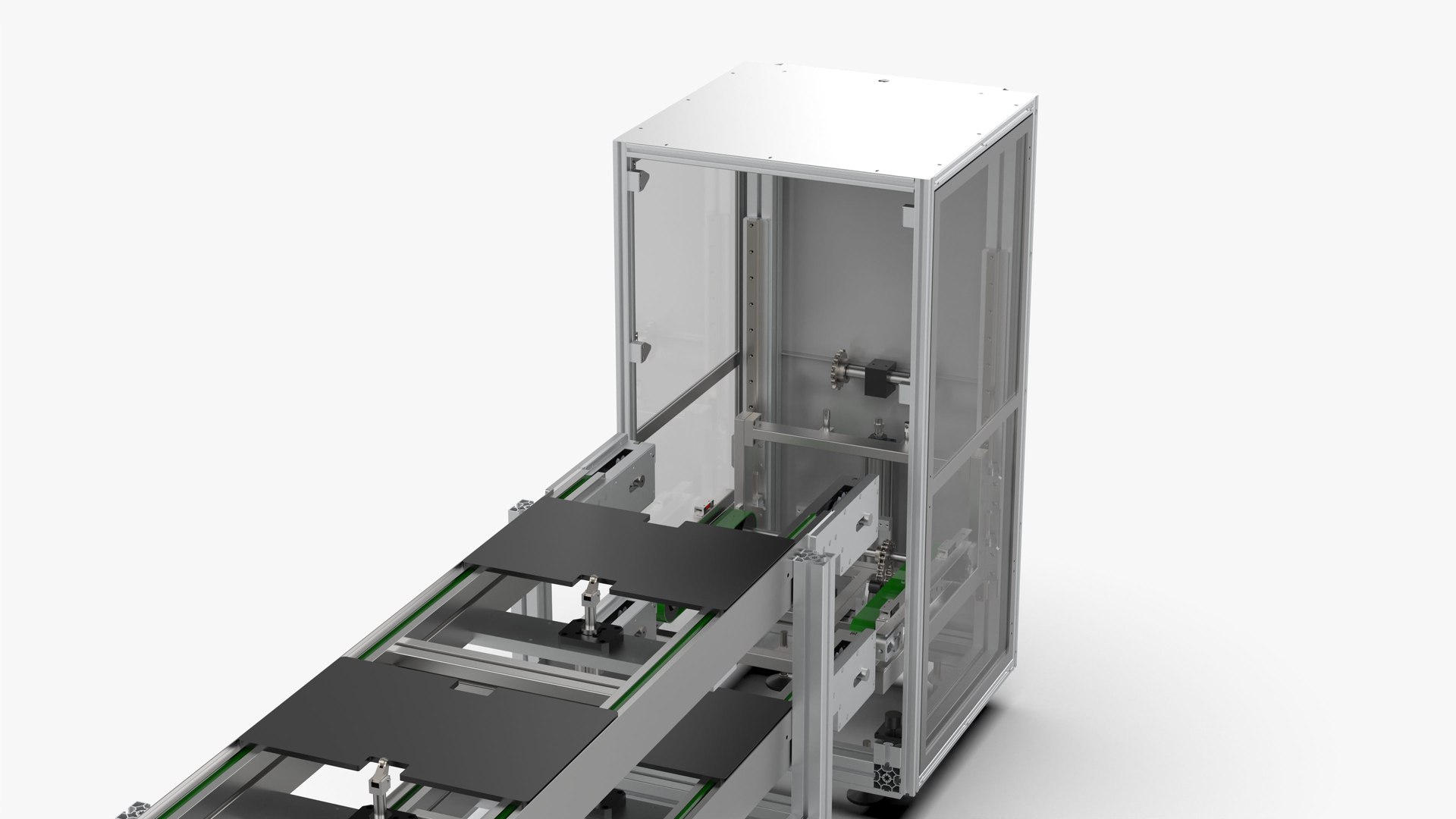

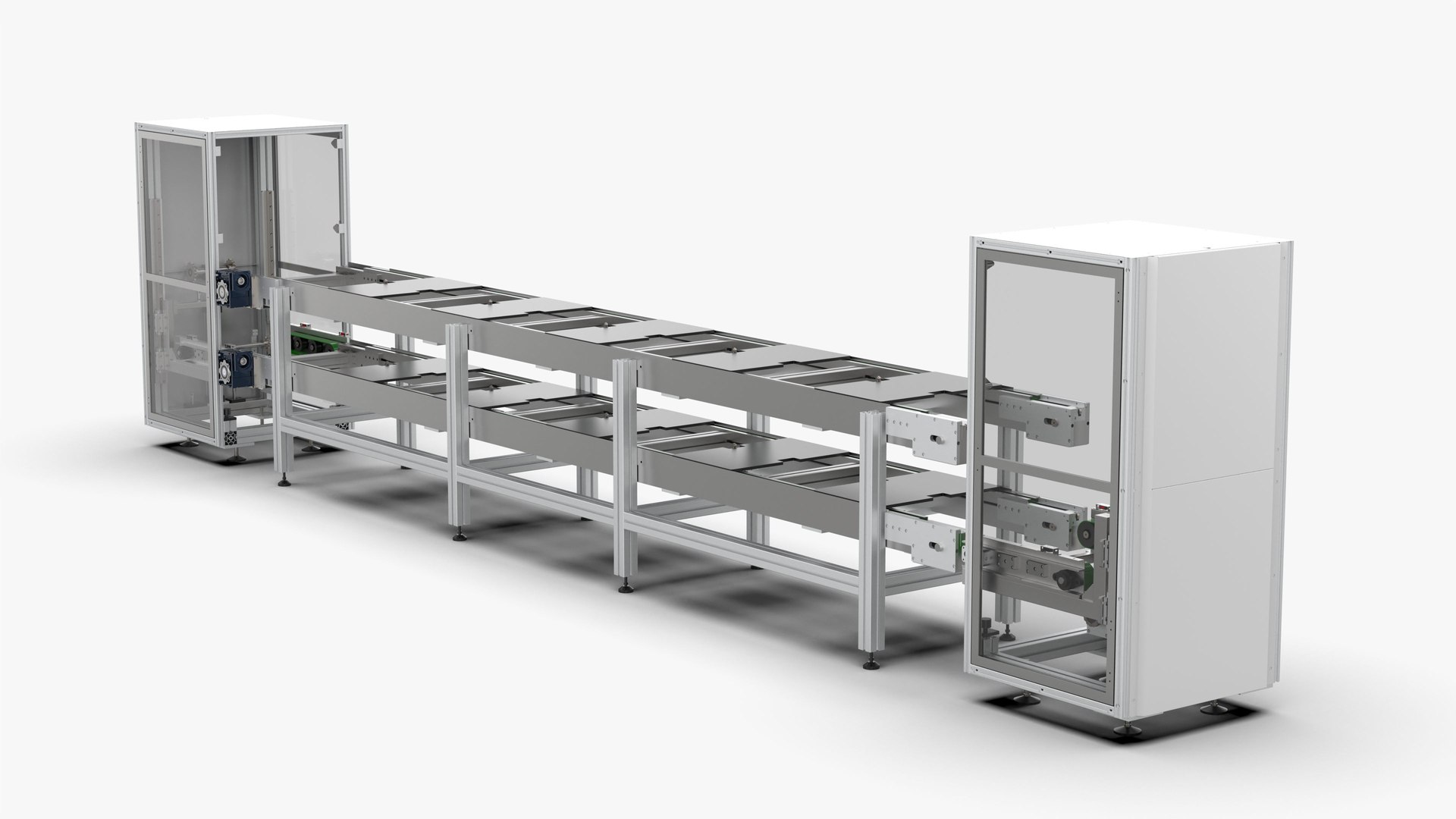

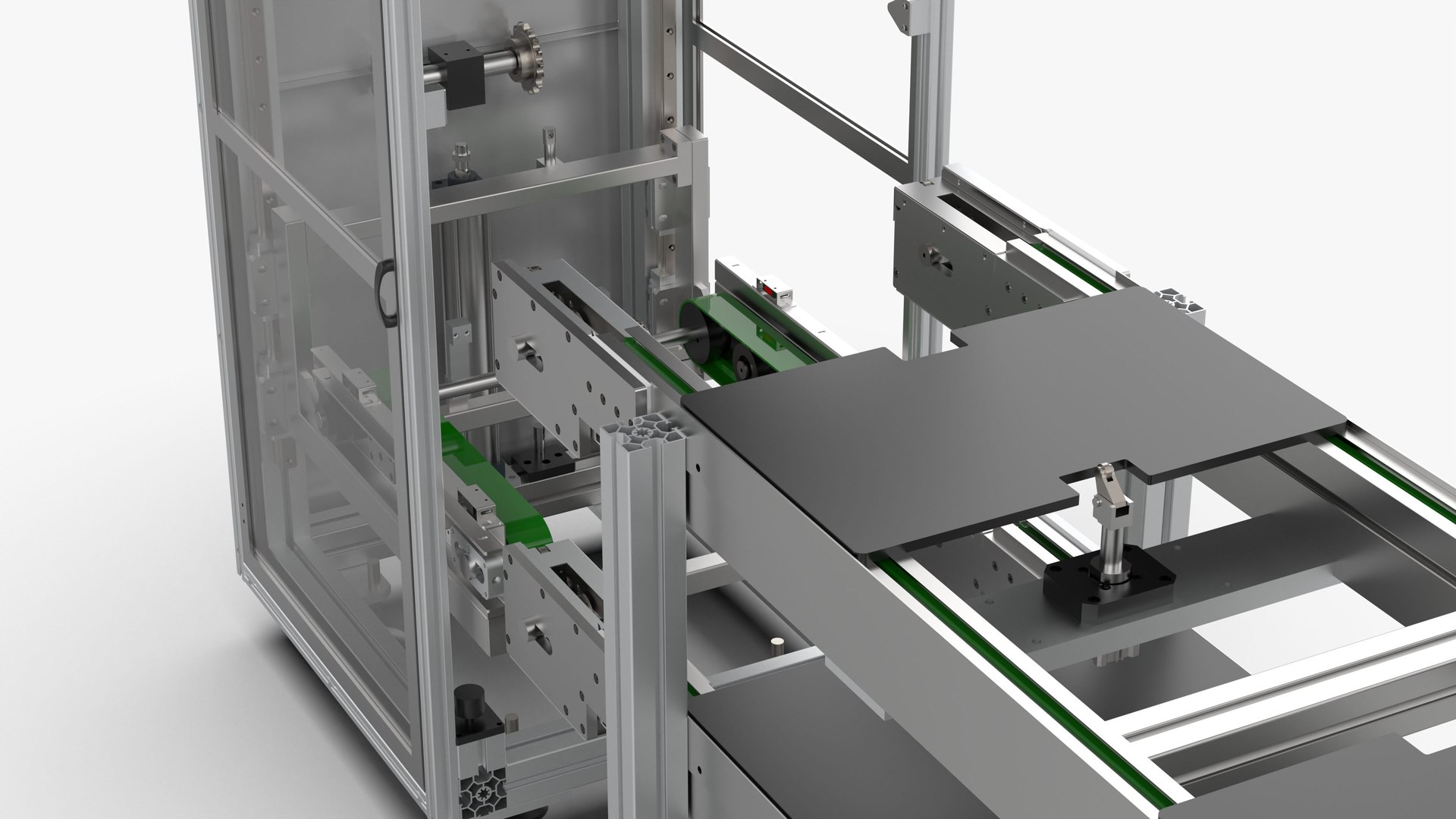

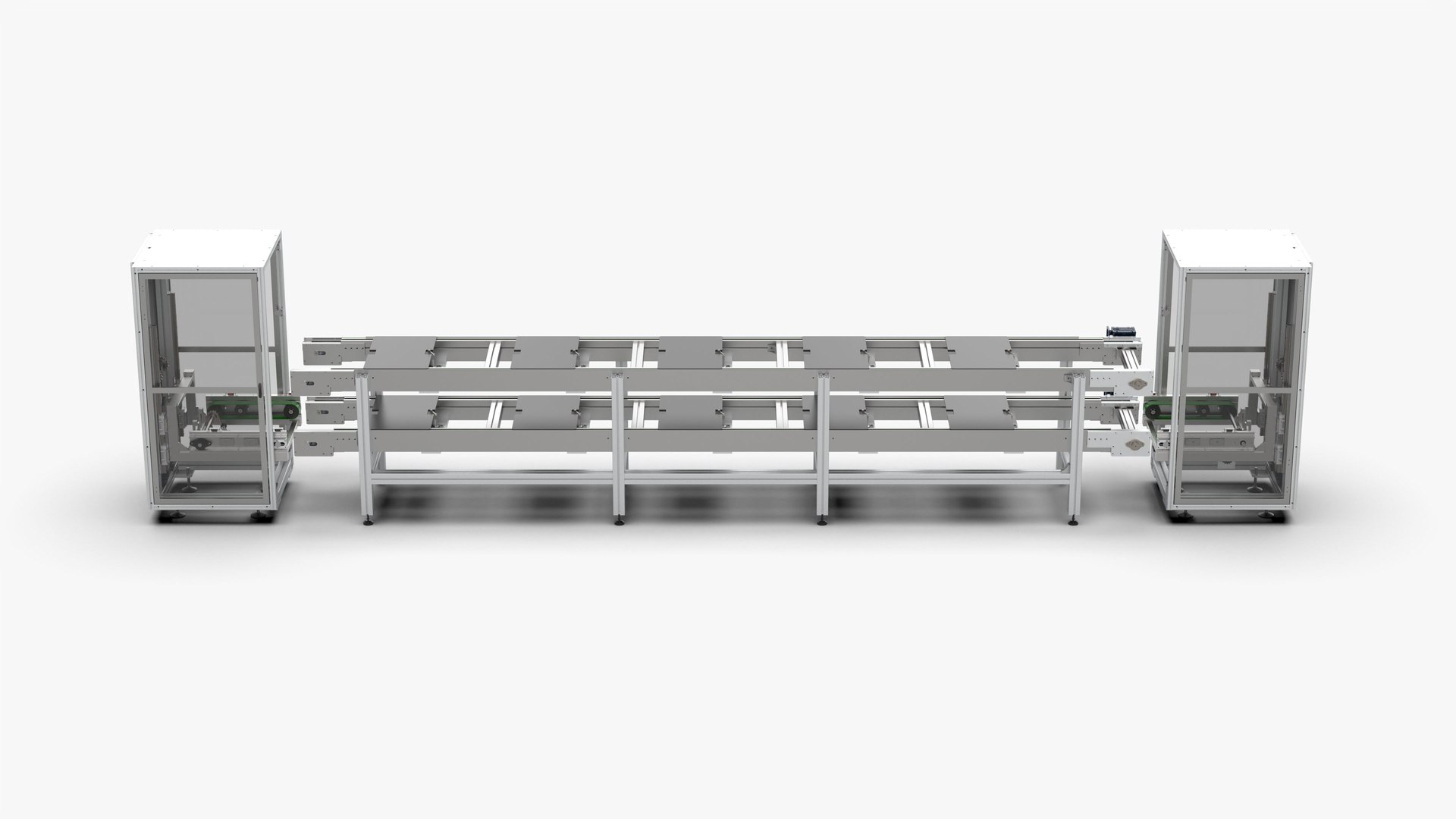

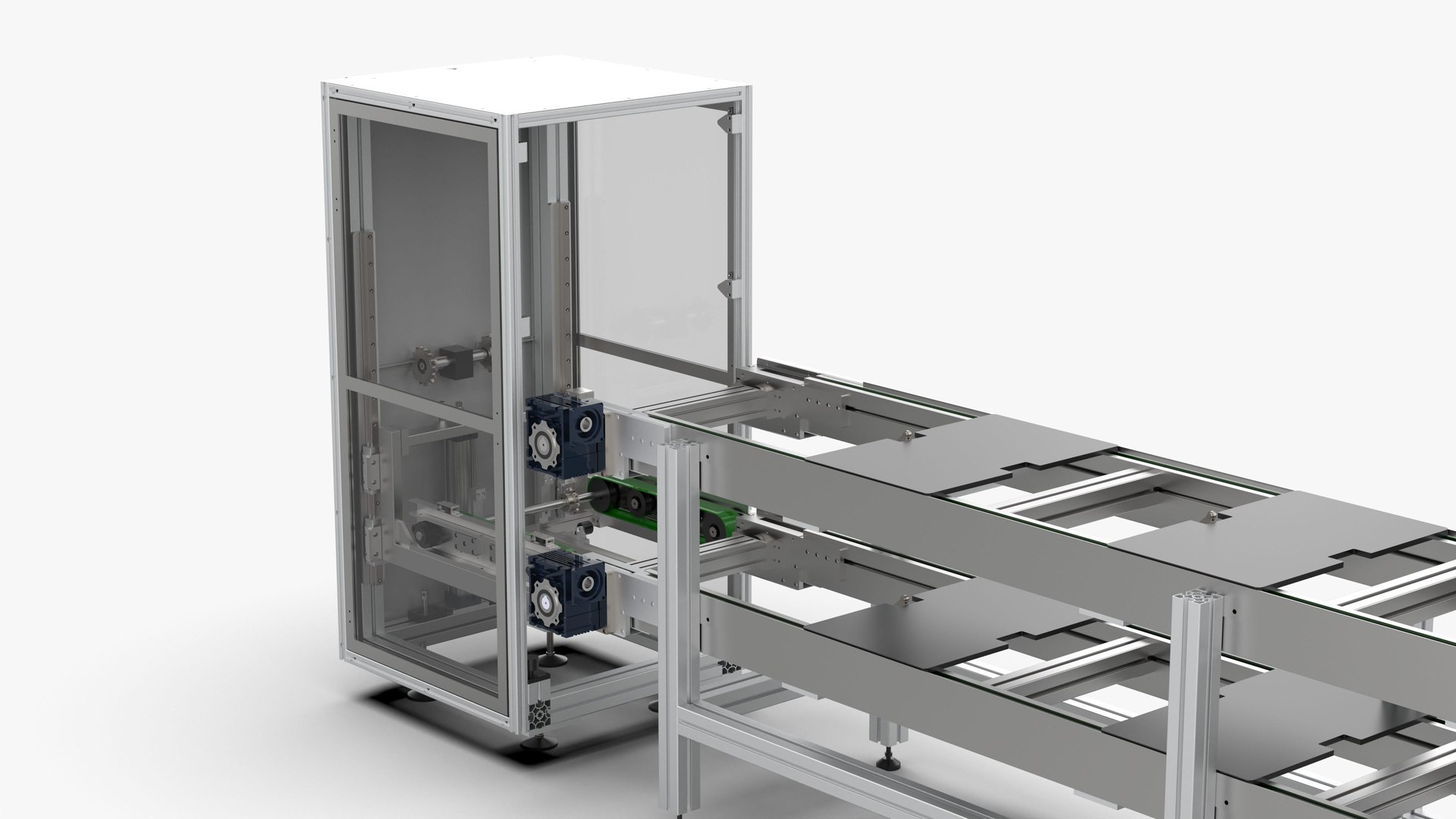

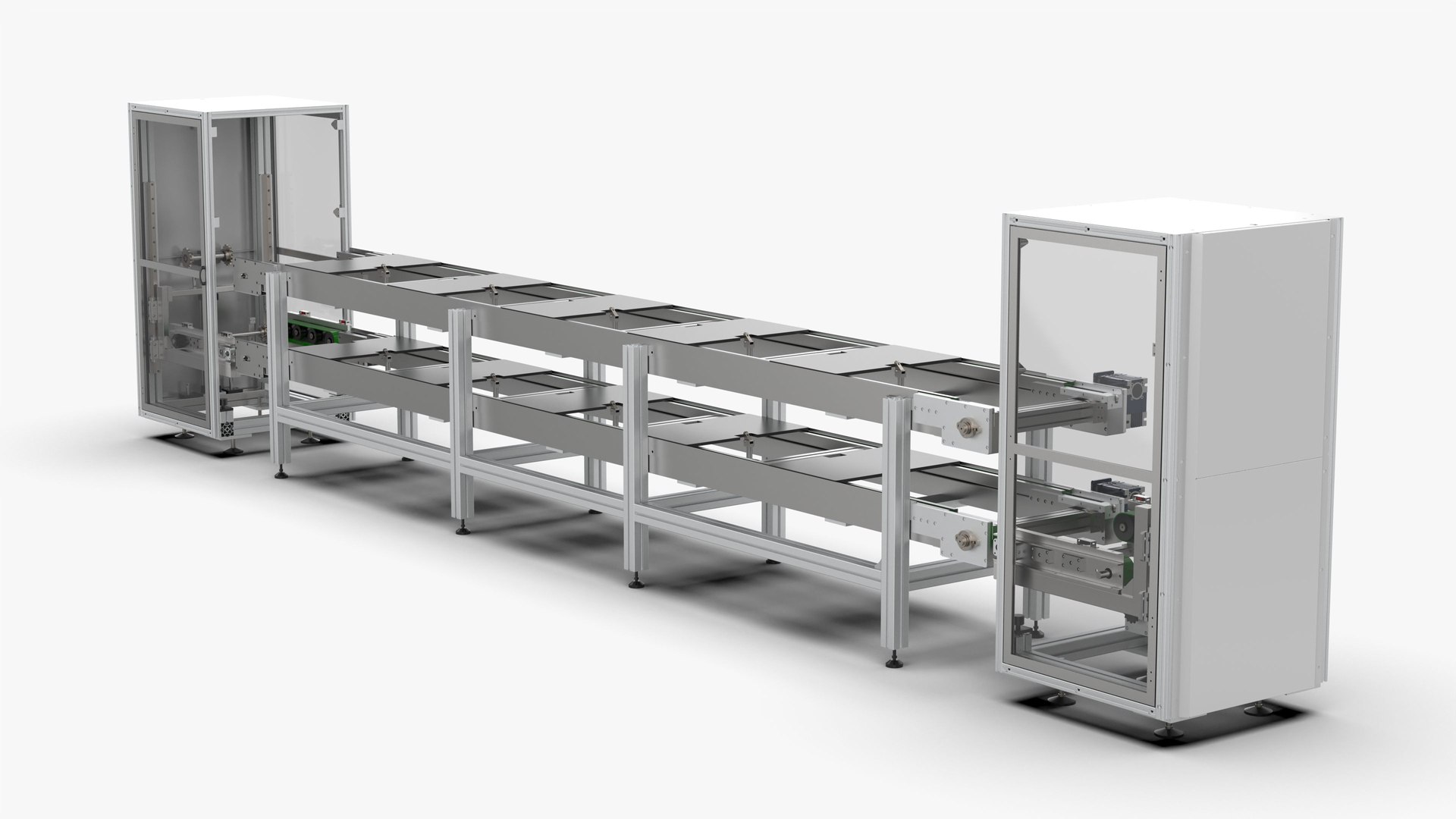

This equipment is the production drawing of the upper and lower circulation double-speed assembly line, which is a complete design drawing. The upper and lower circulation part is driven by the cylinder to switch the upper and lower positions. The worm gear reducer and the motor drive the roller chain on the assembly line. It is a complete set of equipment.

File Formats

– SolidWorks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 1,205,690
– Vertice: 3,617,070
