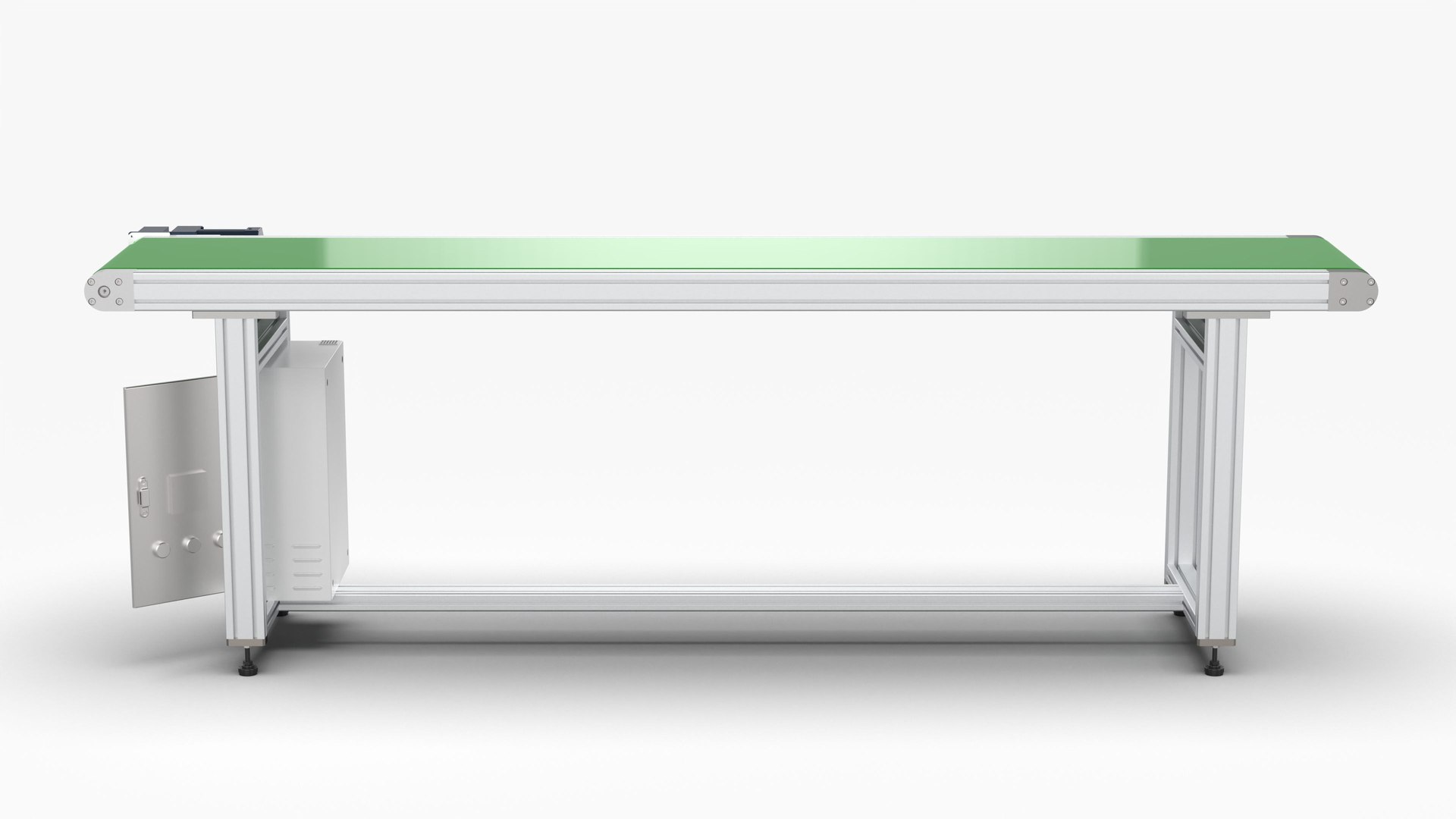

Conveyor Belt Assembly Line

Introduction

This product is a simple belt assembly line. The main body is composed of profiles. The end adjustment plate and bearing housing are all standard parts. The product factory is 2.4m suitable for the transition of the production line. The motor adopts a right-angle geared motor with a speed governor. The structure of the whole machine is simple and light.

File Formats

– SolidWorks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 302,504
– Vertice: 907,512
