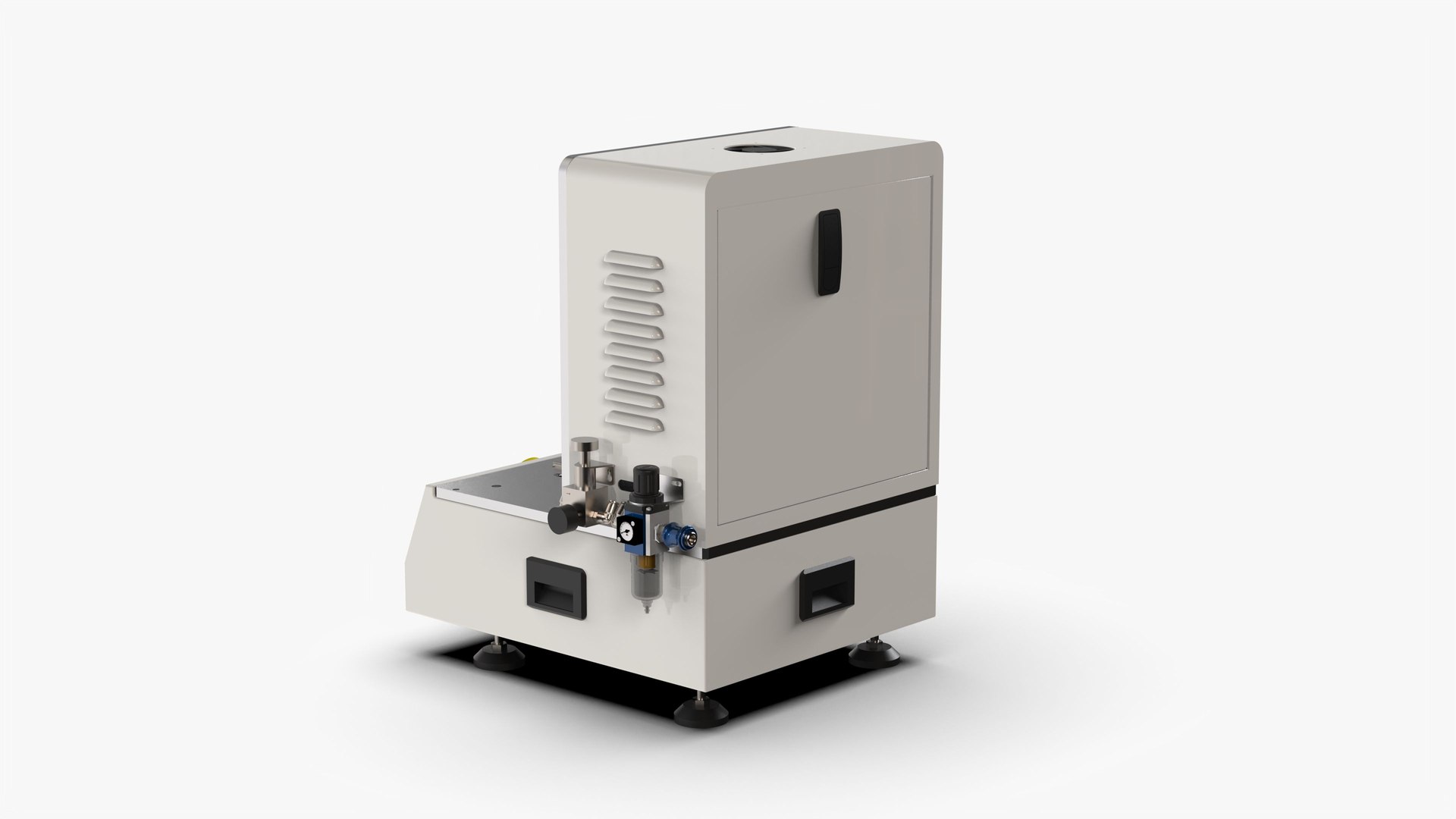

Automatic Pressure Holding Fixture

Introduction

Brief introduction of general equipment for pressure holding fixture:

1. Table-type standard general fixture frame;
2. Suitable for small pressure holding and laminating projects;
3. The position of the upper and lower modules of the Z axis can be adjusted;
4. The general floor of the fixture The product model can be changed quickly;
5. PLC control program is adopted.

File Formats

– SolidWorks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 802,646
– Vertice: 2,407,938
