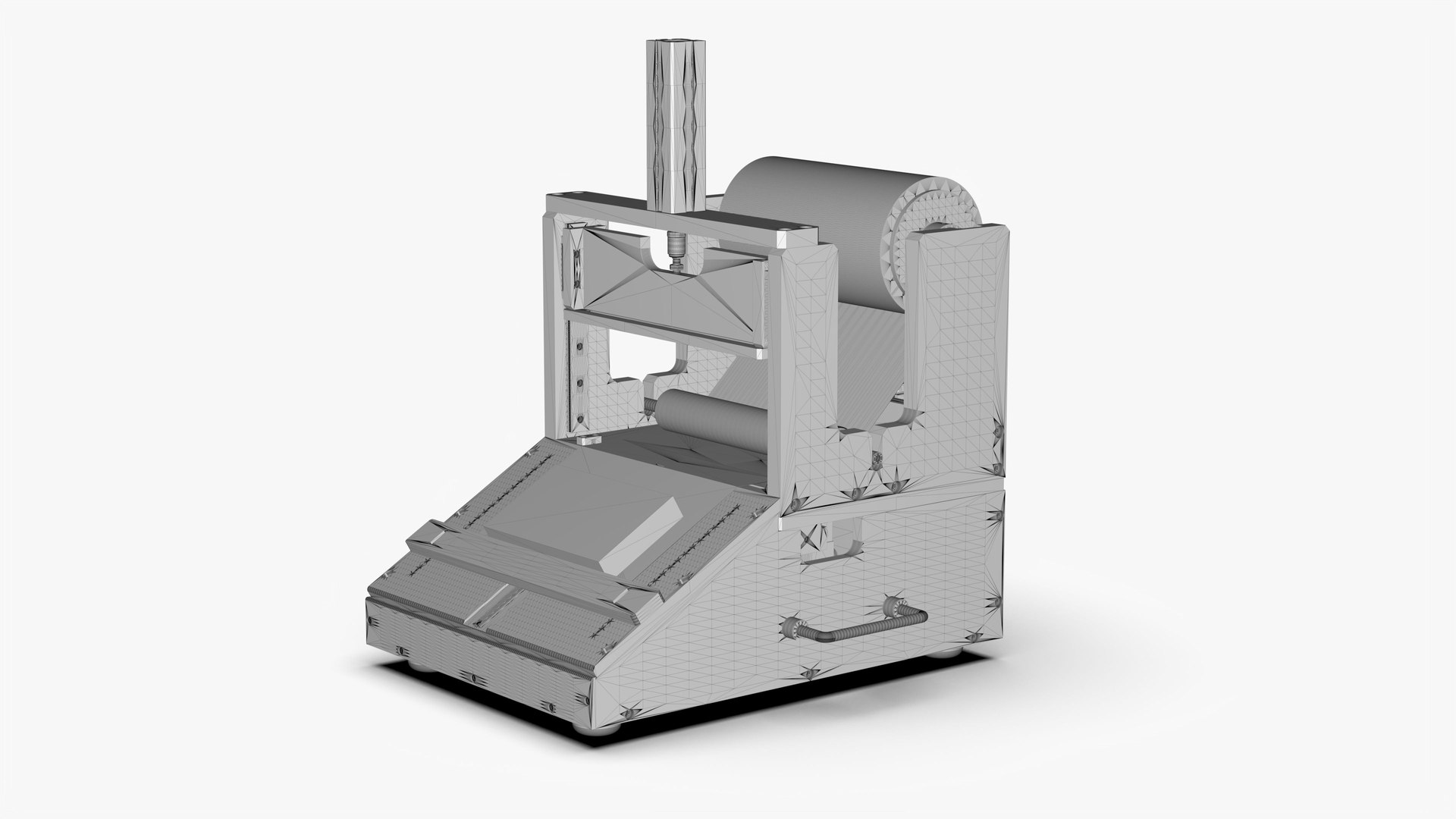

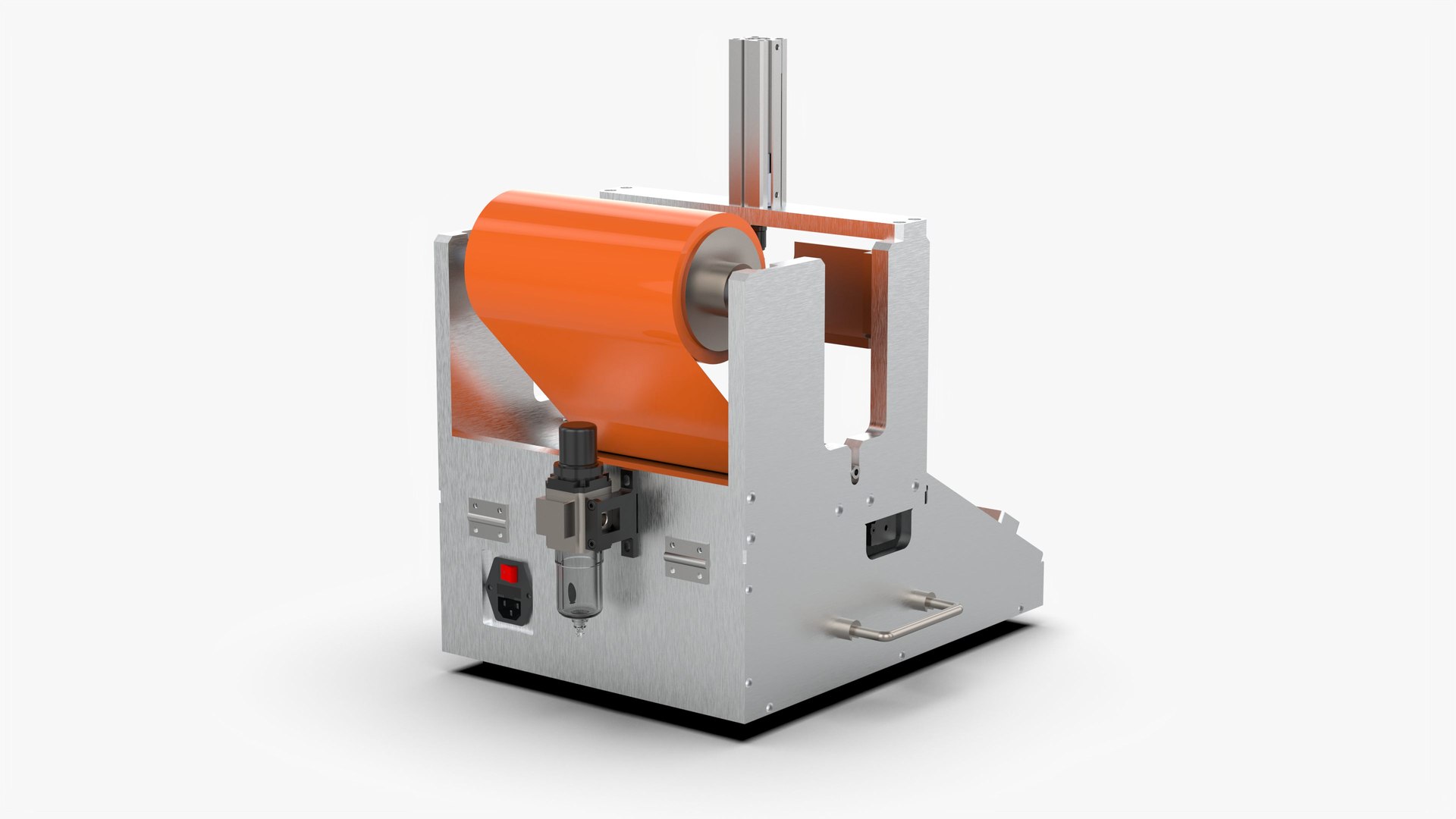

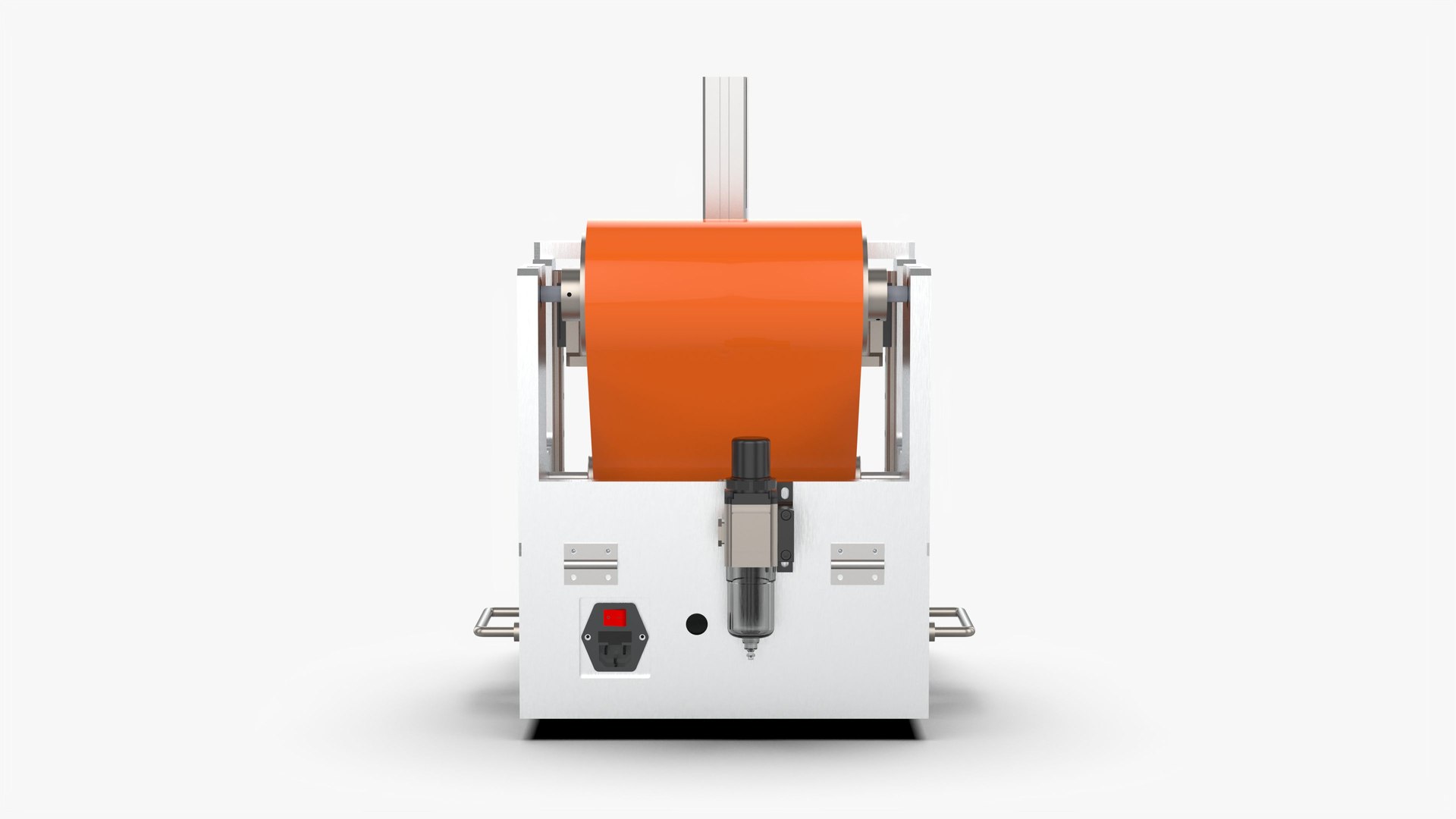

Automatic Cutting Packaging Film Jig Machine

Introduction

It is used for the film covering of the shape packaging of electrical products. The jig mainly includes film releasing shaft, material guiding film roller, film pressing cylinder assembly, film cutting cylinder assembly, film length positioning block, measuring scale, control vitality parts, etc., and film cutting Size range: width 0~200mm, length 0~220mm. adjustable.

Adjust the position of the positioning block according to the required size of the product. Manually pull the film to the required size, start the foot switch, the film pressing cylinder compresses the film, the film cutting cylinder cuts off the film, and manually put the coated product into the jig to complete the film coating.

File Formats

– SolidWorks 2019 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 1,771,750
– Vertice: 5,315,250
