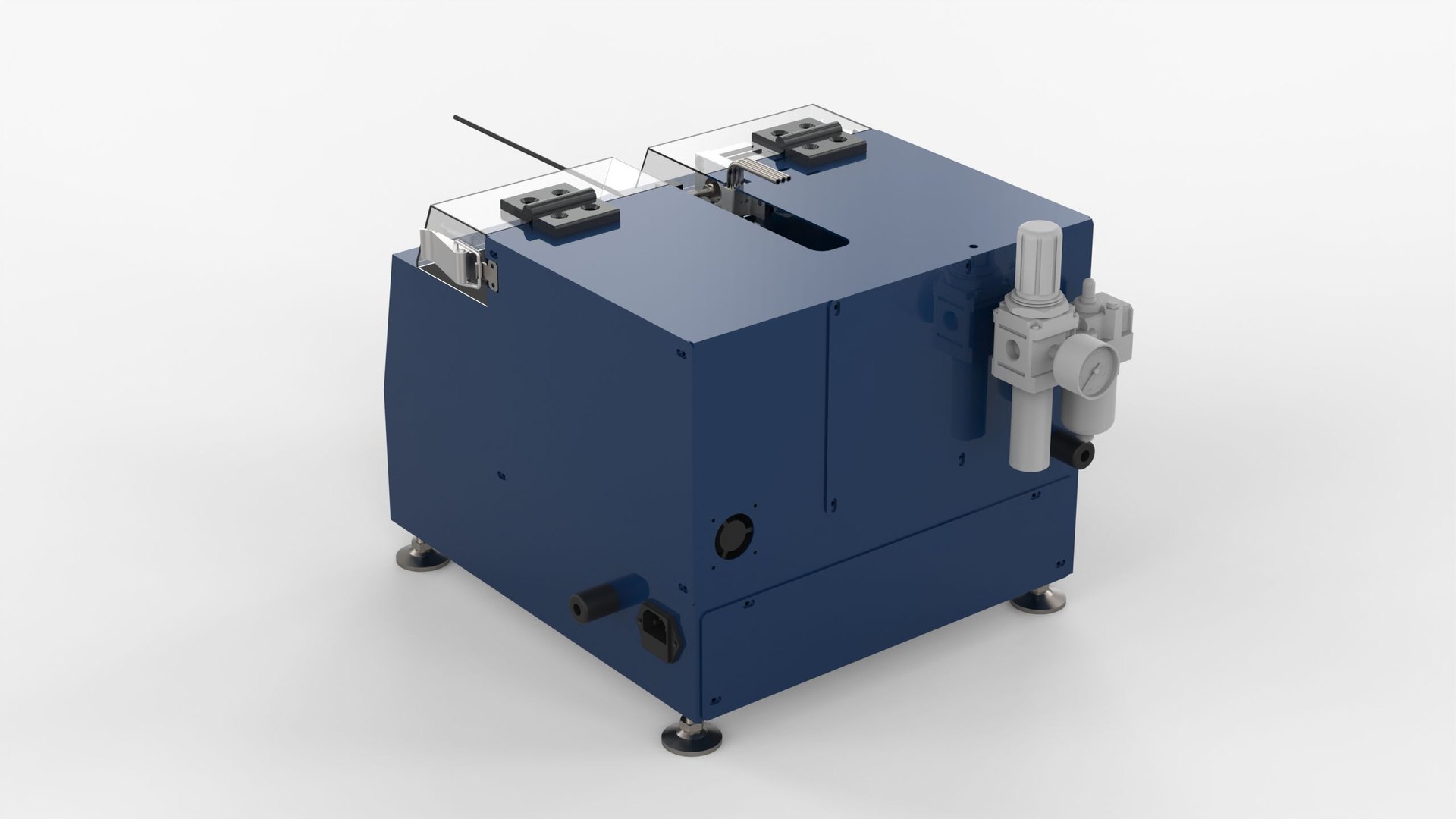

Automatic Braid cutting machine

Introduction

Braid cutting machine/communication wire speed internal braid cutting machine This braid processing machine is suitable for all wire speeds in the communication industry with a diameter of 2 to 15.

The internal braiding is completely cut off. It can complete the weaving and cutting, the structure is practical, the body is small, and it is completely desktop-level, and it can be operated by placing it on the workstation. The whole machine is designed, and the compressed package contains all parts and assemblies, electric control, and the required pictures can be downloaded.

The file contains the machine demonstration video, which can express the use of the machine more intuitively.

File Formats

– SolidWorks 2018 | Keyshot 10

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 497,704
– Vertice: 1,484,112
