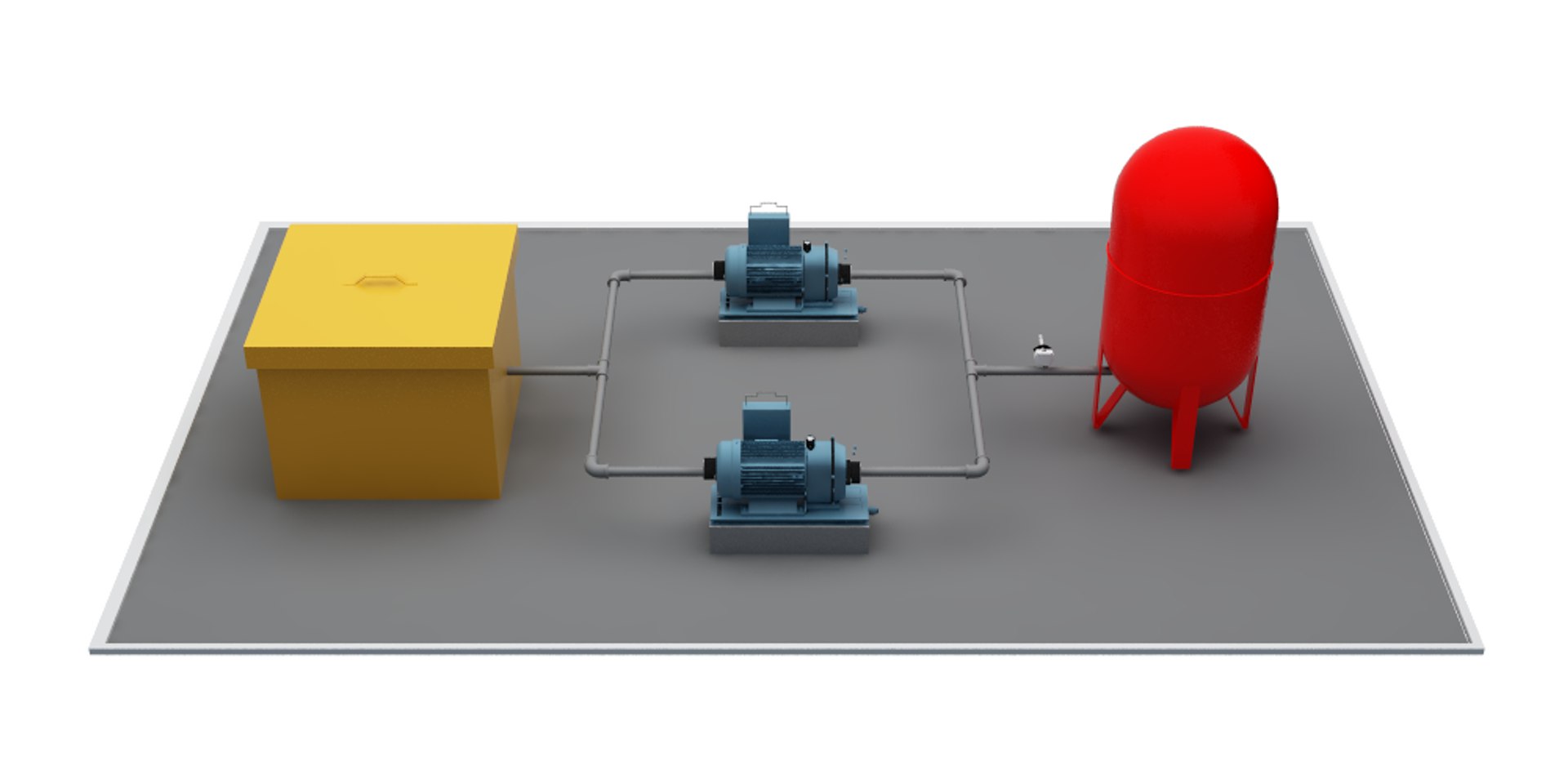

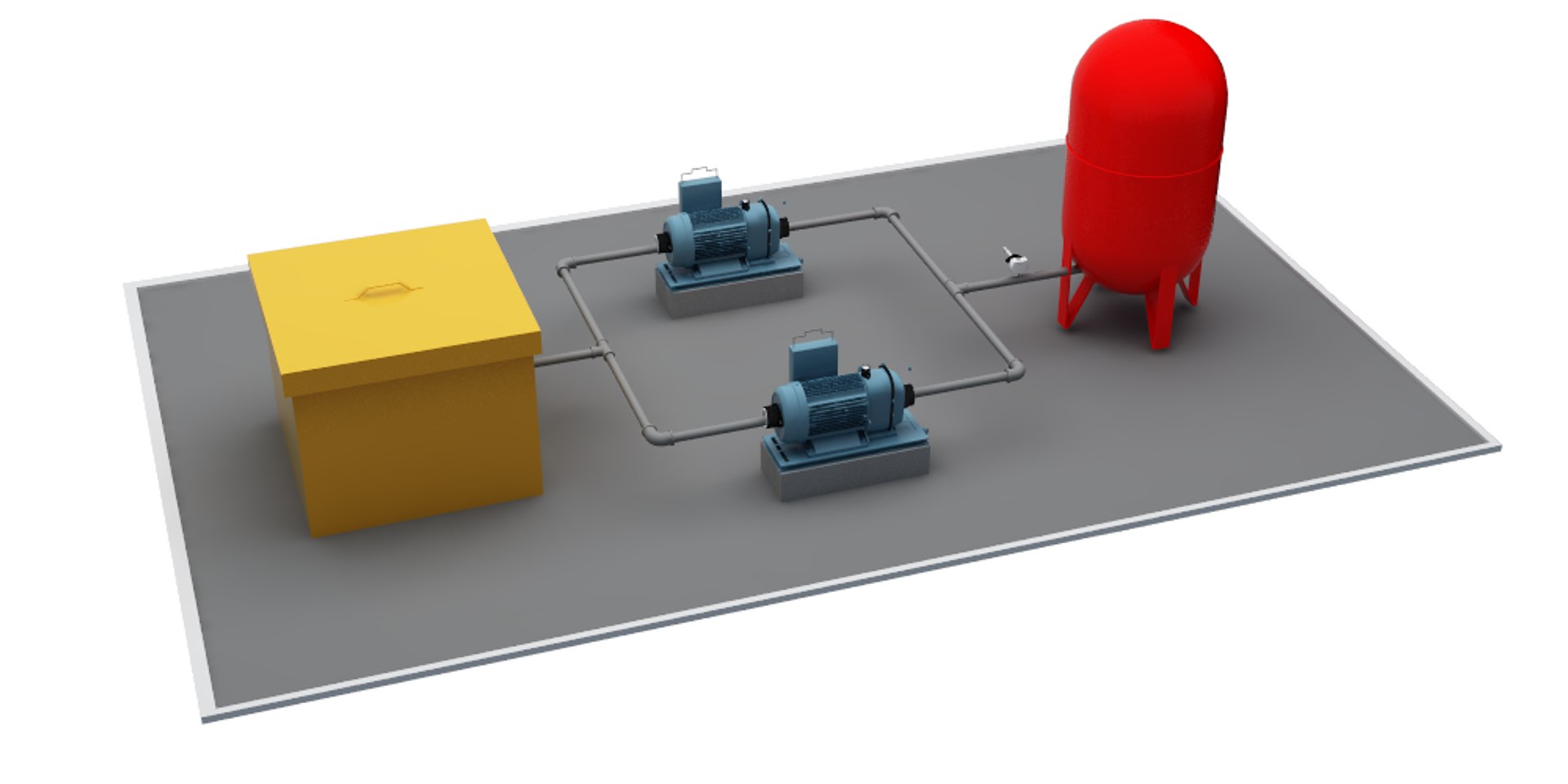

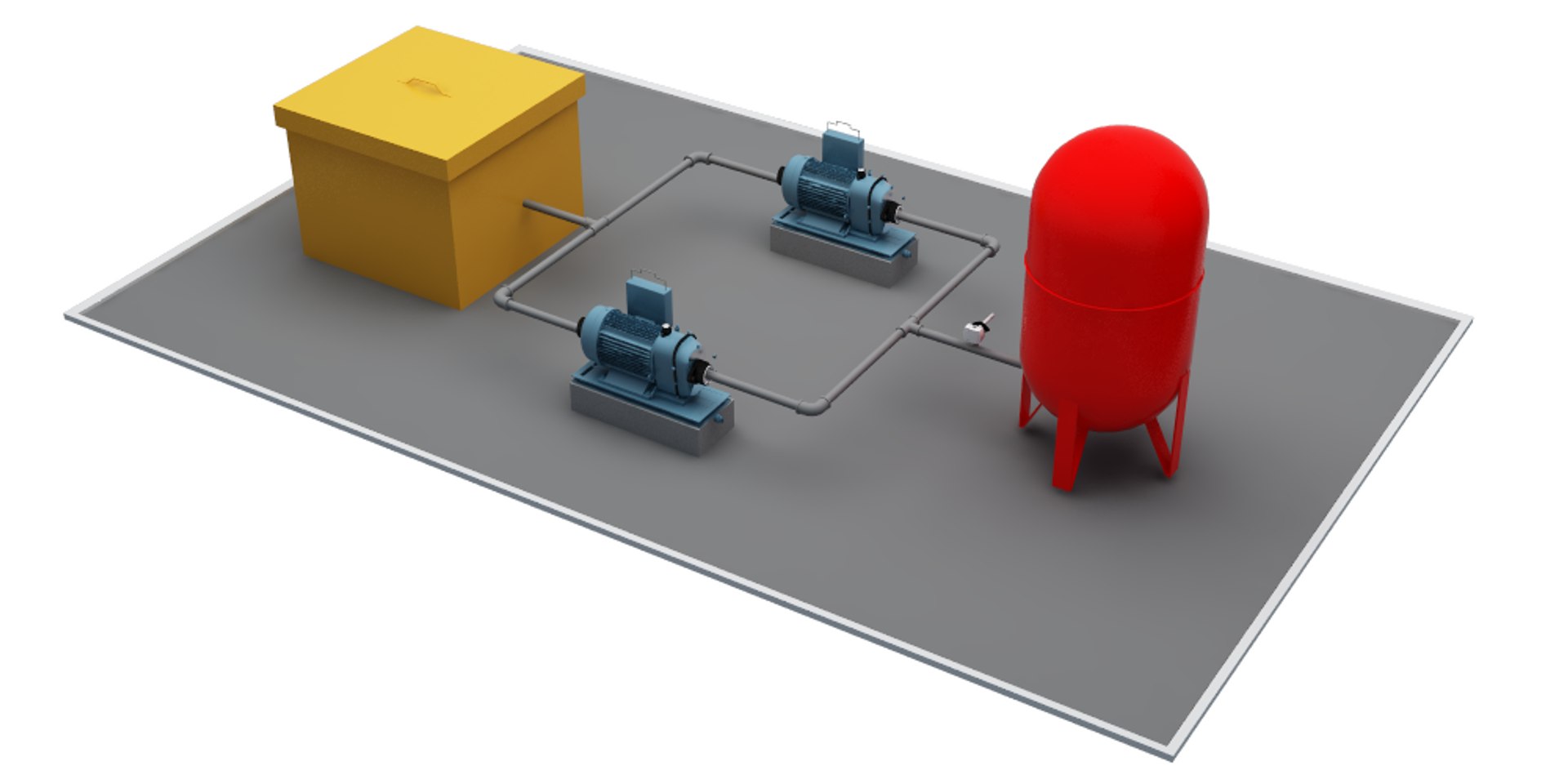

Pressurization Pumps

Used for pressurising chilled water
system in HVAC applicationsc
Provides make up water to
pressurise the water systemc
Double pumpy IK working v K stand/bybc
Microprocessor based control panel
with dry run protection 7 duty cyclingc
Multistage centrifugal type pumps /
quiety reliable and ruggedc
Flow meter to measure the make up
water quantityc
All Componentsy icec pumpsy pressure
transmittery flow metery interconnecting
piping and control panel factory mounted
on a compact steel frame

PARTS
PUMPS
SENSOR
BYPASS SWITCH
PIPING
TANK

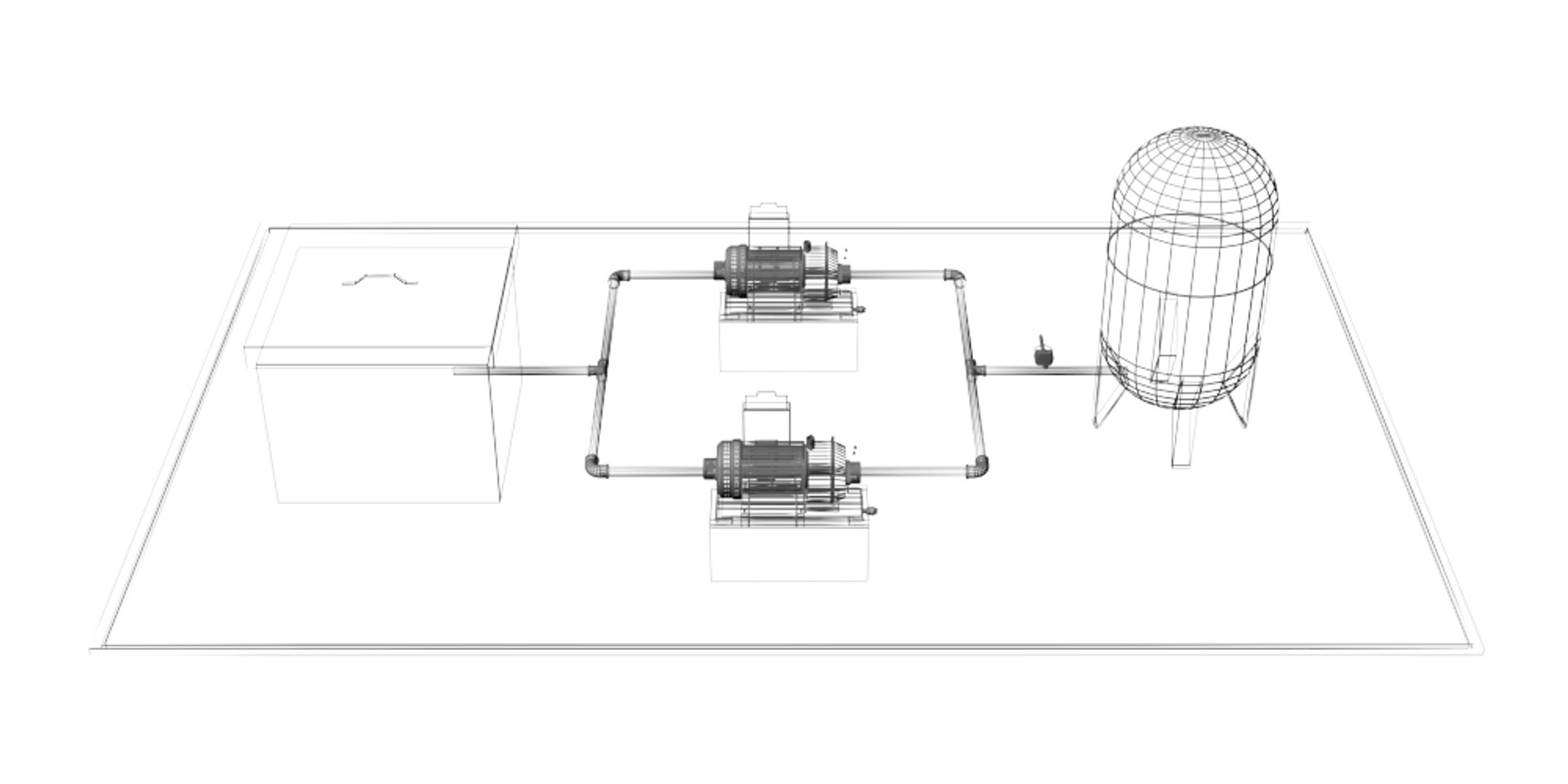

3D DESCRIPTION

-Model is created in 3dsmax2009
Rendered with Vray
- Materials included
-Polygonal geometry (quad/tris)
-All vray material are included

Model is highly detailed and is suitable for close-up

You can create a larger composition

Fully detailed, textured model. Detailed enough for close-up renders. Comes with detailed normal materials,

This set will allow you to collect the ventilation system of any complexity in a few minutes.

Originally modeled in 3ds Max 2009. Final images rendered with V-Ray.

The 3ds Max zip file contains also V-Ray and standard materials scenes.

- Easy to convert model in other formats.
- No need for any special plug-in to open the model.
- Useful for BMS, BAS, high resolution renders, magazines and production.

- No multi/Sub-Objects materials.
- Materials, textures and objects are clearly named.
- Export formats works correctly
