L Shaped Column

$4

Standard License | Upgrade License
Formats (1)
Native | Revit Family 2022 | Other
Specifications
Publish Date February 11, 2023
Product ID 2026351
Polygons 100
Vertices 100
Unknown Geometry
Materials
Unknown Unwrapped UVs
member avatar
droumbas
69 Products | Contributor Since 2022
Have questions? Chat with us now.

Description

This is a fully parametric revit family for a concrete L-Shaped Column. All dimensions of the concrete column can be changed by the user. It can be rotated and flipped on both axes to match the design of any project.

Both sides, length and width, can be changed. Column can either have similar widths on both sides or different ones. By rotating and flipping on an axis, and changing the column dimensions, it can be adjusted to match any design.

This revit family file belongs in the structural column revit category and can be inserted into any project.

ATTRIBUTES:

  • Revit Version : 2022
  • Family Type : Structural Column
  • File Extension : .rfa

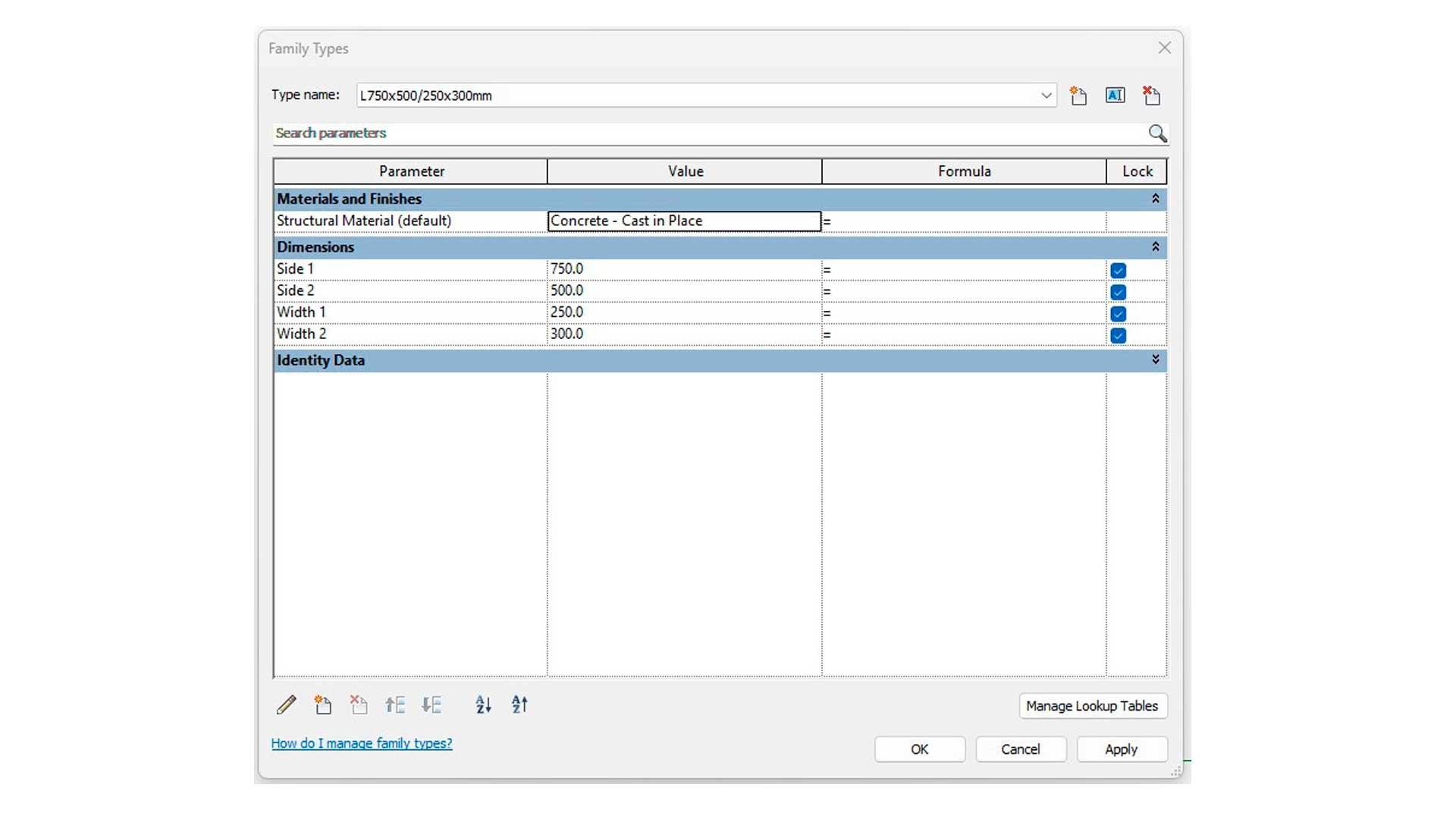

PARAMETERS:

  • Side 1 Length
  • Side 1 Width
  • Side 2 Length
  • Side 2 Width
  • Parametric Column Material

FAMILY TYPES:

  • L900x600/300mm
  • L600x600/300mm
  • L750x750/250mm
  • L1000x1000/300mm
  • L500x500/250mm
  • L800x800/300mm
  • L900x600/300x250mm
  • L1200x1200/250mm
  • L750x500/250mm
  • L600x400/300mm
  • L750x500/250x300mm

User can created unlimited number of column types.
