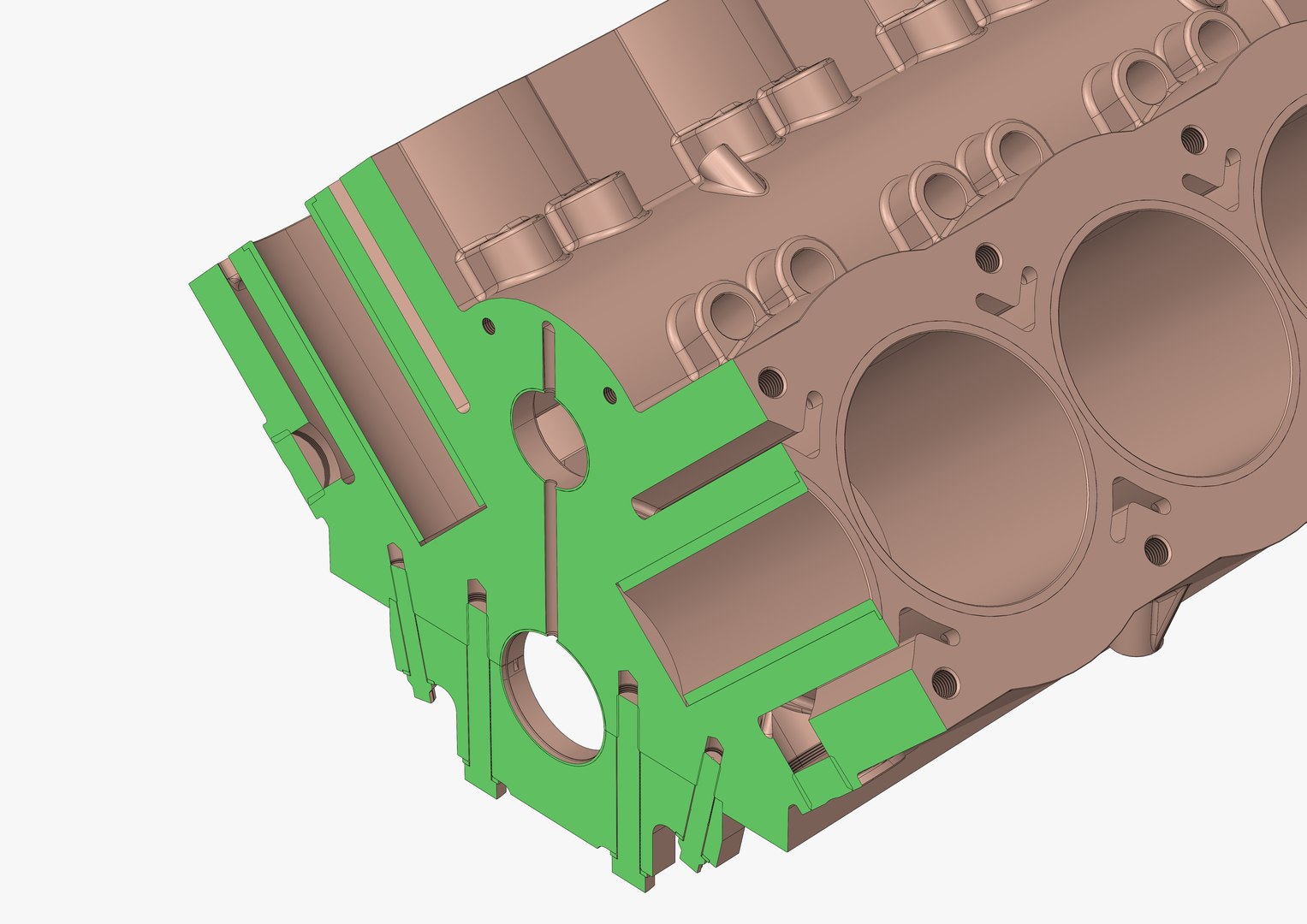

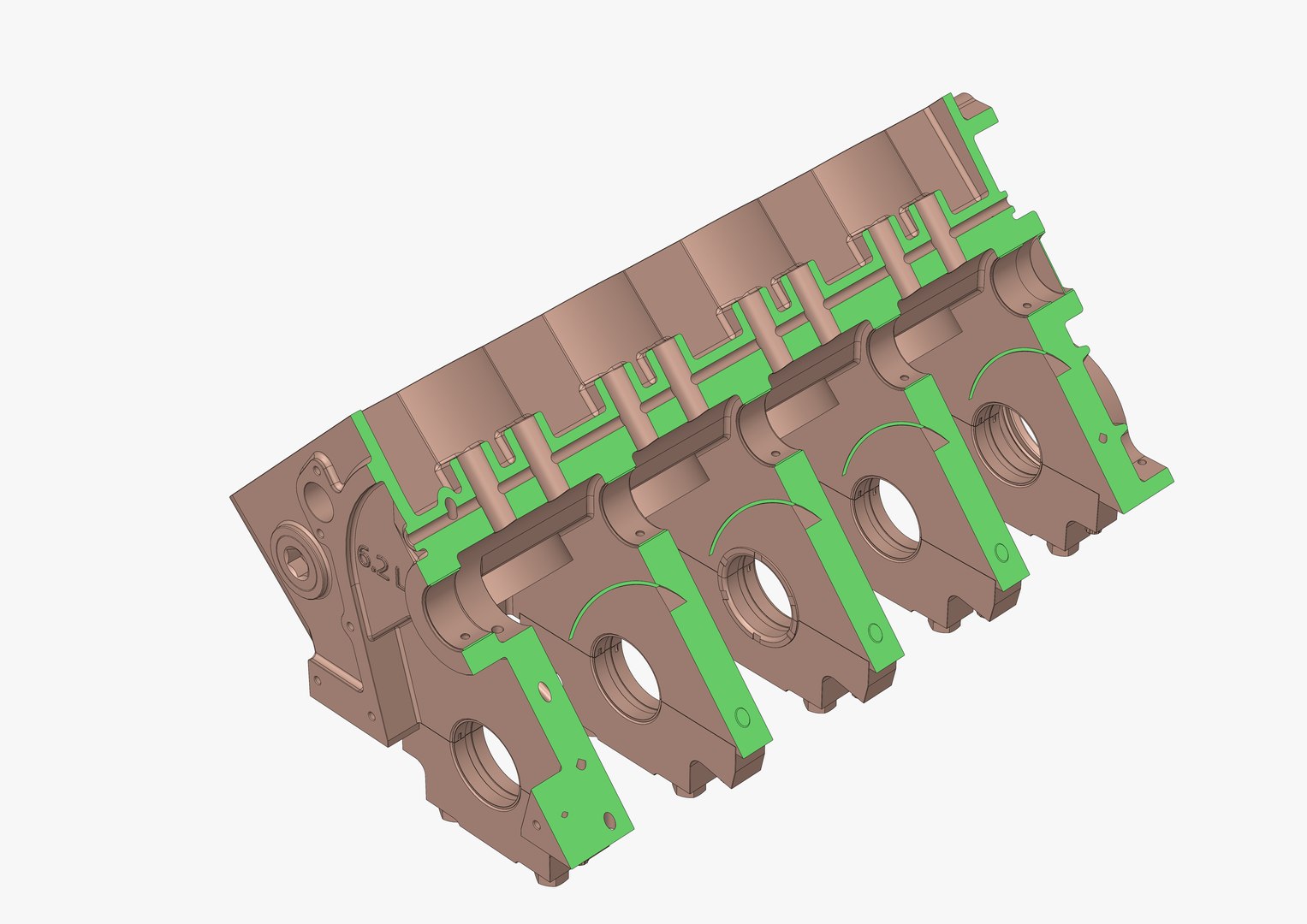

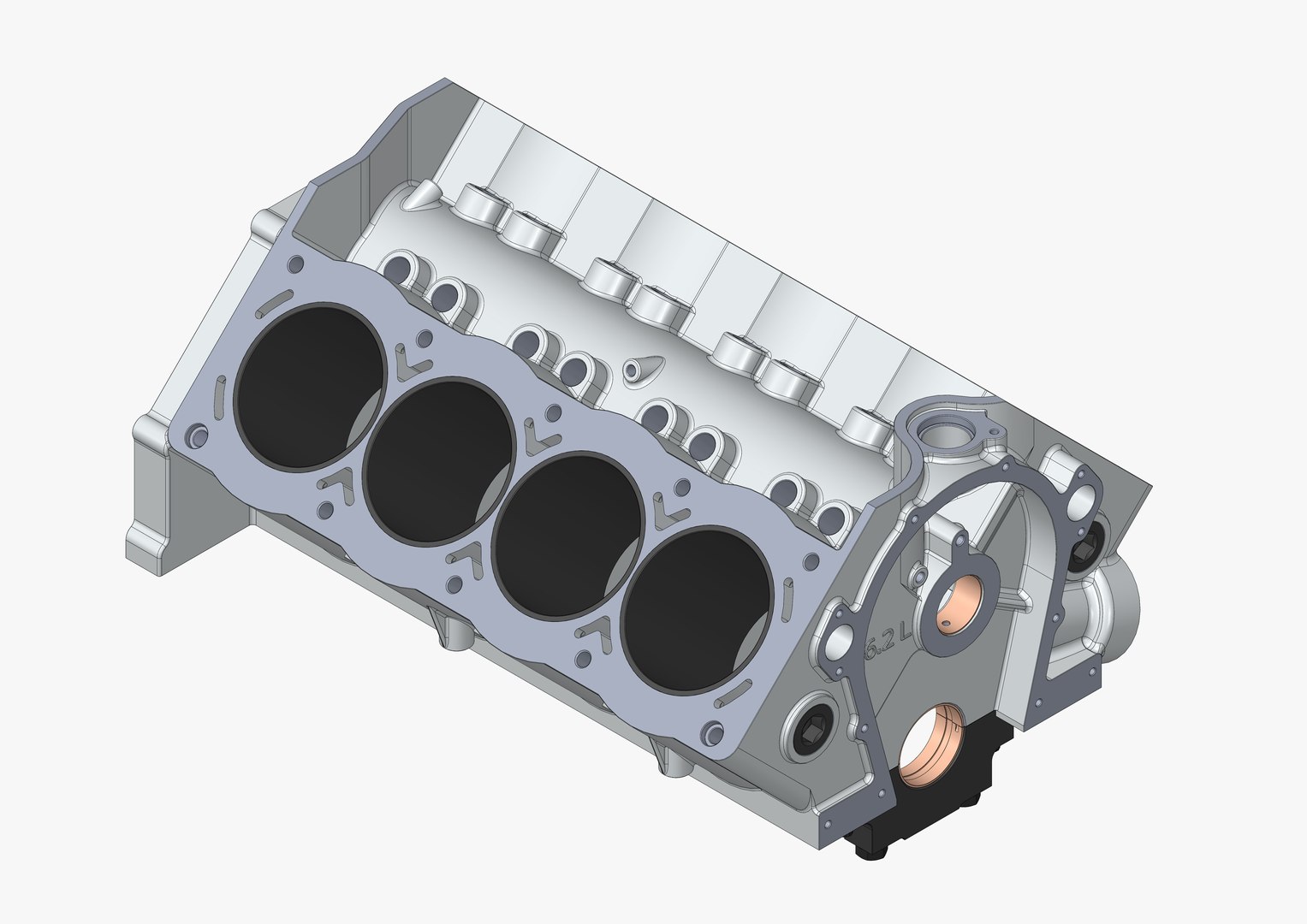

High quality and extremely detailed engine block V8 model. Complete with real lubrication oil pipes. Derived from research carried out on the typical engines of American muscle cars. All components have a level of detail similar to reality. The model was created based on research on high performance engines V8. The dimensions reflect the real components . The unit of measurement is in millimeters (mm).
Modeled and mapped as a multi-body parametric solid in Solidworks 2018. Materials and render with Keyshot 9.
Model formats included: - (.sldasm, .sldprt) Solidworks 2018 (Native format) - (.obj, .mtl) 3D exchange format - (.fbx) 3D exchange format - (.ksp) Keyshot 9 - (.igs) 3D exchange format - (.stp) 3D exchange format - (.x_t) 3D exchange format - (.png) Image format - (.jpg) Image format
In images 59 and 60, you can see the mapping of surfaces in Solidworks 2018, imported into Keyshot 9 for rendering.
Keyshot's scene and environments are included, with all materials applied and ready for rendering.
The IGS, STP and x_t formats have been exported from Solidworks 2018. The model created in Solidworks was imported into SimLab Composer 9, from which the FBX and OBJ formats were exported, and subsequently imported into Maya 2017 for formats verification.
Counting primitives on Solidworks 2018: Polygons: 482.265 Vertices: 444.380
Counting primitives on Maya 2017 with smooth off (by importing the model in the FBX and OBJ formats): Polygons: 482.388 Vertices: 771.809
The compressed file named Engine_Block_Assembly_Images.zip contains all the images files in the previews, in (.jpg) and (.png) format.
