Automatic Granule Packing Machine

Introduction

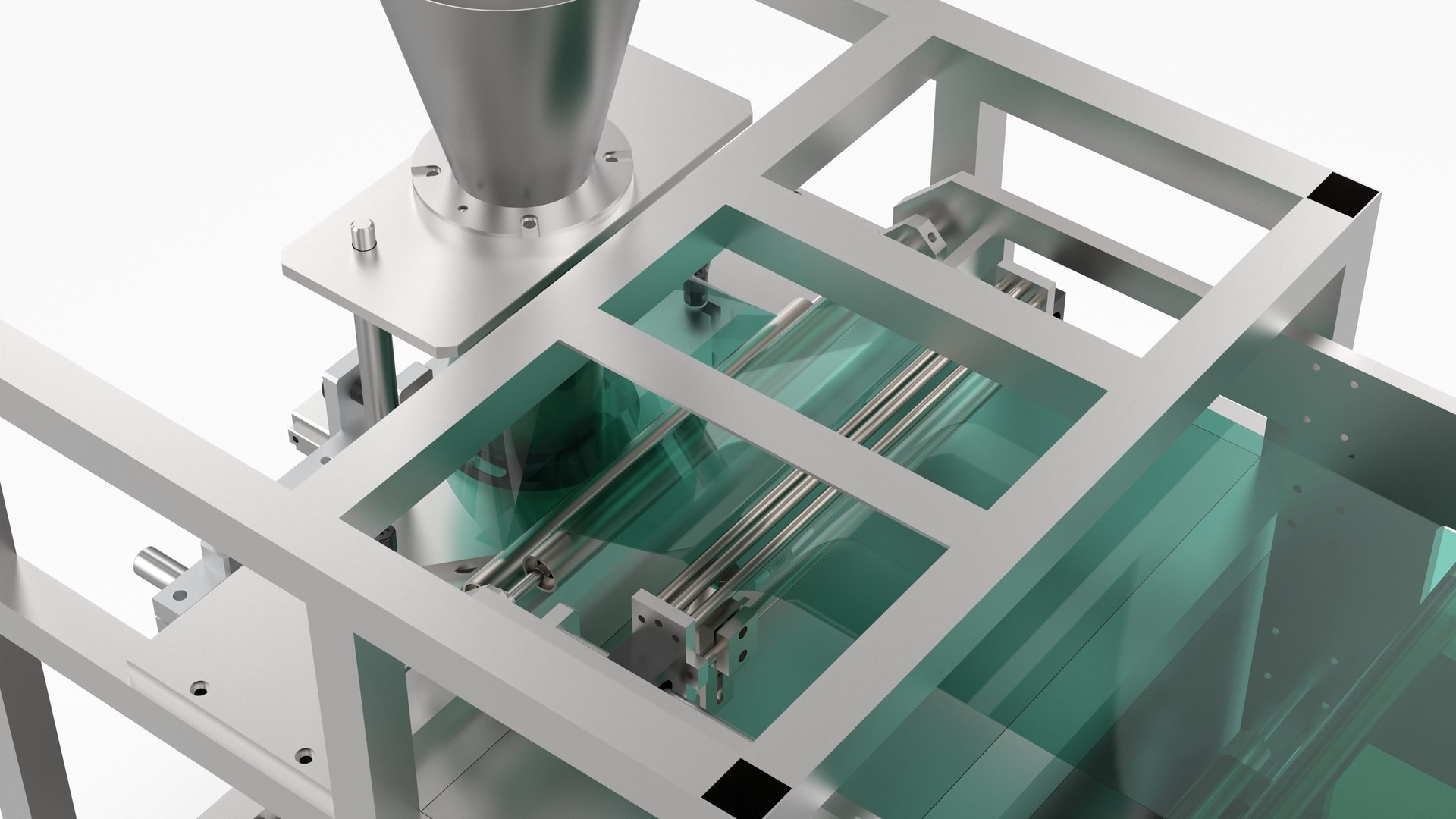

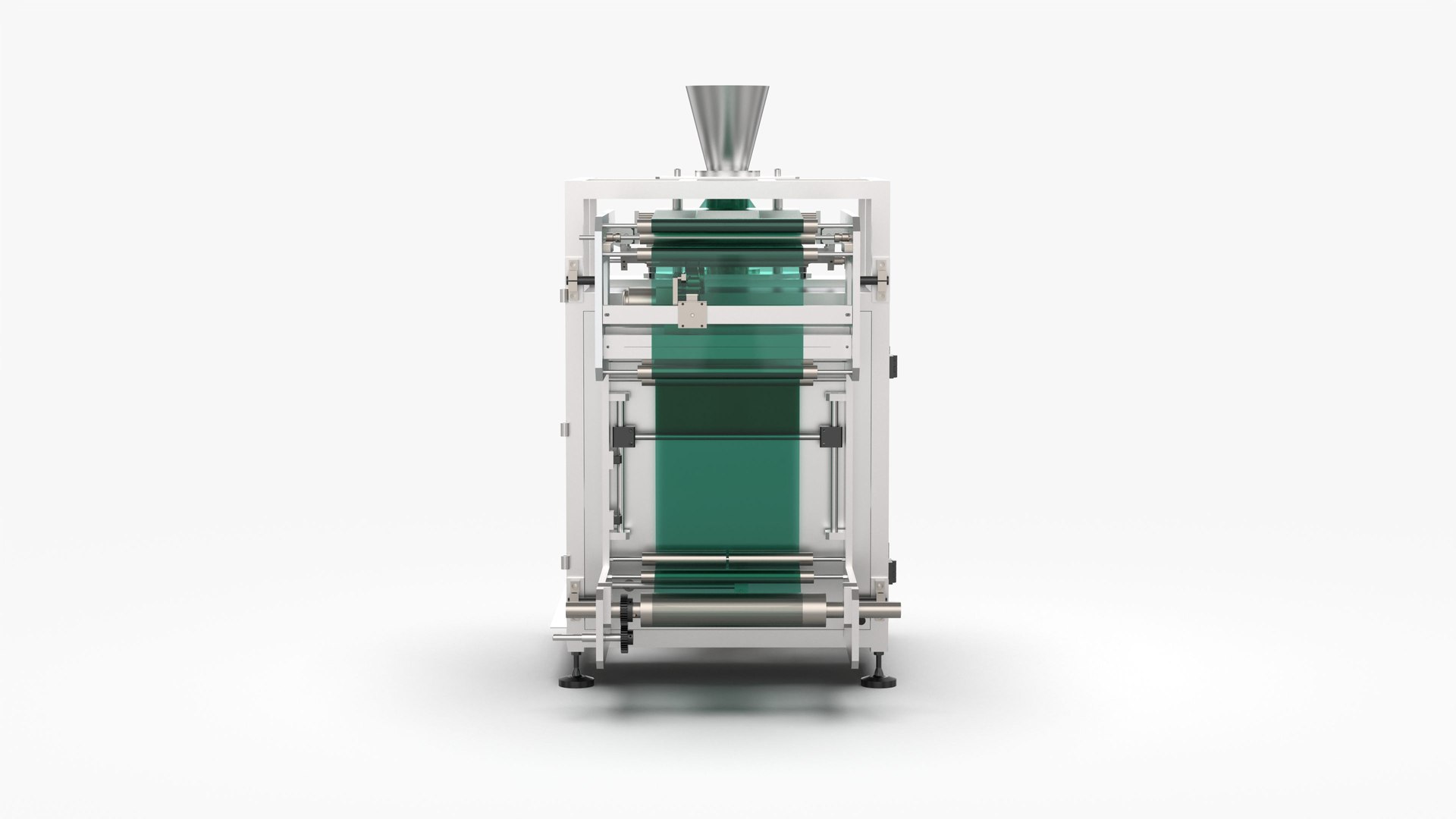

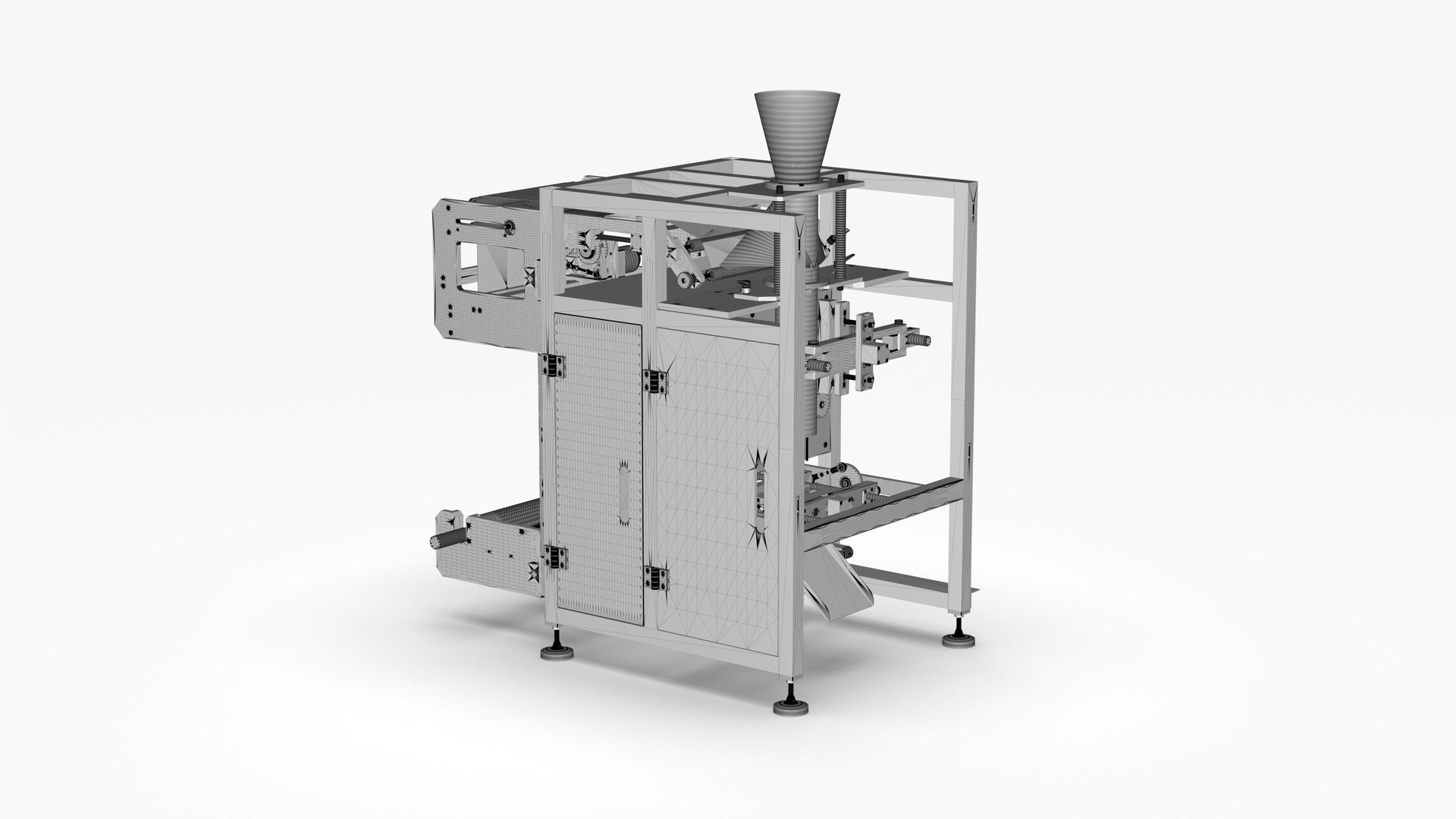

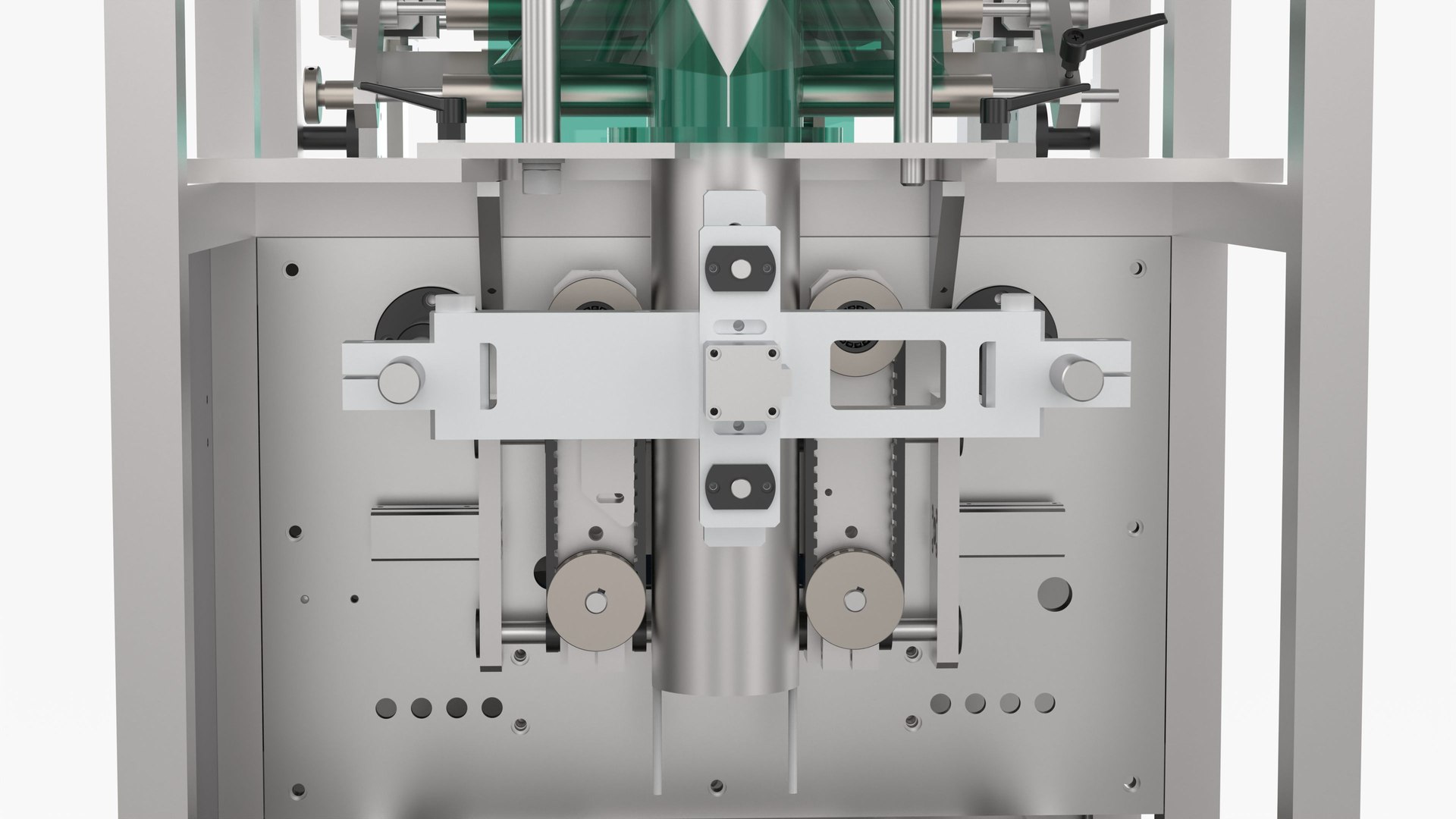

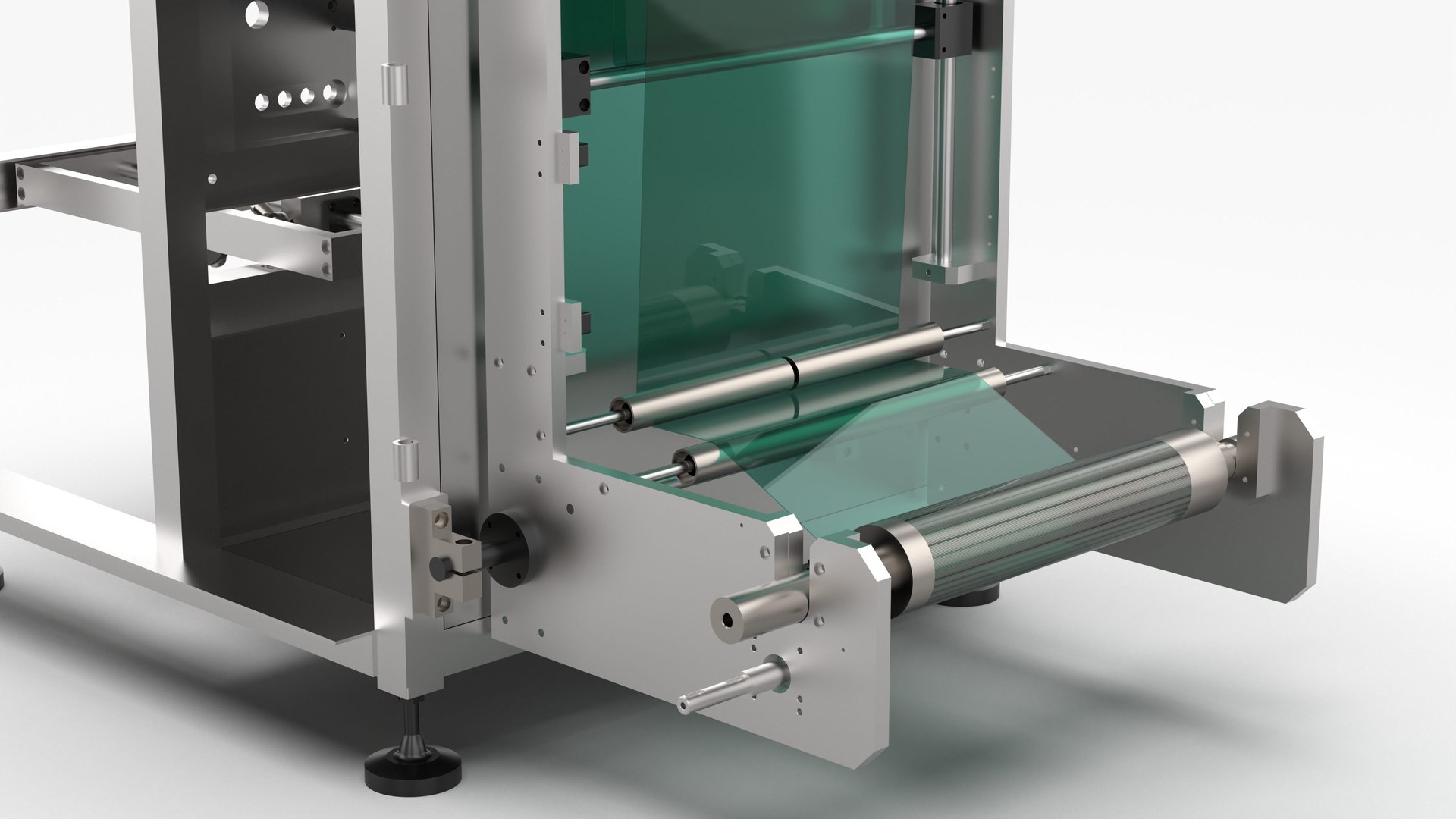

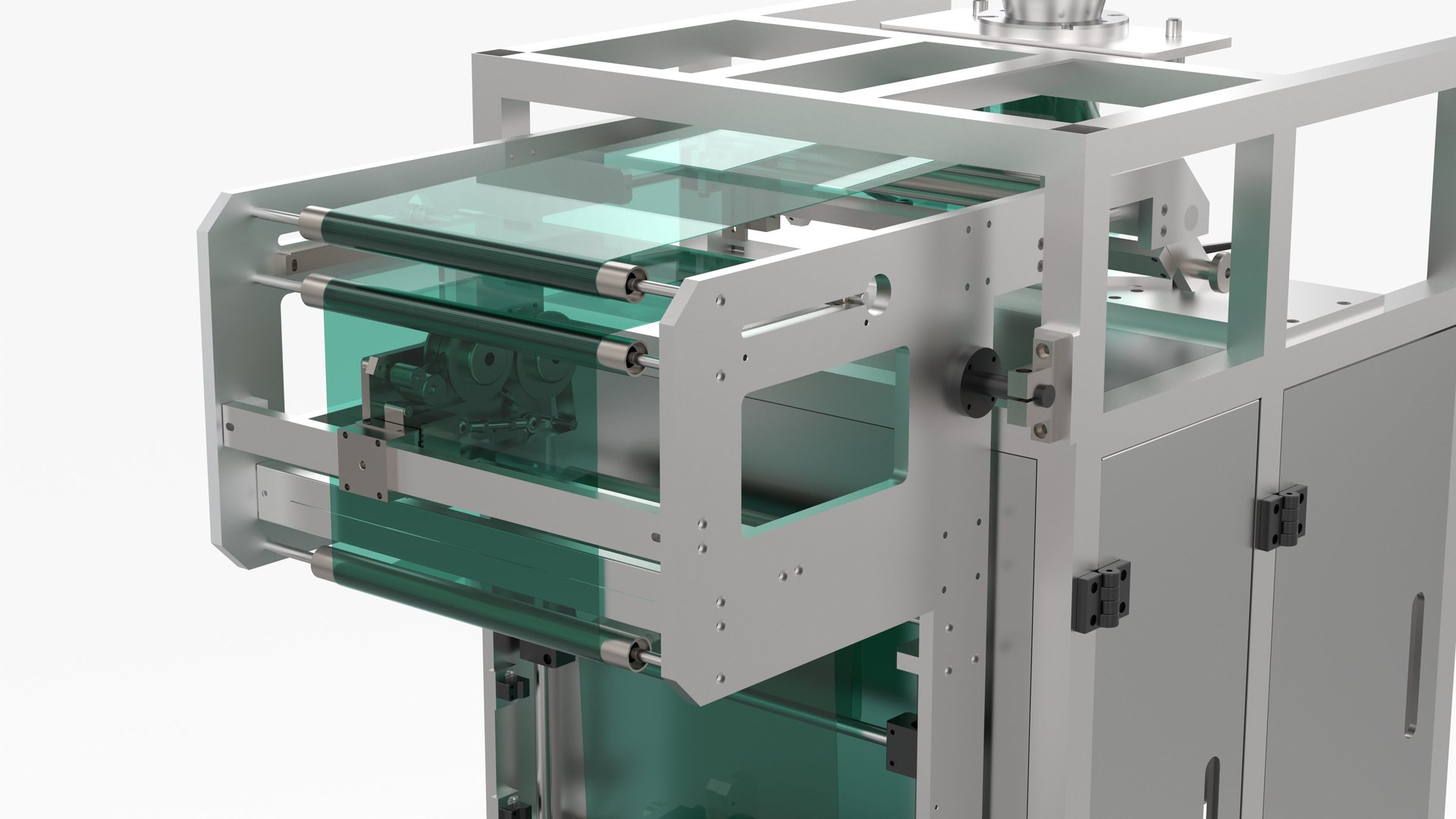

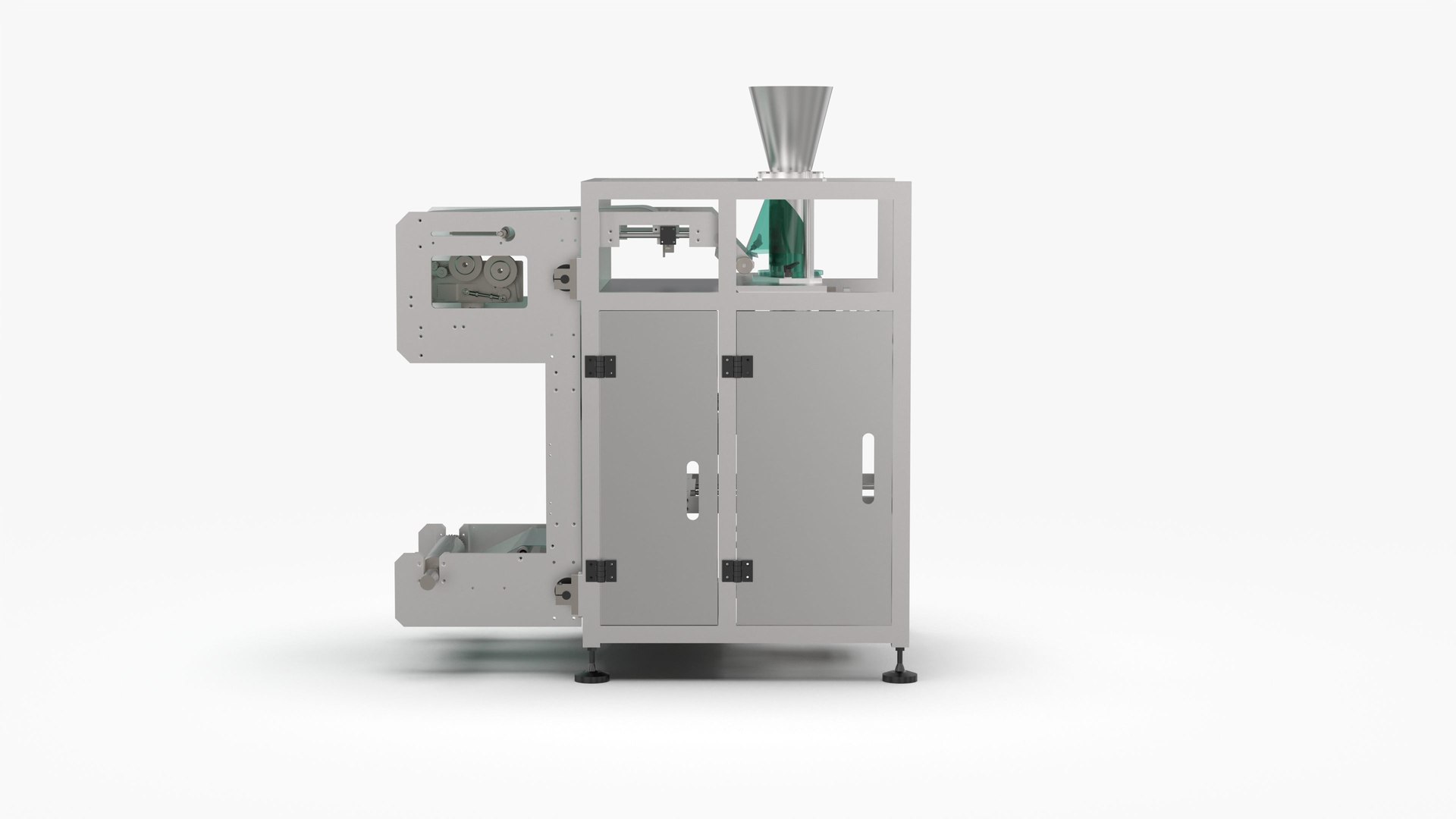

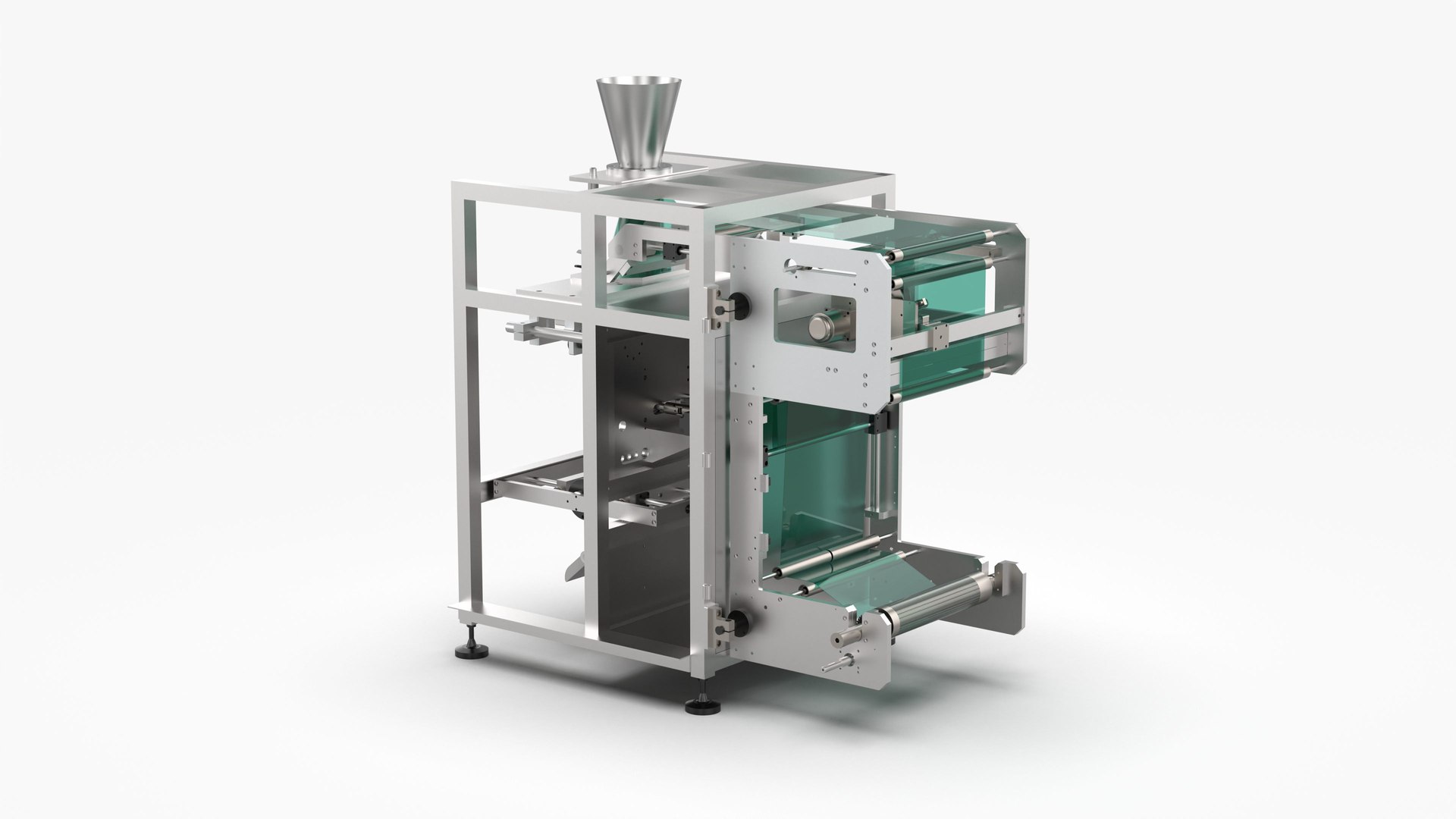

A three-dimensional drawing of a small bag packaging machine for food, medicine, chemical products and other particulate matter. During the packaging process, the material is fed by a stretching feeding device. The plastic film is formed into a cylindrical shape through a film cylinder, and sealed by a heat longitudinal sealing device. Live on the side to complete the package.

File Formats

– STEP (Standard for the Exchange of Product Data)

– IGES (Initial Graphics Exchange Specification)

– STL (Standard Tessellation Language )

– OBJ (Object Files)

Geometry

– Polygons: 760,146
– Vertice: 2,280,438
