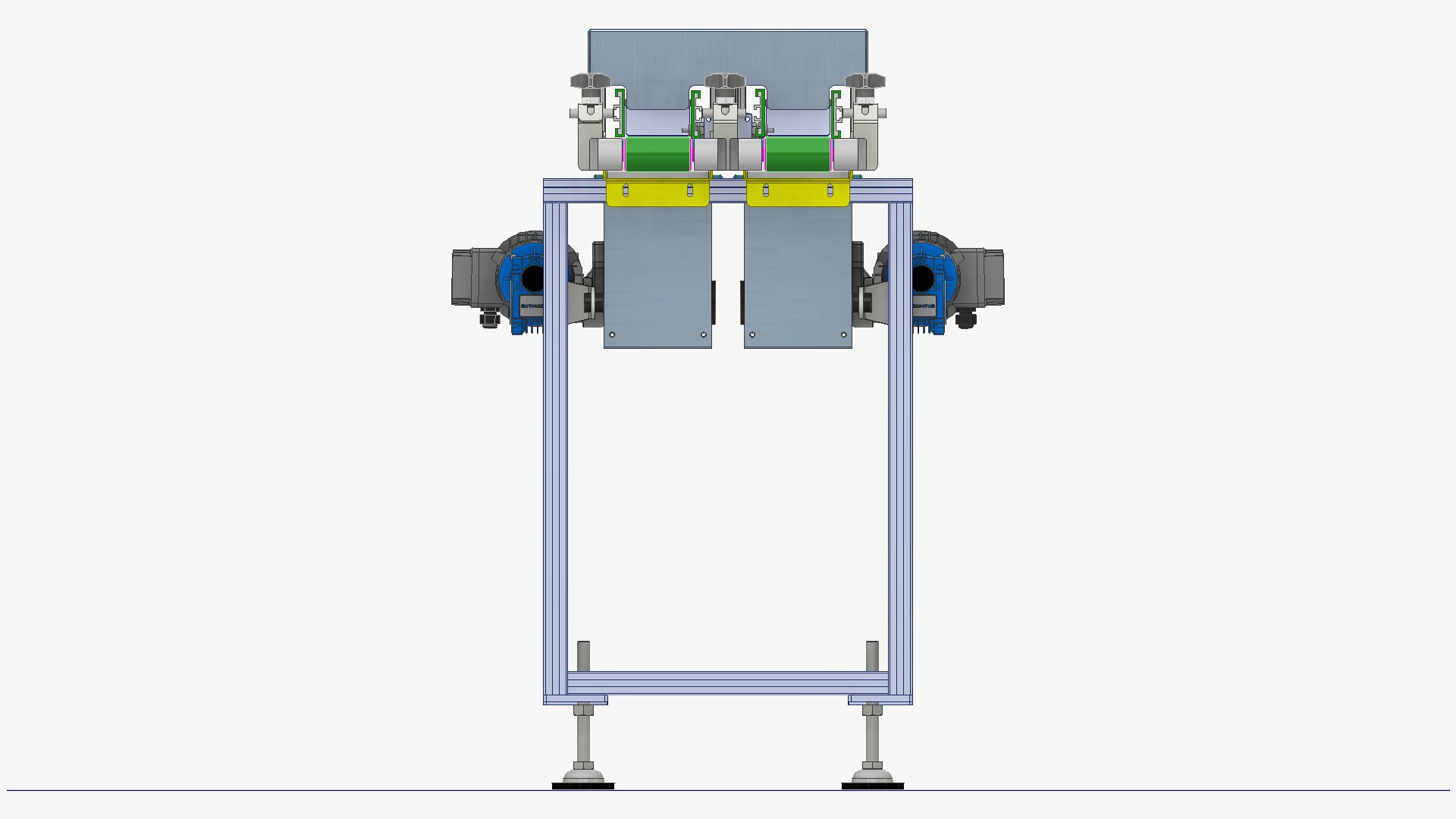

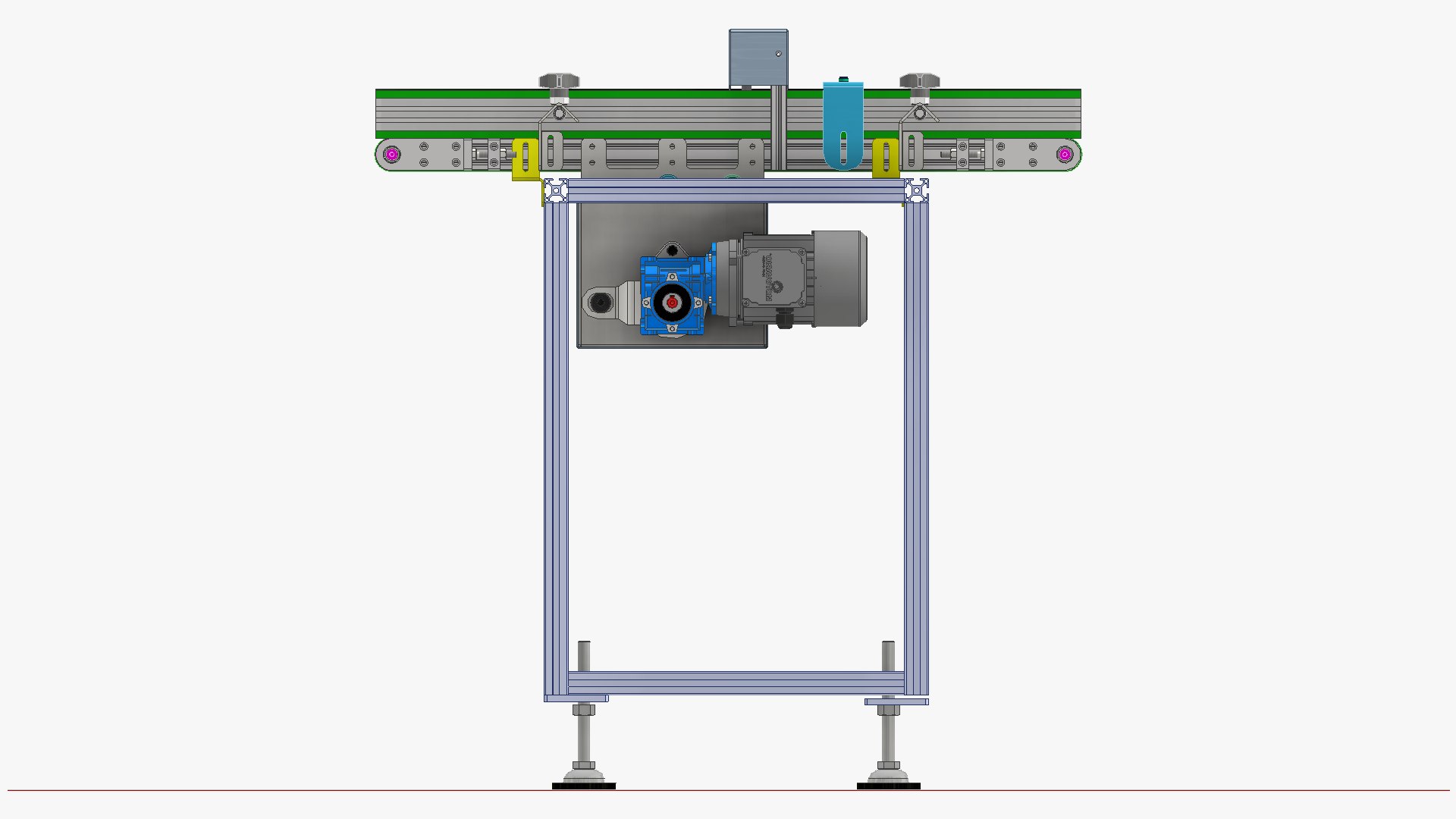

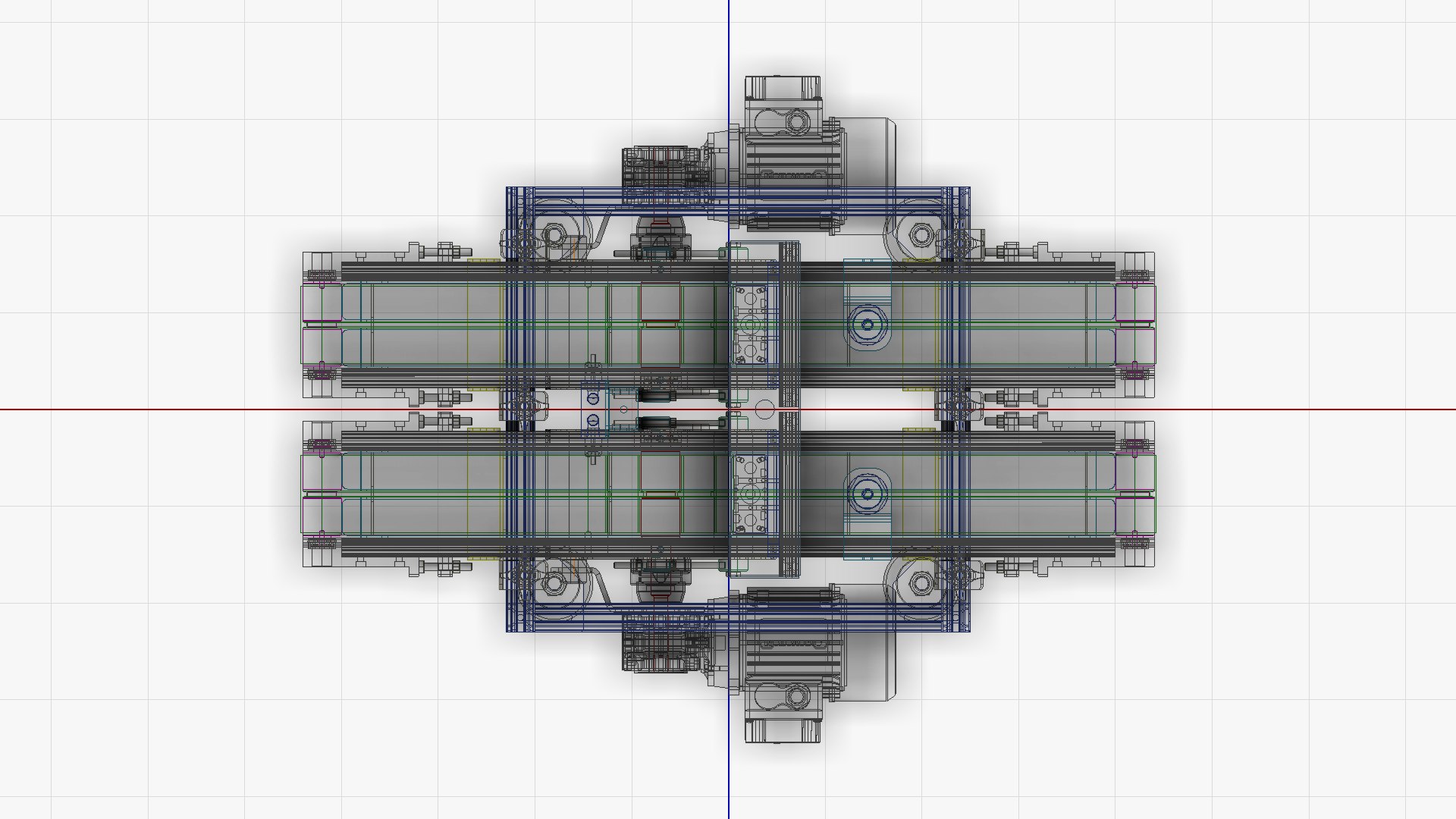

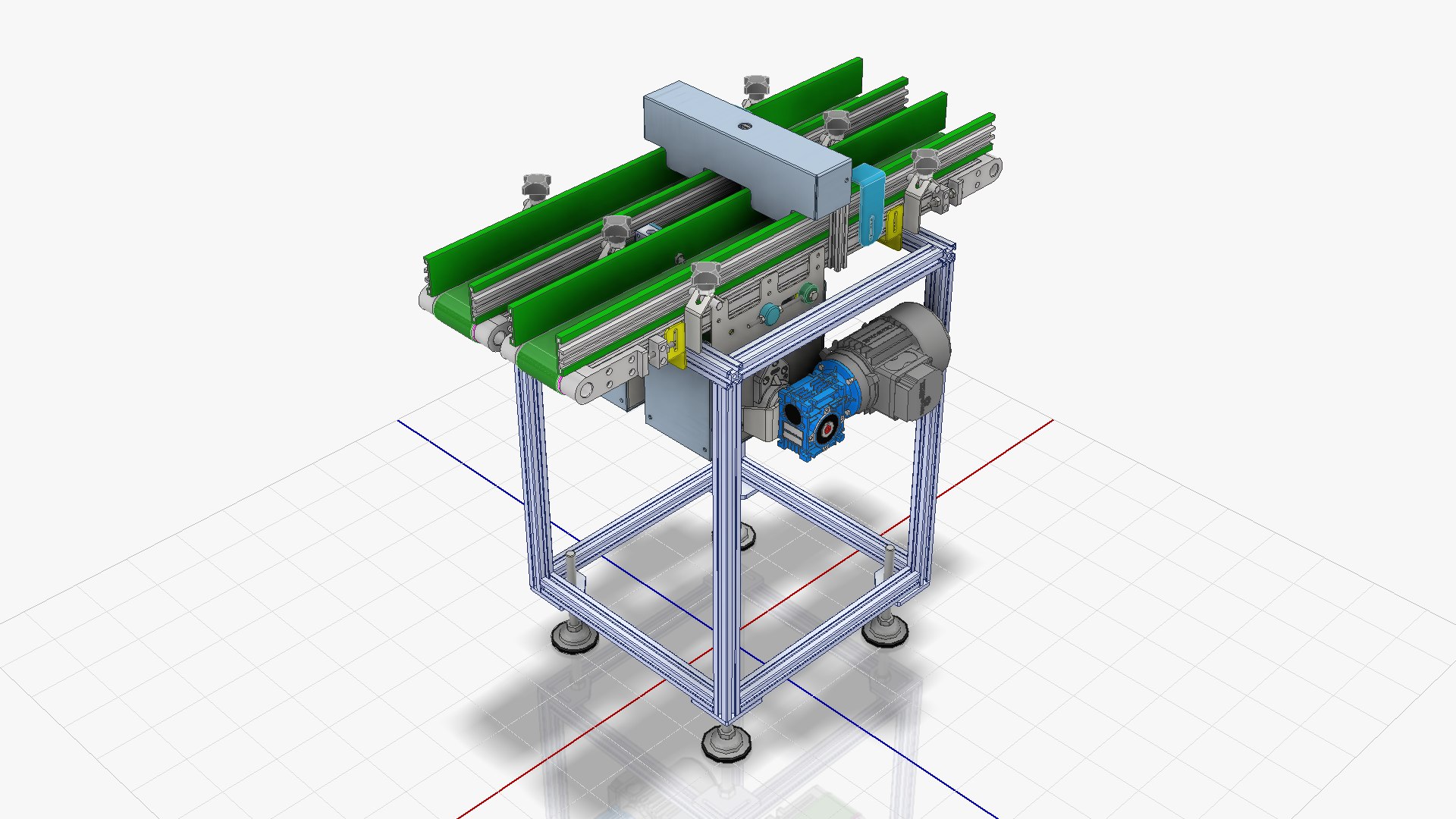

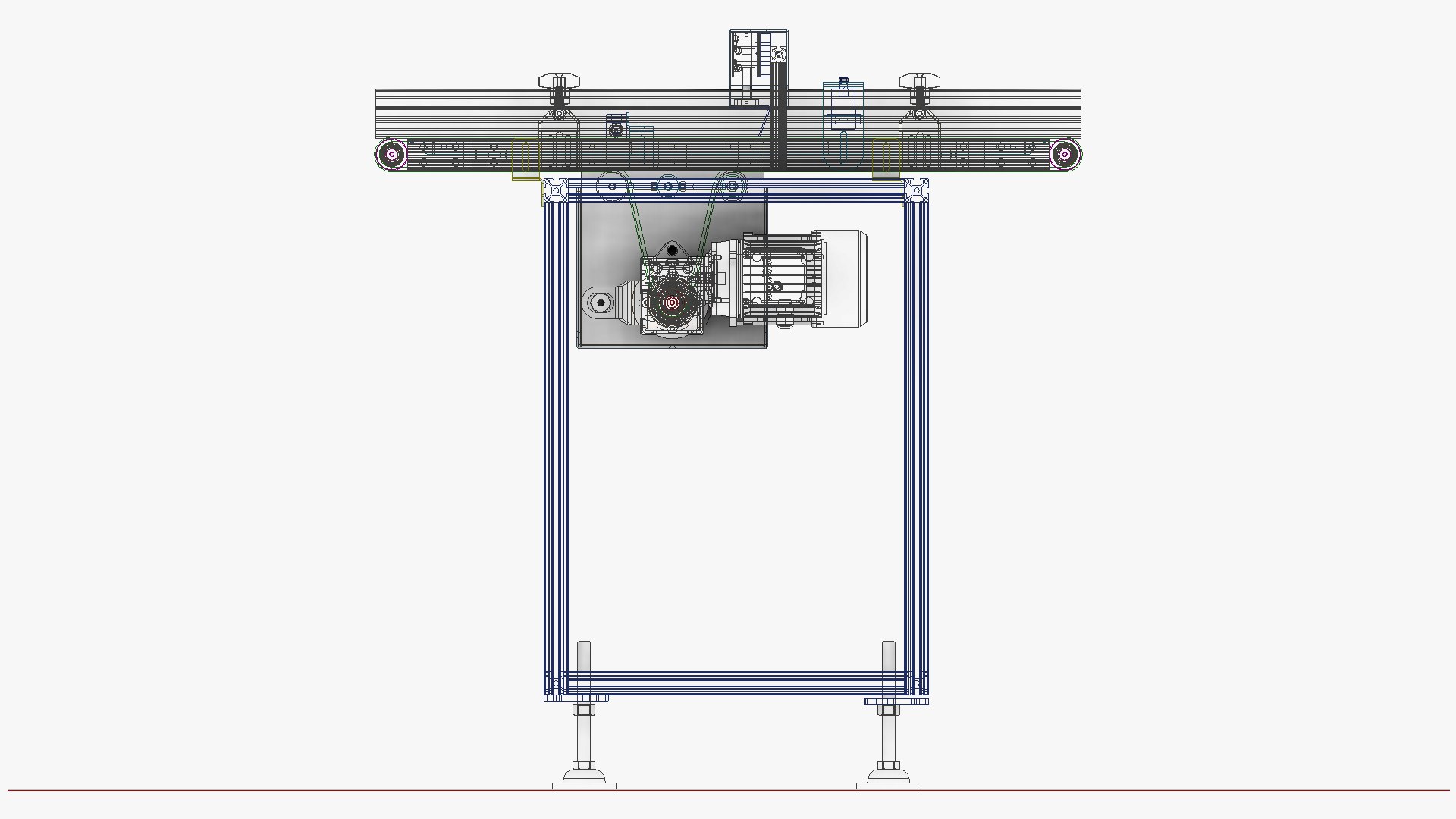

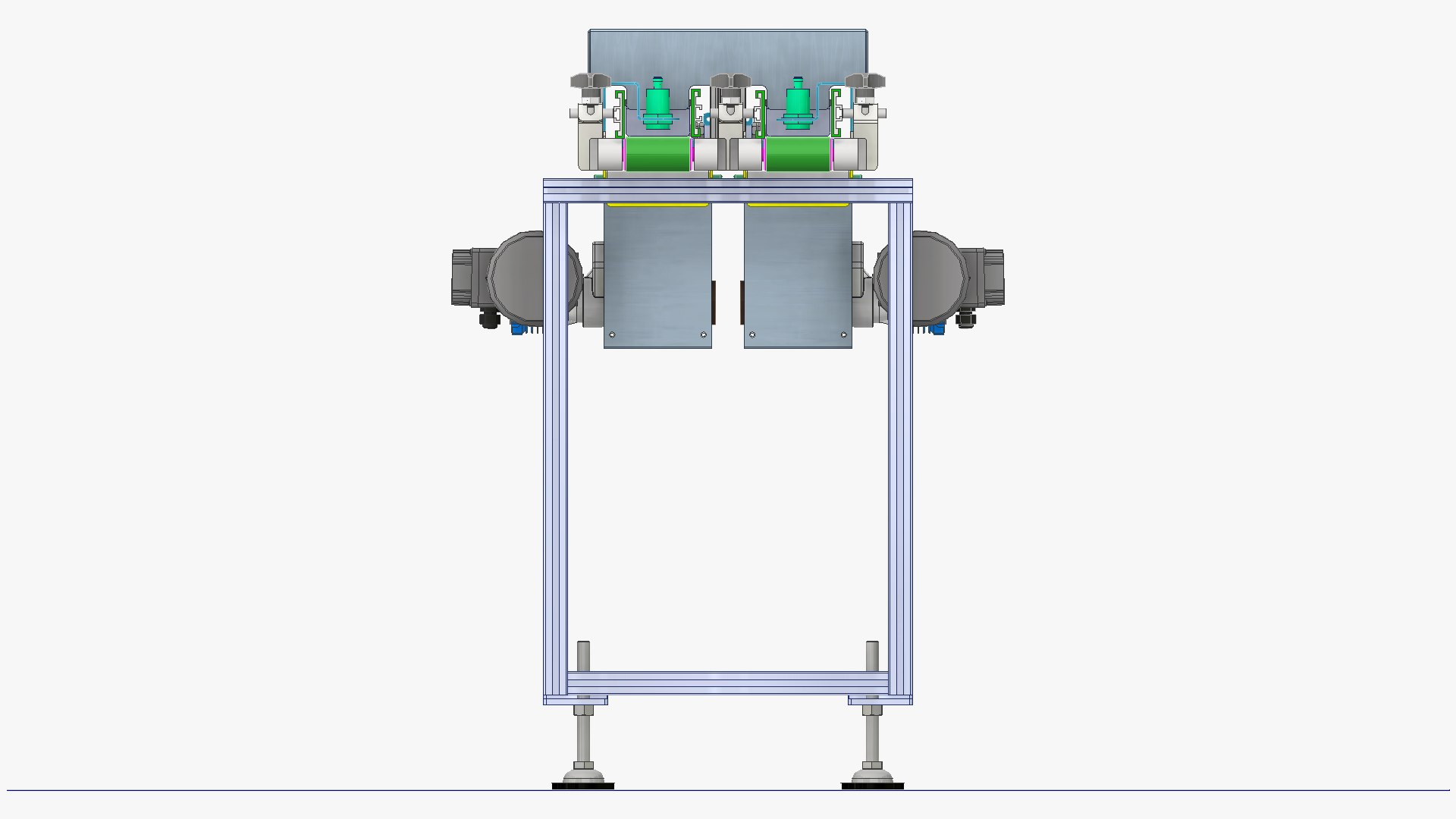

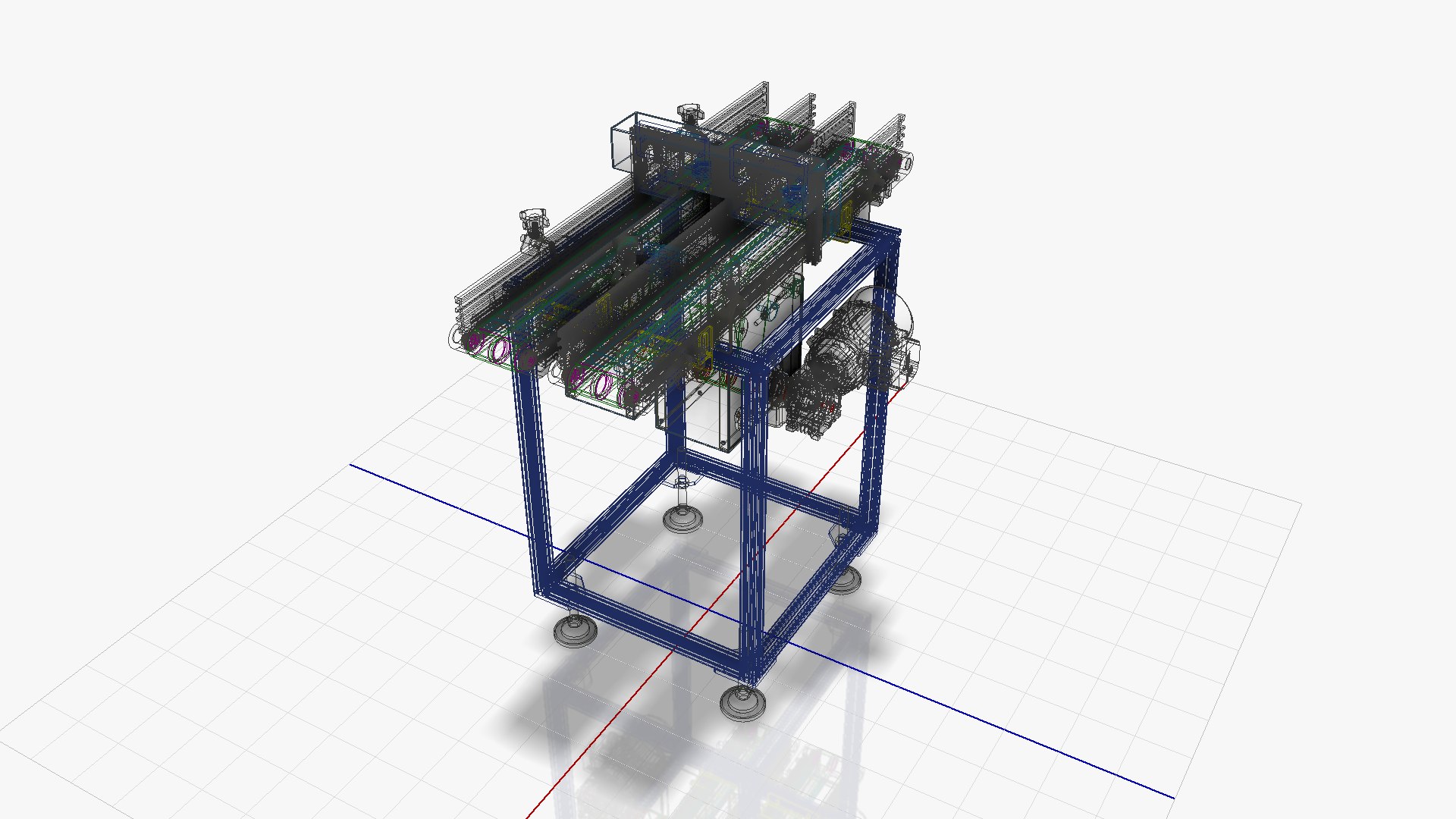

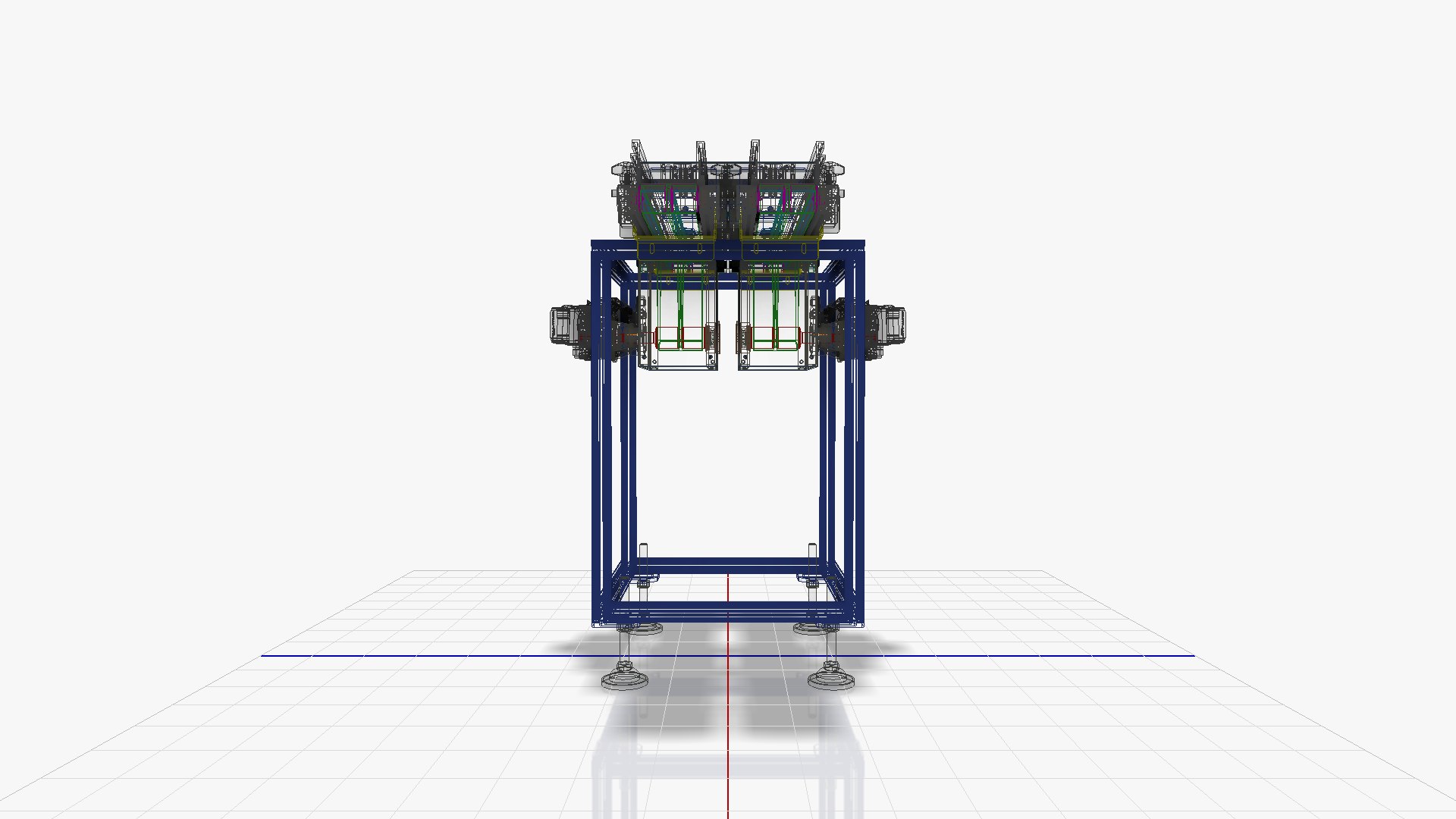

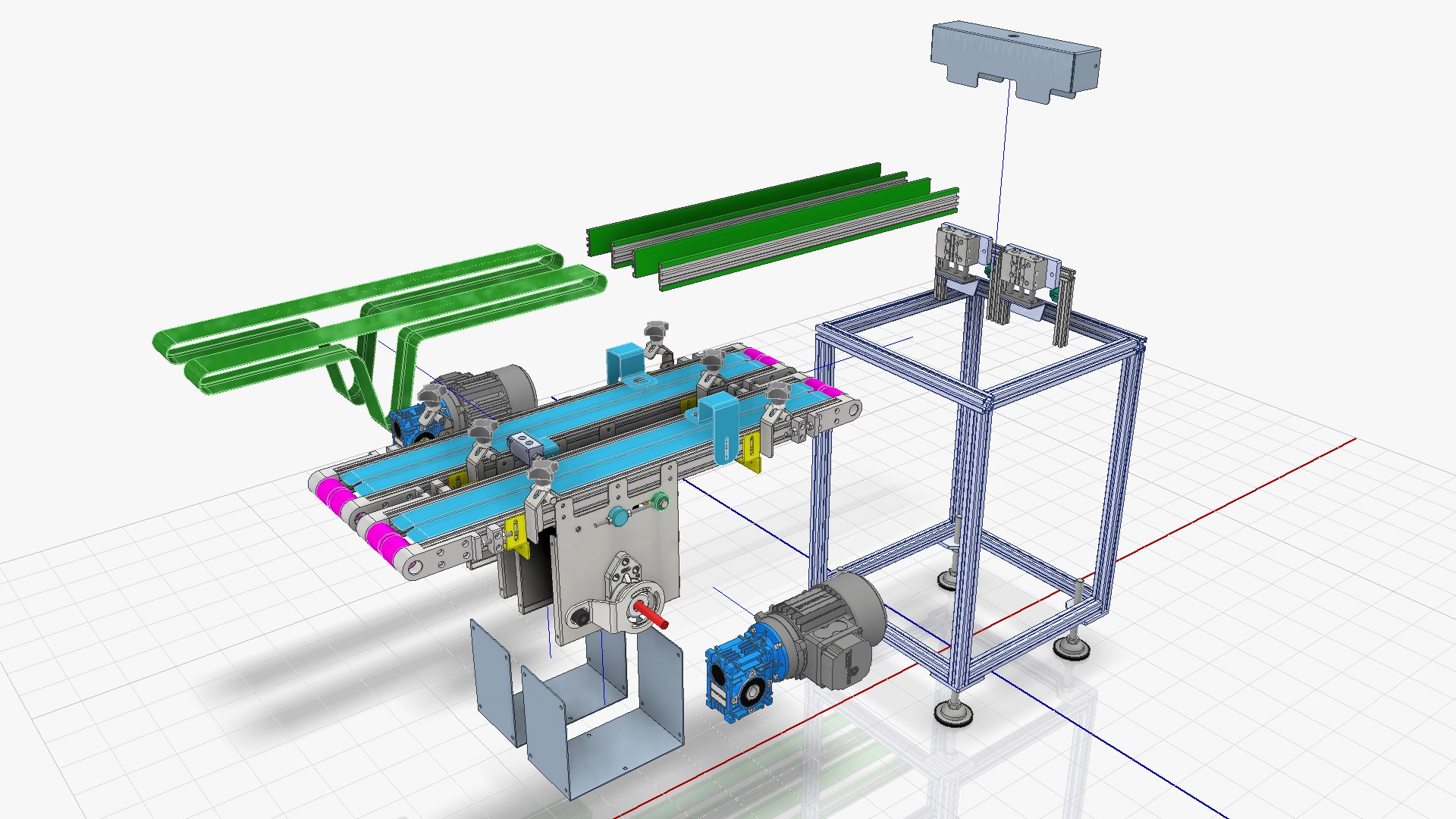

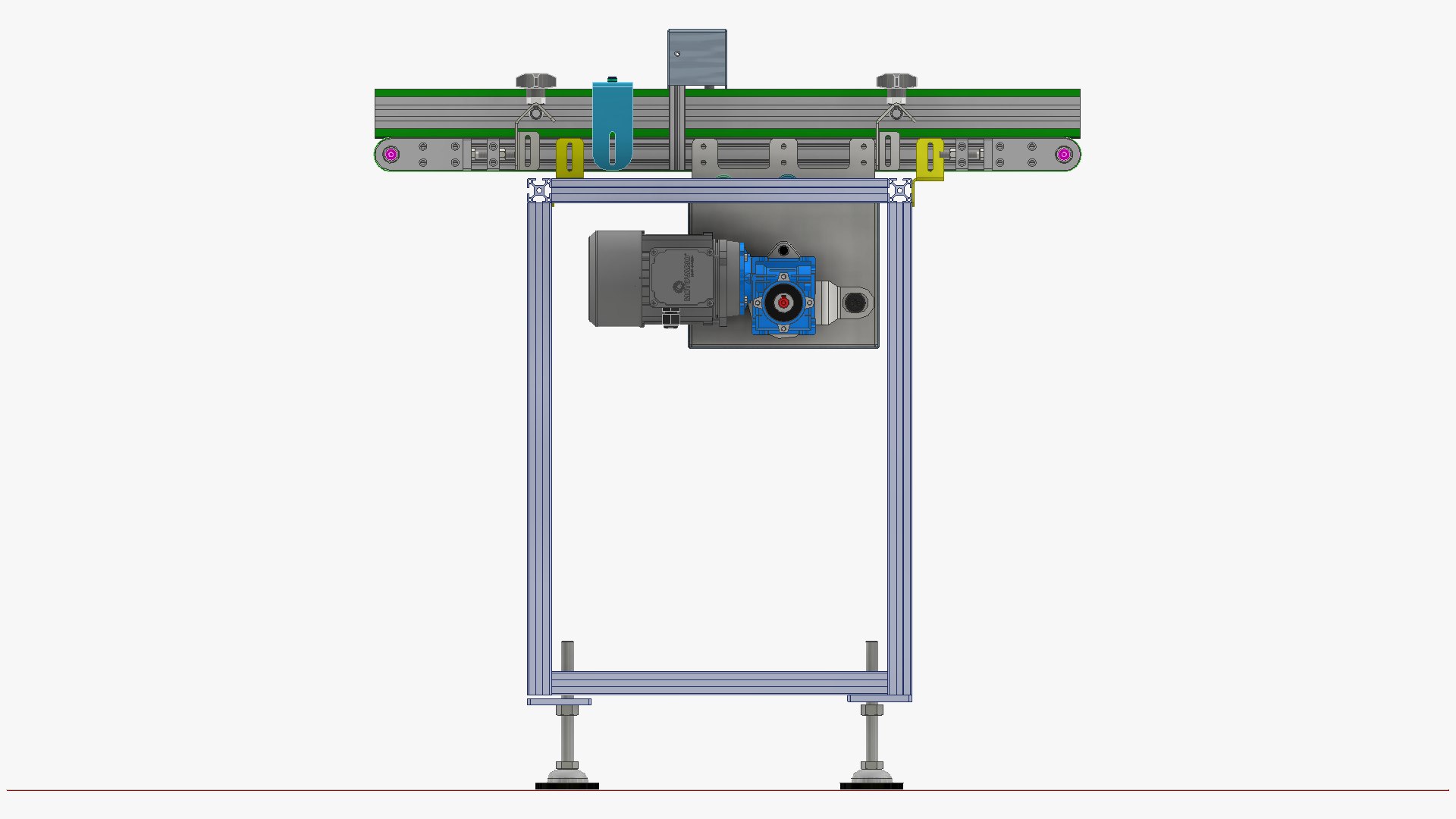

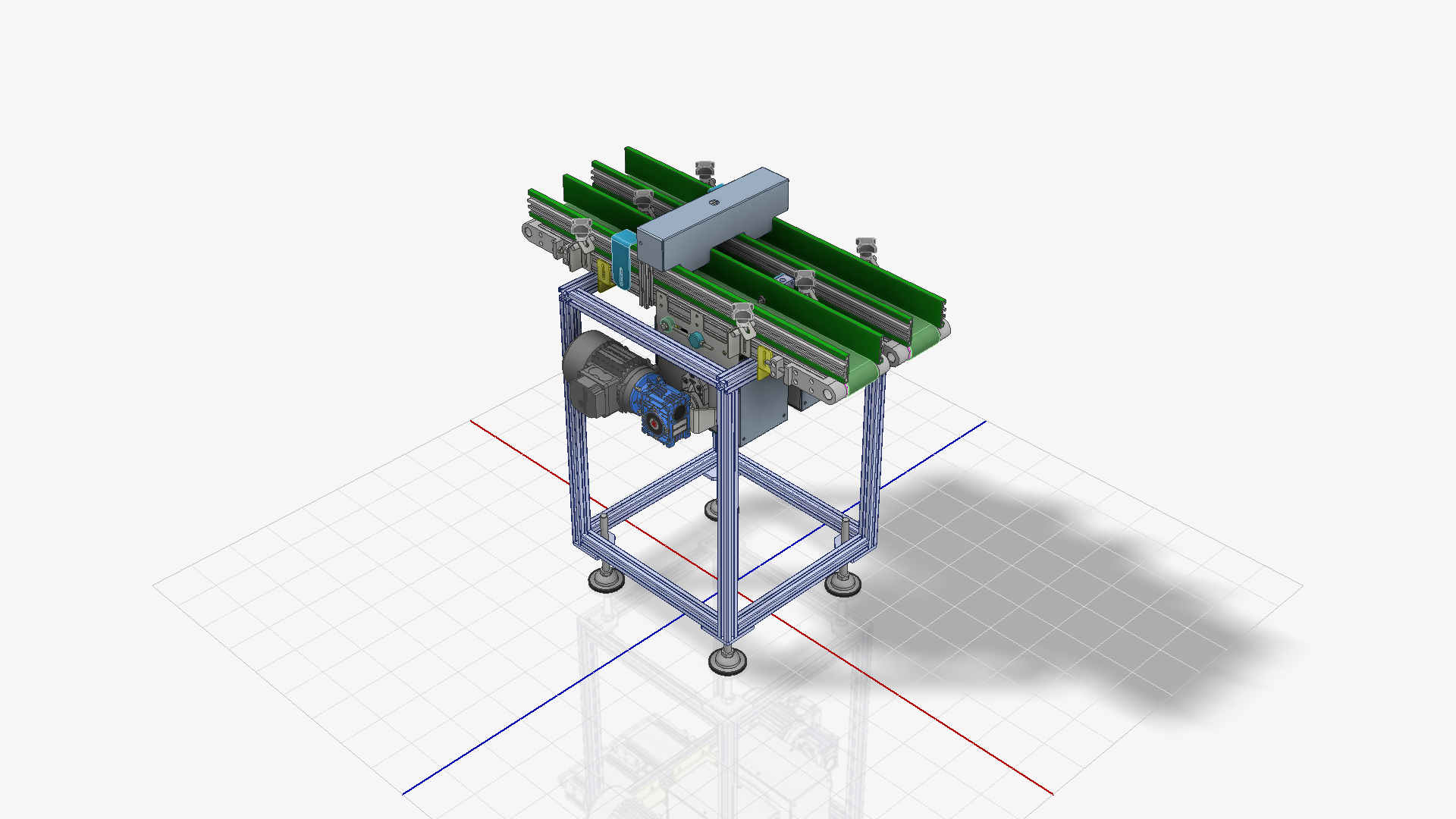

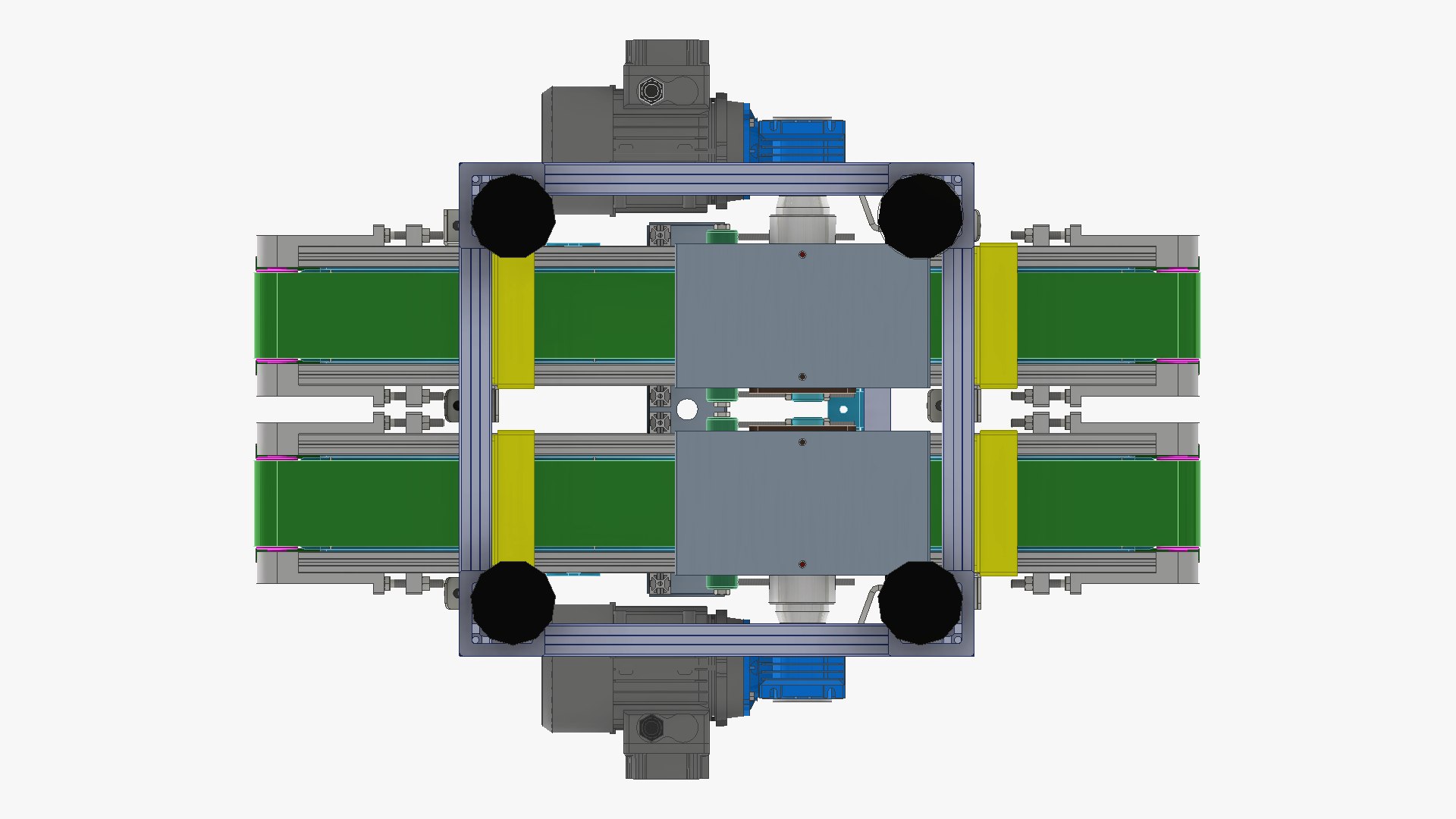

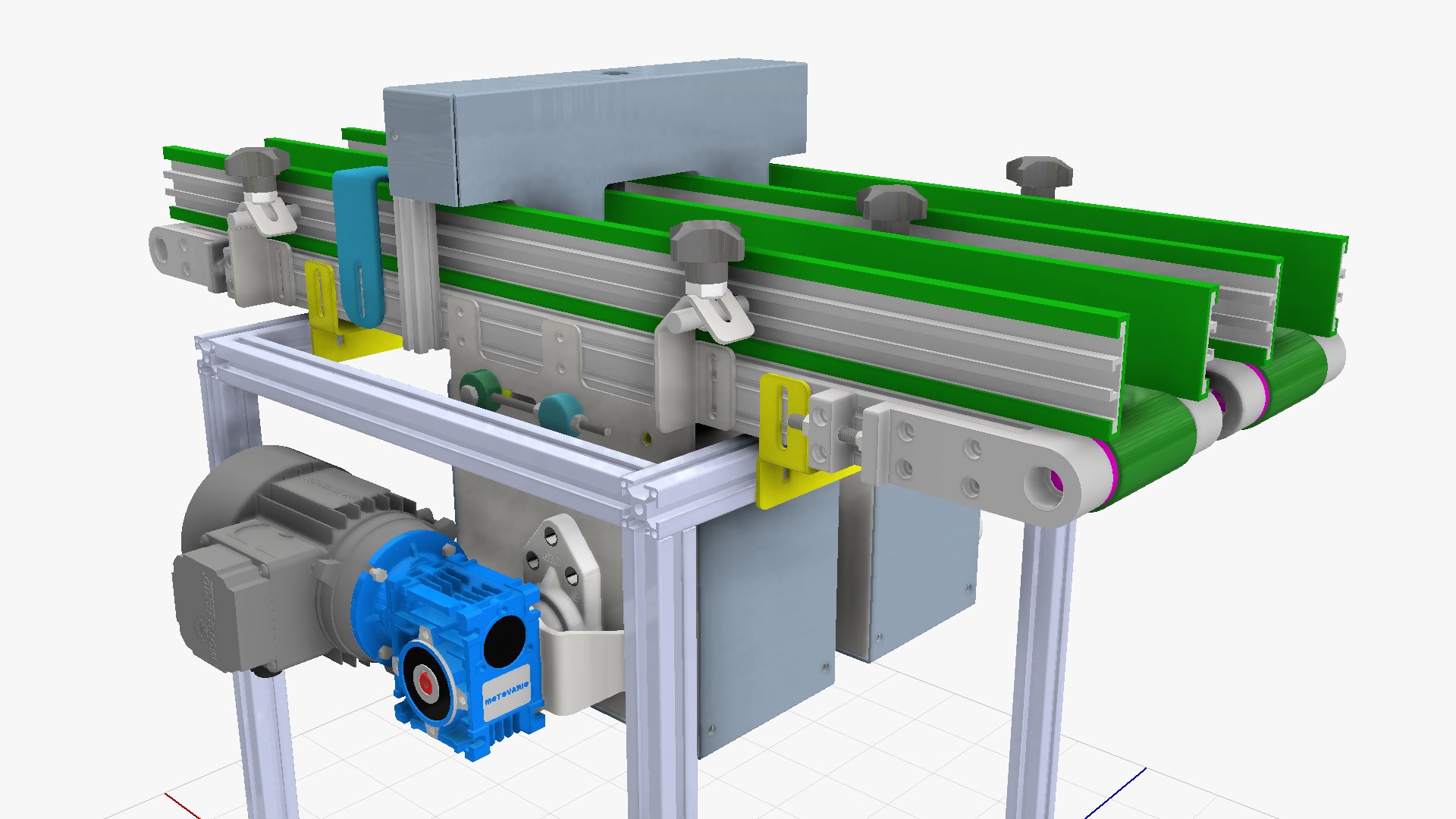

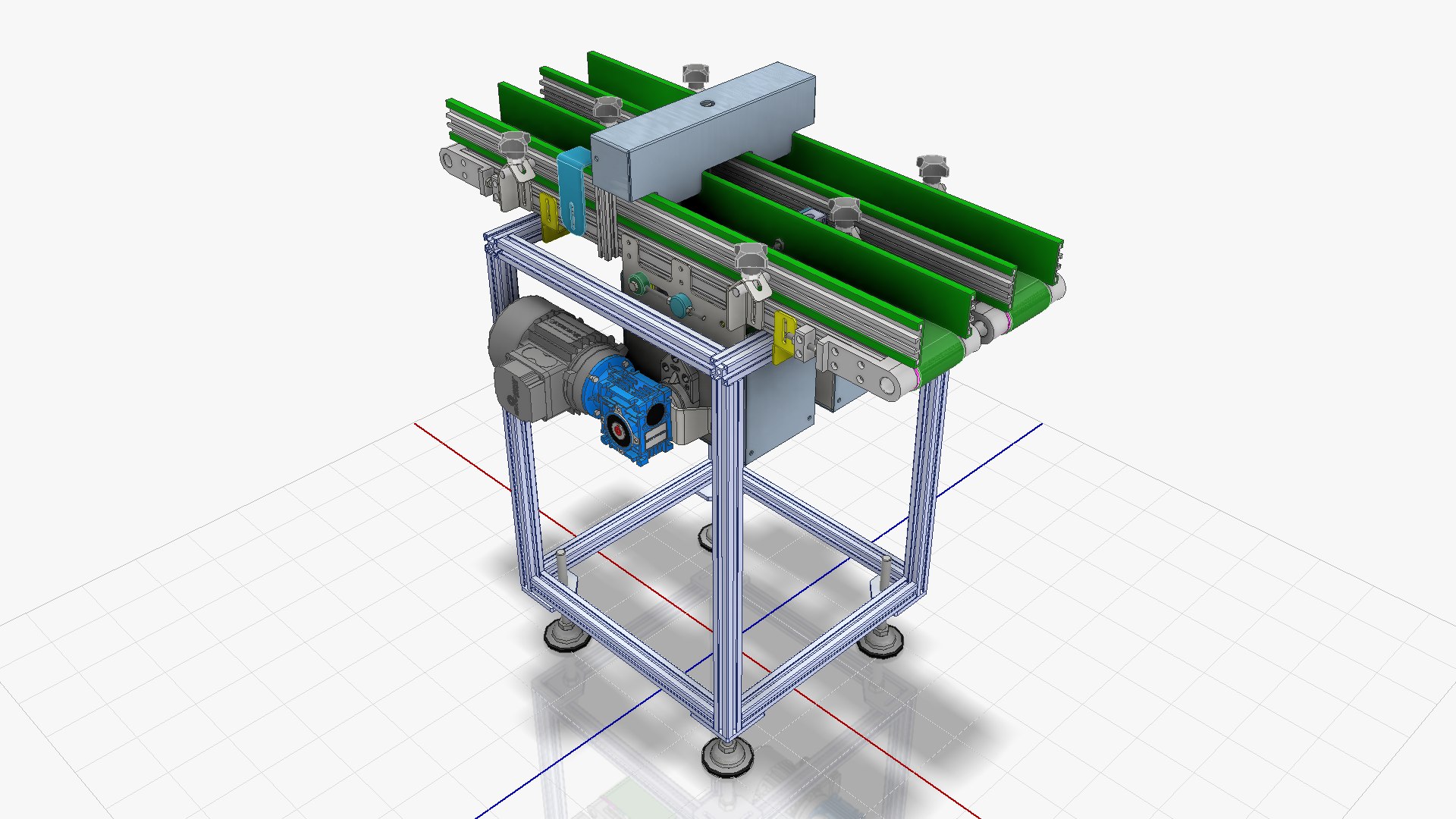

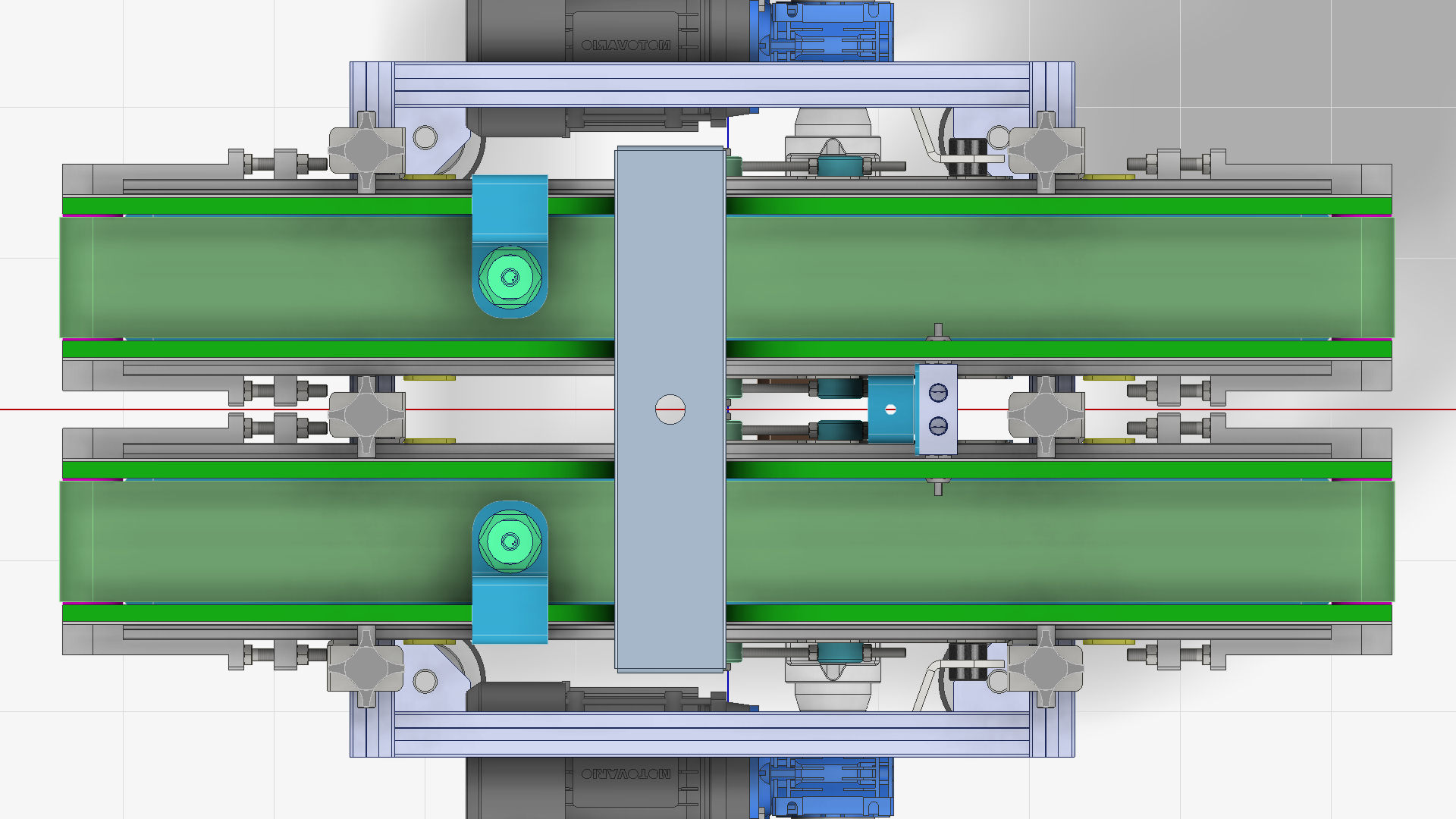

Aluminum Conveyor

(We use the program inventor 2021 to do)

and we have file Pack n go Full drawing customer

can make part for Manufacturing Process

File formats:

- Inventor All File and Pack and go file Inventor

- Inventor ( iam = Assembly file)

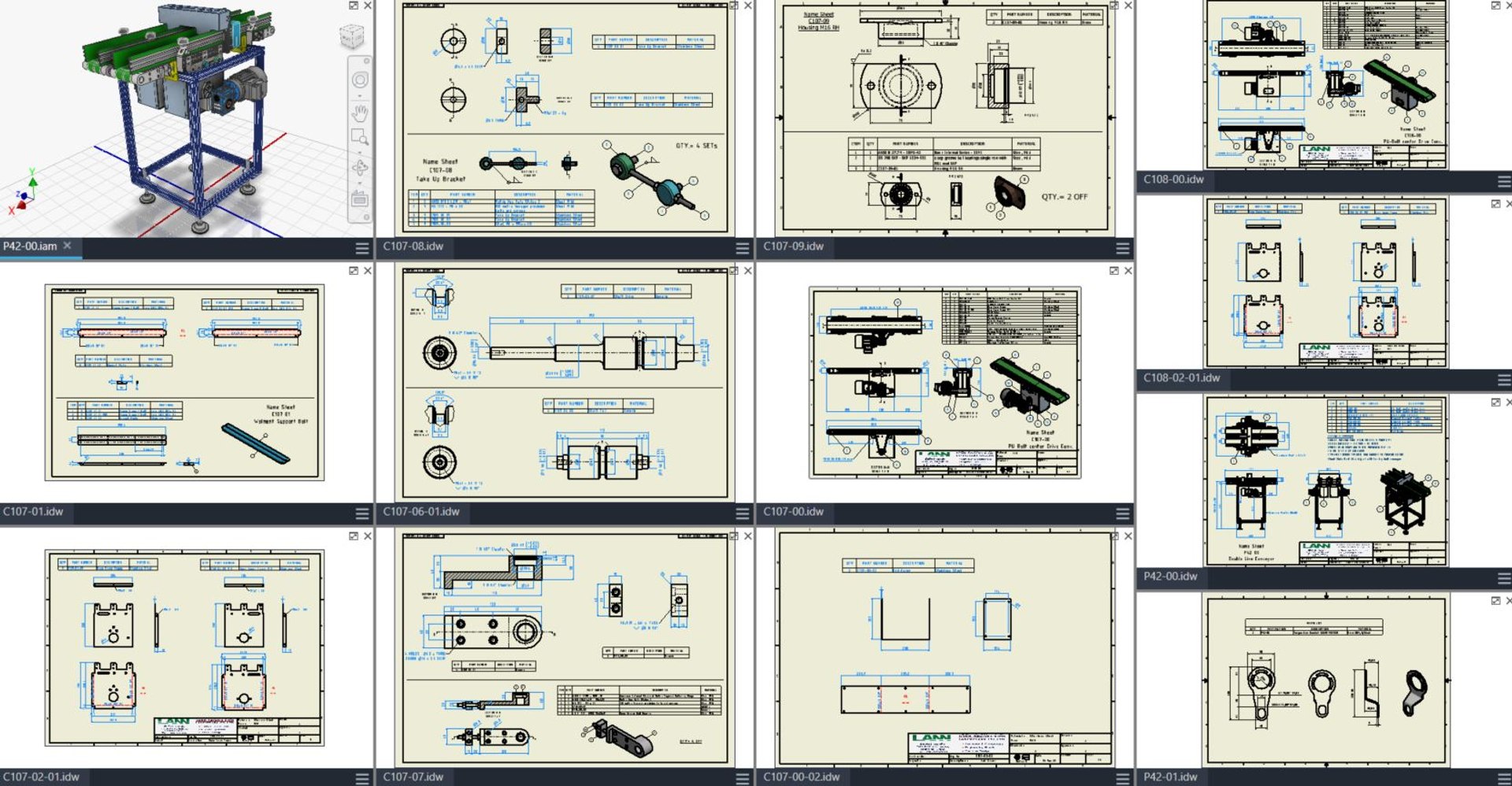

- Inventor ( idw = Drawing file)

- Inventor ( ipt = Part file)

- Inventor ( ipn = UV file)

Export File Other.

- 3D model file ( STL , OBJ - file )

- Solid model 3D (STEP , X_T )

- PDF file for review drawing (PDF)

- DWG file & PDF file for manufacuring all process

Description Conveyor

1.Design Material Food Grade SUS304 & Plastic PE

2.Speed conveyor = 560 rpm = 80 m/min

3.Motor drive Shaft dia 14 mm. Motovario 0.37 kW./ 6 Nm. SF2.1 / 2P 230/400V
4.PVC-Belt Green THK.2mm. Add support K6 Position center
5.Foot Plate Part Stud Adjust 50mm. for top belt conveyor

If you have questions, you can ask.

• Thanks for interesting
