Description
VO-XMvKas 4x2,5+as2,5 mm2

Light installation cable

Application:
· Light duty fixed installations (450/750V)
· Domestic applications, especially for single connections of lighting points outside the domestic premises (for instance sheds) or outdoor lighting points
· For direct burial

Properties regarding fire performance:
Self-extinguishing in accordance with NEN-EN-IEC 60332-1

General properties:
· Small overall diameter
· Small bending radius
· Low weight

Remarks:
· Use VULTO mb or HULTO mbzh for heavy duty and in 0,6/1 kV installations

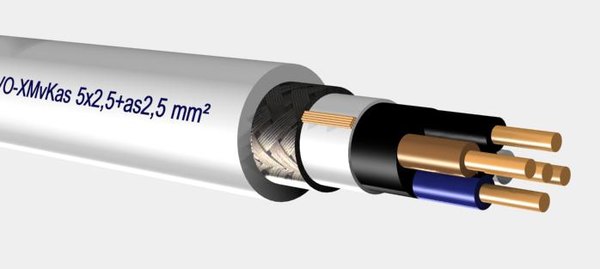

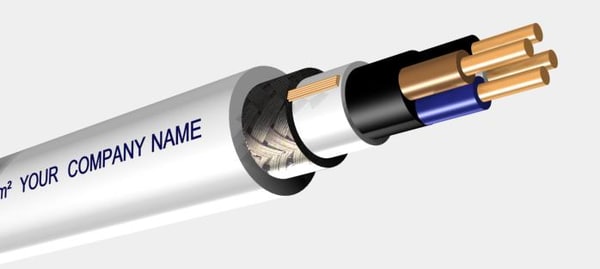

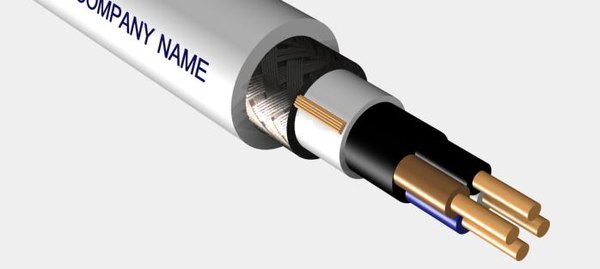

Construction:
Conductor: plain annealed copper, round (class 1)
Insulation: cross-linked polyethylene (XLPE)
Assembly: cores cabled together, filled to make a round shape
Inner sheath: polyvinyl chloride (PVC)
Braiding: galvanized steel wires, with a flexible earth wire of plain copper wires underneath
Outer sheath: polyvinyl chloride (PVC)

Electrical data:
Voltage rating: 450/750 V
Test voltage: 2,5 kV

Core colours:
2 cores: brown, blue
3 cores: brown, black, blue (variant)
4 cores: brown, black, grey, blue
5 cores: brown, black, grey, black, blue

Standards/References:
KEMA 42C-07
NEN-EN-IEC 60332-1

Additional information:
Minimum installation temperature: 0 °C
Maximum conductor temperature: +90 °C
       (temporarily overload permissible until +130 °C)
Operation temperature: min. -40 °C, max. +80 °C
Outer sheath: grey
