M4A1 SOPMOD Carbine

Royalty Free License
- All Extended Uses
Included Formats
3D Studio
AutoCAD drawing

Don't see the file format you need?

Free File Format Conversion

Complete Confidence

Have questions? Chat with us now.

Live Chat Now 24/7
3D Model Specifications
Product ID:401857
UV Mapped:Unknown
Unwrapped UVs:Unknown
TurboSquid Member Since October 2005
Currently sells 50 products
Product Rating
2 Ratings Submitted
Budman Extreme
Aug 2, 2010
Apr 23, 2015

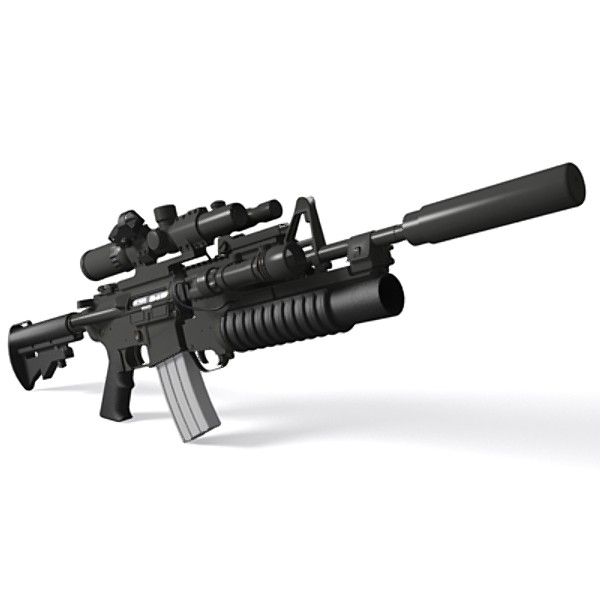

The M4 is a carbine version of the basic M16 assault rifle in use by the US military. The weapon is equipped with a shorter barrel and a telescoping, four position buttstock. The modifications allow for a more manoeuvrable weapon, being lighter and shorter than the basic M16. The US SOCOM (Special Operations Command) modified the M4 into the M4A1 configuration, consisting of a flat top receiver with integral accessory rail instead of a permanently attached carrying handle. The trigger unit is also modified to allow for full automatic fire rather than three round bursts. The SOPMOD (Special Operations Peculiar Modification) kit in use on this 3D model consists of the M4A1 carbine equipped with the RIS (Rail Interface System) instead of standard handguards. This allows the attachment of various accessories such as laser pointers, various optical sights, tactical lights, forward handgrips or the M203 grenade launcher as shown here.

The M4A1 SOPMOD is an ideal special operations weapon, being handy, powerful and easily modifiable. However the weapon is not without flaws. The short 370mm barrel limits the muzzle velocity of the 5.56mm bullet, decreasing effective range and reducing the chance of bullet fragmentation (the primary method of incapacitating targets with the 5.56mm NATO round). The barrel and forend tend to overheat if fired too rapidly. The shortened gas system causes a higher rate of fire than the M16, with greater stress on moving parts.

This M4 is equipped with a variety of accessories common to special force’s weapons. The M203A1 grenade launcher is a shortened variant intended for use with the M4. It has a shortened 9 inch barrel and a quick-detach mount. The rifle is fitted with a sound suppressor and a variety of optics equipment. A visible laser pointer is mounted on the scope, a tactical light is attached to the right hand side of the forearm, and an AN/PEQ-2A infrared designator is mounted on the opposite side. The scope is a Schmidt & Bender Short Dot in a Larue cantilever mount. The Short Dot provides a flexible combat optic with magnification from 1.1X to 4X with an illuminated reticule. A Docter backup mini red dot sight is mounted at an angle in case of scope failure. Folding iron sights are also provided.

The M4A1 is equipped with a 30 round magazine and has a rate of fire between 700 and 950 rounds per minute. The maximum effective range is about 360 metres. The M203 grenade fires a variety of 40mm grenades to range of 150 metres against point targets, and 350 metres against area targets.
