J-2 Rocket Engine

Editorial Uses Only
The intellectual property depicted in this model is not affiliated with or endorsed by the original rights holders and must be used under editorial use restrictions.
Included Formats
Lightwave 9.6 Default Scanline 9.6
OBJ
Autodesk FBX
Collada

Don't see the file format you need?

Free File Format Conversion

Have questions? Chat with us now.

Live Chat Now 24/7
3D Model Specifications
Product ID:462527
Published:
Geometry:Polygonal Quads/Tris
Polygons:45,990
Vertices:45,023
Textures:Yes
Materials:Yes
Rigged:No
Animated:Yes
UV Mapped:No
Unwrapped UVs:No
Artist
TurboSquid Member Since November 2008
Currently sells 20 products
Achievements:
Unrated
Product Rating
Description

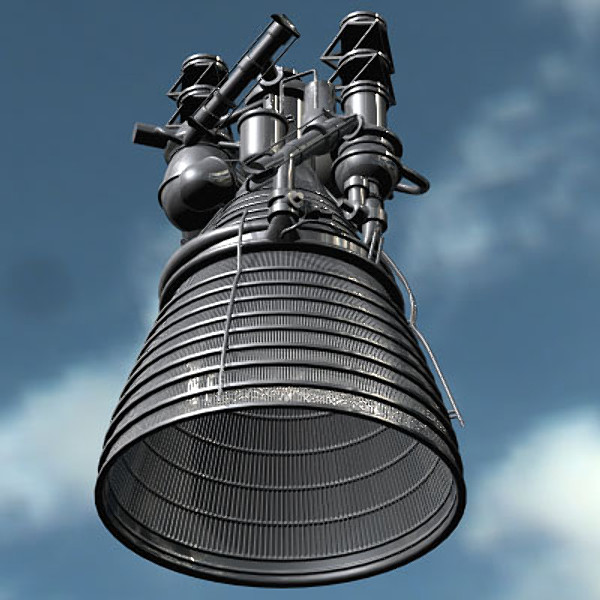

This is a High Definition 3D model of the J-2 engine used on the Saturn V second (S-II) and third (S-IVB) stages to launch man into earth orbit and onward to the moon.

Modelled with precision using blueprints, schematic diagrams and extensive photographic research.

Manufactured by the Rocketdyne division of North American Aviation, the J-2 is an upper stage engine producing 225,000 pounds of thrust, via the biopropellant mixture of liquid hydrogen (LH2) and liquid oxygen (LOX). The engine can be restarted in flight as was the case when after achieving earth orbit it was ignited a second time to propel the Apollo spacecraft toward the moon. Stabilising scissor ducts are used to support the fuel inlet bellows as they bend and rotate during engine gimbaling.

The J-2 could also serve as a general purpose engine for 3D modellers interested in designing more futuristic or fantasy spacecraft.

The Lightwave version of this model has morph targets for gimbaling the engine. Please download the attached video preview file to see this in action. For customers using other 3D applications, they can download the free LightWave Discovery version to view the Lightwave morph setup and apply it to their preferred 3D package using the FBX, OBJ or DAE morph target files included.

Created with Lightwave 9.6

USAGE
Suitable for HD video, high-res film close-ups and print
Accurate representation of J-2 engine using original imperial scale of feet and inches.

SPECS
Model contains the following:

1 object layer
45990 polygons
38344 quads, 7646 tris, and 0 ngons
Standard Lightwave materials & texture maps

PRESENTATION IMAGES
HDRI skydome used in preview images NOT included in file.
No Photoshop or compositing used for previews.

ZIP file includes Scene with default light & camera used for Signature image along with secondary Scene containing example gimbal animation using morph targets (HDRI skydome not included).
Preview Images rendered with default Lightwave 9.6 scanline renderer.

TEXTURES
2 bump maps (png format) depict inner and outer engine bell surface corrugation details.

GENERAL
Model built to real-world scale
Units used: Feet and Inches.

ANIMATIONS
Example morph targets for full engine gimballing are pre-set in Layout file (also see animation preview video files)
