Loft problems
Posted 01-Dec-2007 4:54 AM

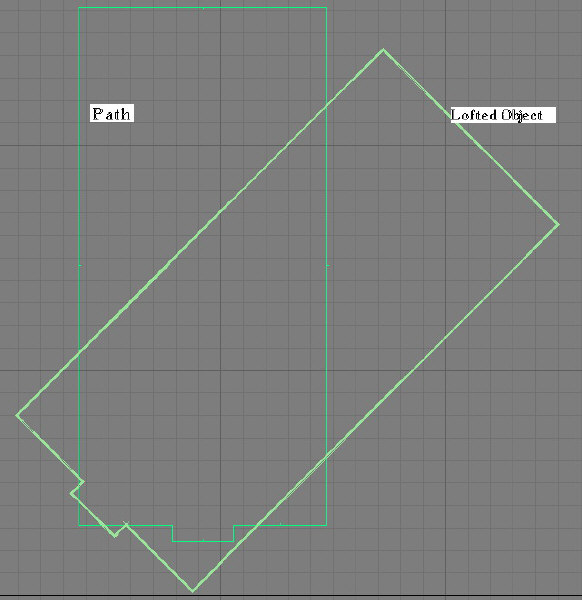

Always loft gives me trouble. i don't know how to work with loft. when take a path and a shape, resulted lofted object is not in aligned with the path. and sometimes shape also get reversed. what is the reason. how to do that? plz help me for that? I am starting this thread seperatly because i have asked about AEC walls in that thread so i don't want to divert the topic with a new Question. this is the lofted result:
vikkram
Advanced Poster
138 Posts
RE: Loft problems
Posted 01-Dec-2007 5:09 AM
Modified by vikkram On 01-Dec-2007  5:19 AM

difference between lofted shape and extruded shape. why the corners are highlighted for the lofted shape? and why it is not clear as the extruded shape? Even after material application for the lofted object, those highlights are not gone.
bhnh
Advanced Poster
801 Posts
28 Products
RE: Loft problems
Posted 01-Dec-2007 8:26 AM
Modified by bhnh On 01-Dec-2007  8:29 AM

Regarding the first problem, your Shape has to be reoriented to your Path.  Expand the Loft in the Modifier Stack (click on the "+" sign) and select the Shape sub-object level.  Then rotate/move the Shape until it has the alignment you want.

Regarding the second problem, in the Loft dialogue under the Create or Modify tab, expand the Surface Parameters dialogue and uncheck Smooth Length.

If you're lofting just a single Shape, I suggest you use a Sweep modifier instead of a Loft compound object.  It's less of a headache.

vikkram
Advanced Poster
138 Posts
RE: Loft problems
Posted 01-Dec-2007 9:07 AM

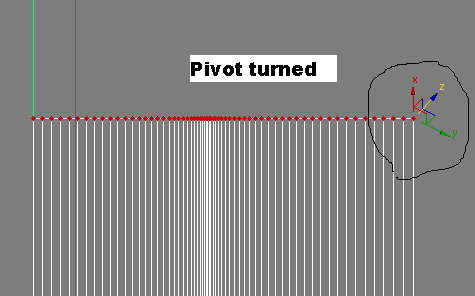

got one more error when i am editing the extruded shape by converting to either editpoly or edit mesh. the pivot is turning in a different way so if i try to drag it change the length along any axis it is going in a strange direction. i can't orient the pivot towards world axis. this pivot only turning when some vertecies are selected not the entire object. entire objects pivot is right in position
bhnh
Advanced Poster
801 Posts
28 Products
RE: Loft problems
Posted 01-Dec-2007 9:42 AM

Looks like you've got your Reference Coordinate System set to "Local".  Go to the Toolbar and reset it to either "View" or "World".
vikkram
Advanced Poster
138 Posts
RE: Loft problems
Posted 01-Dec-2007 9:52 AM
Modified by vikkram On 01-Dec-2007  9:55 AM

ya bhnn. i corrected it. when i go ot object sub-object mode it is going to local otherwise it is set to view mode.lol, a silly point i didn't observe. thanku very much
vikkram
Advanced Poster
138 Posts
RE: Loft problems
Posted 01-Dec-2007 11:04 AM
Modified by vikkram On 01-Dec-2007  1:45 PM

thanks, bhnh. its solved. i think i have to explore loft a lot. i have to spend seperatly some time on it.
