VO-XMvKas 5x2,5+as2,5 mm2
Light installation cable
Application:
· Light duty fixed installations (450/750V)
· Domestic applications, especially for single connections of lighting points outside the domestic premises (for instance sheds) or outdoor lighting points
· For direct burial
Properties regarding fire performance:
Self-extinguishing in accordance with NEN-EN-IEC 60332-1
General properties:
· Small overall diameter
· Small bending radius
· Low weight
Remarks:
· Use VULTO mb or HULTO mbzh for heavy duty and in 0,6/1 kV installations

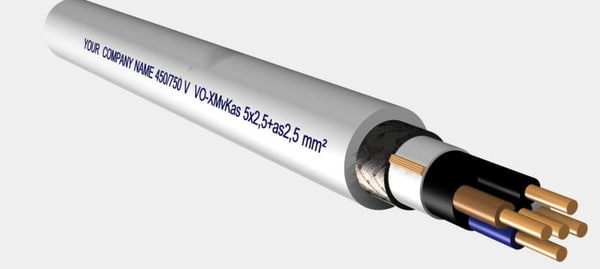

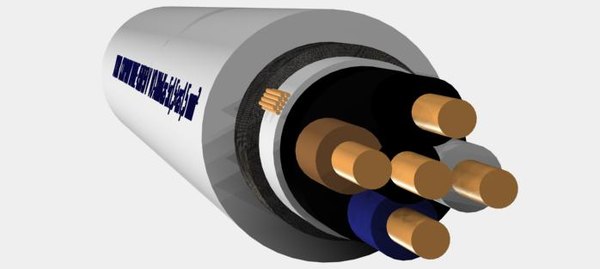

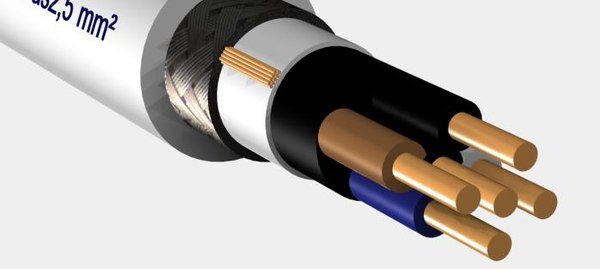

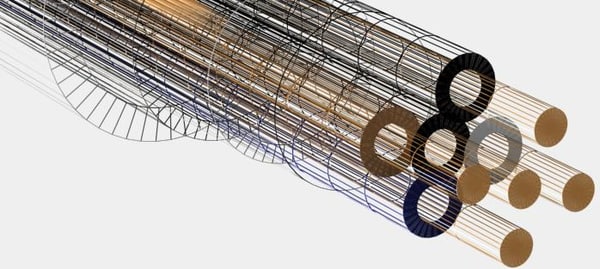

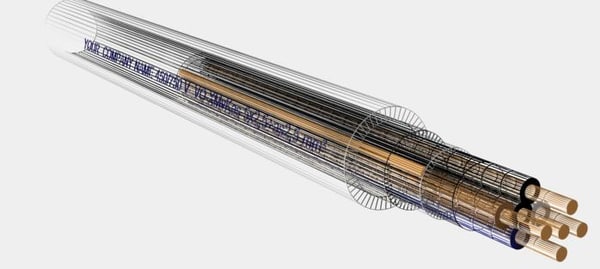

Construction:
Conductor: plain annealed copper, round (class 1)
Insulation: cross-linked polyethylene (XLPE)
Assembly: cores cabled together, filled to make a round shape
Inner sheath: polyvinyl chloride (PVC)
Braiding: galvanized steel wires, with a flexible earth wire of plain copper wires underneath
Outer sheath: polyvinyl chloride (PVC)
Electrical data:
Voltage rating: 450/750 V
Test voltage: 2,5 kV
Core colours:
2 cores: brown, blue
3 cores: brown, black, blue (variant)
4 cores: brown, black, grey, blue
5 cores: brown, black, grey, black, blue
Standards/References:
KEMA 42C-07
NEN-EN-IEC 60332-1
Additional information:
Minimum installation temperature: 0 °C
Maximum conductor temperature: +90 °C
(temporarily overload permissible until +130 °C)
Operation temperature: min. -40 °C, max. +80 °C
Outer sheath: grey
