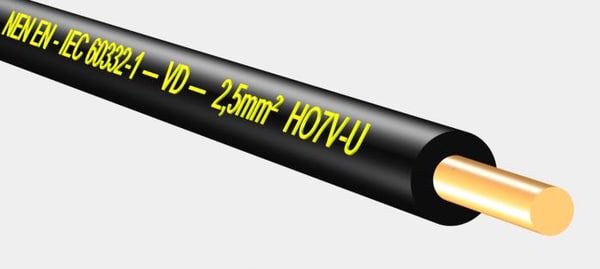

VD HO7V-U 450 750V 2,5 mm2 black
PVC insulated wire
NEN: VD 450/750 V
CLC: H07V-U (solid conductor)
H07V-R (stranded conductor)
IEC: 60227 IEC 01
Application:
· In conduit or trunking systems
· Wiring of switchboards, operating panels, apparatus, etc.
Properties regarding fire performance:
· Self-extinguishing, in accordance with NEN-EN-IEC 60332-1
General properties:
· Easy to install, without damaging the insulation
Remark:
· For a halogen free version of this product see HVD
Construction:
Conductor: solid (class 1) or stranded plain copper (class 2)
Insulation: polyvinyl chloride (PVC)
Electrical data:
Voltage rating: 450/750 V
Test voltage: 2,5 kV
Core colours:
Standard colours: see table
Other colours: can be supplied on request
Standards/References:
HD 21
NEN-EN-IEC 60332-1
Additional information:
Minimum installation temperature: +5 °C
Maximum conductor temperature: +70 °C
Operating temperature: min. -40 °C, max. +50 °C
Approval: KEMA-KEUR
Packaging: coils, drums
