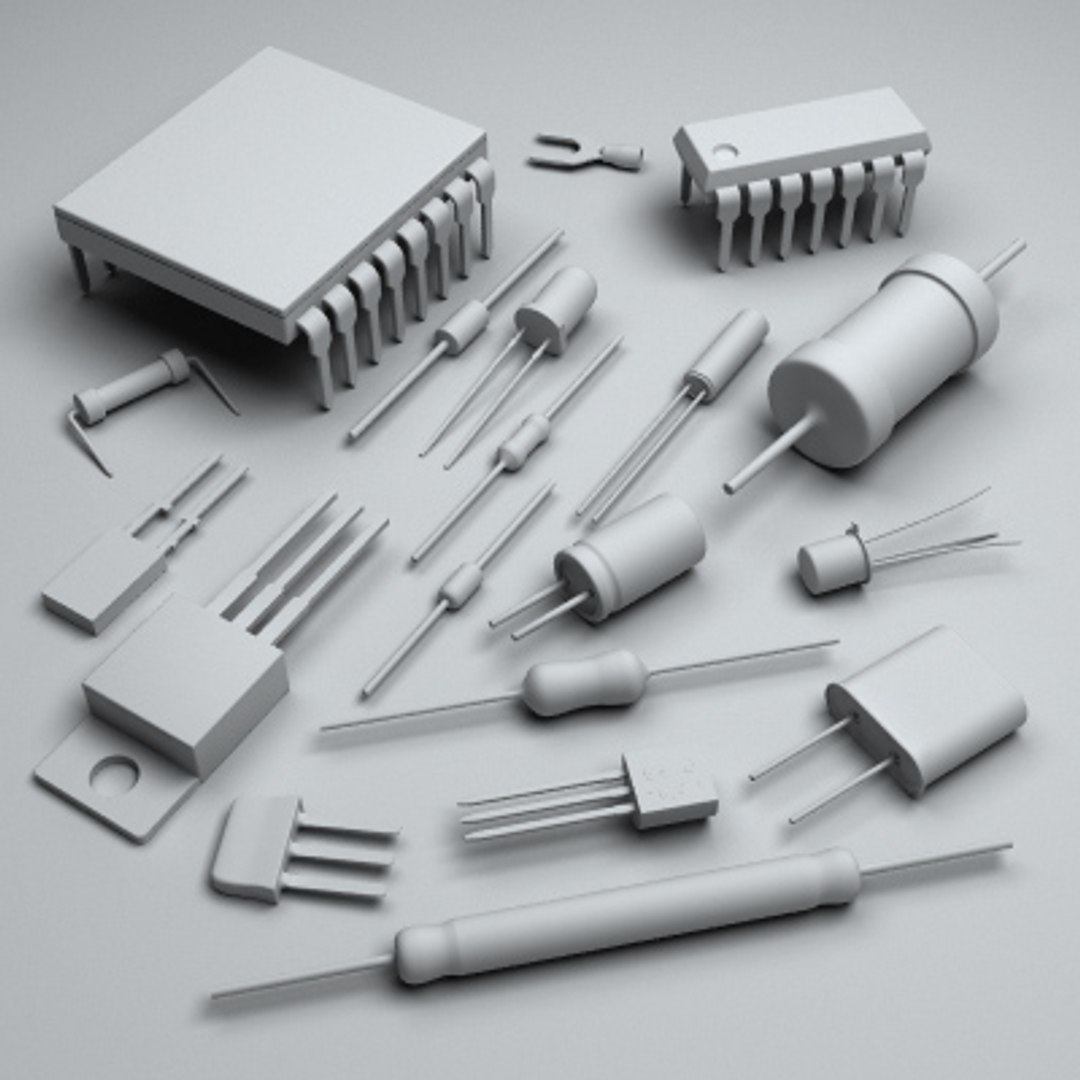

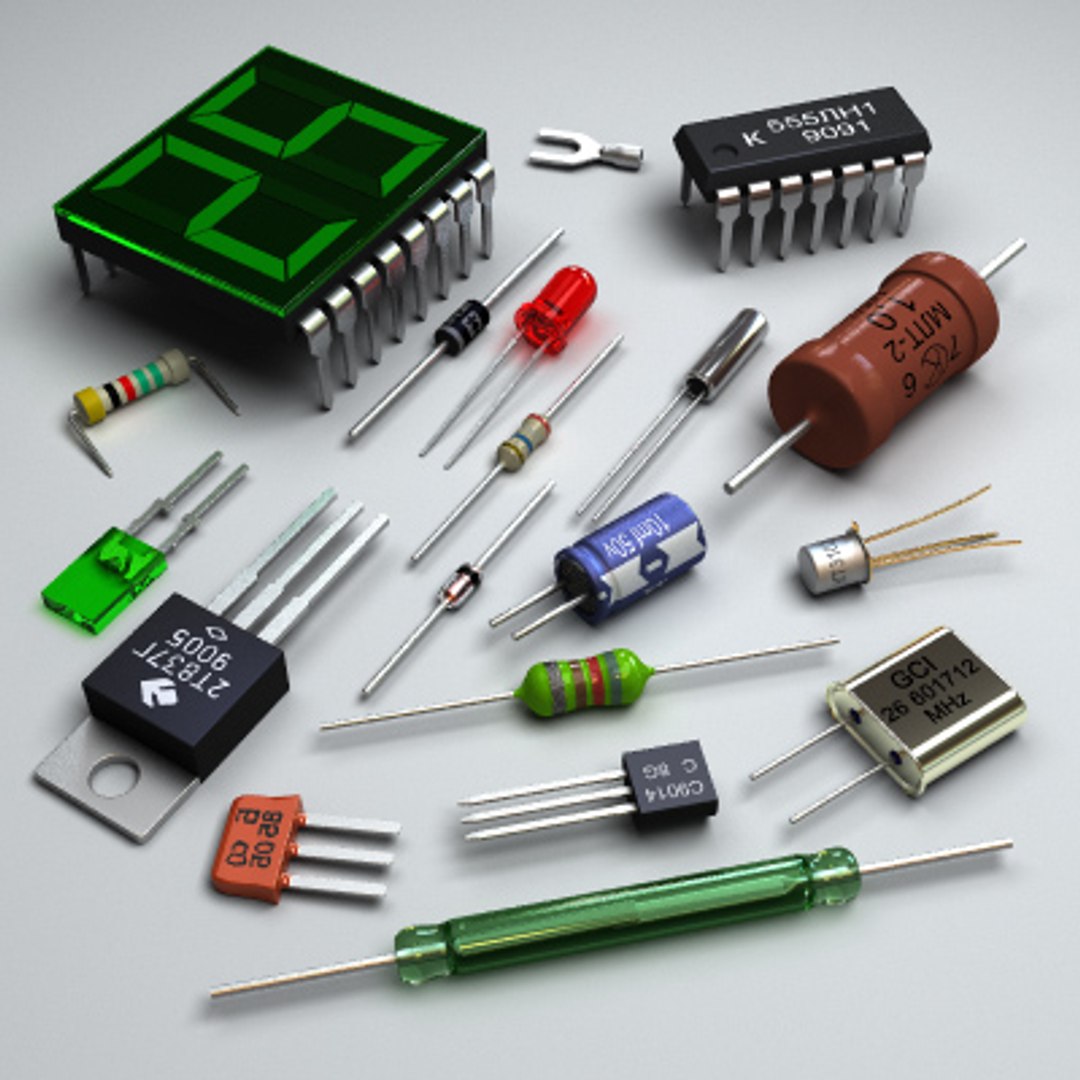

19 precise 3D models of different radio components.
Held to dimensions, with internal details modelled.

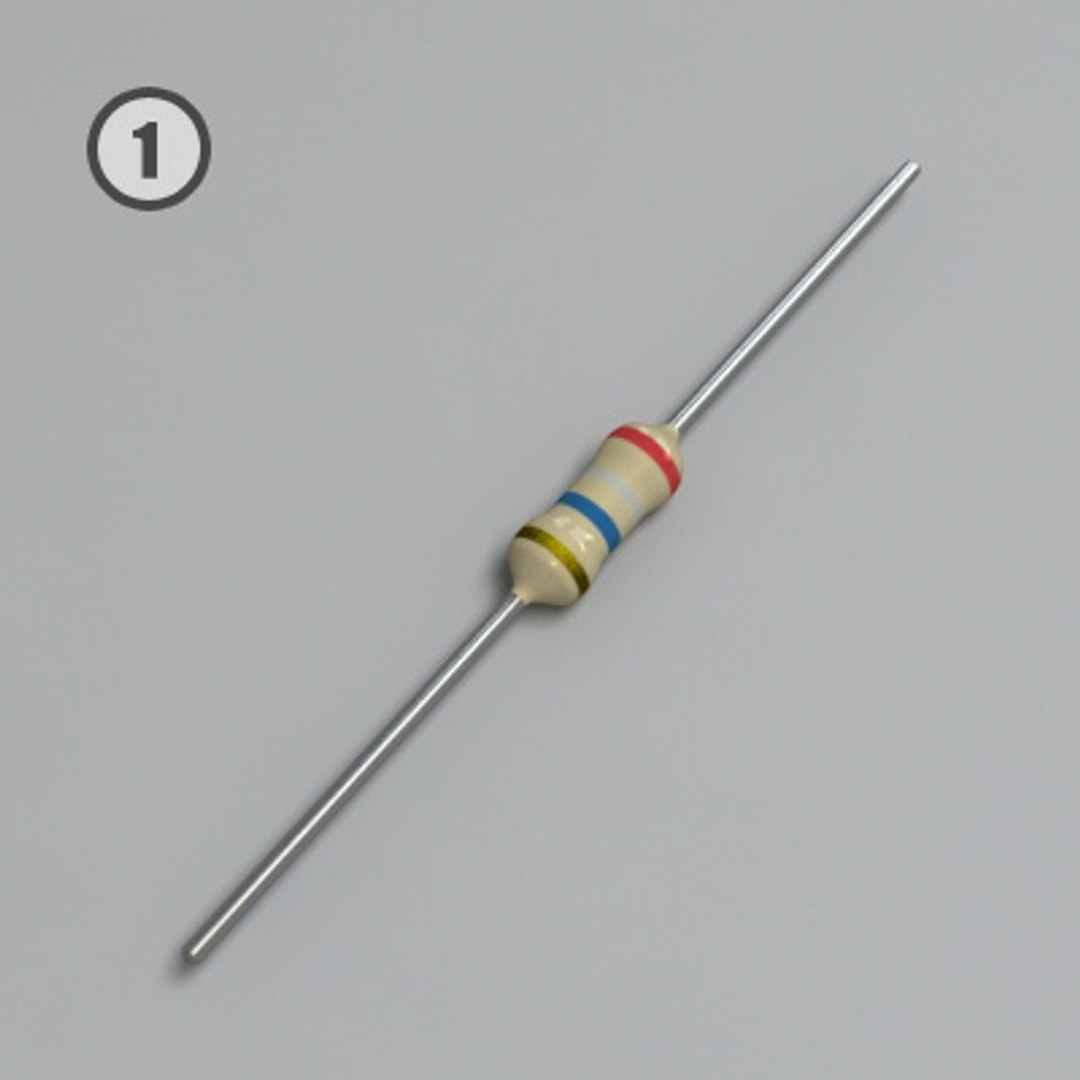

1) Ceramic resistor 0.25W, 28M, 5% *

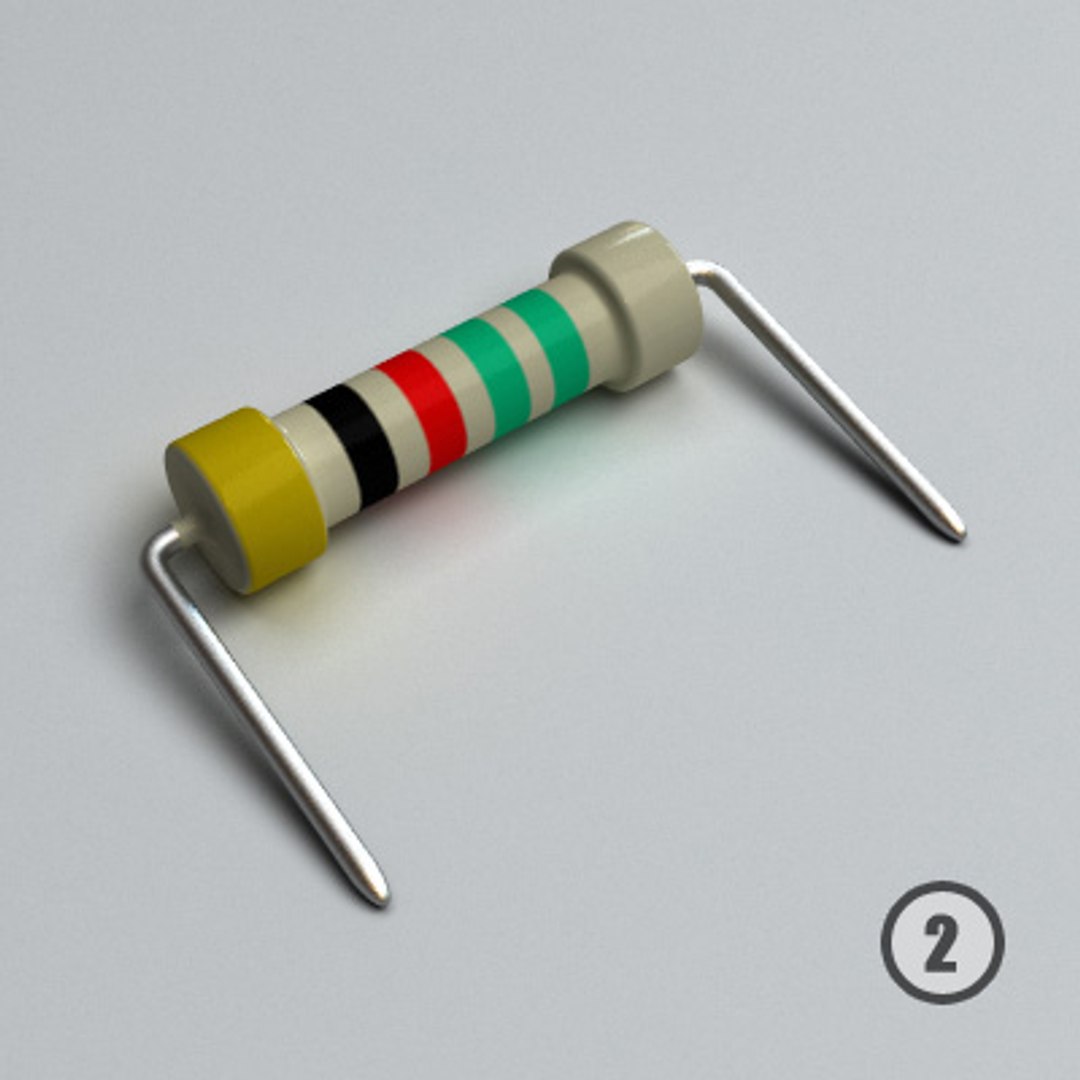

2) Ceramic resistor 1W, 552, 5%

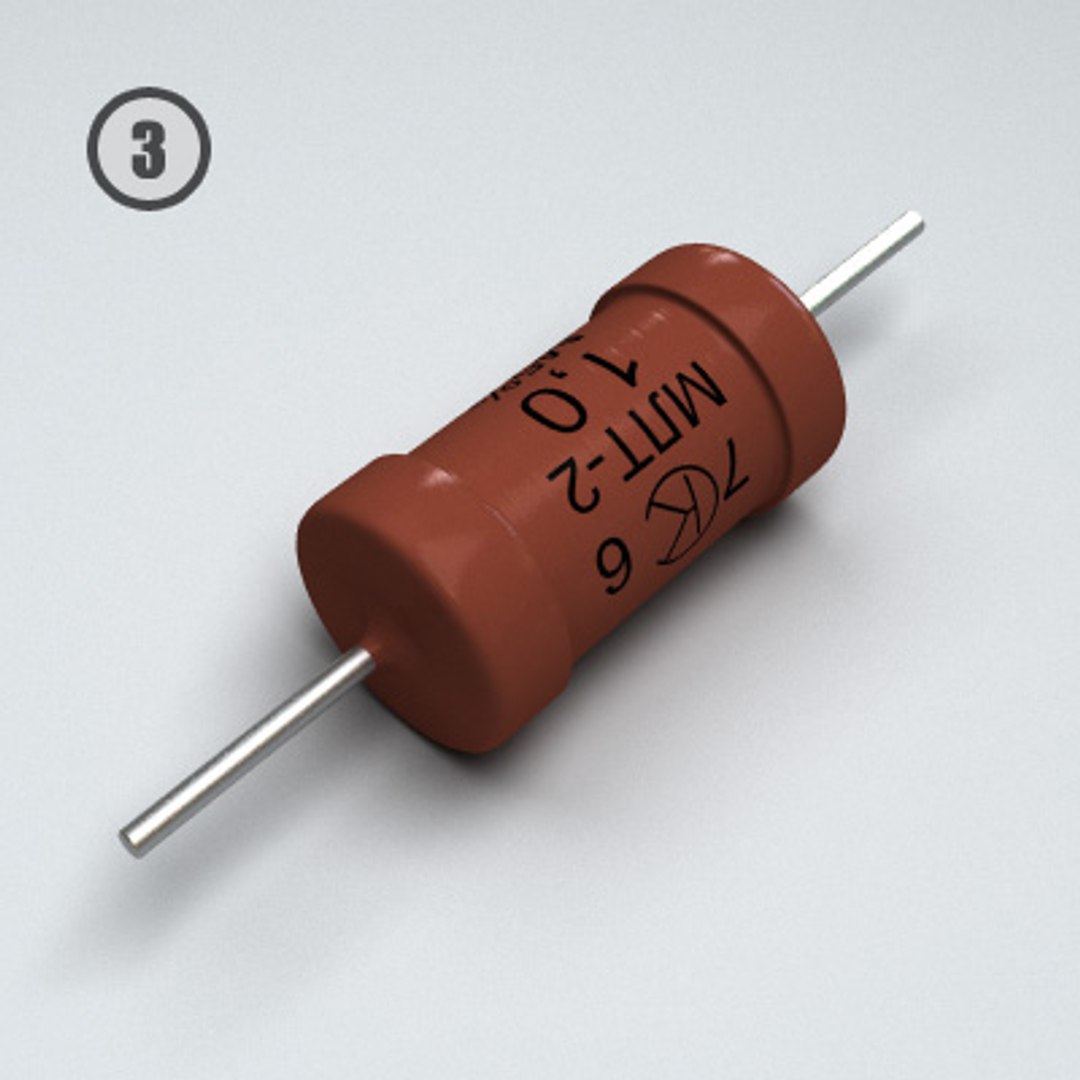

3) Ceramic russian resistor 2W, MLT-2, 1M, 5%

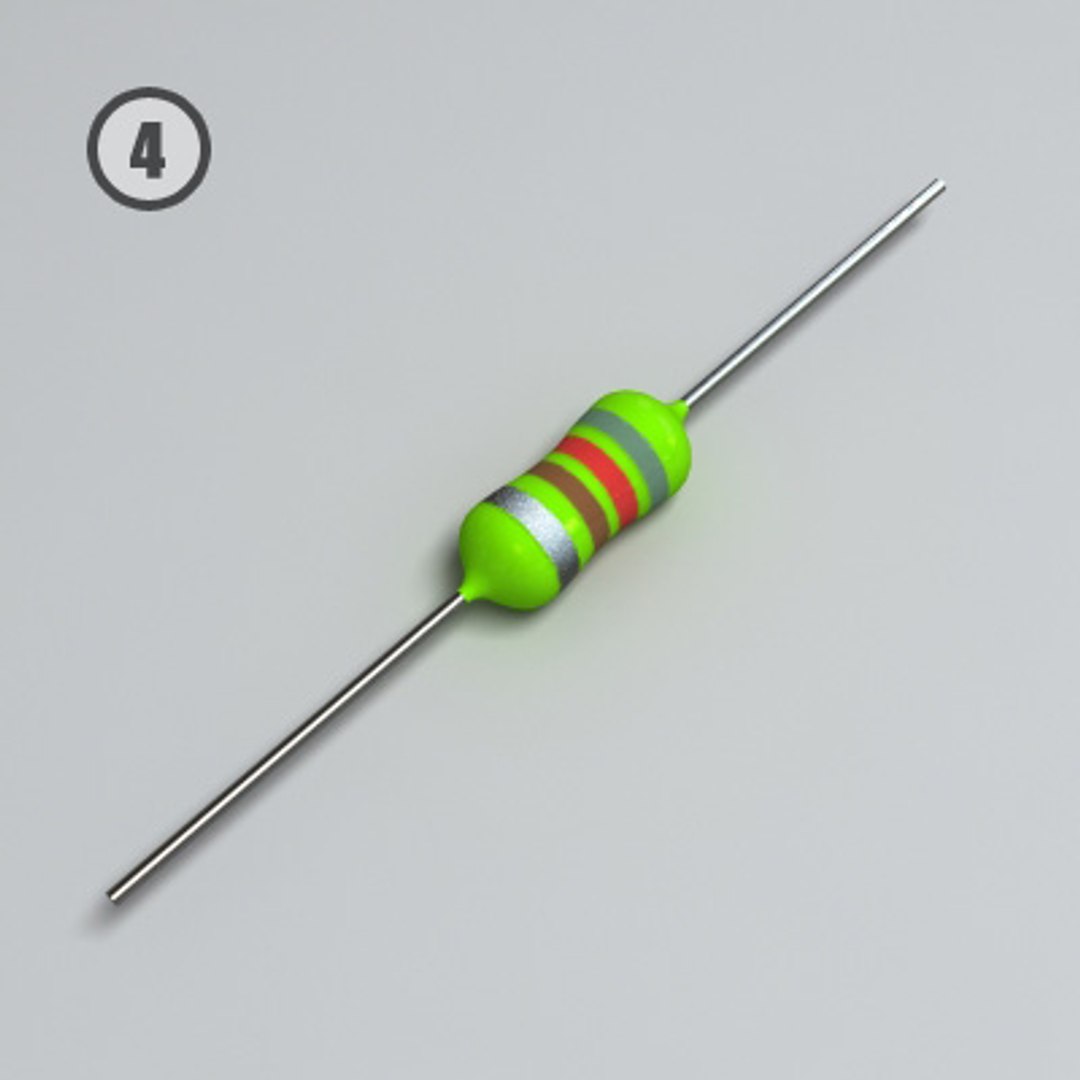

4) Inductor 280mH, 10% *

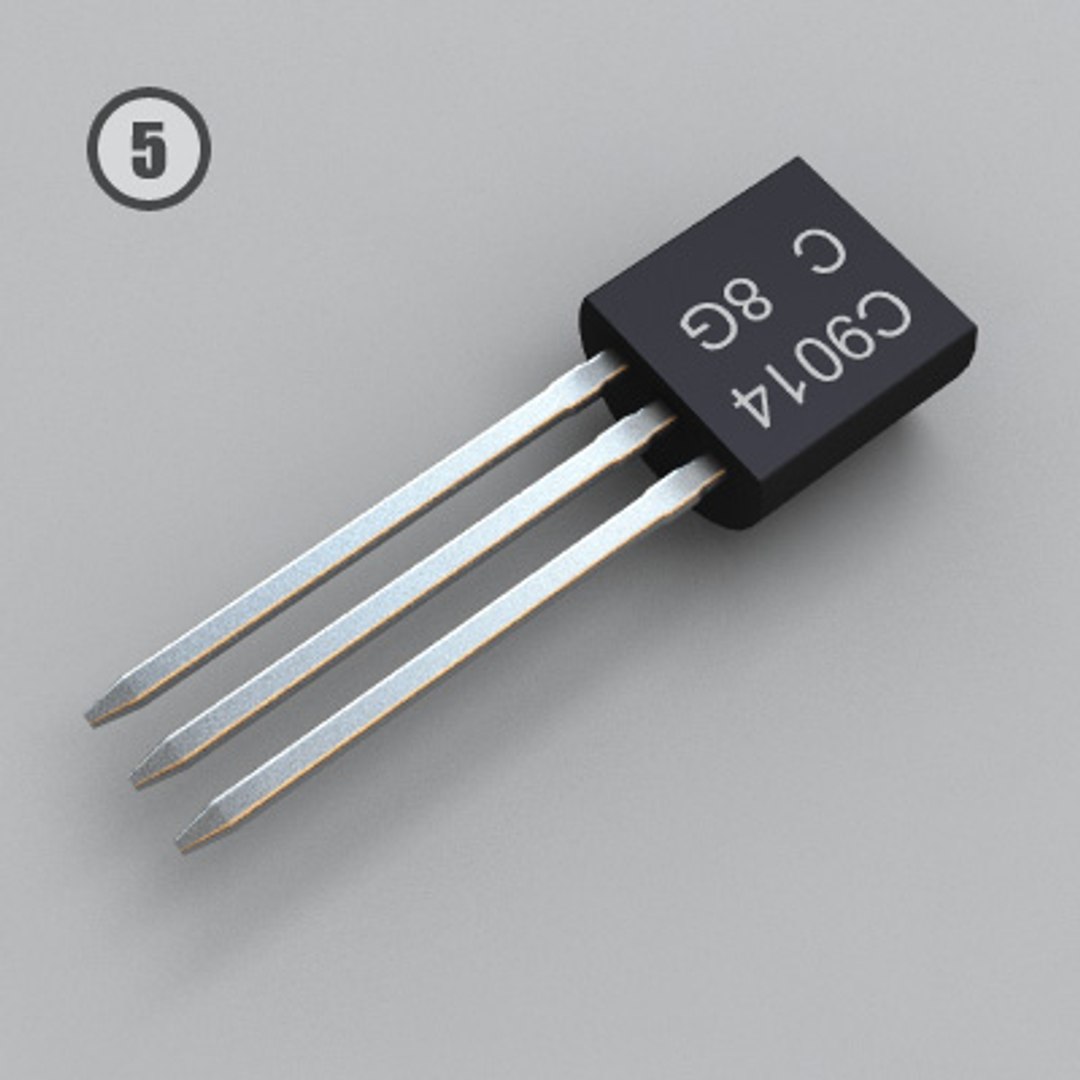

5) Transistor C9014, C, 8G

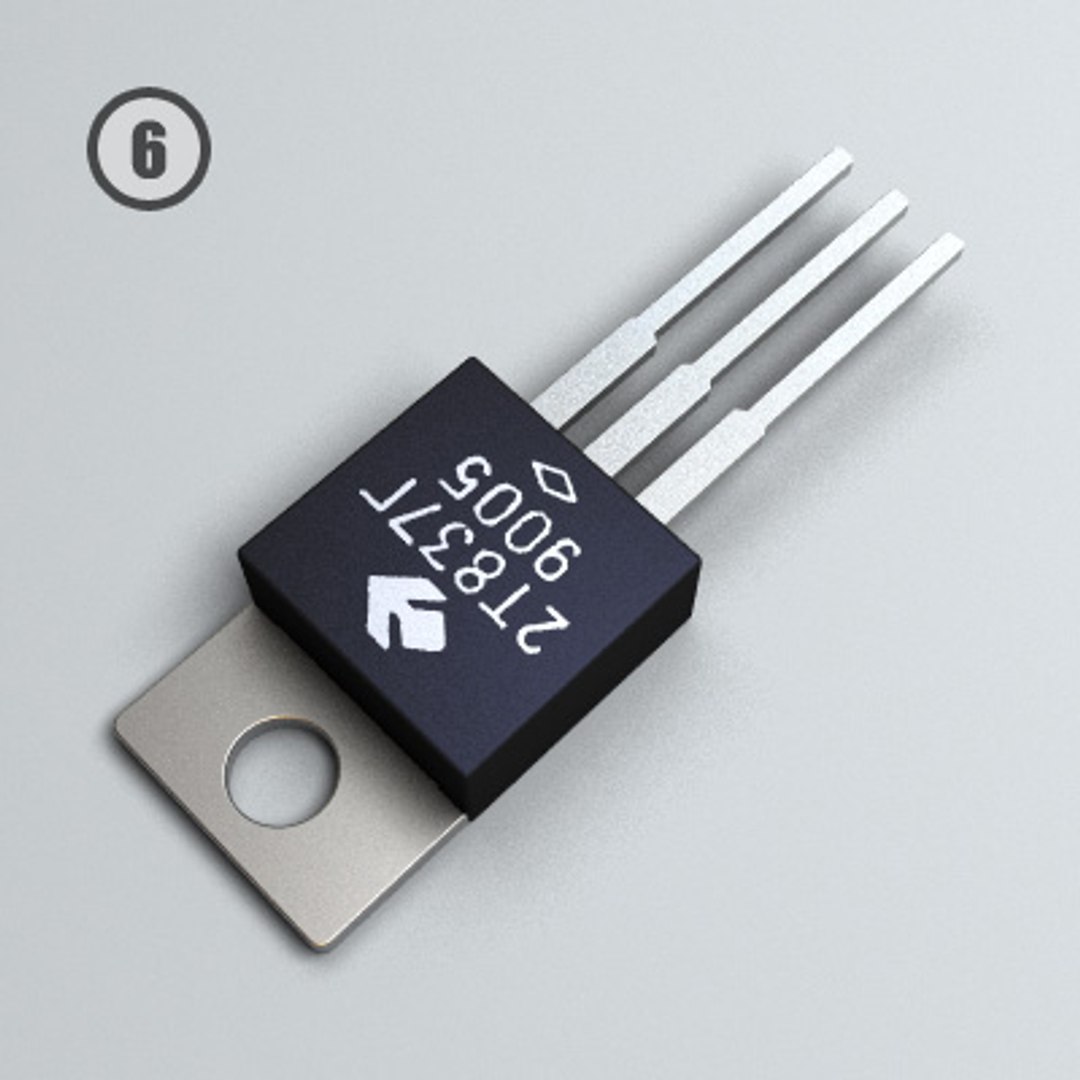

6) Russian transistor 2T837B

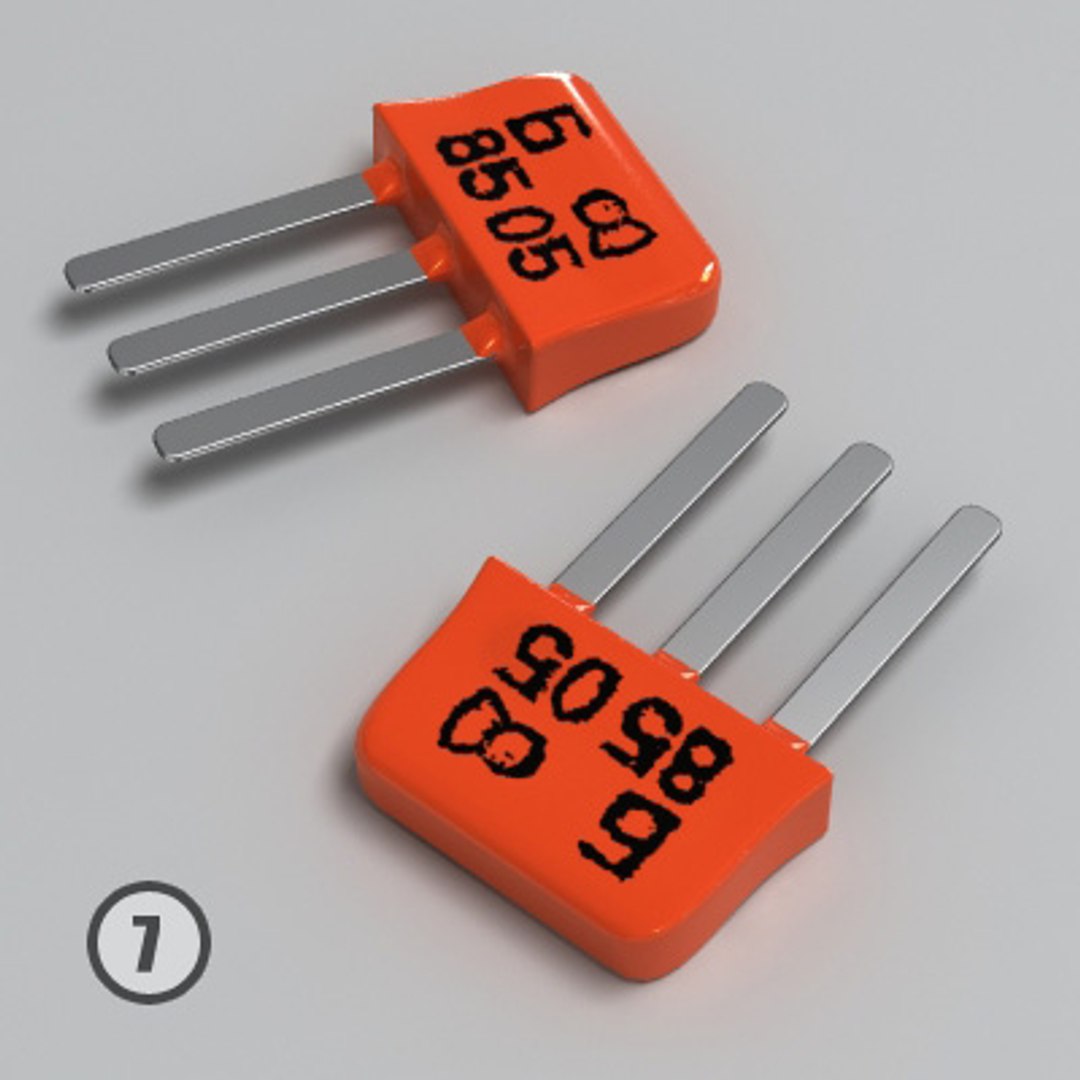

7) Russian transistor KT315B

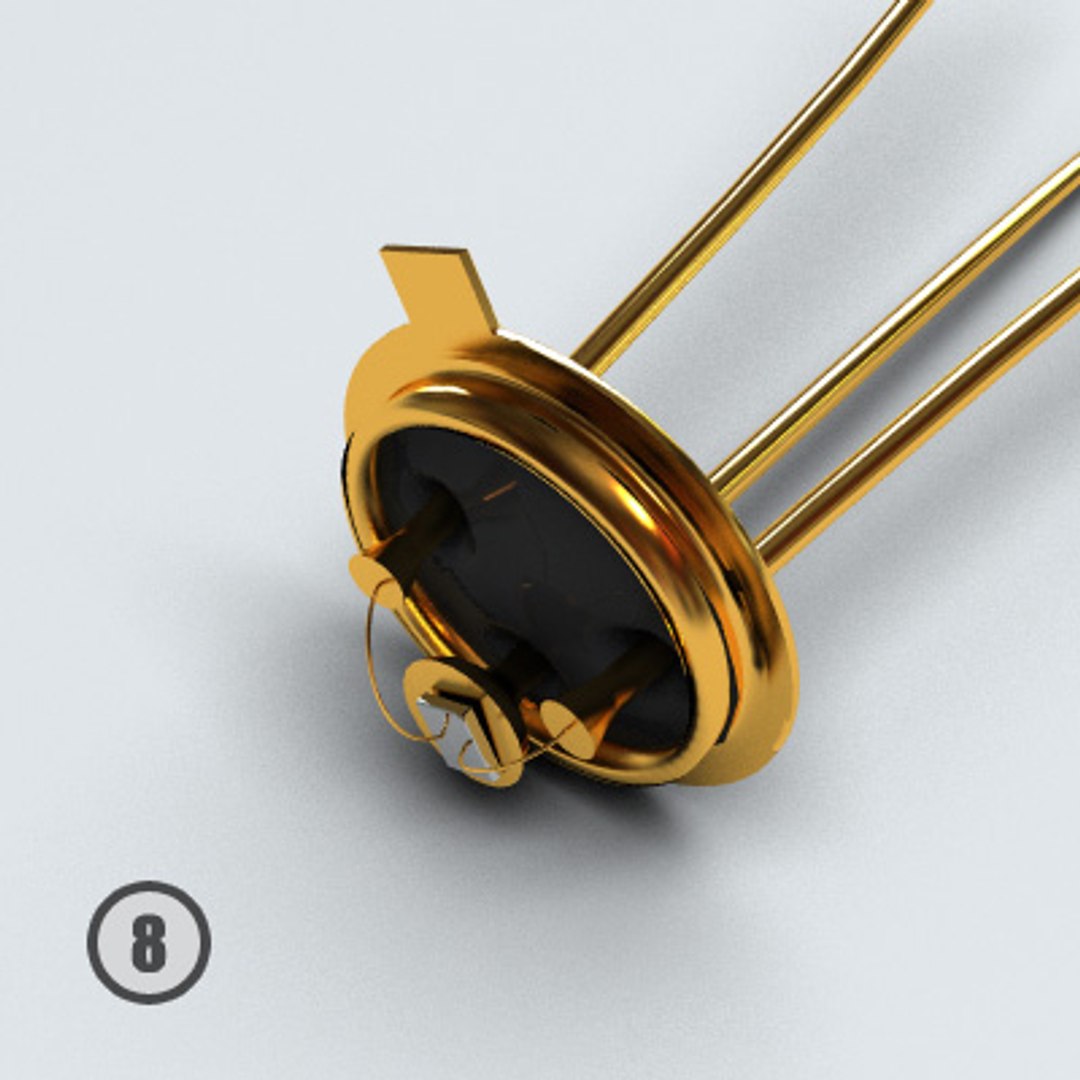

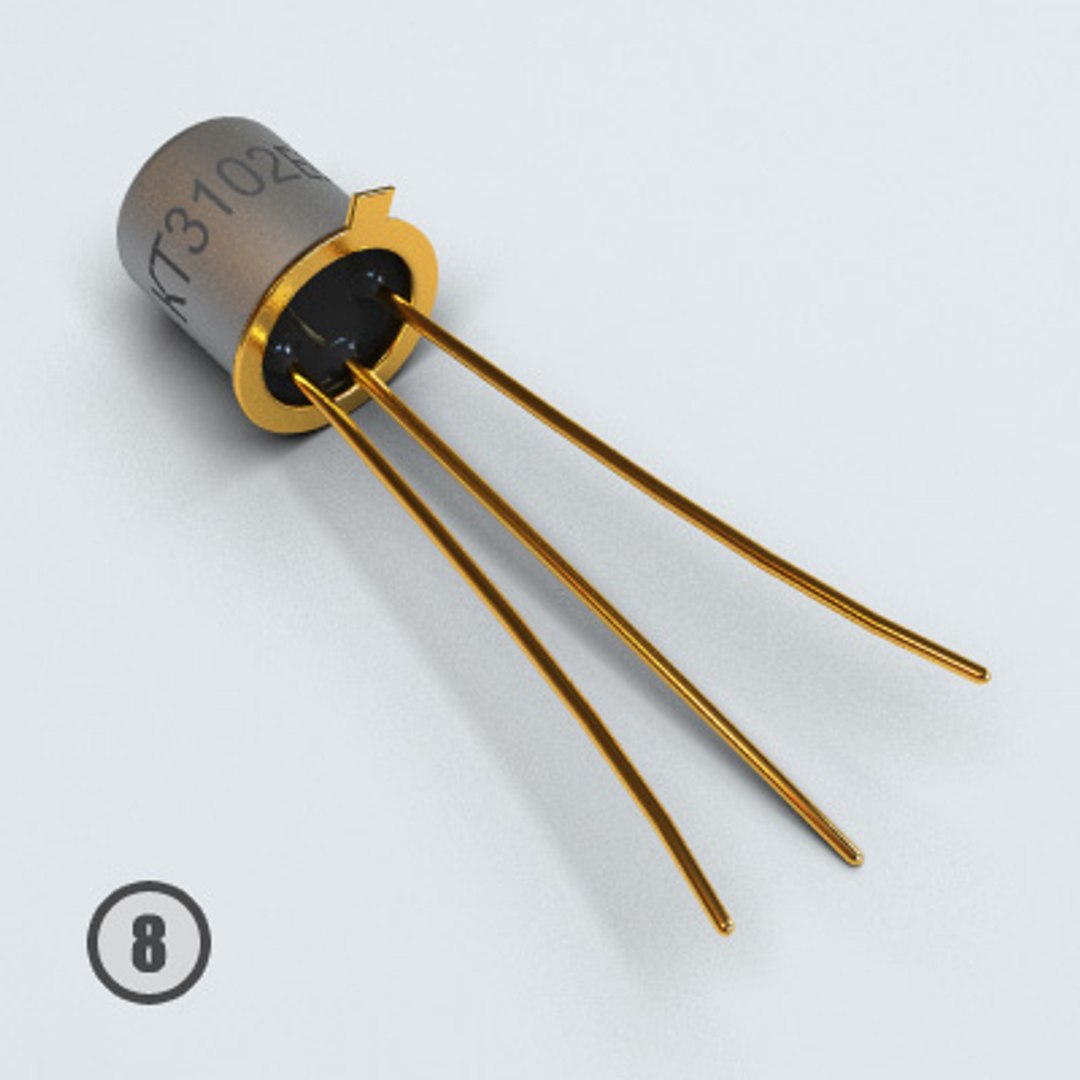

8) Russian transistor KT3102B

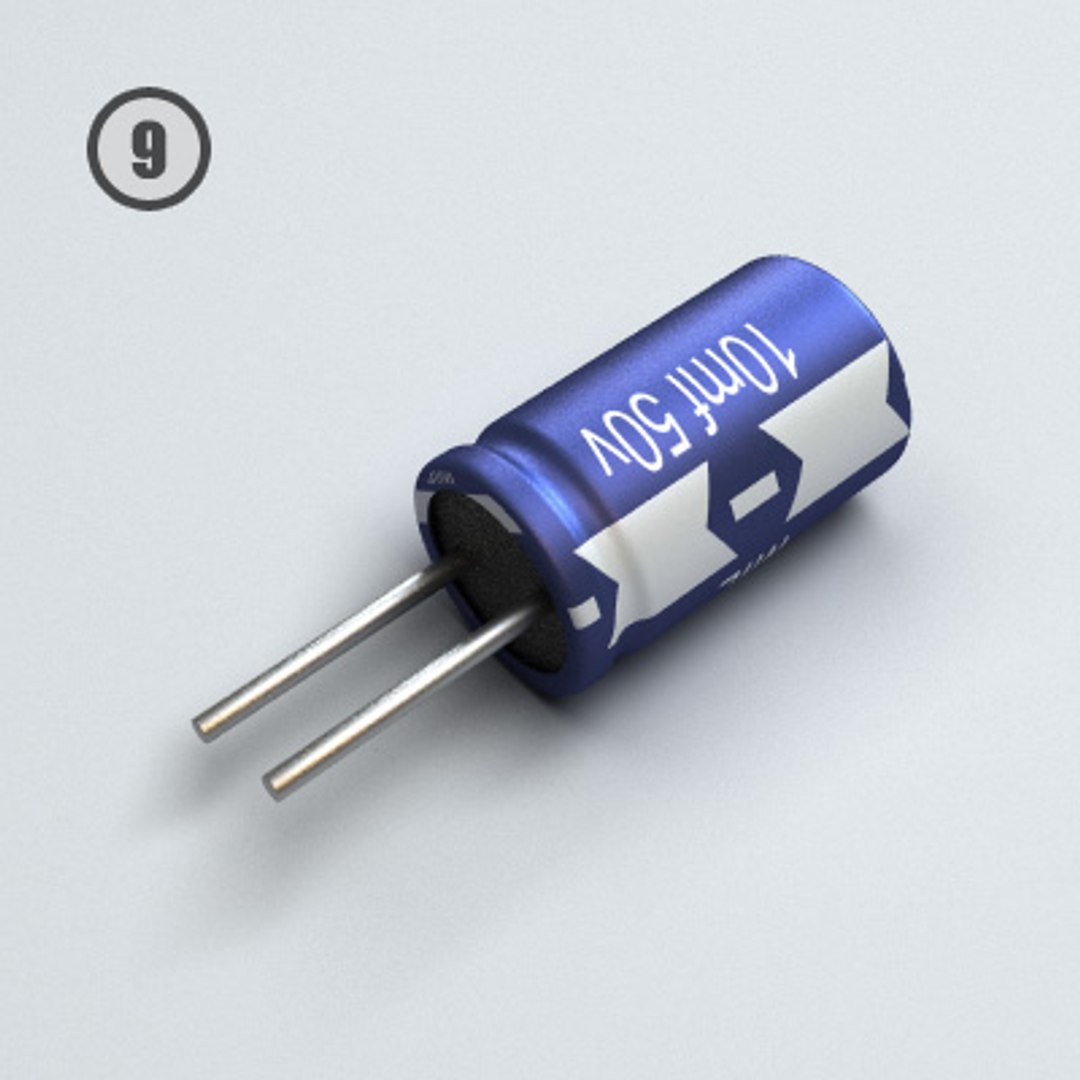

9) Wet electrolytic capacitor 10mF, 50v

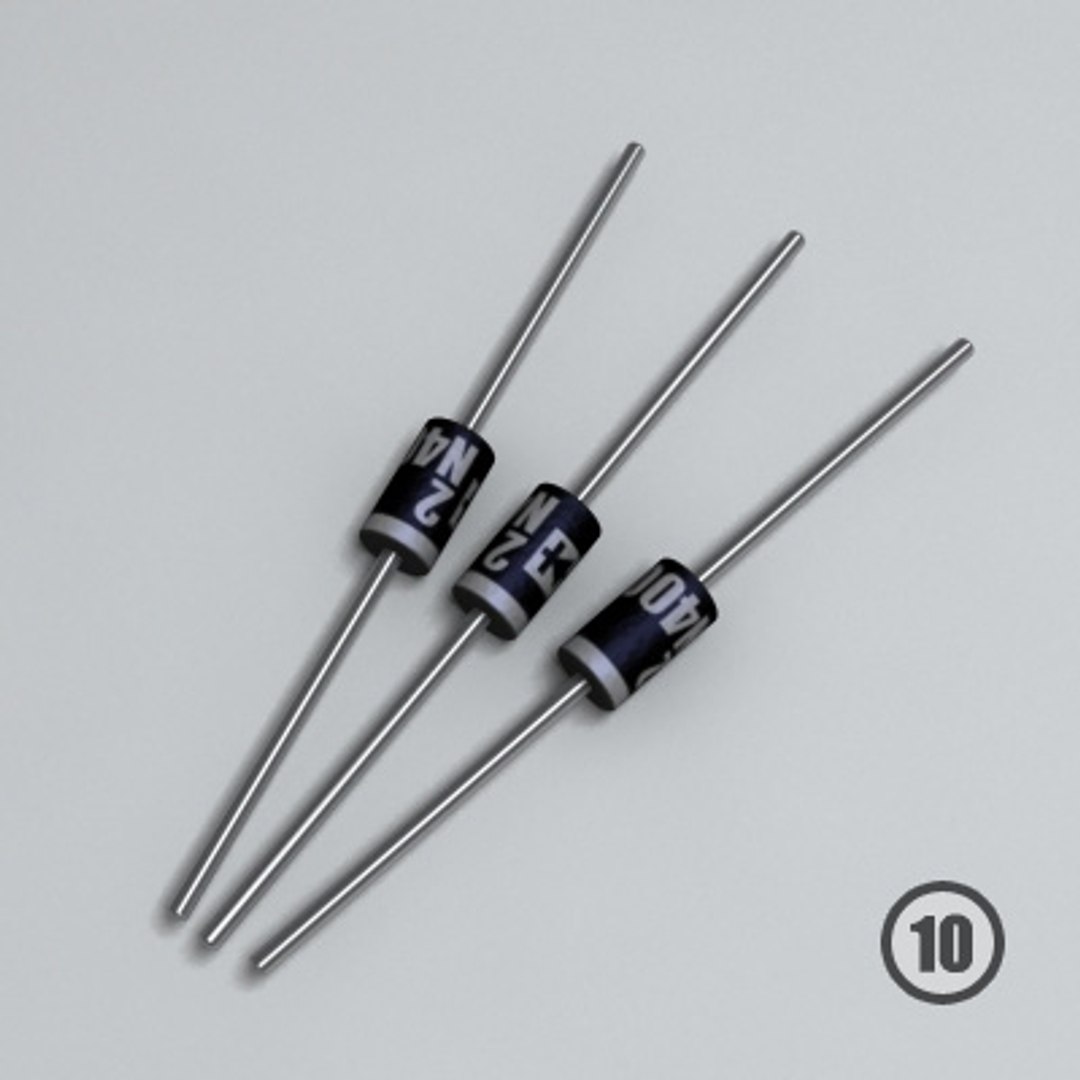

10) Diode N4002

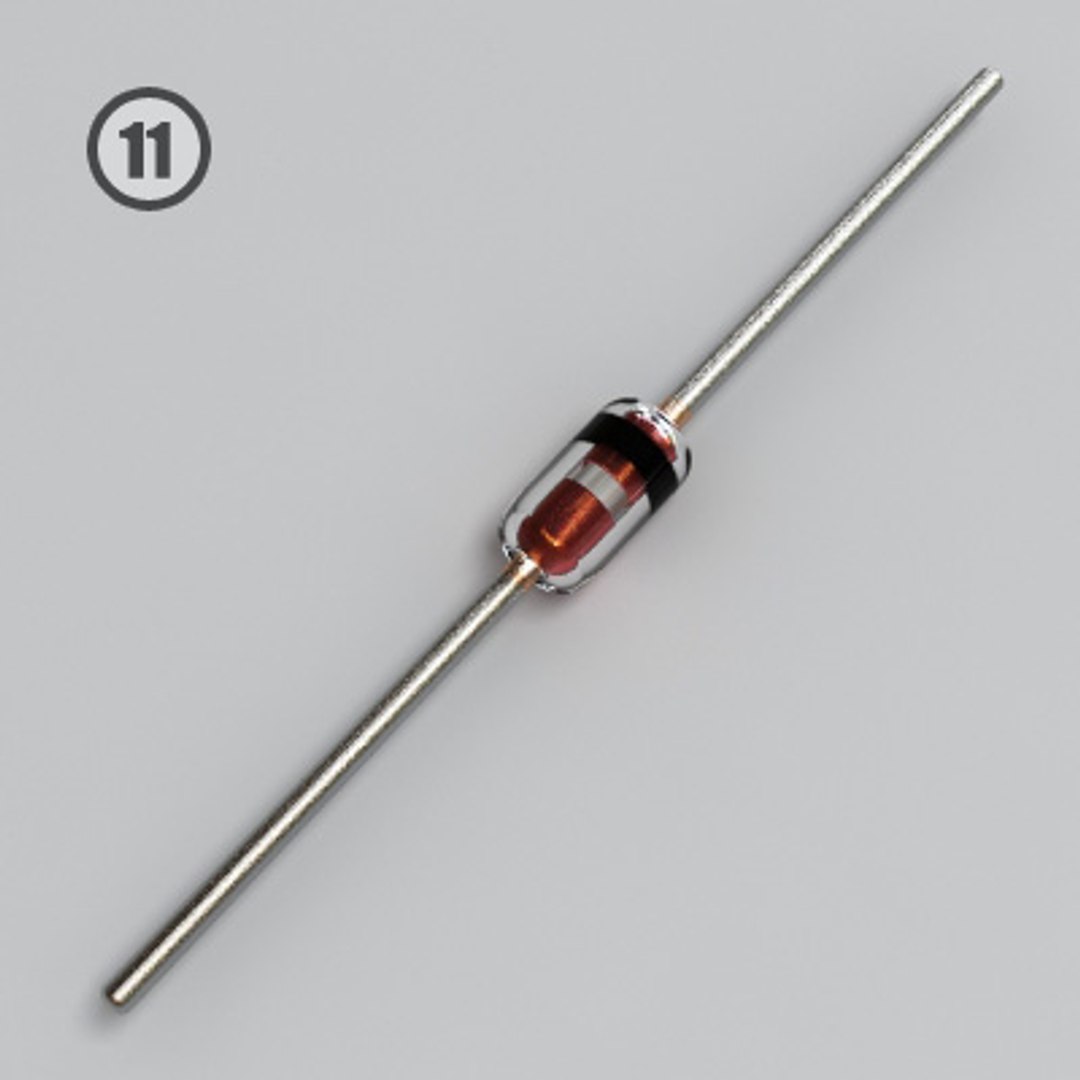

11) Diode in glass corpse

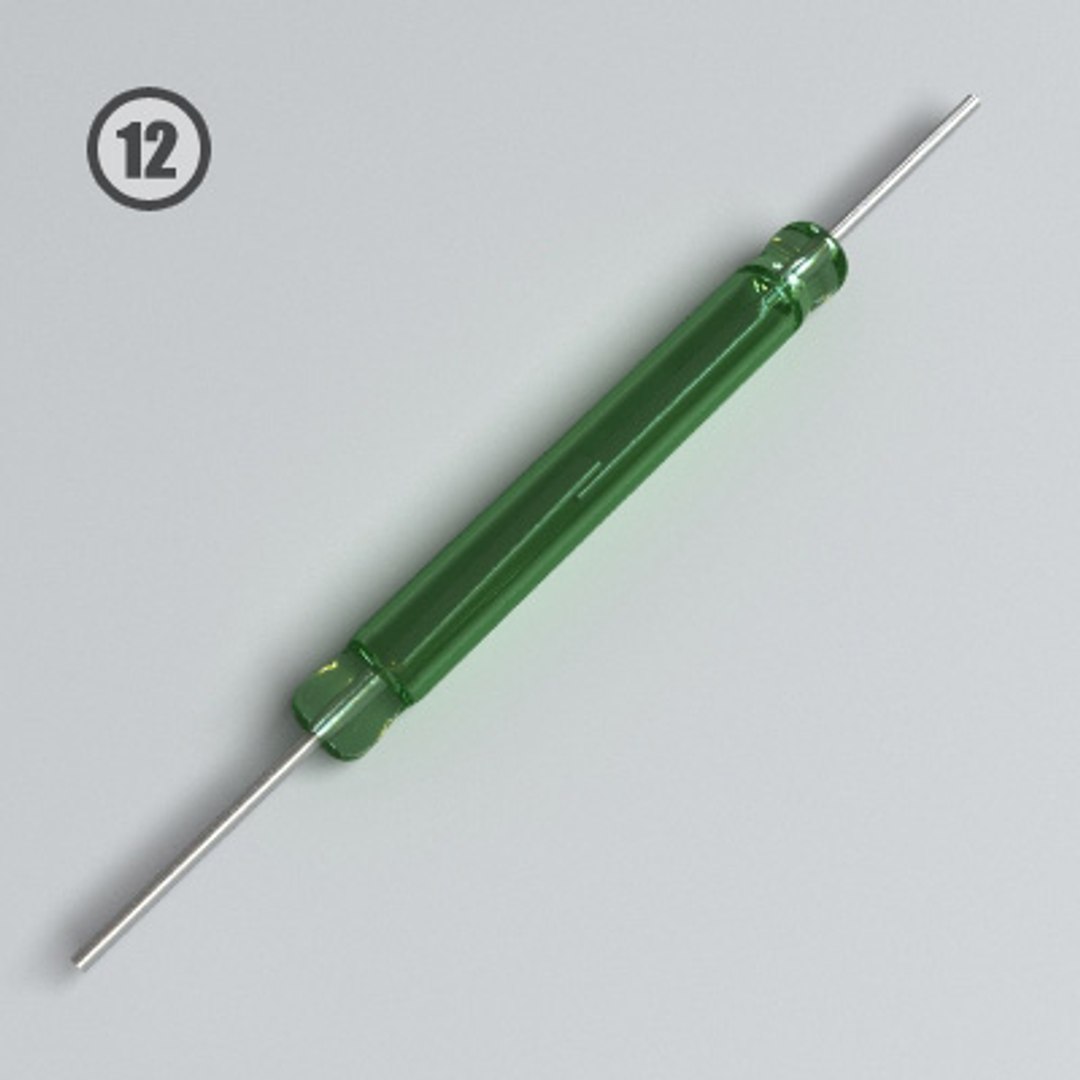

12) Magnetically operated sealed switch

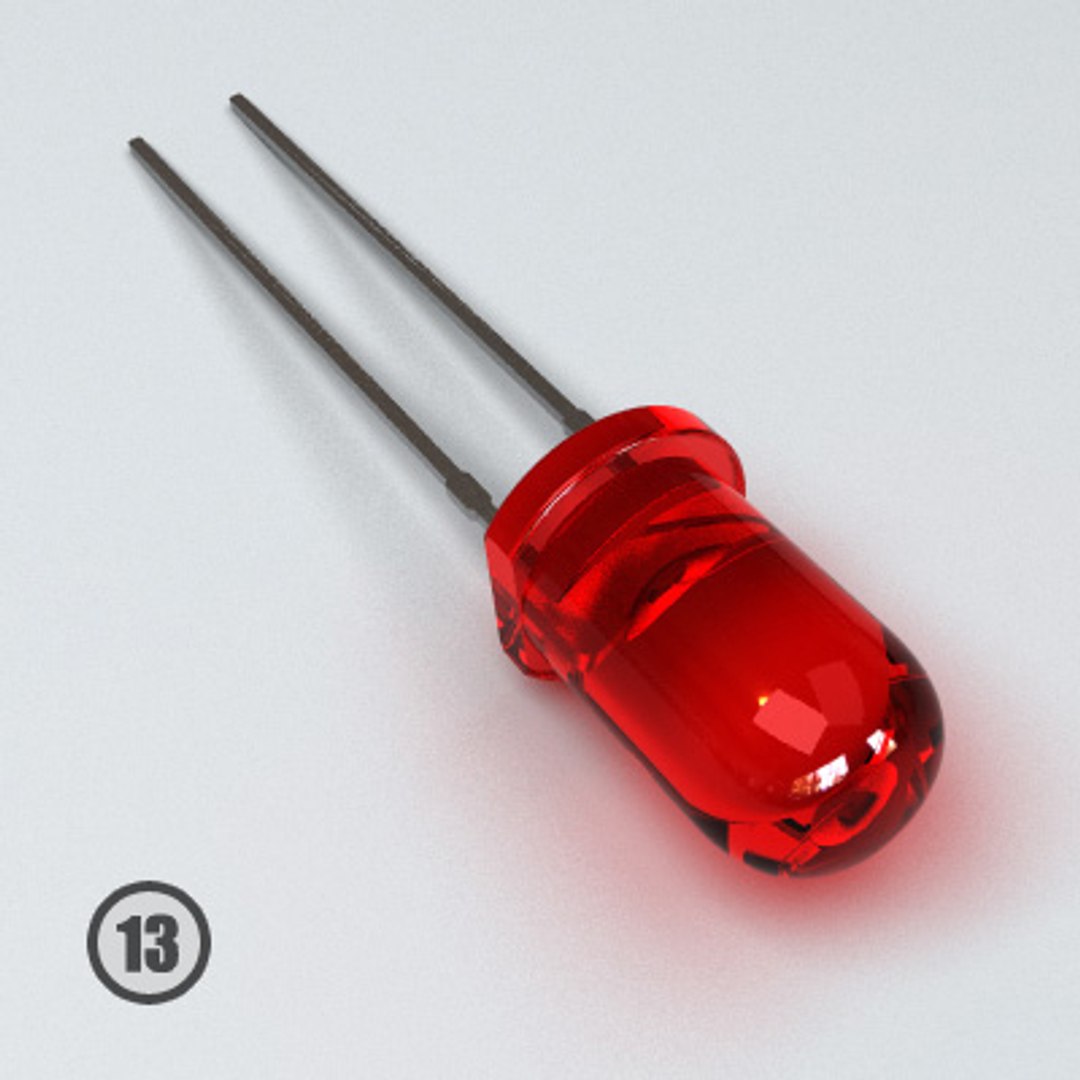

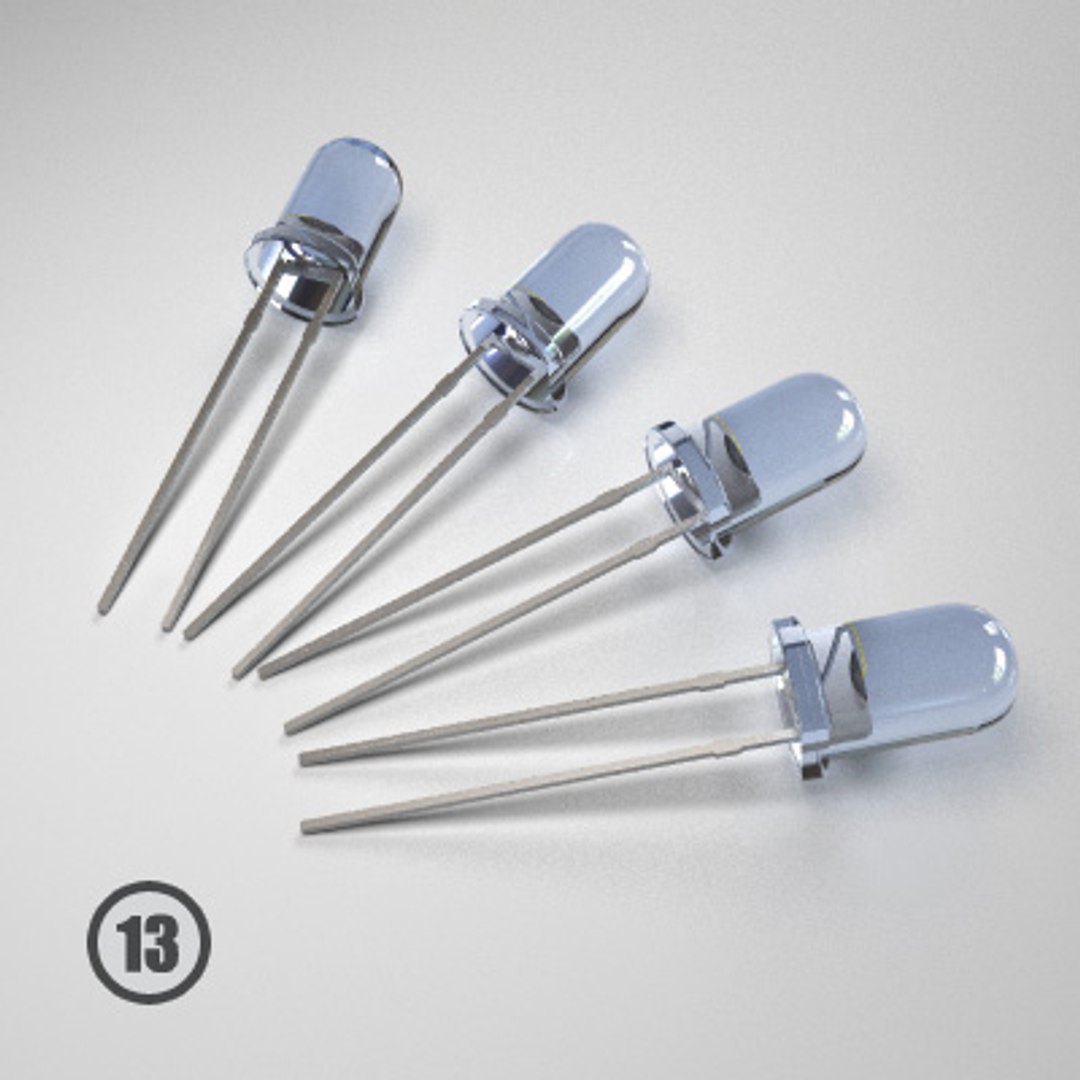

13) Round high-brightness LED
14) Right angle green LED

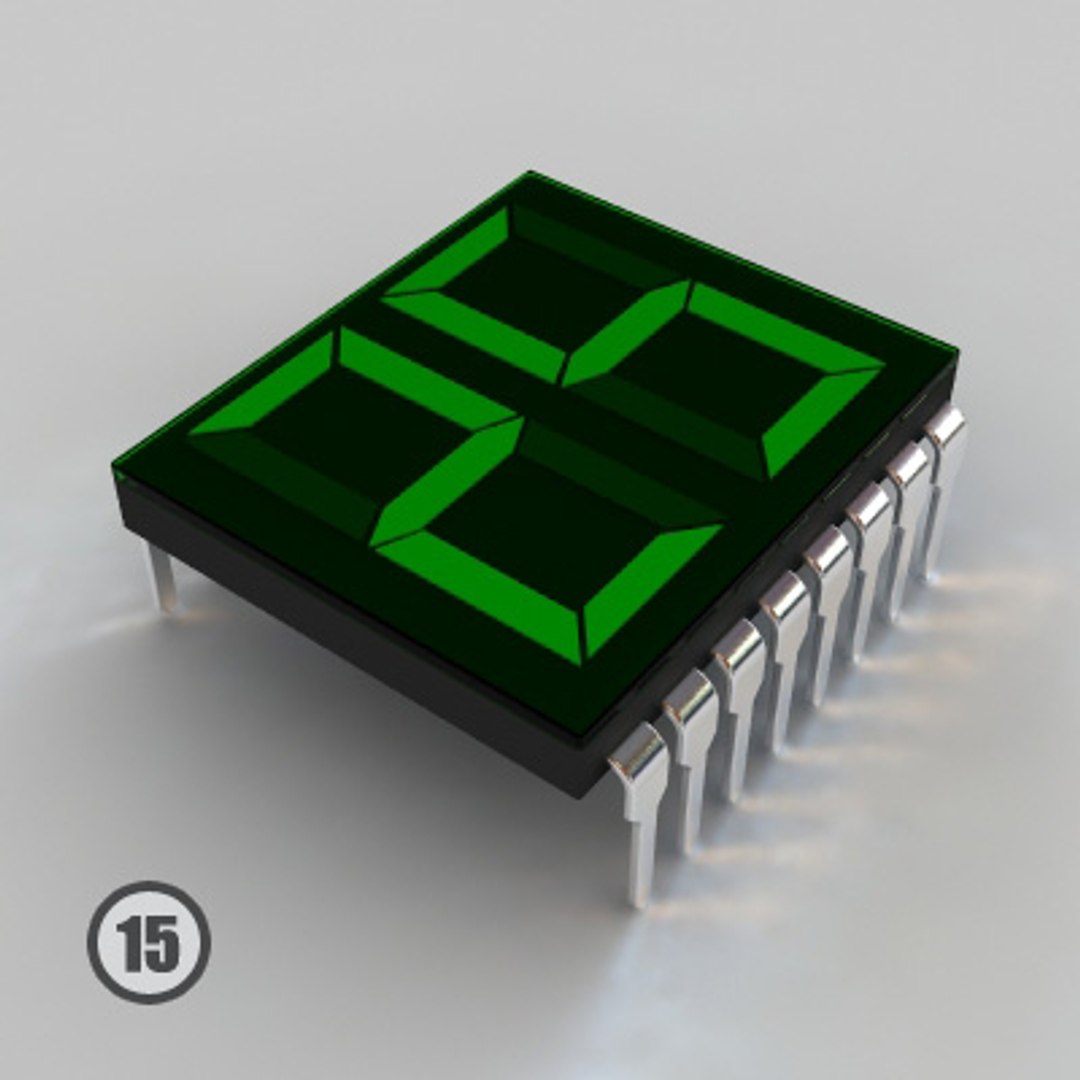

15) Two digits LED display

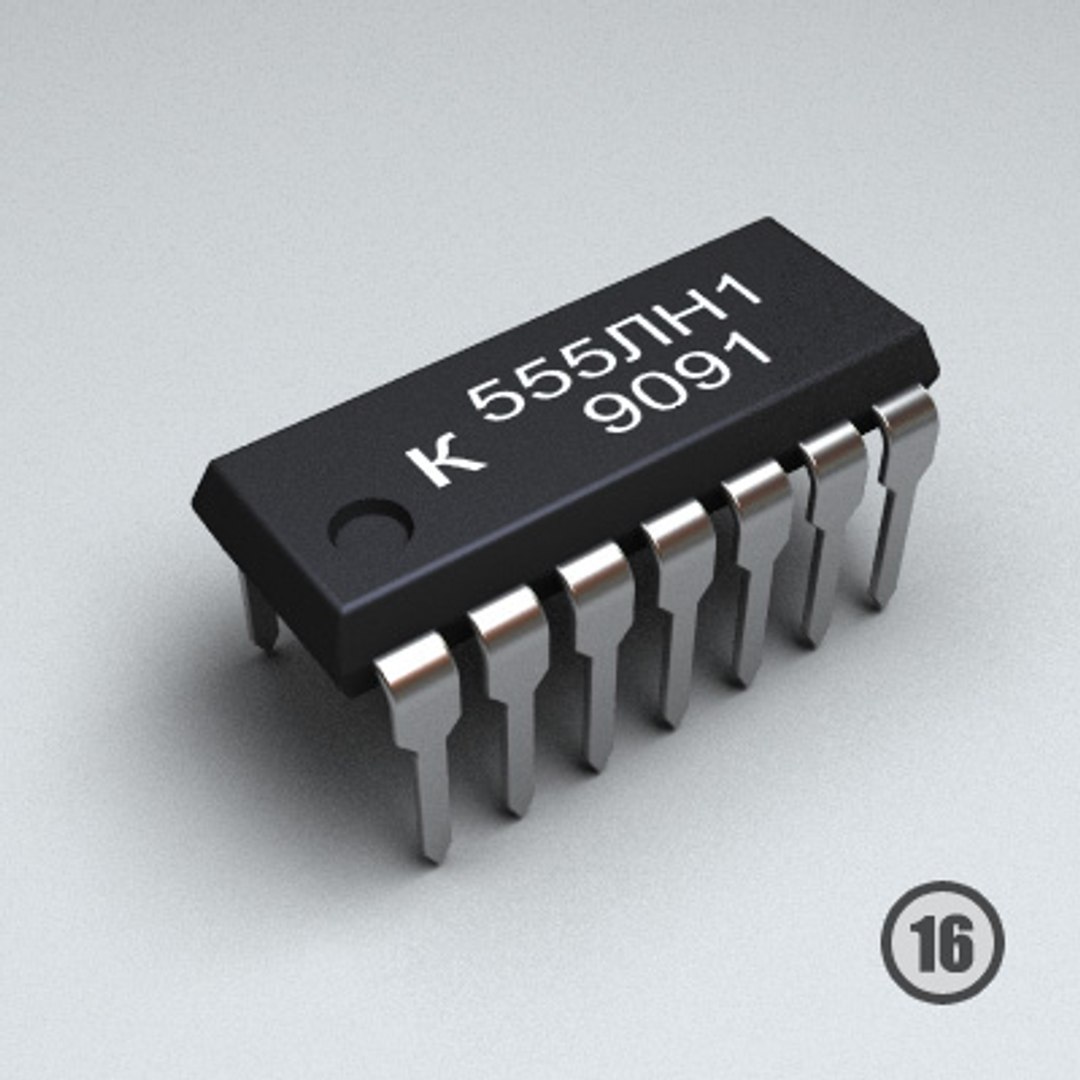

16) Russian integrated circuit K555LN1

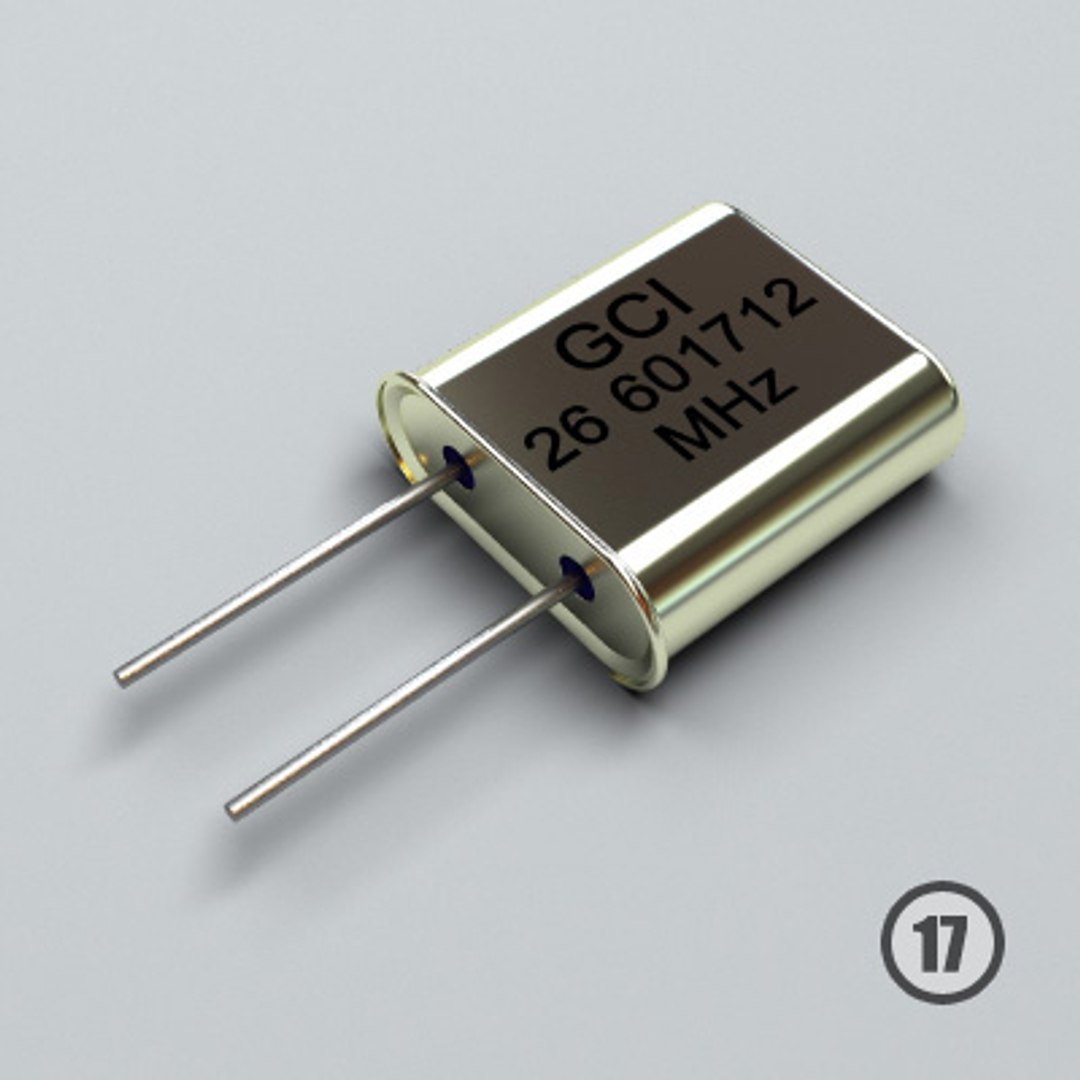

17) Piezoelectric stabilizer 26.601712 MHz

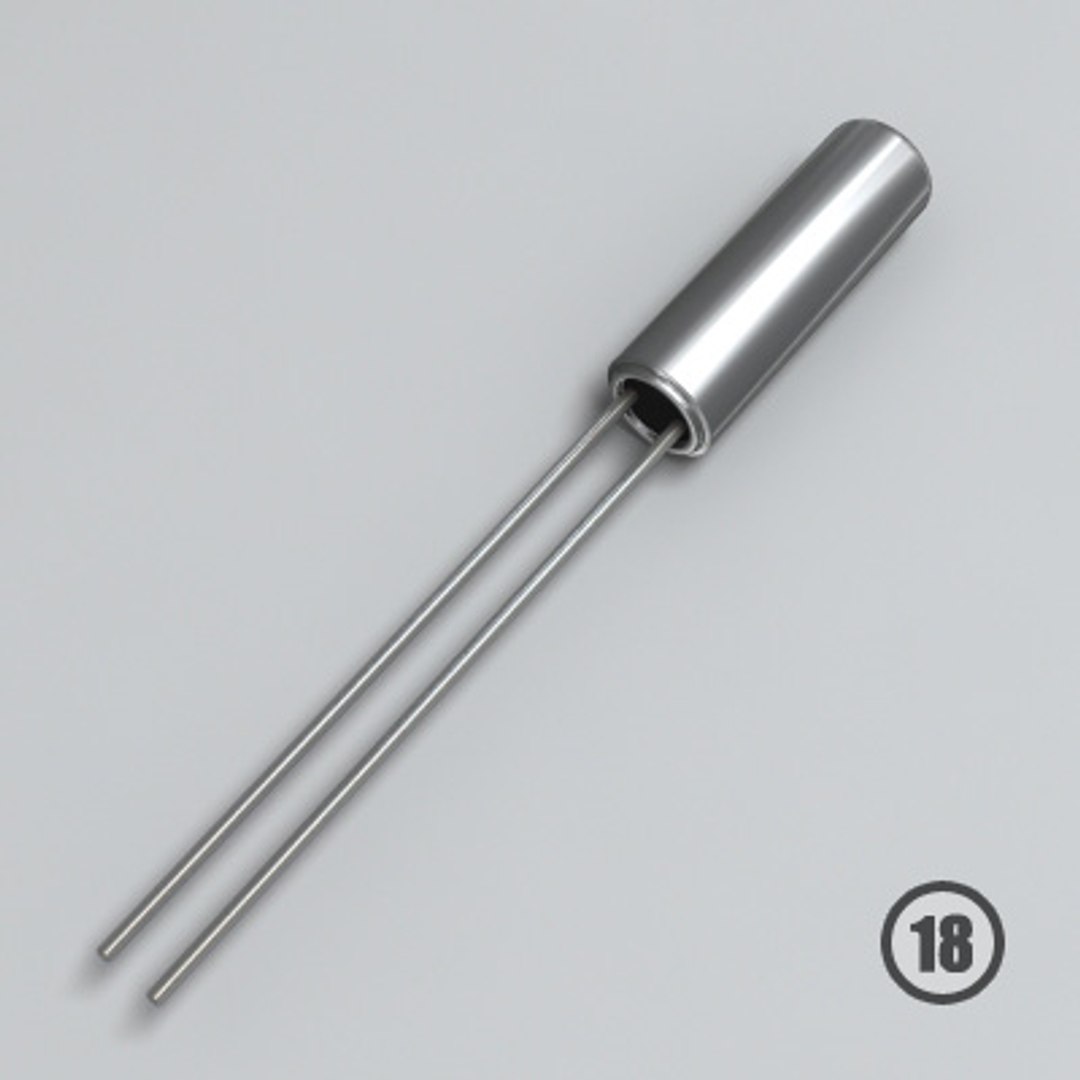

18) Piezoelectric stabilizer for quartz clock

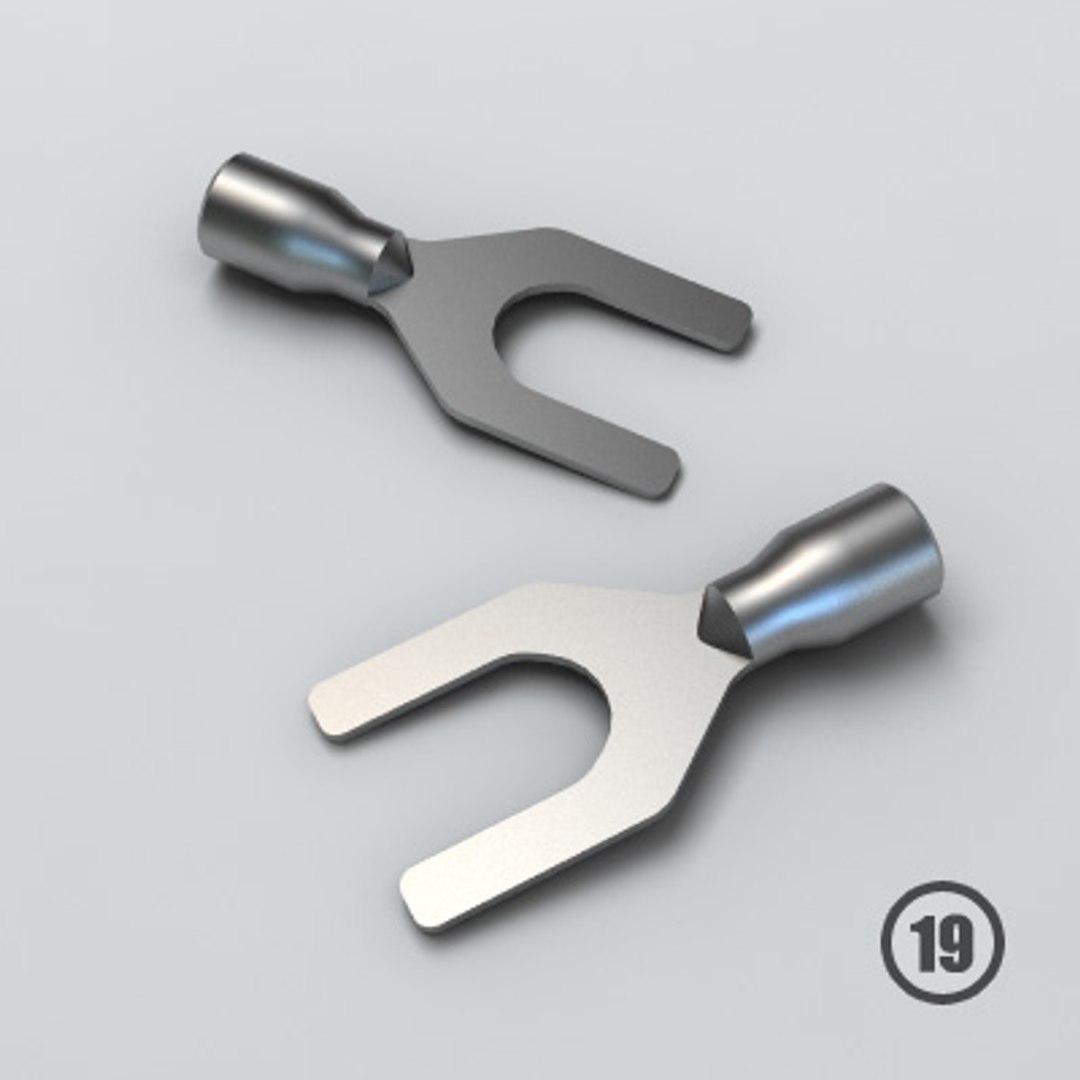

19) Telephonic contact connector
* The stripes on resistor and inductor were made with
composite materials and You can replace the material
of any stripe to change the nominal.
Description of the archives:
MAX.RAR - contains the scene, used to render the main thumbnail.
All the components were posed with XForm modifier and You can reset the
transformations with one mouse click. Most materials are VRayMtl type and
VRay is required to render this scene.
FBX.RAR - contains 19 files with meshes of the components.
Files are named 1..19, according to the list above - this will help
to find the component You wish.
OBJ.RAR - contains 19 files with meshes of the components in
TEXTURES.RAR - this archive contains 23 texture files in JPG
format. They are required for max scene.
You can download high resolution preview to examine the models deeply.
