2S19-MSTA_SPH_Multi

All Extended Uses
Included Formats
3DS
Autodesk FBX
OpenFlight
Lightwave 6.5
3ds Max 7
Maya 7
Other
Softimage 8
Other Textures
3D Model Specifications
Product ID:431479
Published:
Geometry:Polygonal
Polygons:3,279
Vertices:1,936
Textures:Yes
Materials:Yes
Rigged:No
Animated:No
UV Mapped:Unknown
Unwrapped UVs:Unknown
Artist
TurboSquid Member Since September 2002
Currently sells 1626 products
Achievements:
Unrated
Product Rating
Categories
Description

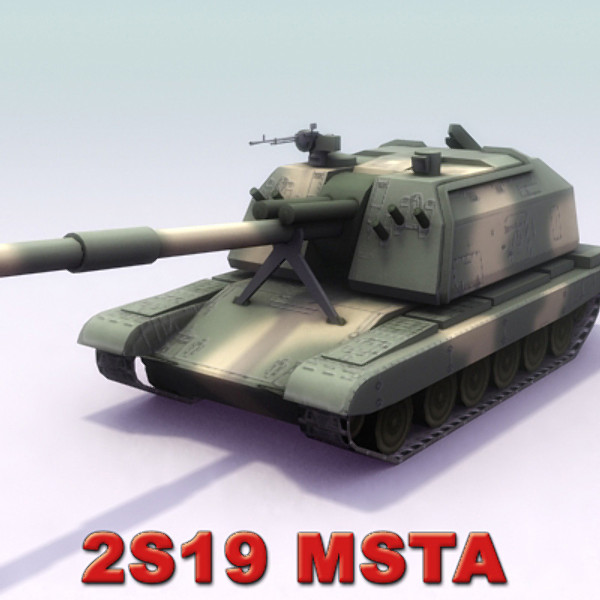

High detail low-impact 219S MSTA 152mm Self Propelled Howitzer. 2048 res PSD texture also available on request. Part of a huge related collection available from ES3DStudios.

Many more linked sets available from ES3DStudios in a range of formats. Click 'ES3DStudios' for full range.

******************************
Texture in 2nd Zip Download
******************************

The 152mm 2S19 MSTA-S self propelled howitzer entered service with the Soviet/Russian Army in 1989. While the Russian Army hoped to replace all of its 122mm and 152mm self propelled artillery with this howitzer, budgetary constraints mean this replacement will not be completed any time soon. At least one 2S19-equipped regiment served in Chechnya as part of the 8th Army Corps.

MSTA-S comprises a turret mounted on a tracked armored chassis based on elements of the T-72 and T-80 main battle tanks. It is manufactured by Uraltransmash of Ekaterinberg, Russia.

The 2S19's gun crew can load the gun at any angle of elevation. Ammunition and gun loading, laying and re-targeting are highly automated, allowing maximum firing rate of 8 rounds per minute with onboard rounds and 6-7 rounds per minute with rounds from the ground. The system provides automatic gun loading for projectiles and semi-automatic loading for charges. The design of the ammunition rack allows different types of projectiles to be stored in the same rack. The automatic loading mechanism can select the type of ammunition and control the loading and the number of rounds. A major drawback to the Krasnopol semiactive laser-guided projectileis the incompatibility with the autoloader of the 2S19 due to the projectile's length. The Krasnopol-M (152-mm/155-mm) was developed as a follow-on product improvement that is fully compatible with the 2S19 autoloader

A battery can deliver projectiles on a target and move on to the next firing point before reaction firing. The howitzer's armor gives protection against armor-piercing bullets and projectiles. The 21-hp gas turbine AP-18D Auxiliary Power Unit provides power for turret operations when the vehicle engine is shut down.

Specifications

Alternative Designations         152-mm 2S19 Msta-S
Date of Introduction         1989
Proliferation         At least 4 countries
Description
Crew         5 (section of 7 with 2 in ammo carrier)

Platform (chassis)         Modified T-72
Combat Weight (mt)         42
Chassis Length Overall (m)         11.91
Height Overall (m)         2.98
Width Overall (m)         3.58

Engine Type         840-hp V84-A diesel

Max Road         60
Max Off-Road         25
Cross-Country         INA
Max Swim         N/A
Fording Depths (m)         Unprepared 1.5
Emplacement Time (min)         1-2
Displacement Time (min)         1-2
Radio         R-173

Self-Entrenching Blade         Capable of digging a complete firing pit in 40- 60 minutes
NBC Protection System         Yes
Smoke Equipment         Six Type 902 smoke grenade launchers and Vehi-cle engine exhaust smoke system (VEESS)
ARMAMENT
Main Armament
Caliber, Type, Name         152-mm, canon, 2A64
Barrel Length (cal)         48
Rate of Fire (rpm)
Burst         8
Normal         6
Sustained         2
Fire from Ground         6-7
Loader Type         autoloader
Breech Type         Vertical sliding wedge
Muzzle Brake Type         Double baffle

MAIN ARMAMENT AMMUNITION
Caliber, Type, Name        152-mm Frag-HE, OF-72
Indirect Fire Range (m)
Minimum Range         6500
Maximum Range         24,700
Complete Projectile Weight (kg)         43.56 (OF-45)
Muzzle Velocity         864 m/s
Fuze Type         RGM-2 PD 152-mm, HEAT, BP-540
Direct Fire Range (m)
Minimum Range         0
Maximum Range         1000
