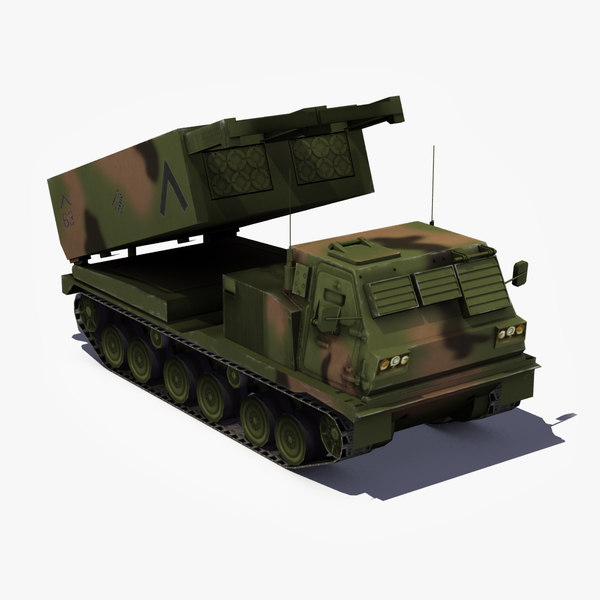

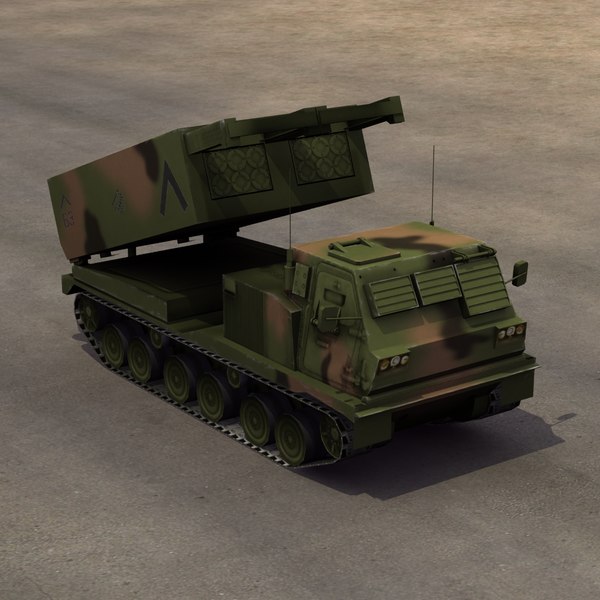

M270 MLRS Multiple Launch Rocket System. PSD textures also available on request. Tracks can be easily animated by scrolling the UV's.
Many more linked sets available from ES3DStudios in a range of formats. Click 'ES3DStudios' for full range. A wide range of other NATO models are also available from ES3DStudios.
Native format is 3DSMax 2011. No 3rd party plugins required.
Texture Res: Single 2048 x 2048 diffuse bmp.
Please note, texture map is included only in the Max, LWO and MB zips (download one of these files whatever format you require).
The MLRS M270 Launcher, a derivative of the Bradley Fighting Vehicle (BFV), is the standard U.S. Army platform for firing surface to surface artillery rockets and missiles. The Armored Vehicle Mounted Rocket Launcher (M270) is a full-tracked, self-propelled launcher/loader designed to launch 12 tactical rockets and re-deploy before enemy determination of launch position (shoot and scoot). The launch platform is also used to launch the Army Tactical Missile System (Army TACMS) and is capable of launching all M270 Family of Munitions (MFOM) tactical rocket/missile variants. The launcher consists of six rockets, each of which are mounted and controlled in both azimuth and elevation. It has an automated control system for aiming that automatically corrects for launcher cant and ambient temperature, a directional reference system to obtain azimuth elevation and cant angles, and a FCS which is operated from a man-rated vehicle cab. The launcher platform structure provides a 'self-loading' capability.
The M270 launcher has a maximum speed of 64 Km/hour, with a maximum range of 435 Km. It is capable of climbing a 60 degree slope and a one meter wall. Ordnance options include the MFOM (all variants of the MLRS rocket and Army TACMS missile). The M270 can load, arm, and fire a 12 rocket ripple within ripple within five minutes. M270 launchers are deployed three per battery and 29 per battalion. The M270 launcher can be configured for transport by Air Force C-141 aircraft on a limited basis. The M270 launcher is also transportable by Air Force C-5 and C-17 aircraft.
MLRS consists of a self-loading launcher with an onboard fire control system (FCS). The launcher is mounted on a mobile track vehicle that carries 12 rockets or 2 Army Tactical Missile System (Army TACMS) missiles, which can be fired individually or simultaneously. Rockets have a range beyond 30 kilometers, and the Army TACMS Block IA missile can reach to 300 kilometers.
The M270 MLRS, or SPLL (Self-Propelled, Loader/Launcher), is made up of two major units and an electronic fire control system (FCS). The SPLL is a mobile, self-propelled, self- loading, multiple launch rocket firing unit. It provides mobile long range artillery rocket support for ground forces. The M993 Carrier Vehicle and the M269 LLM are the two major units that make up the MLRS. The FCS is a computer control system, with a built-in computer and memory system. The SPLL has a cruising range of 300 miles at speeds up to 40 miles per hour. The total MLRS weights approximately 52,990 pounds.
