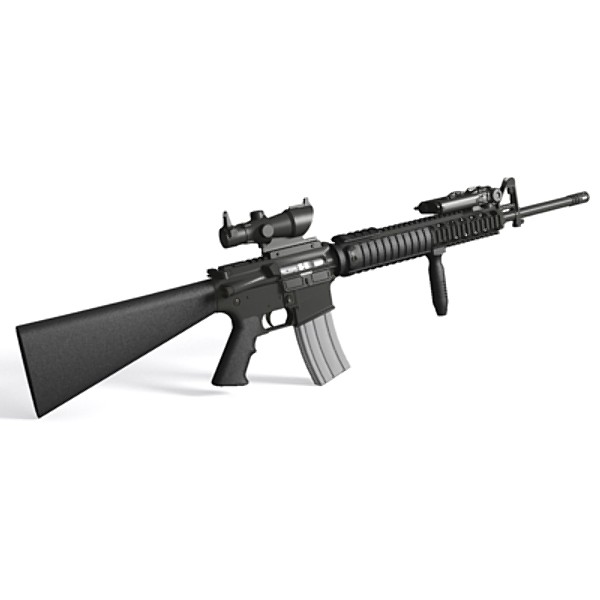

M16A4 Assault Rifle

All Extended Uses
Included Formats
3DS
AutoCAD drawing
3ds Max
3D Model Specifications
Product ID:401854
Published:
Geometry:Polygonal
Polygons:66,490
Vertices:0
Textures:No
Materials:Yes
Rigged:No
Animated:No
UV Mapped:Unknown
Unwrapped UVs:Unknown
Artist
TurboSquid Member Since October 2005
Currently sells 52 products
Achievements:
1 Rating Submitted
Product Rating
uriar
Aug 25, 2009
Description
The M16 is the US Military designation for the family of weapons derived from the Armalite AR-15, now produced by at least a dozen large armaments corporations in the USA.

The M16 is constructed of aluminium, steel and composite plastics. It is actuated by a direct impingement gas-operation with a rotating bolt, and fires 5.56mm NATO ammunition. The direct impingement operation of the firearm initially led to severe reliability problems when the rifles were not cleaned regularly. This type of operation causes hot gasses from burnt gunpowder to foul the interior of the receiver and tended to clog the action of the rifle. Switching to a different powder mostly solved this issue; however the rifle still requires frequent and thorough cleaning.

One of the main advantages of the M16 is the huge versatility of the weapon. The receiver of the weapon is made from aluminium and is split into two parts: the upper and lower. Since the upper receiver contains the barrel, gas system and bolt group, it is possible to switch barrel lengths, styles (light, heavy, fluted etc.) and even calibres relatively easily by dropping a different upper receiver onto the same lower, consisting of the trigger unit, recoil buffer, grip and buttstock.

This rifle is a M16A4, fitted with a Picatinny accessory rail instead of the fixed carry handle/rear iron sight. This allows the rifle to be equipped with the carry handle or a variety of other optics systems. The M16A4 also features the Knight’s Armament Company M5 RAS handguard instead of the fixed plastic handguards, allowing for the attachment of vertical grips, tactical lights and other accessories. This M16 is equipped with a vertical foregrip, an AN/PEQ-2A infrared laser and illuminator. It features a TA01NSN ACOG (Advanced Combat Optical Gunsight) instead of the standard carry handle/rear iron sight. This telescopic sight is an integral part of the SOPMOD kit and is specifically designed to work with the M16 family of weapons. It features an illuminated reticule with bullet drop compensator that allows for engagement out to 800 metres. It also incorporates ghost-ring sights as a backup for targets within 50 metres.

The M16A4 is improved over the original model with the addition of a forward assist (to push the bolt into battery in the event of a jammed cartridge), tighter barrel rifling, a stronger barrel, improved adjustable sights, a modified flash suppressor, more comfortable handgrips, improved buttstock and a spent case deflector on the upper receiver. Most noticeably, the fully automatic setting was replaced with a three-round burst setting to conserve ammunition.

The M16A4 has a rate of fire of 800rpm and is effective out to ranges of 550 metres. It feeds from a 30 round box magazine and weighs 3.77 kilograms empty. The M203 grenade launcher fires a variety of 40mm grenades at ranges of up to 350 metres (against area targets) and weighs 1.36 kilograms unloaded.
