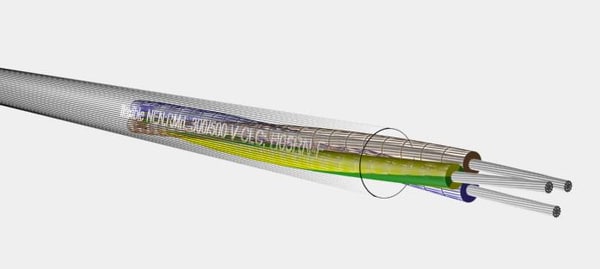

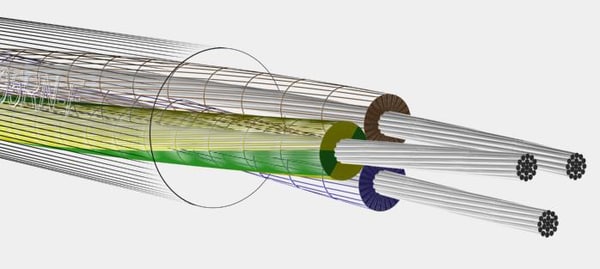

ho5rr-f nen rmrl 300-500 3d model - HO5RR-F NEN RMrL 300-500 V 3G1,5 mm2 .max by Cable Master

NEN: RMrL300/500 V
CLC: H05RR-F
IEC: 60245 IEC 53
Application:
· Flexible connection of domestic electrical appliances, lighting
fittings, hand-held inspection lamps, etc
· Also usable as free-hanging connecting cords for coupling plugs,
table sockets and fixed engines, in accordance with NEN 1010
General properties:
· Very flexible
· Easy (automatic) strippable
· Excellent resistance to weather influences (including ozone)
Remarks:
· When the dissipation of the generated heat is restricted, for
example when a lighting fitting is placed in a ceiling, the use of
EDRATEEN cords is recommended
· When high mechanical stress can occur, NWPK or QWPK is
recommended
Construction:
Conductor: flexible tinned copper (class 5)
Insulation: rubber
Assembly: cores cabled together
Outer sheath: rubber
Electrical properties:
Voltage rating: 300/500 V
Test voltage: 2 kV
Core colours:
2 cores: brown, blue
3 cores: brown, blue, green-and-yellow
Standards/References:
HD 22
Additional information:
Minimum installation temperature: -25 °C
Maximum conductor temperature: +60 °C
Operating temperature: min. -25 °C, max. +50 °C
