generic aircraft structural size 3d dxf - Generic Mid Size Passenger Aircraft Structural Model by RodgerSaintJohn

This structural model is representative of twin engine contemporary passenger aircraft whose capacity is approx 160 pax with a 3000 nmi range.

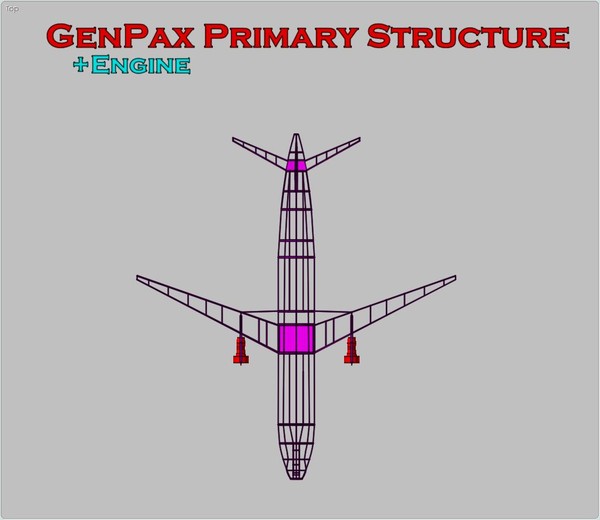

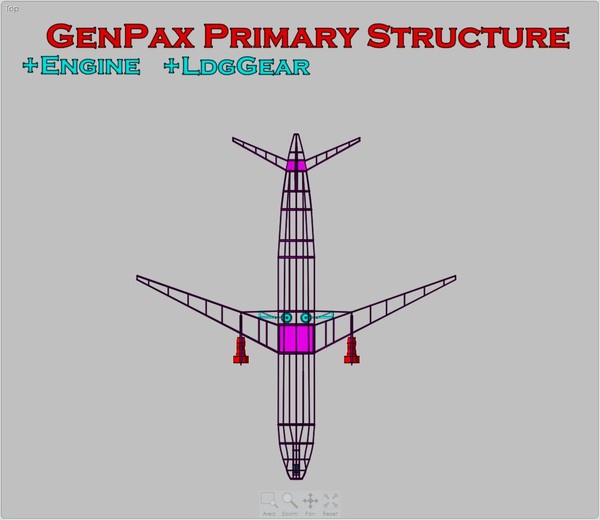

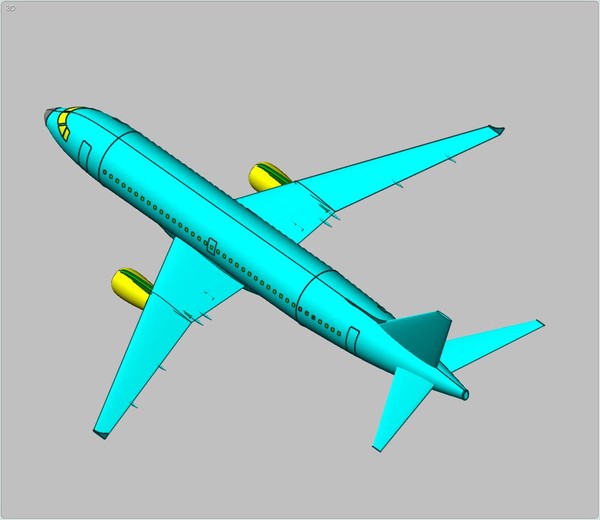

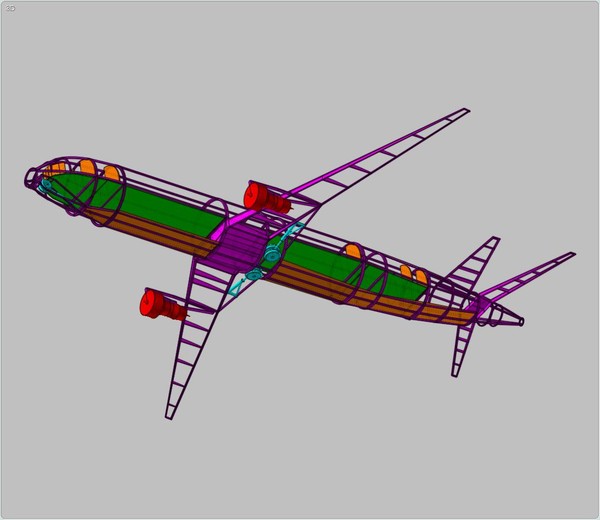

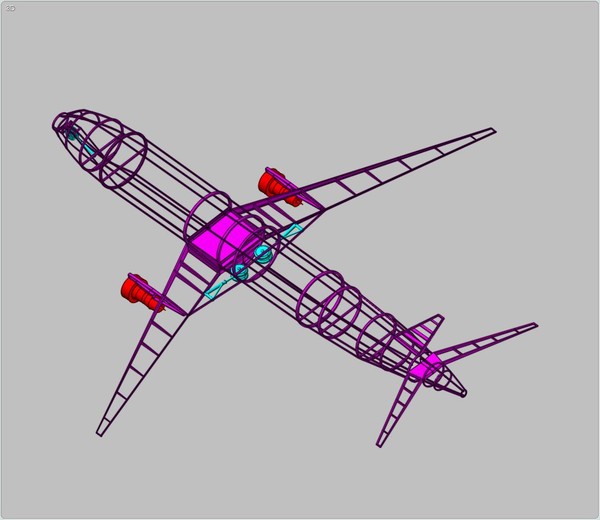

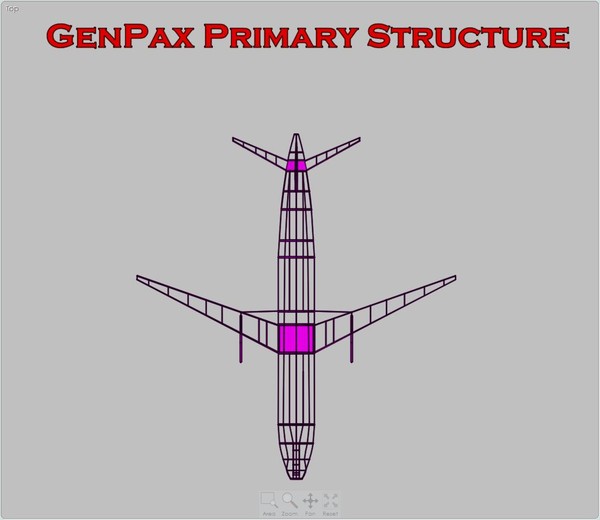

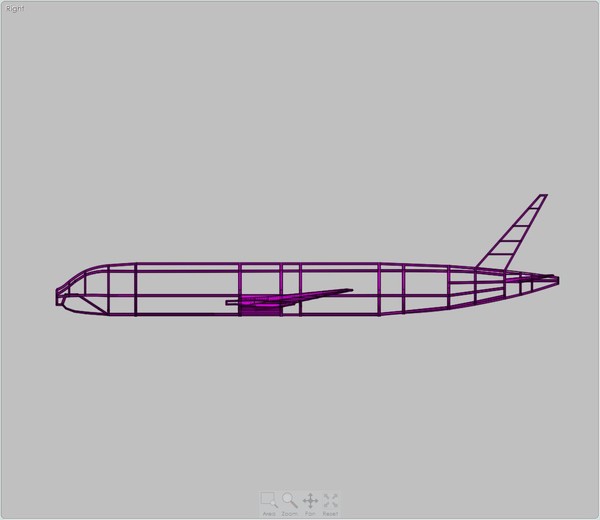

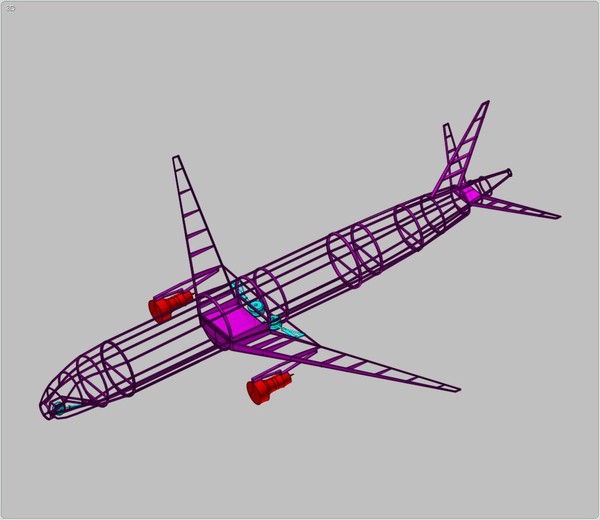

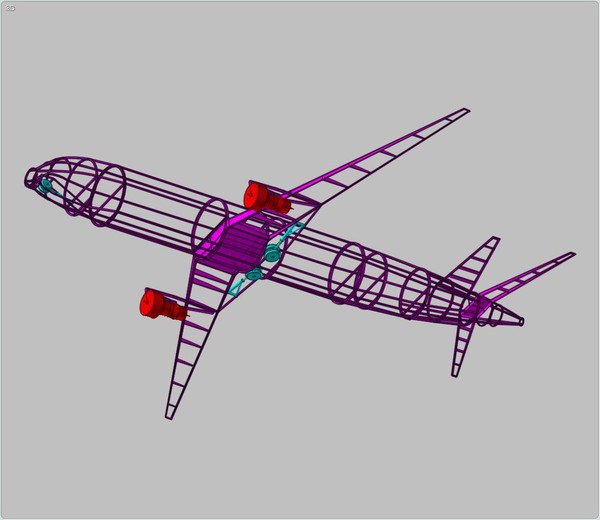

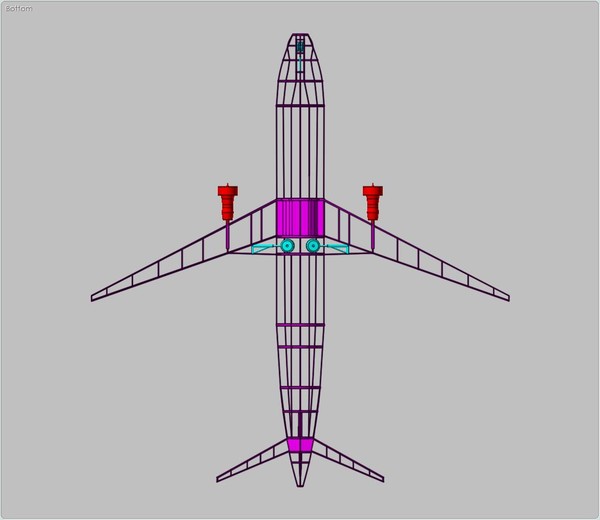

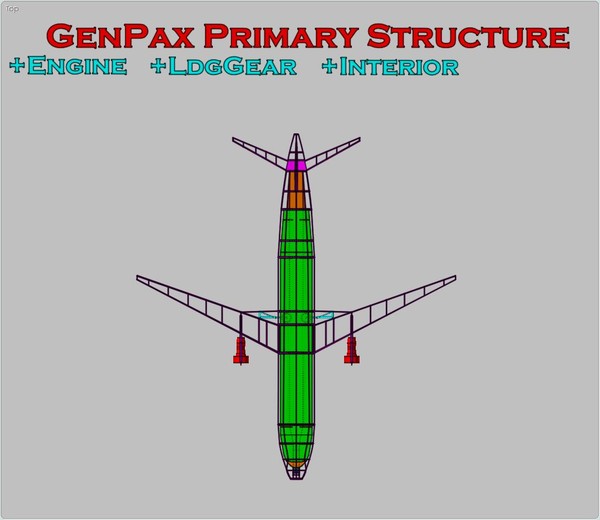

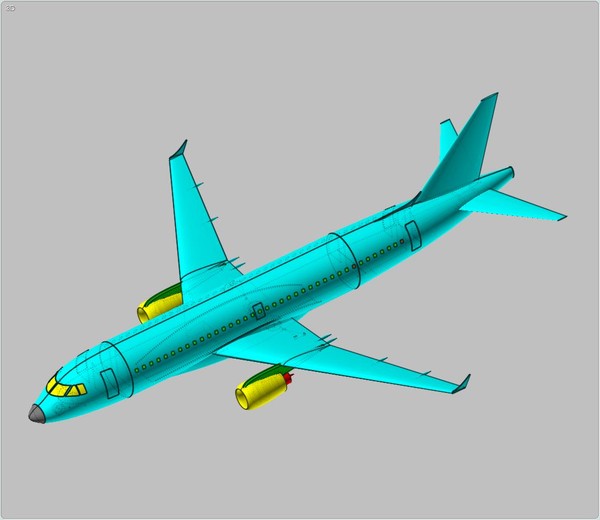

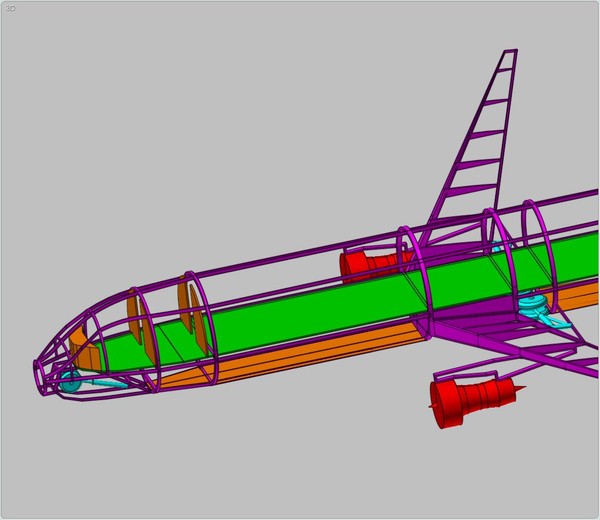

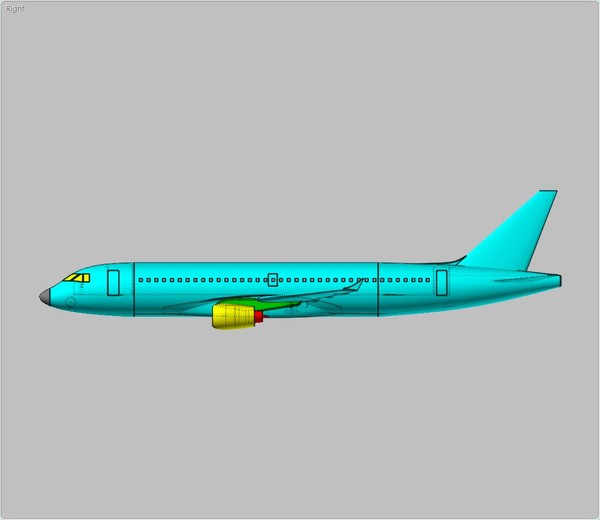

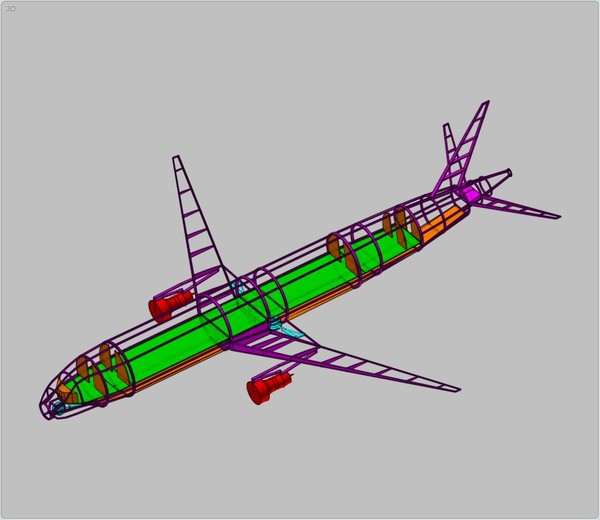

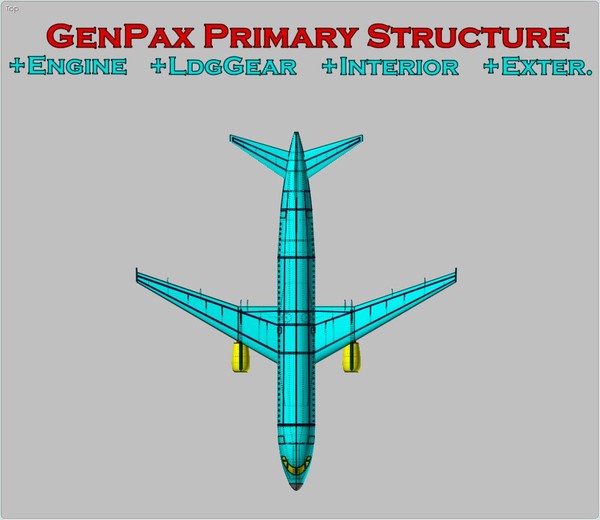

The Primary Structure is modeled as traditional stick/joint allowing load path discrimination and examination. To facilitate visualization the model is separated into five (5)distinct objects: Primary Structure; Moldline; Engines; Interior and Floors; and Landing Gear.

All object constituents (elements) are editable thus allowing redesign and modification.
