Detailed Model of a R160 train

General Information:
Proportionally accurate.
Scale 1 = 1 inch.
No plugins required, this product was made 100% with Cinema4D.

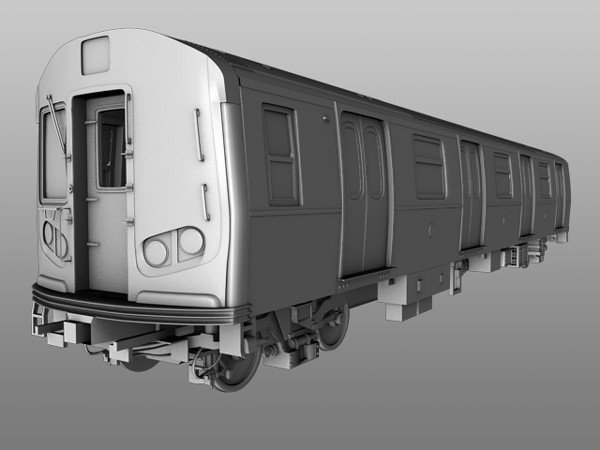

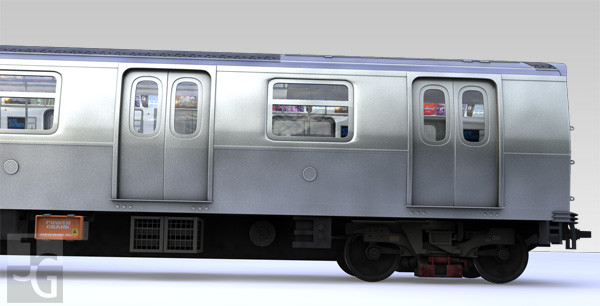

Product Images:
All images were render with the Cinema4D Advanced renderer. No plugins or modifications were made to the images other than levels adjustments in Photoshop.

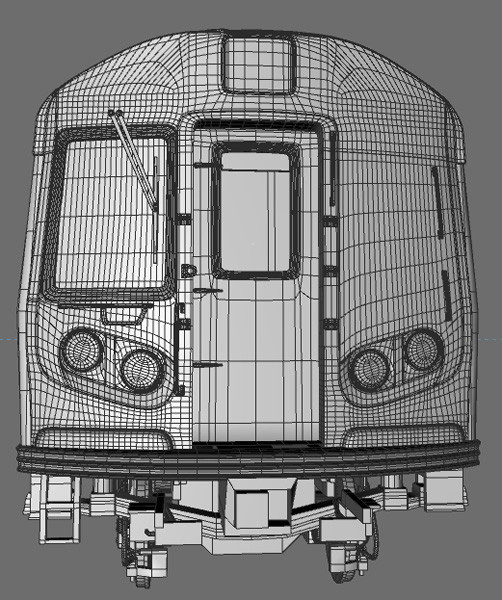

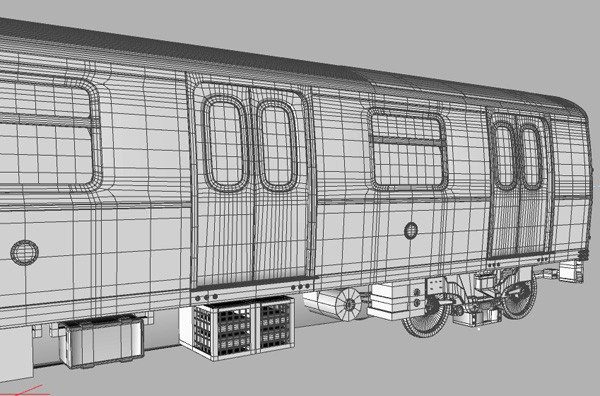

Geometry:

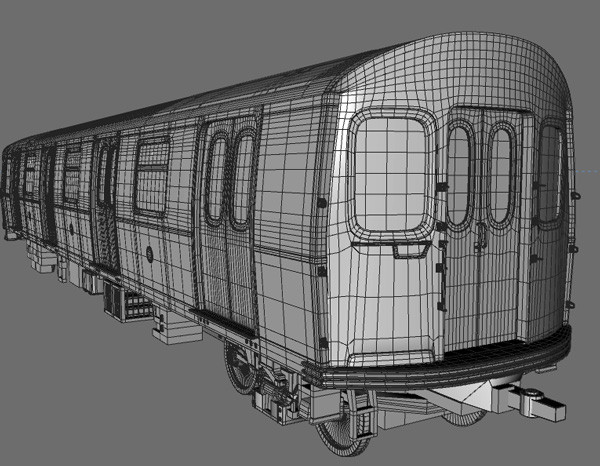

Quads and triangles only. 99% of faces are quads.
Subdivision friendly. Images were generated with a subdivision level of 1 and 2.

UV:
Planar projection was used to generate uv's were necessary.

Materials:
Materials are native Cinema4D materials.

Textures:
Textures were sized based on the area they cover.
Original texture files included (layered TIF or Photoshop)

adds.png 3240x256
batery.png 256x256
front_wheel_details.png 512x512
back_wheel_details.png 512x512
bubble_panel.png 512x512
no_fee_apts.png 512x505
donot_lean_on_door.tif 512x69
door_labels.tif 370x512
labels.png 1024x1024
american_flag.tif 673x423
wall.png 512x512
soil02.png 512x512

Rig:
Doors have been rigged to they can be opened and closed with a simple slider.

Advertisement, brands and names in the interior of the train are fictitious.

Note that the OBJ and FBX versions of the file the rig is not available and material setup may be required in order to achieve similar results.


Technical details:

Rails
points 7962
polygons 7566

Car A base mesh
Points 66258
polygons 61097

Car B base mesh
Points 68885
polygons 63079


Car A - subdiv x1
Points 229607
polygons 220265

Car B - subdiv x1
Points 240606
polygons 230260

8 Wagons Train base mesh
Points 464789
polygons 437376


8 Wagons Train subdiv x1
Points 2232496
polygons 2135290

All parts are offered in separate files for easier workflow, that is Rails, Car A, Car B, and the 8 wagon train.
In addition OBJ, and FBX versions of the file include the base mesh file, and a subdivided version at level 1.


Updates
Feb 19 2011

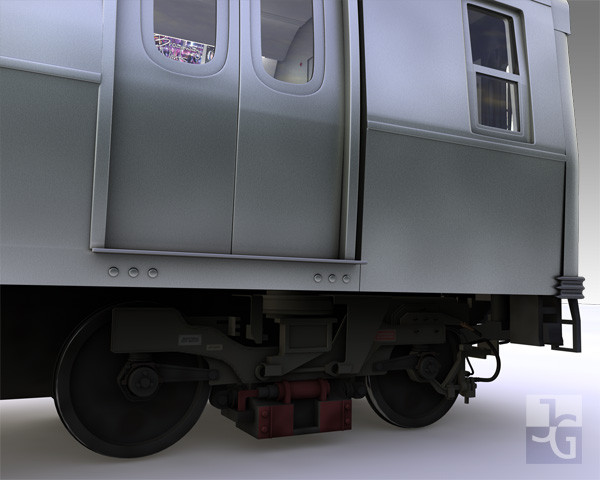

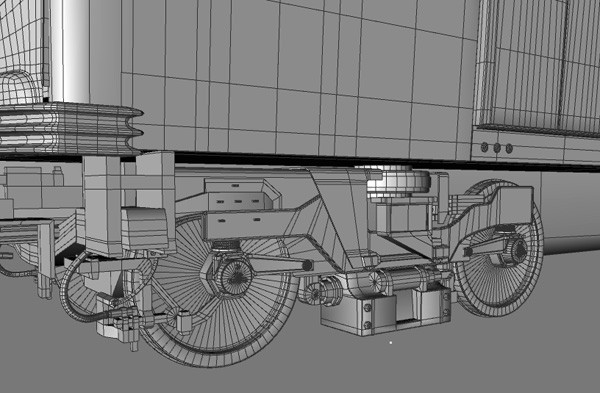

Wheels, machinery and tracks geometry updated with more details and textures where required.
Materials were refined.
Internal and external red lights added.
original texture files included.
bateries and underneath parts remodeled with extra details.
