double bubble assembly 3d dwg - MIT Double Bubble Aircraf Assembly Model by RodgerSaintJohn

The Double Bubble commercial aircraft design concept is the result of a series of analytic studies performed by MIT to identify extremely aerodynamic efficient prospects.

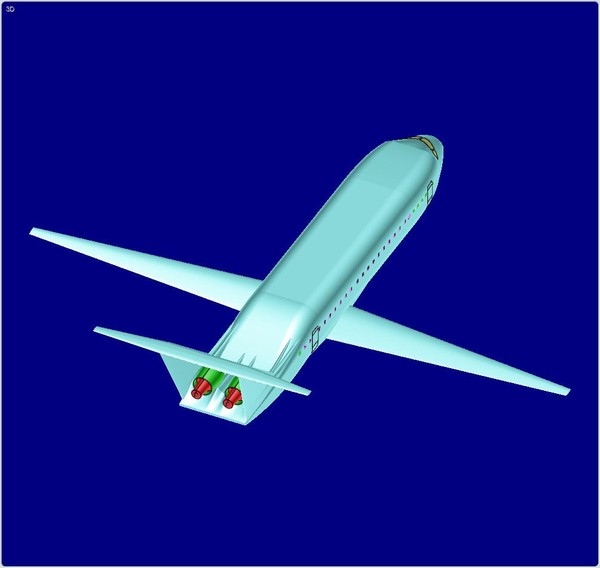

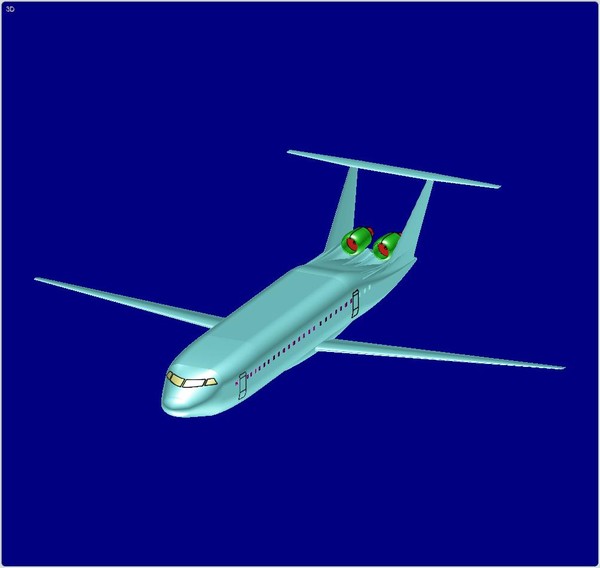

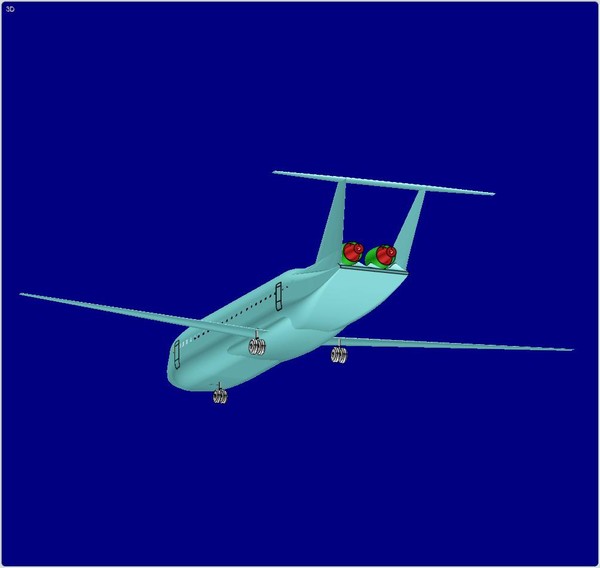

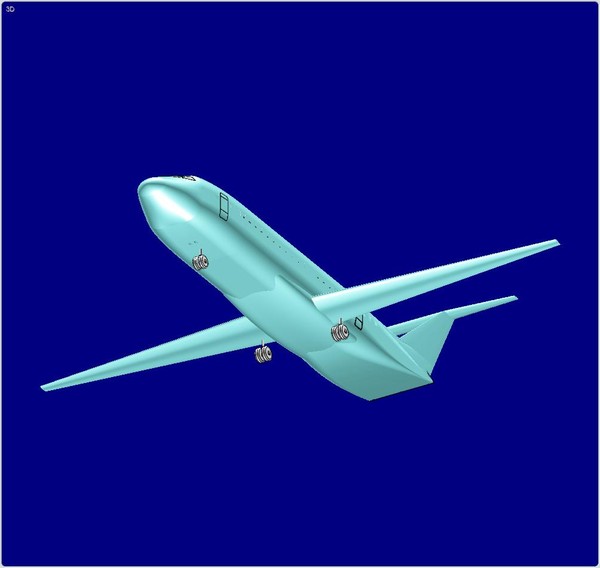

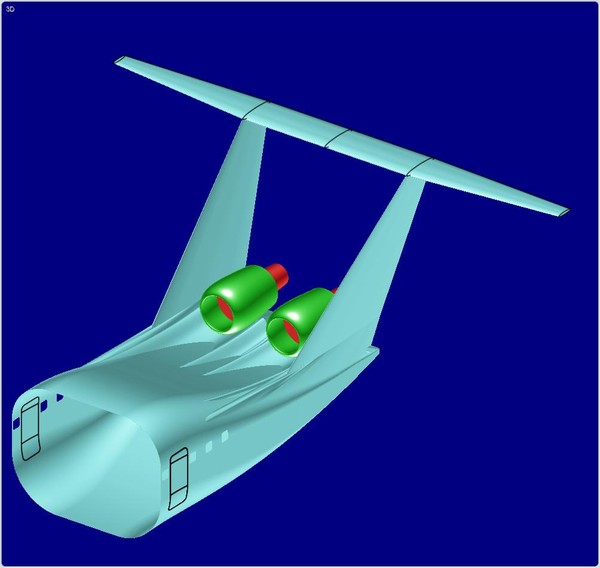

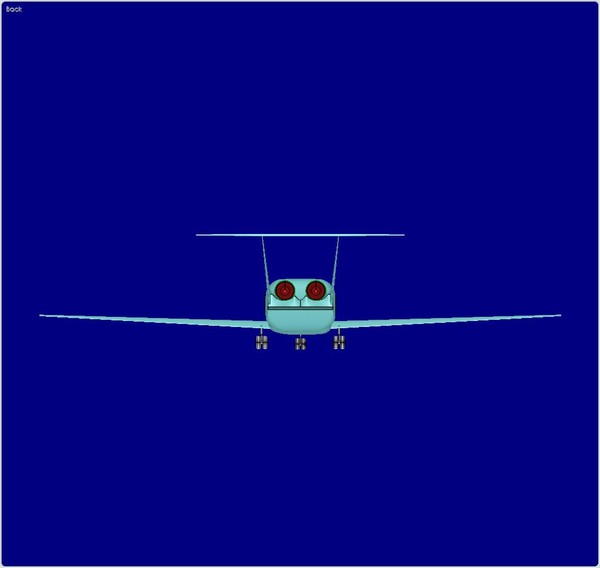

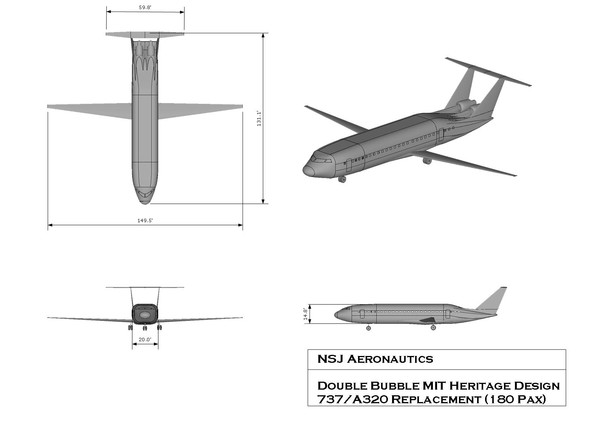

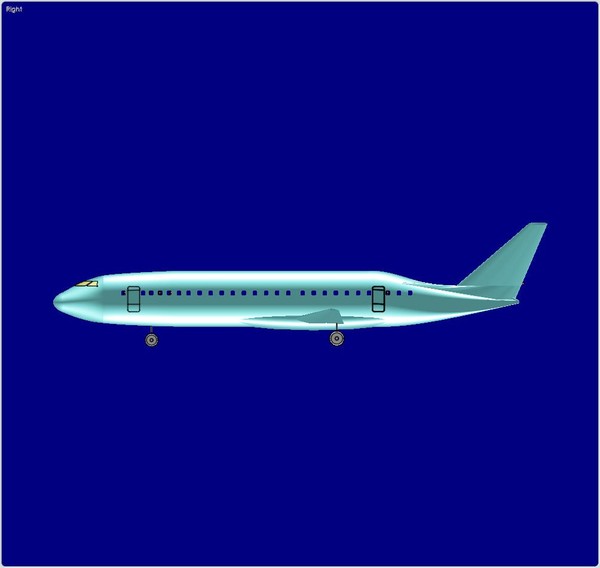

This model represents the favored design which combines full lifting body (including nose) with a high aspect wing and optimally integrated engine arrangement.

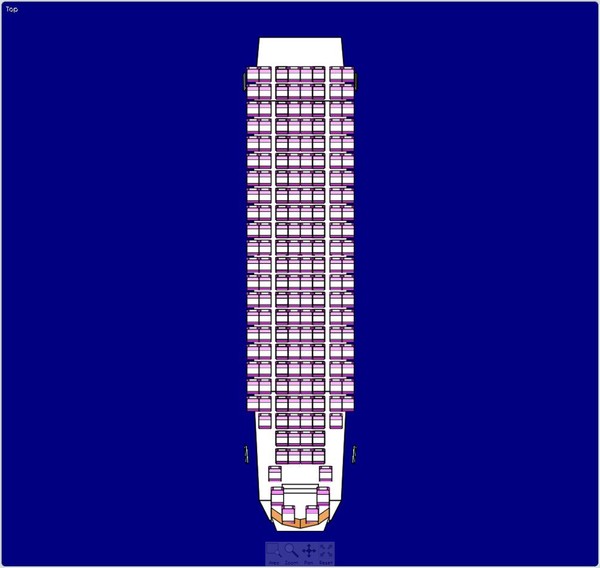

The outcome produces a design capable of carrying 180 pax 3000+ nmi with a 75% reduction in fuel requirements.

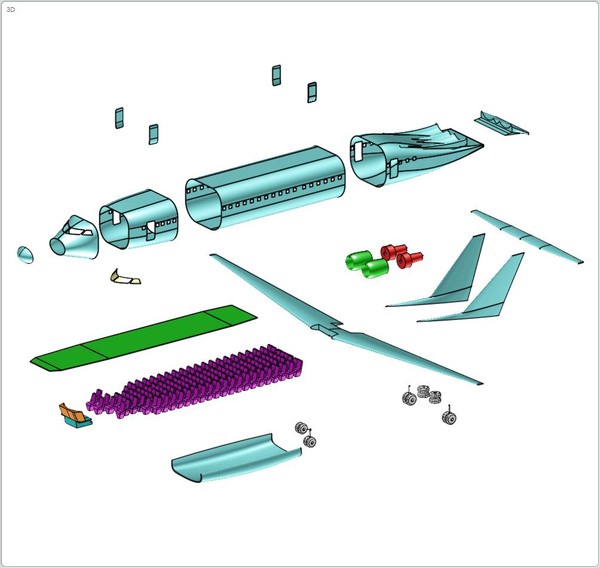

The assembly model consists of 36 individual part / layer subassemblies.
