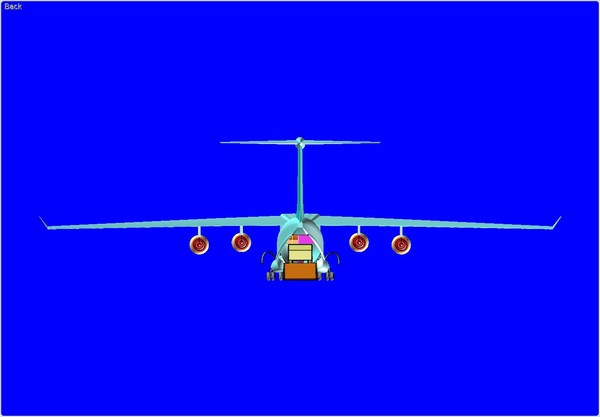

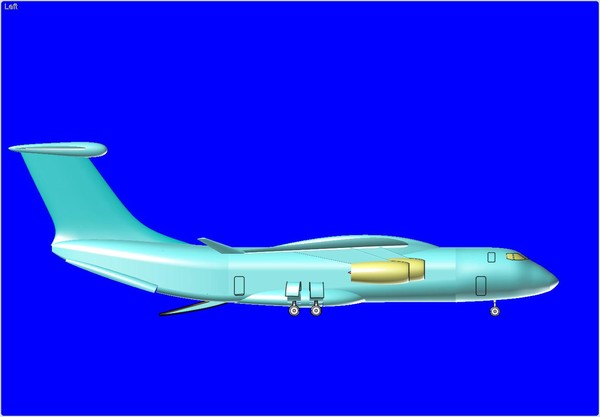

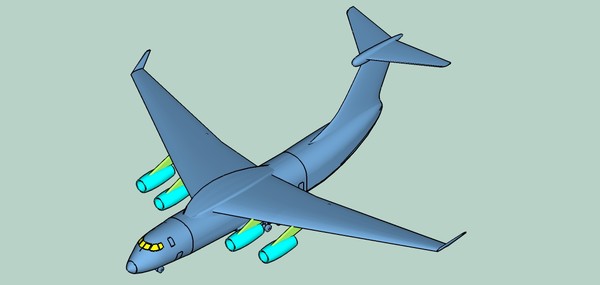

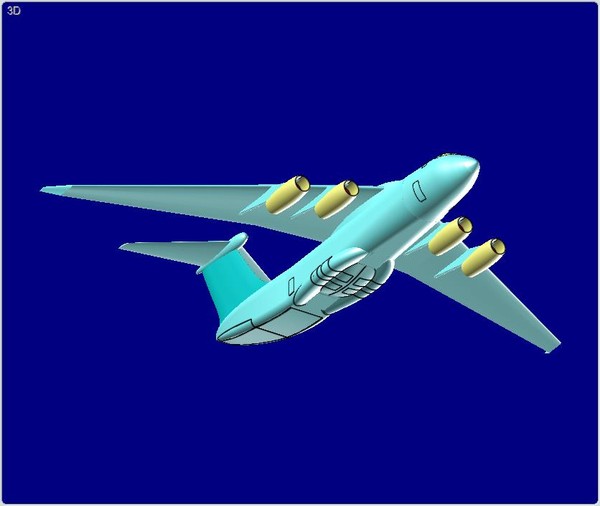

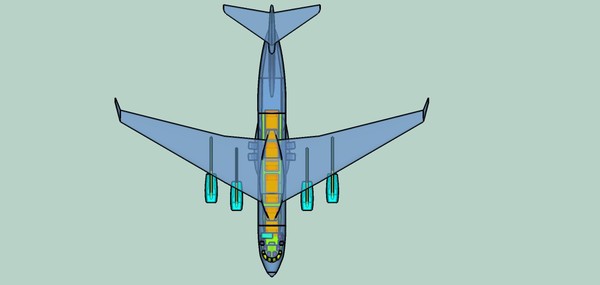

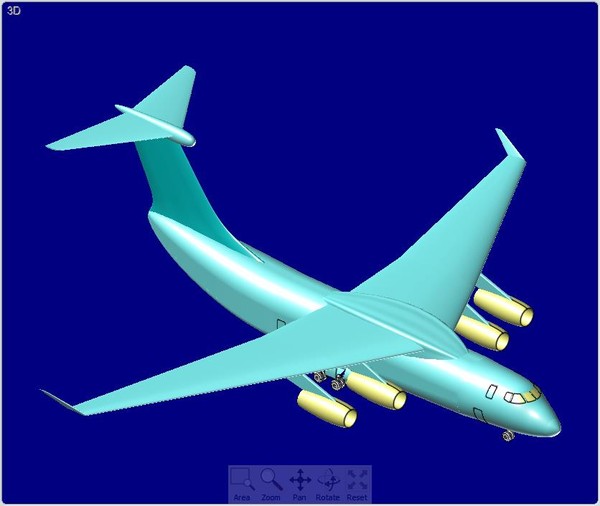

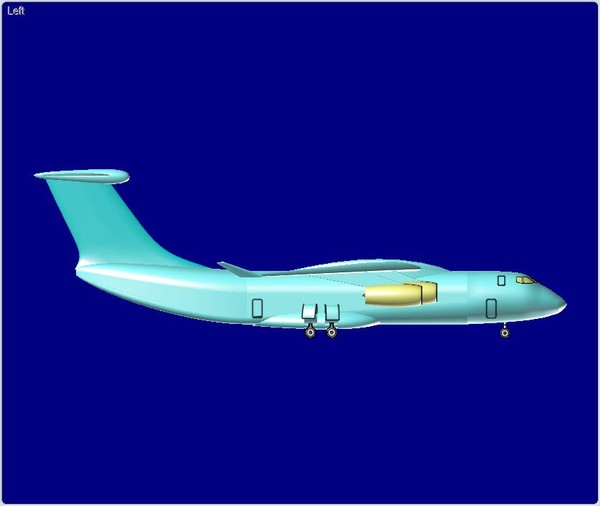

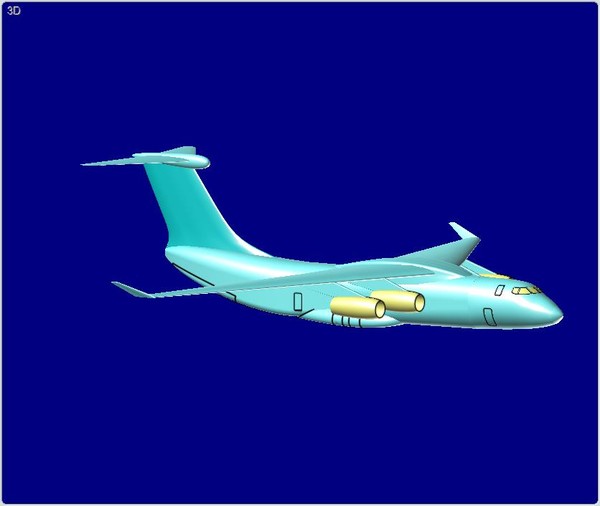

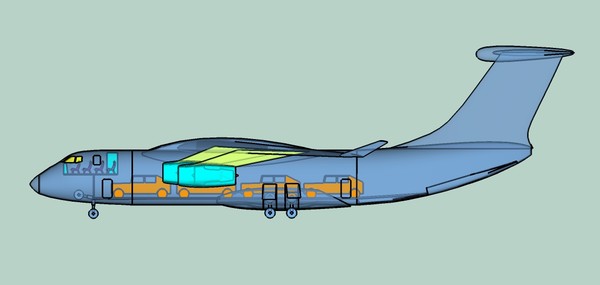

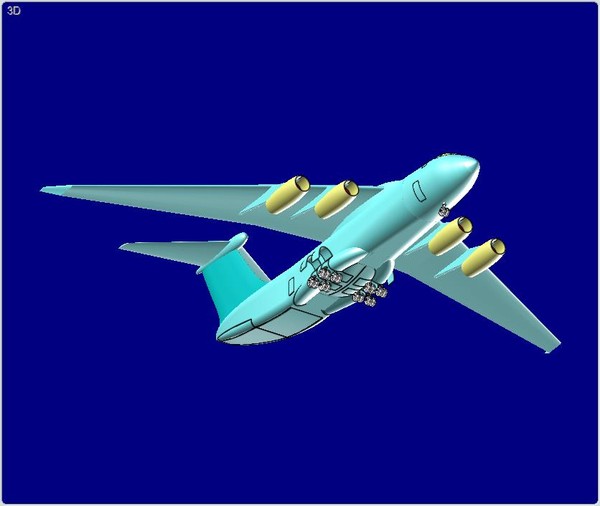

China Y-20 Large Transport Speculative Assembly Model

This model represents a speculation of the Y-20 Aircraft Design.

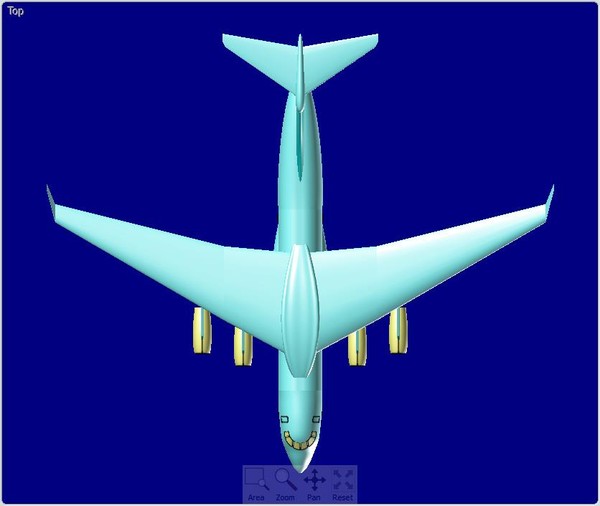

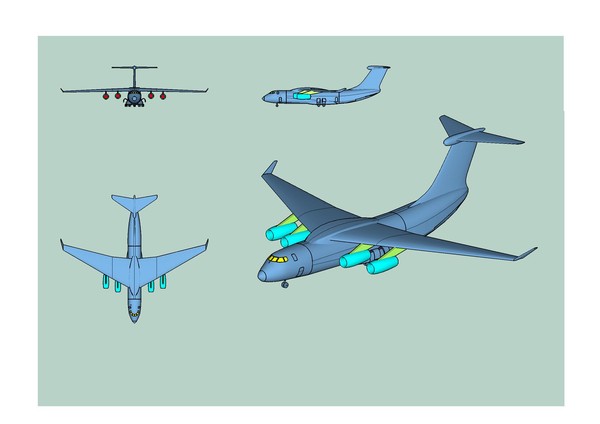

Planform Measurements(approx): 50m span; 47m length
Payload: 50t max
MTOGW: 200t
Range(max payload): +2000 nmi
Speed: Mach 0.82 class

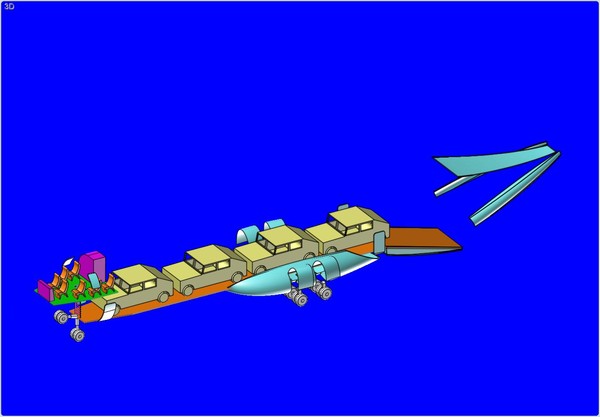

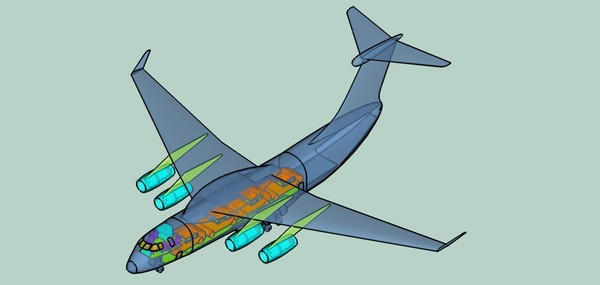

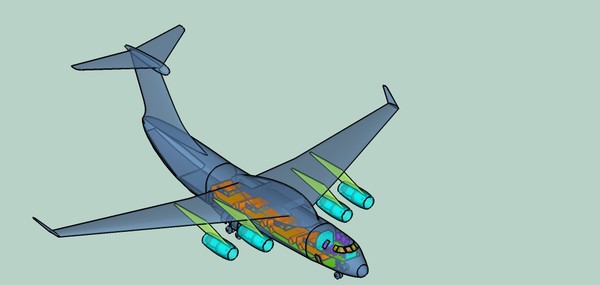

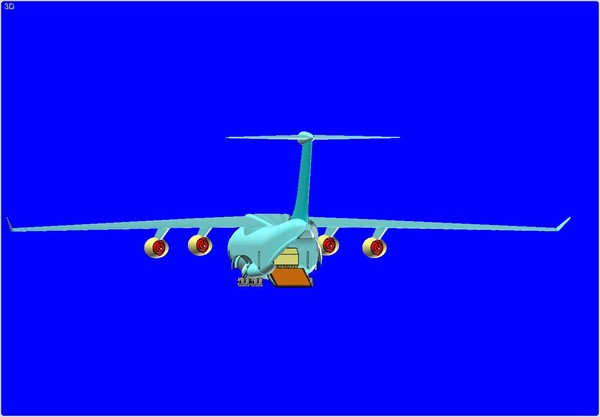

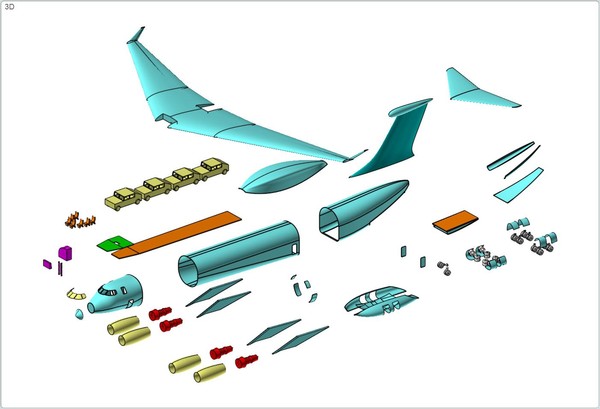

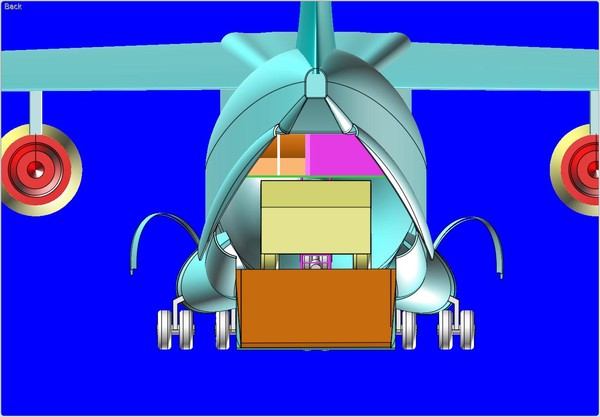

The model consists of over 50 sub assembly parts/layers which may be removed, modified, redesigned or replaced. Specific model parts such as landing gear and cargo doors/ramps can be repositioned to observe design conditions and clearances.
