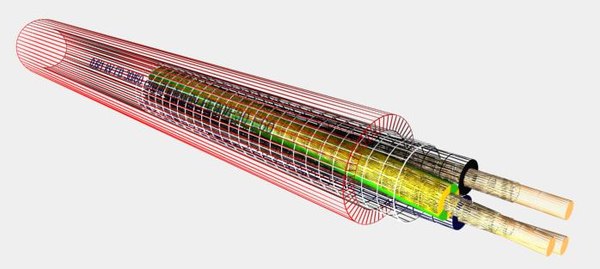

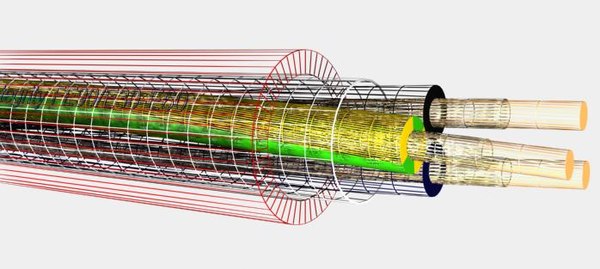

Halogen free installation cable with circuit integrity FE90_E30-E60 3x35 mm2 0,6 1 kV .max

All Extended Uses
Included Formats
3ds Max
Other Files
MICA fire proof.jpg
3D Model Specifications
Product ID:473145
Published:
Geometry:Unknown
Polygons:0
Vertices:0
Textures:No
Materials:No
Rigged:No
Animated:No
UV Mapped:Yes
Unwrapped UVs:Unknown
Artist
TurboSquid Member Since September 2007
Currently sells 281 products
Achievements:
Unrated
Product Rating
Description
Halogen free installation cable with circuit integrity FE90_E30-E60 3x35 mm2 0,6 1 kV

NEN: SMz1Kmbfbzh 0,6/1kV

Application:
· Specially developed for those parts of the circuit installations where 30 or 60 minutes circuit integrity is required
· Halogen free power and control cable for low voltage installations up to 1 kV, suitable for all applications indicated in NEN 1010 and NPR 2576, especially where stringent demands on fire safety apply
· Suitable for humid conditions

Properties regarding fire performance:
· Circuit integrity, in accordance with NEN-EN 50200 and NEN-EN 50362 and, in combination with all approved cable tray systems and mounting methods, in accordance with DIN 4102 part 12
· Fire Resistant, in accordance with IEC 60331
· Halogen free, in accordance with NEN-EN 50267 (IEC 60754)
· Low smoke, in accordance with NEN-EN-IEC 61034
· Flame retardant, in accordance with NEN-EN 50266-2-4 (IEC 60332-3-24 cat. C)
· Self-extinguishing in accordance with NEN-EN-IEC 60332-1

Remarks:
· For cross-section of 35 mm² and above see HULTFLEX mbzh FB 30/60

Construction:
Conductor: plain annealed copper, round
                   ? 6 mm²: solid (class 1)
                   ? 10 mm²: stranded (class 2)
Insulation: ceramifiable silicon rubber (XLSr)
Assembly: cores cabled together and filled to make a round shape or wrapped with polyester foil
Outer sheath: halogen free flame retardant thermoplastic (LSOH)

Electrical data:
Voltage rating: 0,6/1 kV
Test voltage: 3,5 kV

Core colours:
1 core: black
2 cores: brown, blue
3 cores: brown, black, grey (x-version)
               brown, blue, green-and-yellow (G-version)
               brown, black, blue (variant version)
4 cores: brown, black, grey, blue (x-version)
             brown, black, grey, green-and-yellow (G-version)
             brown, black, blue, green-and-yellow (variant version)
5 cores: brown, black, grey, black, blue (x-version)
             brown, black, grey, blue, green-and-yellow (G-version)
Multi cores: one core green-and-yellow, other cores black, numbered (G-version)

Standards/References:
KEMA 164
NEN-EN 50200
NEN-EN 50362
DIN 4102-12
IEC 60331
NEN 2535
NEN 2575
NEN-EN-IEC 60332-1
NEN-EN 50266
IEC 60332-3
NEN-EN-IEC 61034
NEN-EN 50267
IEC 60754

Additional information:
Minimum installation temperature: -20 °C
Maximum conductor temperature: +90 °C
       (temporary overload permissible until +130 °C
Operation temperature: min. -40 °C, max. +80 °C
Outer sheath: red
Approval: KEMA Attestation of Conformity
