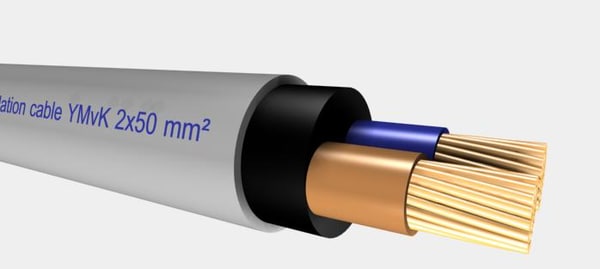

3d ymvk rss 2x35mm2 0 - YMvk rss 2x35mm2 0,6_1 kV .max by Cable Master

Installation cable

NEN: YMvKmb 0,6/1kV rss

Application:
· Power cable for general use in low voltage installations up to 1 kV, suitable for all applications indicated in NEN 1010
· Due to its flexibility also suitable when the installation space is limited and/or for places which are difficult to access
· Installations with many curves
· Suitable for humid conditions
· Can be applied in unfavourable conditions, like an increased ambient temperature, and in cable bundles

Properties regarding fire performance:
· Flame retardant in accordance with NEN-EN 50266-2-4 (IEC 60332-3-24 cat. C)

Remarks:
· For a halogen free version of this product see HULTFLEX mbzh
· Suitable for use with standard cable lugs
· Use VULTO mb or VULTA mb in case of direct burial
· Use VULTFLEX XS mb or flexible transformercable in installations where space is very limited or very difficult to access

Construction:
Conductor: stranded plain annealed copper, round (class 2)
Insulation: cross-linked polyethylene (XLPE)
Assembly: cores cabled together, filled to make a round shape
Outer sheath: polyvinyl chloride (PVC) flame retardant (mb)

Electrical data:
Voltage rating: 0,6/1 kV
Test voltage: 3,5 kV

Core colours:
1 core: black
2 cores: brown, blue
3 cores: brown, black, grey (x-version)
4 cores: brown, black, grey, blue (x-version)
       brown, black, grey, green-and-yellow (G-version)
5 cores: brown, black, grey, blue, green-and-yellow (G-version)

Standards/References:
NEN 3617
KEMA 42C-1-4
HD 604-4-D
NEN-EN 50266
IEC 60332-3

Additional information:
Minimum installation temperature: 0 °C
Maximum conductor temperature: +90 °C
       (temporary overload permissible until +130 °C)
Operation temperature: min. -40 °C, max. +80 °C
Outer sheath: grey
Approval: KEMA-KEUR
