VO-YLKmb 0,6 1kV 2x6mm2 Lead cable

All Extended Uses
Included Formats
3ds Max
Other Files
cable sheeld.jpg

Don't see the file format you need?

Free File Format Conversion

Have questions? Chat with us now.

Live Chat Now 24/7
3D Model Specifications
Product ID:486817
Published:
Geometry:Unknown
Polygons:0
Vertices:0
Textures:No
Materials:No
Rigged:No
Animated:No
UV Mapped:Yes
Unwrapped UVs:Unknown
Artist
TurboSquid Member Since September 2007
Currently sells 281 products
Achievements:
Unrated
Product Rating
Description

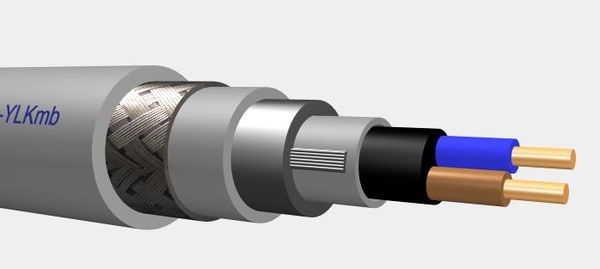

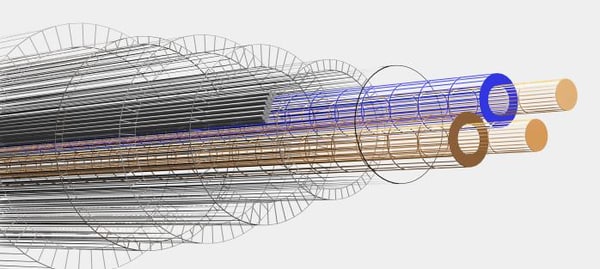

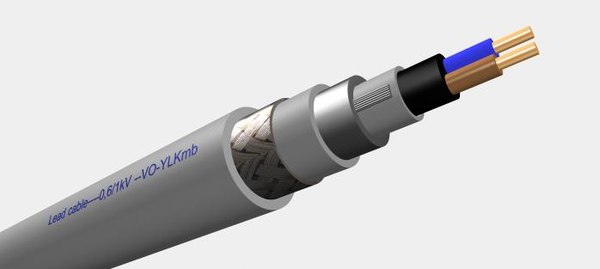

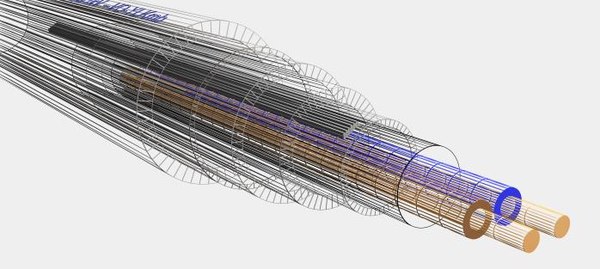

VO-YLKmb 0,6 1kV 2x6mm2 Lead cable

Braided installation cable with a leadsheath

NEN: VO-YLKmb 0,6/1 kV

Application:
· In situations where protection against agressive substances is required
· Suitable for direct burial, for low voltage installations up to 1 kV

Properties regarding fire performance:
· Flame retardant in accordance with NEN-EN 50266-2-2 (IEC 60332-3-22 cat. A)

Standards/References:
NEN 3617
IEC 60502

General properties:
· The lead sheath offers excellent protection against aggressive substances, such as organic solvents and fuels and is very corrosion-proof. Lead cannot withstand concentrated NitricAcid and organic acids
· Steel wire braiding offers an excellent mechanical protection

Remarks:
· Attention: the conductivity of the lead sheath and the earthing lead(s) should be added together in order to determine the earthing capacity

Construction:
Conductor: plain annealed copper, round
Insulation: cross-linked polyethylene (XLPE)
Assembly: 2 up to 5 cores: cores cabled together, filled to make a round shape
                   = 6 cores: cores cabled together, wrapped with polyester foil
Inner sheath: polyvinyl chloride (PVC)
Chemical protection: lead, with one or more earth leads of tinned copper wires underneath
Sheath: polyvinyl chloride (PVC)
Braiding: galvanized steel wires
Outer sheath: polyvinyl chloride (PVC) flame retardant (mb)

Electrical data:
Voltage rating: 0,6/1 kV
Test voltage: 3,5 kV

Core colours:
2 cores: brown, blue
3 cores:brown, black, grey
4 cores: brown, black, grey, blue
5 cores: brown, black, grey, black, blue
Multi cores: black, numbered

Standards/References:
NEN 3617
IEC 60502
NEN-EN 50266
IEC 60332-3

Additional information:
Minimum installationtemperature: 0 °C
Maximum conductor temperature: +90 °C
         (temporary overload permissible until +130 °C)
Operating temperature: min. -40 °C, max. +80 °C
Sheath colour: grey
Packaging: drums
