M109A3 155mm SPH

All Extended Uses
Included Formats
3DS
Autodesk FBX
OpenFlight
Lightwave 6.5
3ds Max 7
Maya 7
OBJ
Other Textures
DirectX
Softimage 8
3D Model Specifications
Product ID:431407
Published:
Geometry:Polygonal
Polygons:3,435
Vertices:3,782
Textures:Yes
Materials:Yes
Rigged:No
Animated:No
UV Mapped:Yes
Unwrapped UVs:Yes, overlapping
Artist
TurboSquid Member Since September 2002
Currently sells 1650 products
Achievements:
1 Rating Submitted
Product Rating
Description

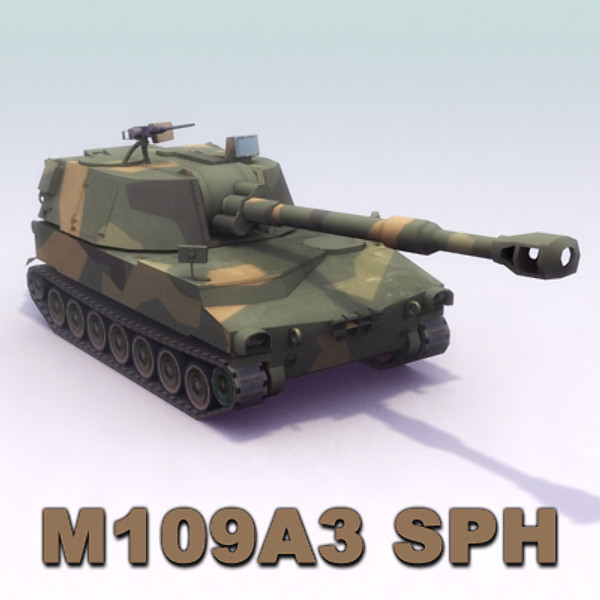

High detail low-impact M109A3 155mm Self Propelled Howitzer. 2048 res PSD texture also available on request. Part of a huge related collection available from ES3DStudios.

Many more linked sets available from ES3DStudios in a range of formats. Click 'ES3DStudios' for full range.

***** Texture available in it's own zip download ******

The M109A3 is a depot converted M109A1 incorporating the 27 mid-life improvements. The operational characteristics of the M109A3 are virtually identical to the M109A2. Some M109A3s have three contact arm assemblies: all M109A2 have five contact arm assemblies.

M109 is a 155mm self-propelled howitzer developed in the 1950s as a replacement for the US Army's M44. It features full tracked chassis, one M185 or M284 155mm cannon as primary armament and a roof-mounted M2 .50 caliber machine gun as secondary armament. M109s equipped with M185 cannon achieves ranges of 23,500 meters while M284 a top range of 30,000 meters firing rocket-assisted projectiles.

M109 primary armament is suitable for both beyond line-of-sight and line-of-sight engagements. M109A5/A6 models were equipped with the M284 cannon replacing M185 on previous models. M109s have been deployed providing artillery fire support during Vietnam, Iran-Iraq 1980s, Middle East wars between Israel and Arab nations 1960s-1980s, operation Desert Storm 1991 and operation Iraqi Freedom 2003.

In addition to the US Army, M109 howitzers have been sold to more than 30 international customers with over 4,000 units produced to date. M109A3G is an improved M109A3 variant utilized by the German Army. M109L is a modified M109 utilized by the Italian Army. M09AL is utilized by Israel. The M992 is a re-supply armored vehicle derived from the M109 chassis. M992 carries 155 ammunition and charges protected under armor for M109 howitzers deployed on the battlefield.
Specifications

Accommodation: Crew 6

Guns: Main Gun Caliber 155 mm

Dimensions: Height 3 m, Length 9.1 m, Width 3.1 m

Weights: Max Weight 25,000 kg 55,115 lb

Performance: Main Gun Max Range 23,500 m 77,100 ft, Max Range 349 km 188 nm, Top Speed 16 mps 31 kt

Other: Max Rate of Fire 4 rounds per minute, Sustained Rate of Fire 1 rounds per minute

---------------
---------------
